Outdoor 3D and front maintenance are two key demands for the big outdoor LED video wall DOOH with wall mounted solution, GL series can be made in 90 degrees corner 3D LED screen with totally front service.
Product Name: Fixed 90 Degrees L Shape Corner LED Display
Product Model: GL Series
Product Description:
Dimension: 1000x1000mm
Weight: 29kg/pc
Pixel Pitch Outdoor: P2.9, P3.9, P4,8
Key Features:
1.L-shaped Design
2.High Brightness and Visibility
3.Outdoor Fixed Applications
4.Customizable
Want to grab people’s attention? With Dazzview high brightness clarity performance LED display for DOOH. Make your brand stand out from crowd.
GL series is a special design product which has a very high quality for the visual clarity, front maintenance maintenance for 3D DOOH LED display screen solution.

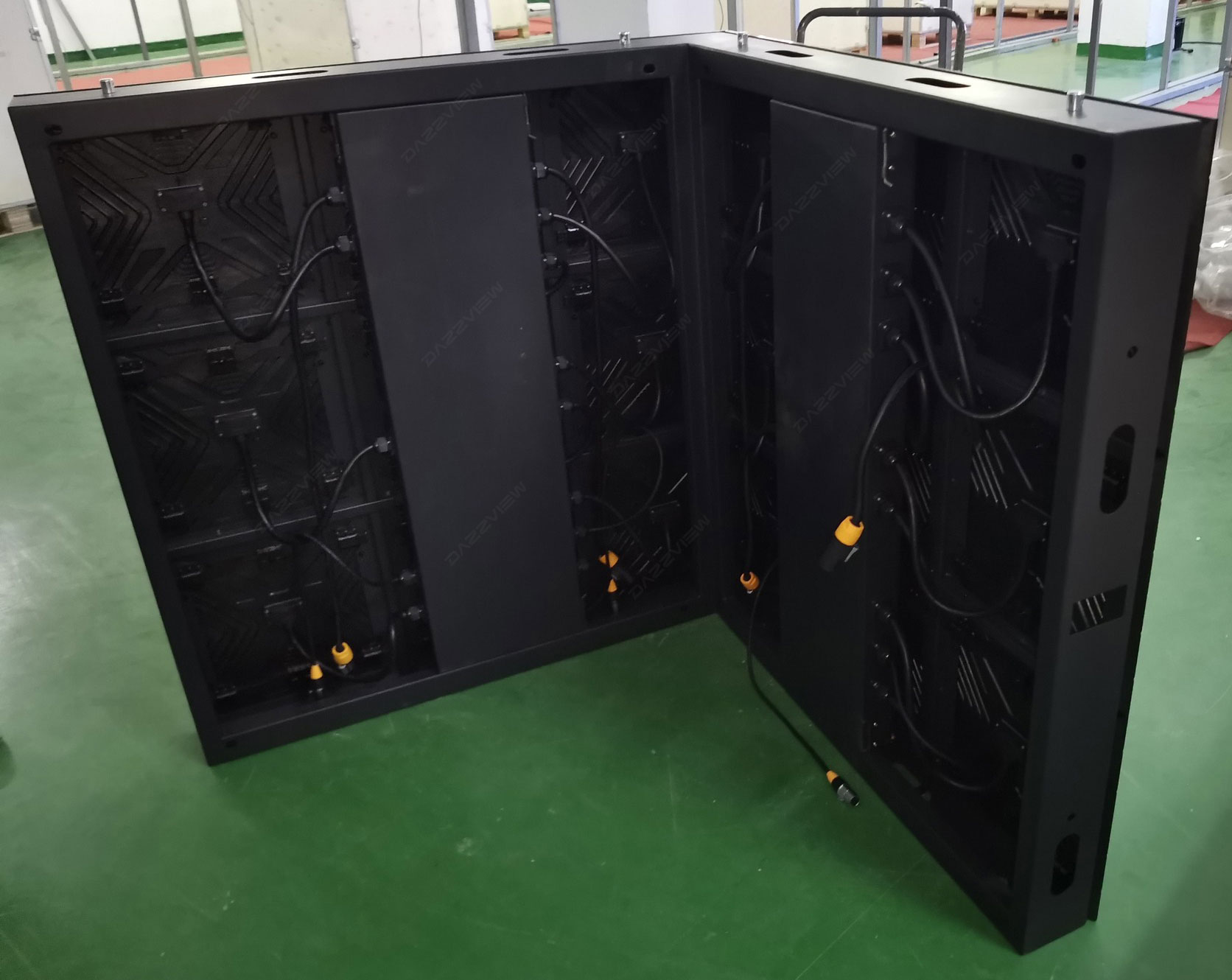

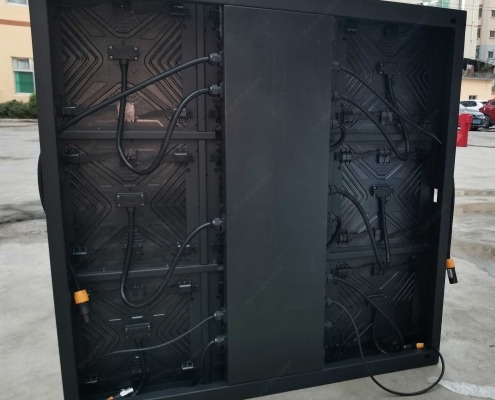

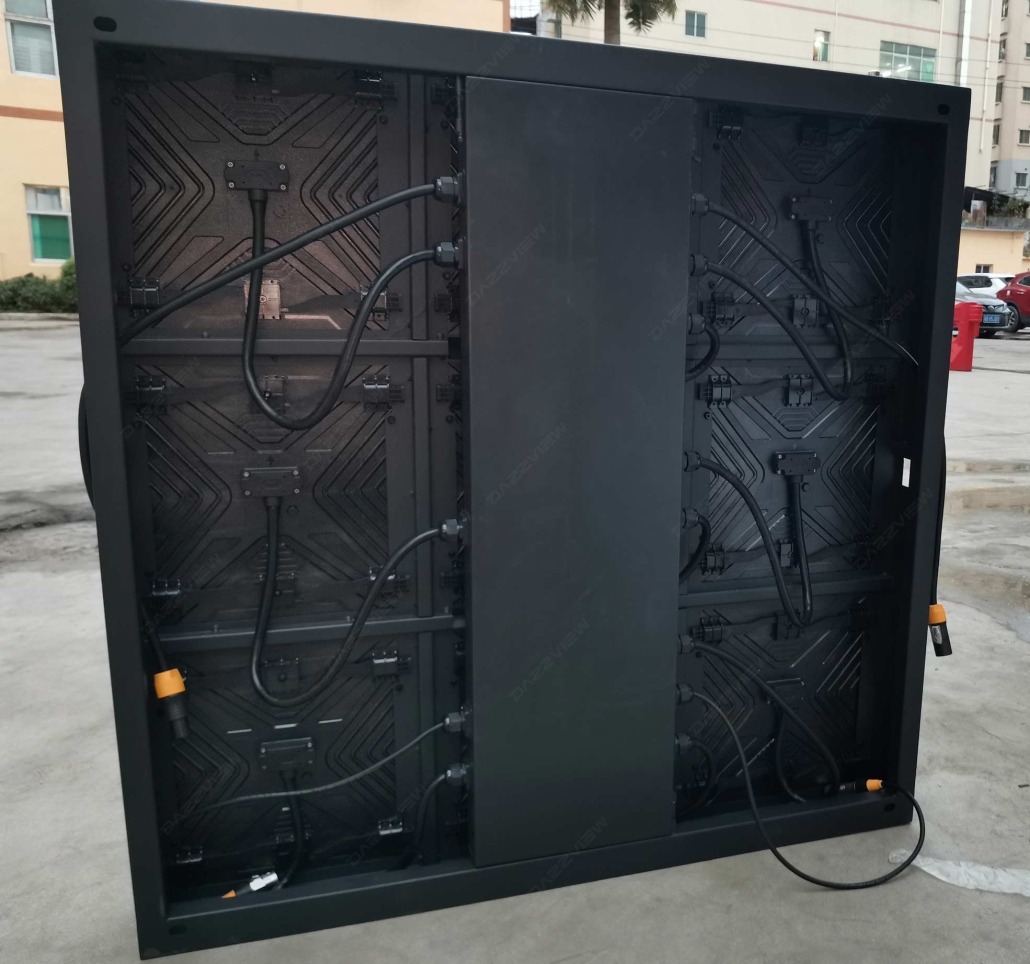

Full front maintenace design which is suitable for the wall mounted project with no space at back side. It save the installation space and steel structure.

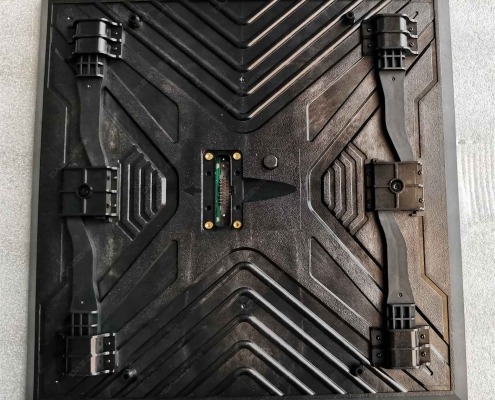

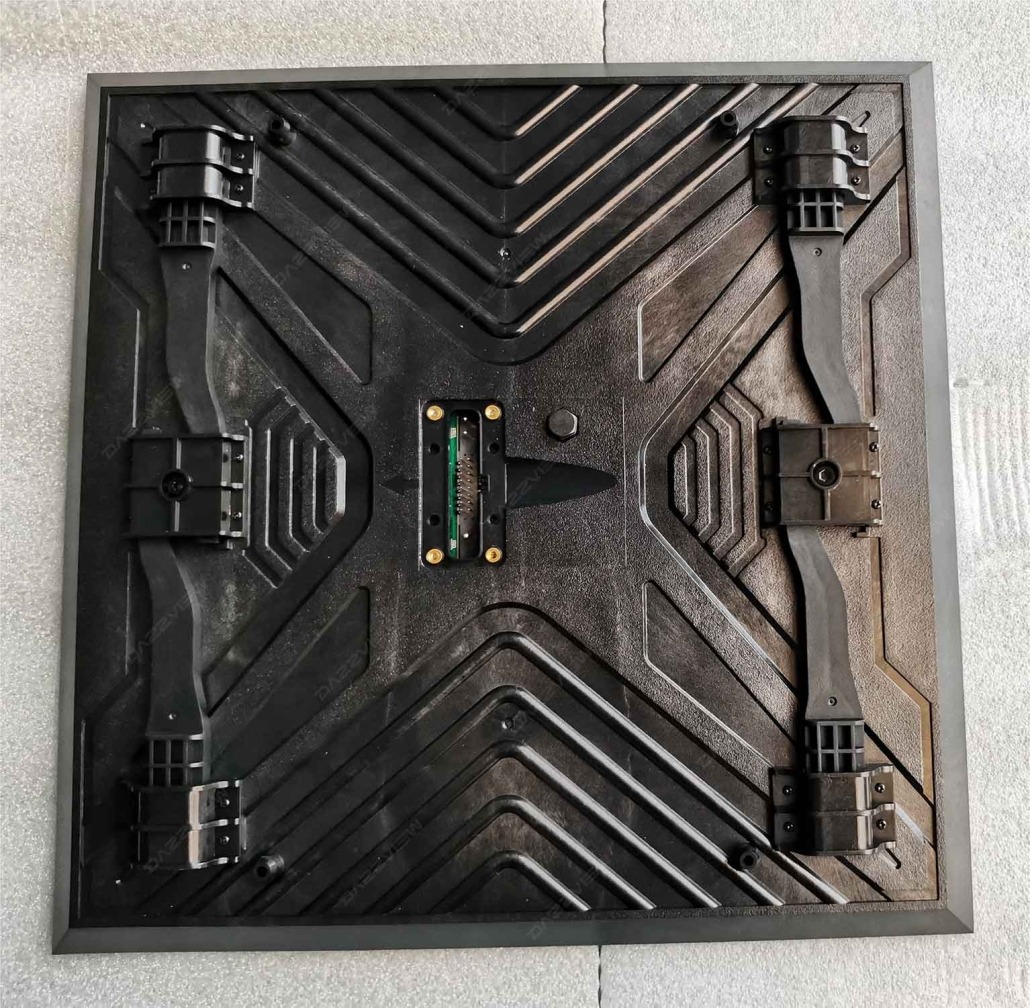

The front and rear maintenance modules are easy to be maintenance with T tool from front and rear.
The power/signal connector in a high safety protection gurantee the high waterproof rate in front and back.
The aviation connectors make sure the connection safe and fast.

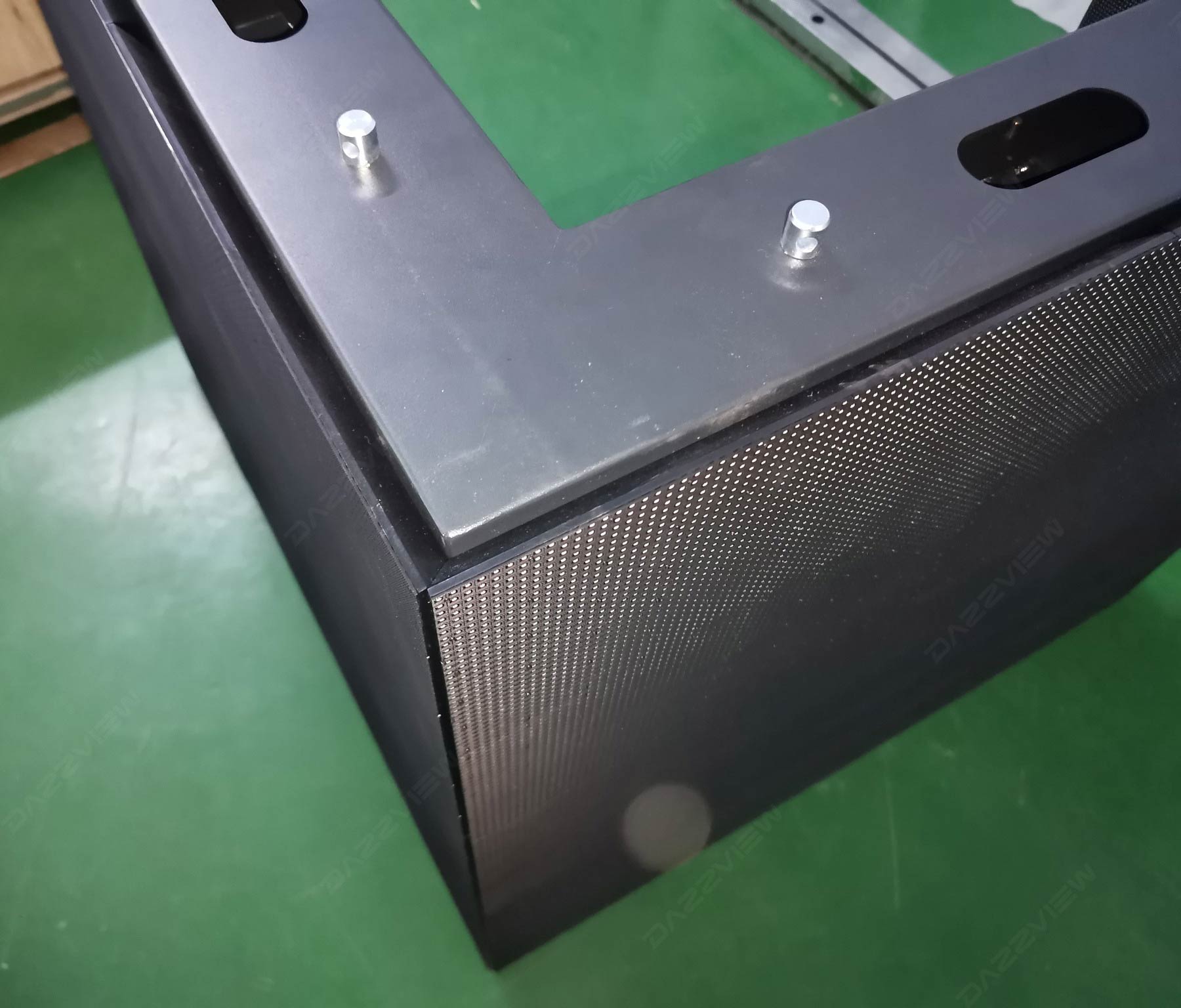

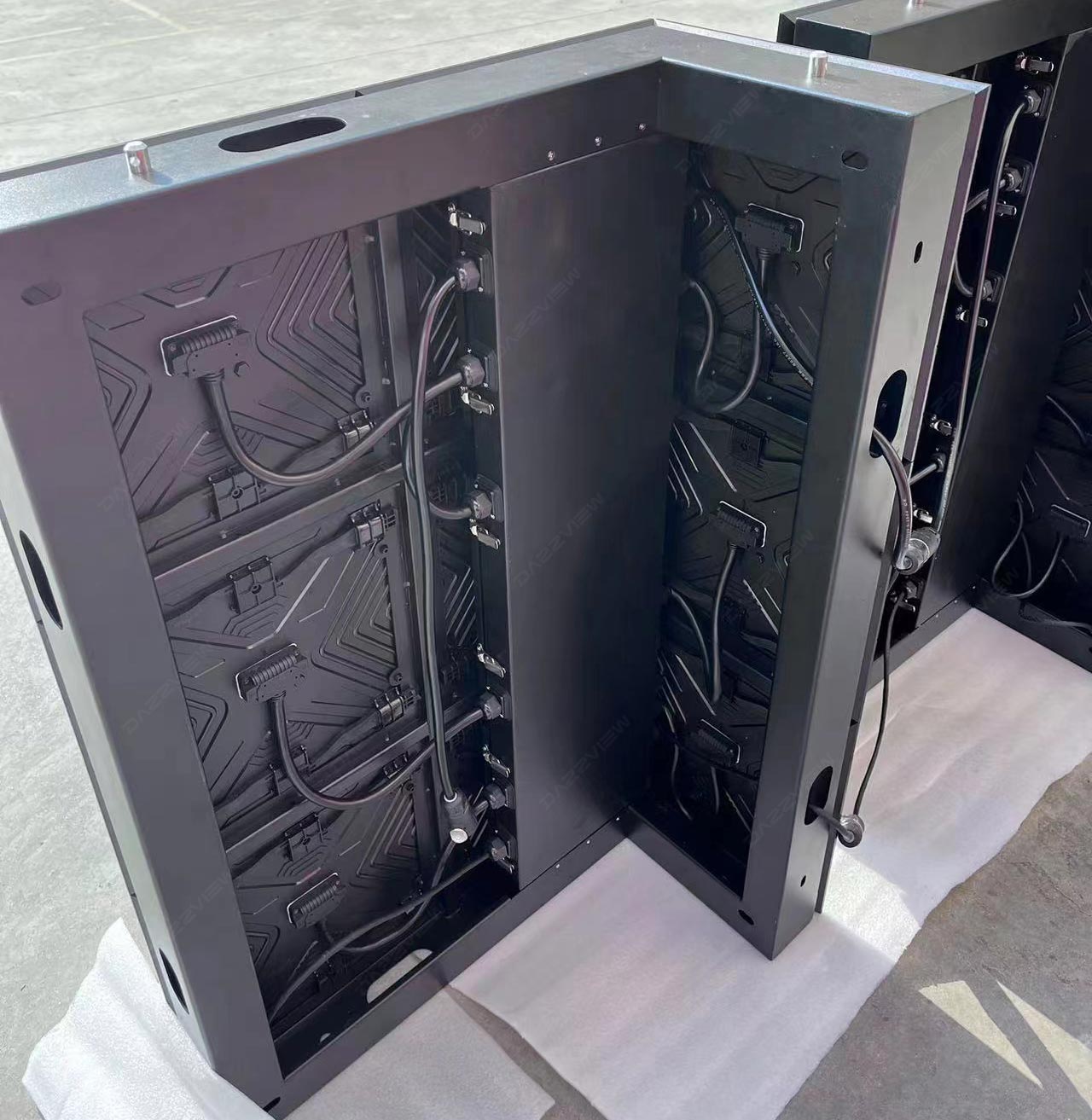

Full front service with 3D 90 degrees corner design is the biggest advantage of GL series LED display. When there is a wall, and full front service demand, our GL series is suitable and works perfectly.
High quality for outdoor 3D DOOH solution, good performance for the cabinets connection.

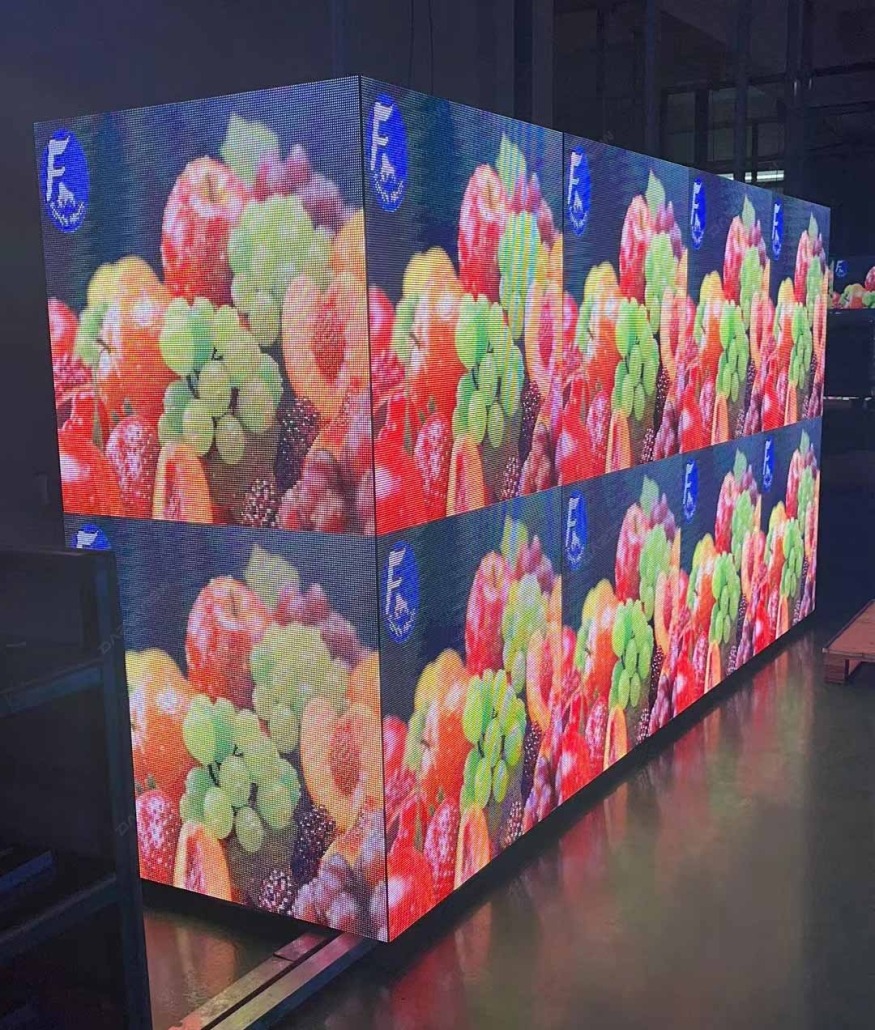

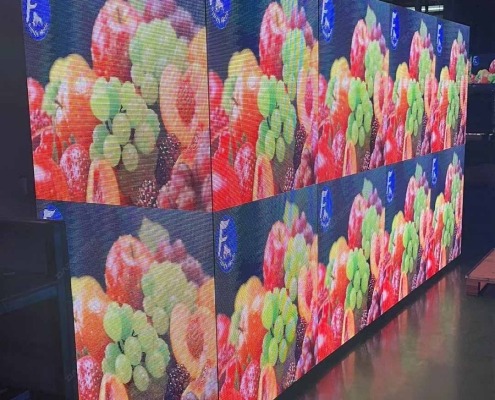

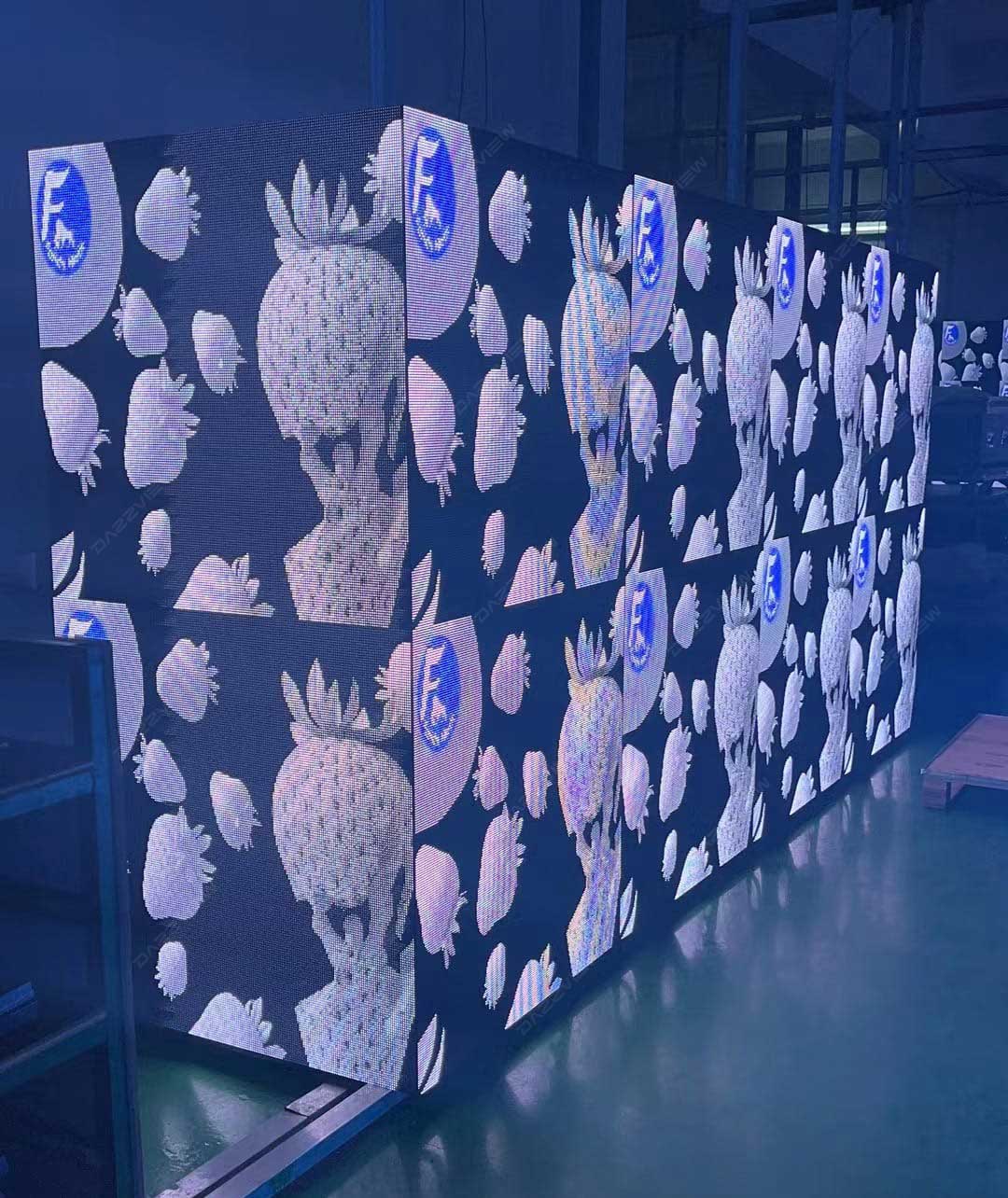

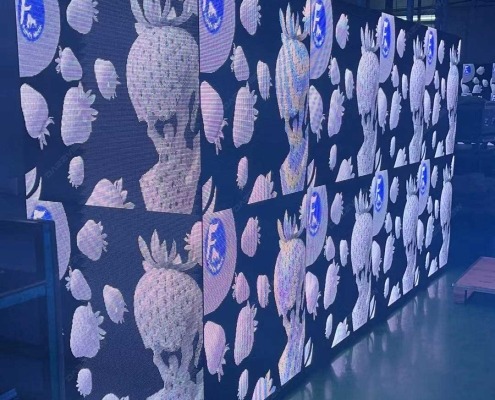

High quality visual effect for the outdoor 3D DOOH LED display solution. The gap between the corner is very small.
GL series is easy to be mounted on the wall because of the front maintenance function. If there is limited space at the back of the cabinet, just choose GL series.
| Specification | |||||||
| Model No. | GL2.9 | GL3.9 | GL4.8 | GL5 | GL6.6 | GL8 | GL10 |
| Pixel Pitch | 2.976mm | 3.91mm | 4.81mm | 5mm | 6.67mm | 8mm | 10mm |
| LED Type | SMD1415 | SMD1921 | SMD1921 | SMD1921 | SMD2525/SMD2727/SMD3535 | SMD2525/SMD2727/SMD3535 | SMD3535 |
| Pixel configuration | 1R1G1B | ||||||
| Size of module(W*H) | 250x250mm | 320x320mm | |||||
| Resolution of module(W*H) | 84×84 dot | 64×64 dot | 52×52 dot | 64×64 | 48×48 | 40×40 | 32×32 |
| Density | 112,896dots/㎡ | 65536dot//㎡ | 43264dot//㎡ | 40000dots/㎡ | 22500dots/㎡ | 15625dots/㎡ | 10000dots/㎡ |
| Cabinet material | Steel/Aluminum | ||||||
| Size of cabinet(W*H) | 1000mmx1000mm | 960mmx960mm | |||||
| Weight of cabinet | 29kg(steel)/22kg(aluminum) | 28.5kg(steel)/21.5kg(aluminum) | |||||
| Best viewing distance | >2.9m | ＞4m | ＞5m | ＞5m | ＞5m | ＞5m | ＞5m |
| Best viewing angle | 140° | ||||||
| Brightness | 5500cd/㎡ | 5500cd/㎡ | 5500cd/㎡ | 5500cd/㎡ | 5500cd/㎡ | 5500cd/㎡ | 5500cd/㎡ |
| Maximum power consumption | 600W/㎡ | ||||||
| Average power consumption | 200W/㎡ | ||||||
| Driving method | 1/21 scanning | 1/16 scanning | 1/13 scanning | 1/8 scanning | 1/6 scanning | 1/5 scanning | 1/2 scanning |
| Gray scale | 14-16bit | ||||||
| Refresh frequency | ≥3840HZ | ||||||
| IP grade | IP65 | ||||||
| Colors | 16777216 | ||||||
| Color temperature | 6500-9500k | ||||||
| Driving device | Constant current | ||||||
| Working voltage | AC220V/110V±10% | ||||||
| Working temperature | —20℃~50℃±10% | ||||||
| MTBF | >10,000 hours | ||||||
| Frame frequency | 60Hz | ||||||
| Life Span | 100,000 hours | ||||||
