Creative Circle LED Display with Soft LED Module
Attract attention with our Creative Circle LED Display featuring a Soft LED Module. Ideal for advertising, exhibitions, and event displays.
DAZZVIEW TECHNOLOGY
Creative Circle LED Display with Soft LED Module
Product Name: Creative Circle LED Display with Soft LED Module
Product Model: Dcircle series
Product Description:
Key Features:
1.Seamless connection between modules
2.Content Management: text, graphics, animations, and various effects
3.Indoor & Outdoor Applications
4.Weather-resistant materials
5.Customizable in content, colors, brightness levels, and visual effects
6.Unique visual impact: artistic or aesthetic element
DAZZVIEW LED DISPLAY

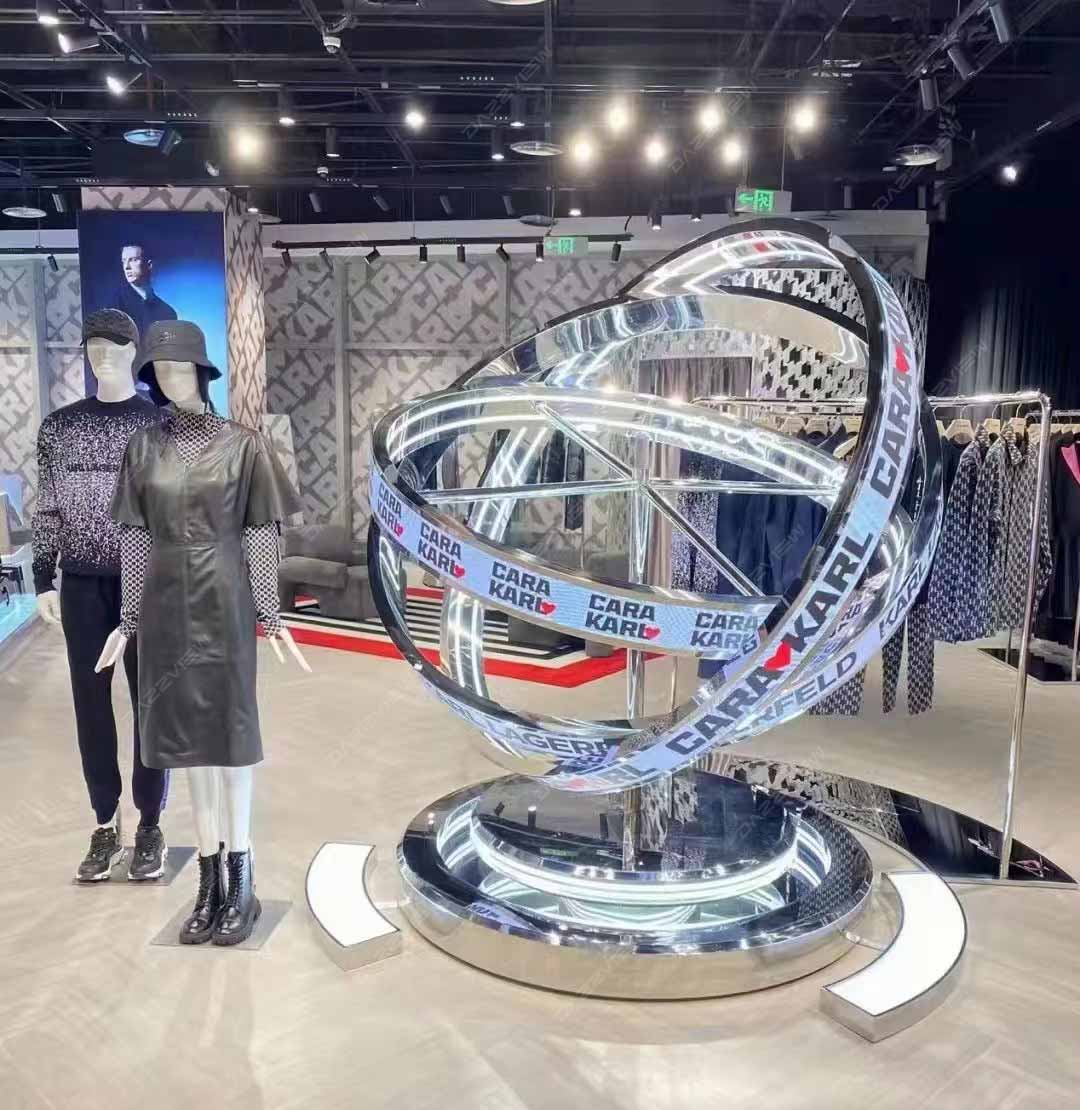

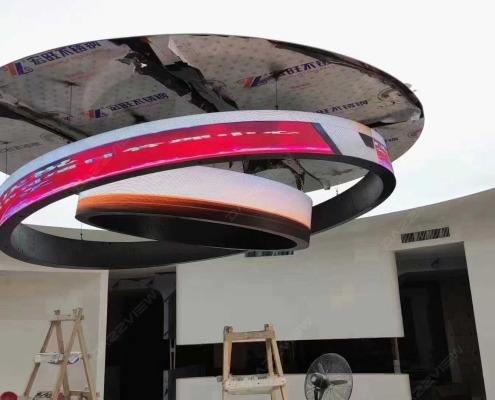

Circle Shaped LED Display More Attractive People’s Attention!
A circle-shaped LED display is a specialized type of LED display that is designed in a circular or round shape. It deviates from the more common rectangular or square-shaped LED displays and offers a unique and visually appealing way to present information or visual content.
DAZZVIEW LED DISPLAY

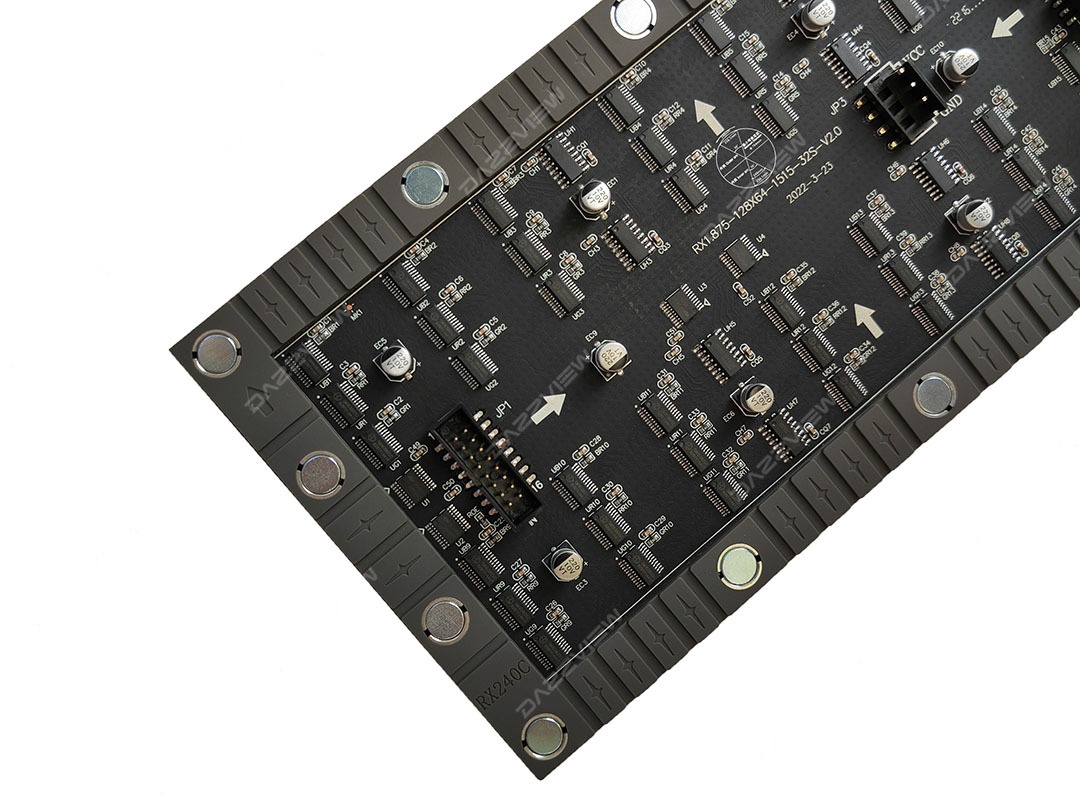

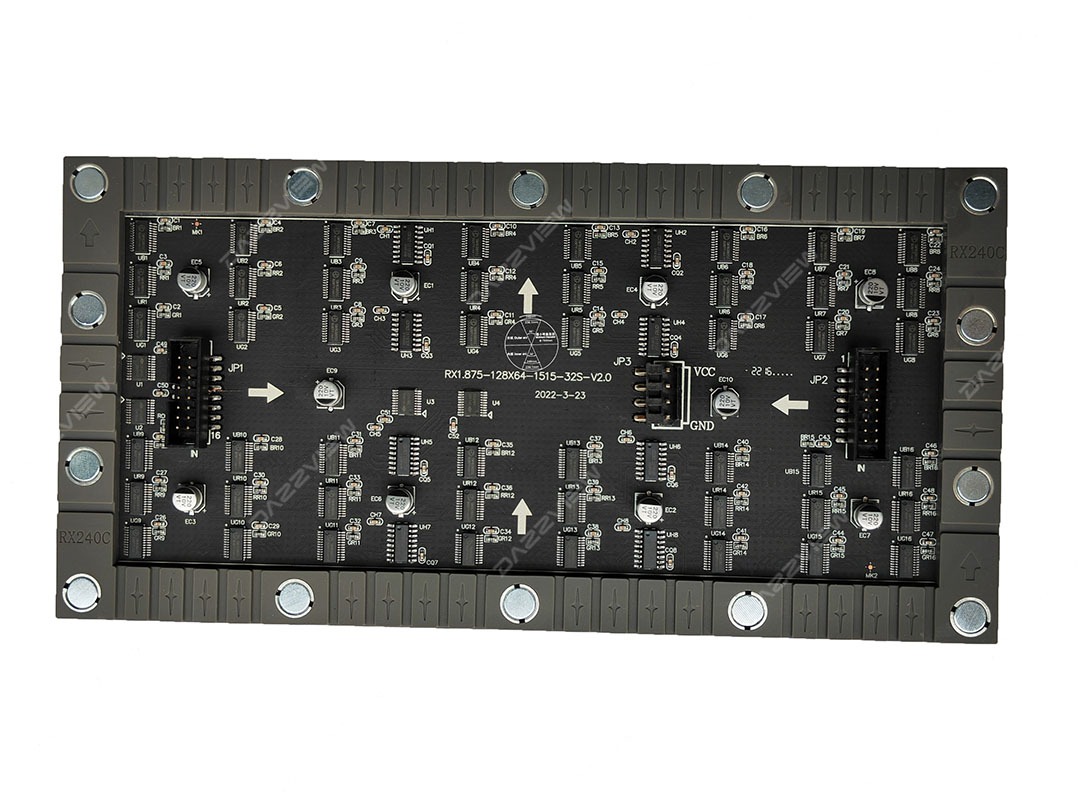

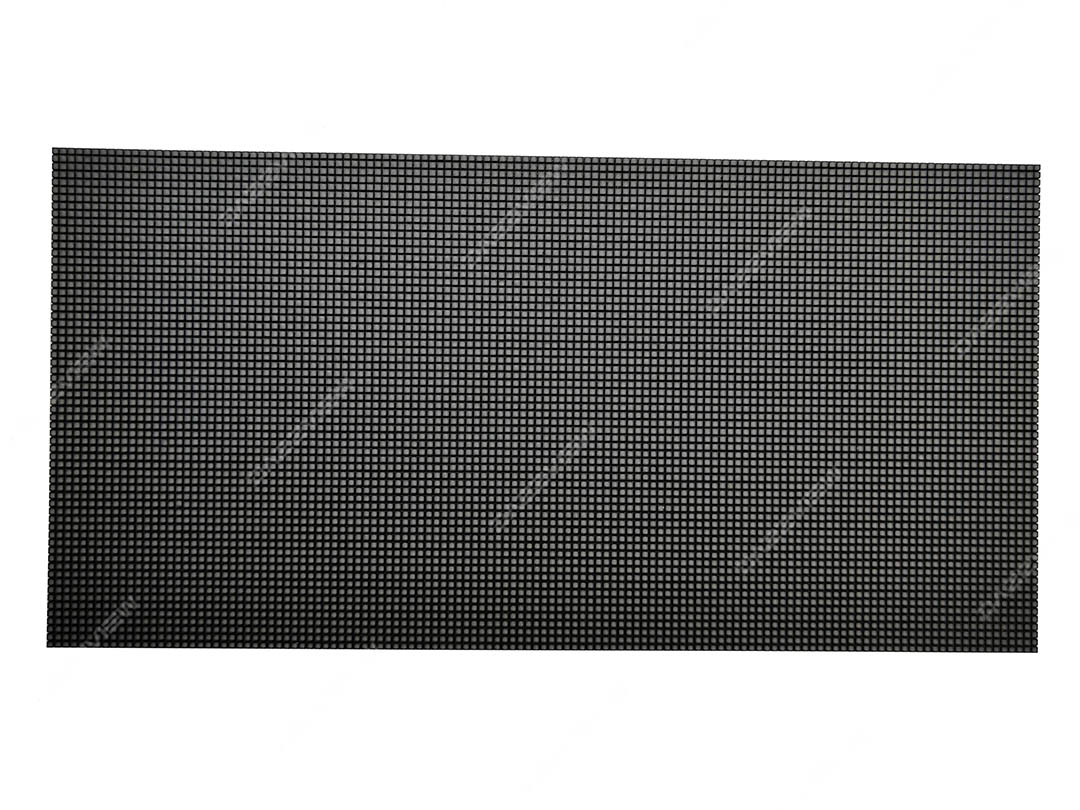

Soft Module With Magnets Design!
With strong magnetic design, the soft LED module can easily stick on the structure sturdy with high flatness. And easy to do the maintenance from front side.
The module is slim design in 5mm which guarantee the space between module and structure is small, so it can reduce the gaps between modules.
More magnets to be used on each module for strong strick on the structure.
DAZZVIEW LED DISPLAY

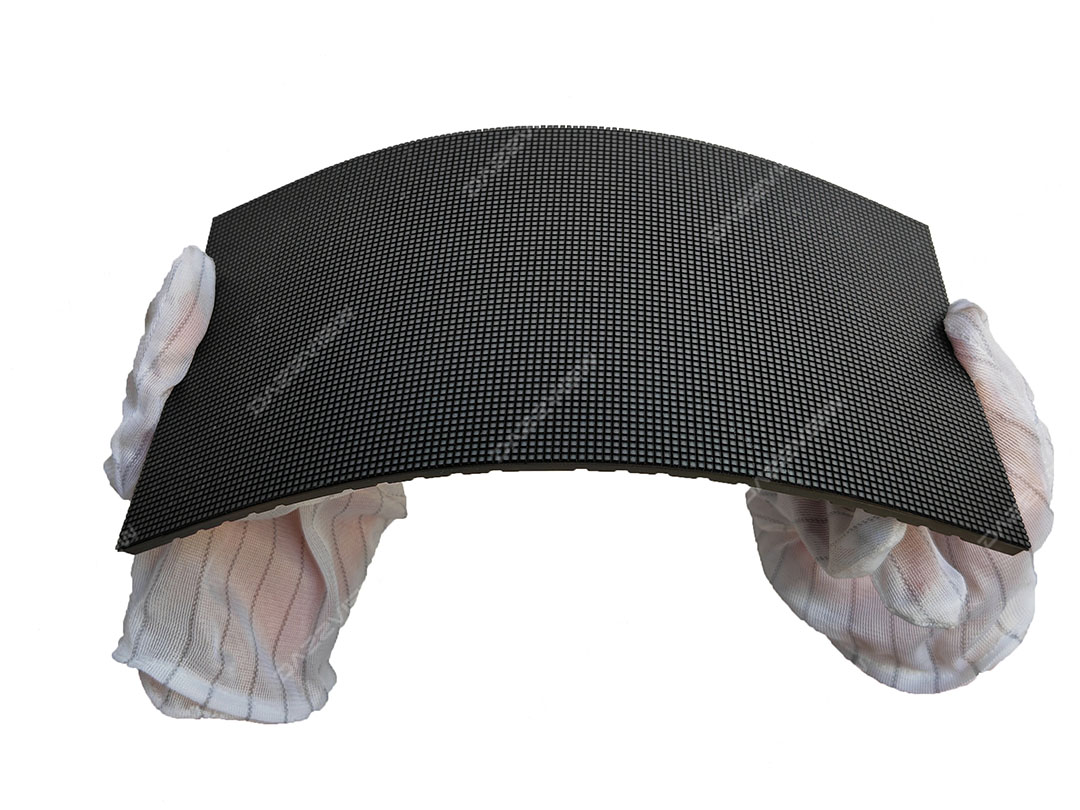

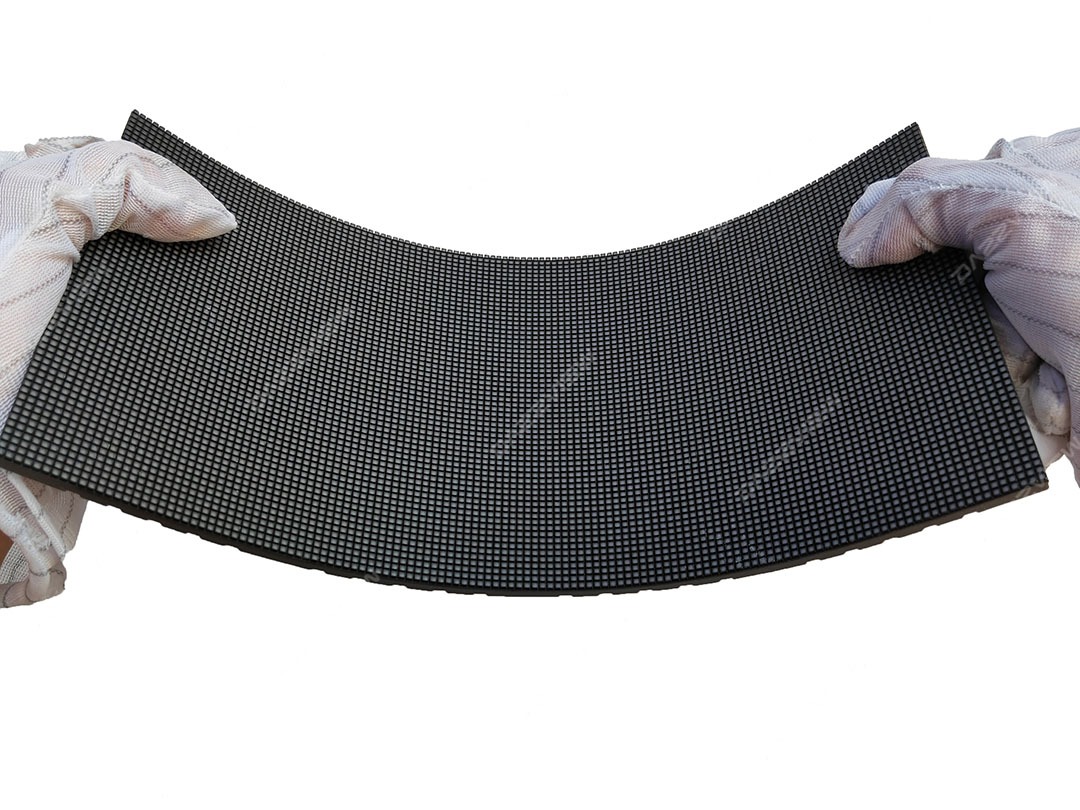

Flexible With Soft Material To Be Used!

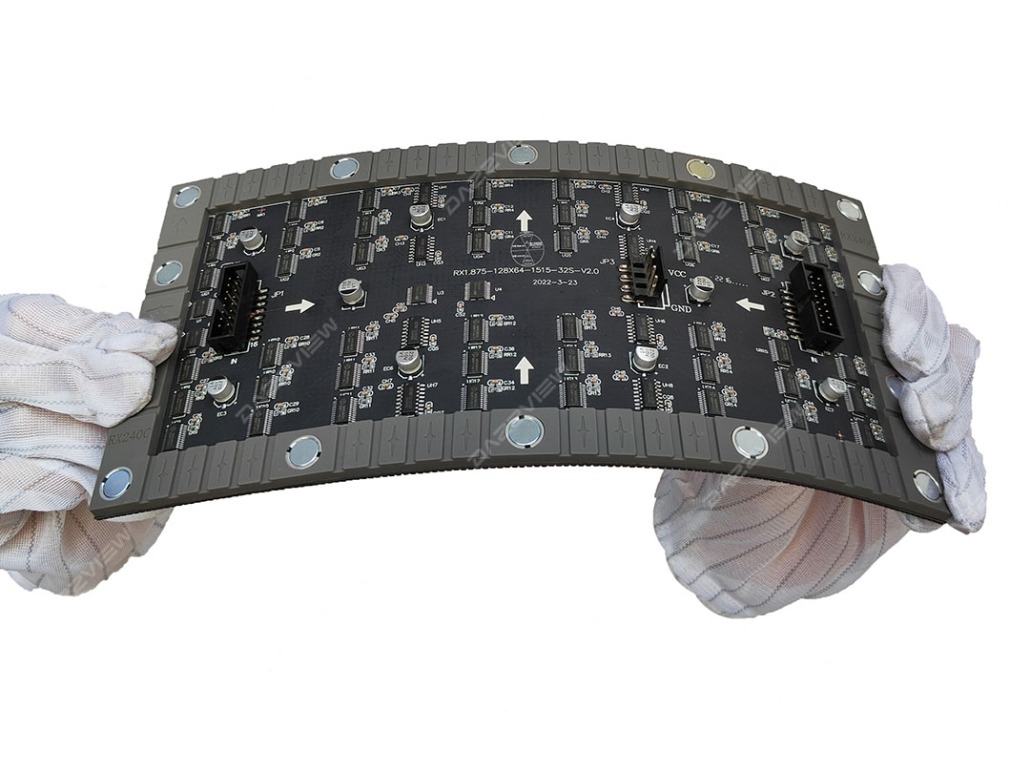

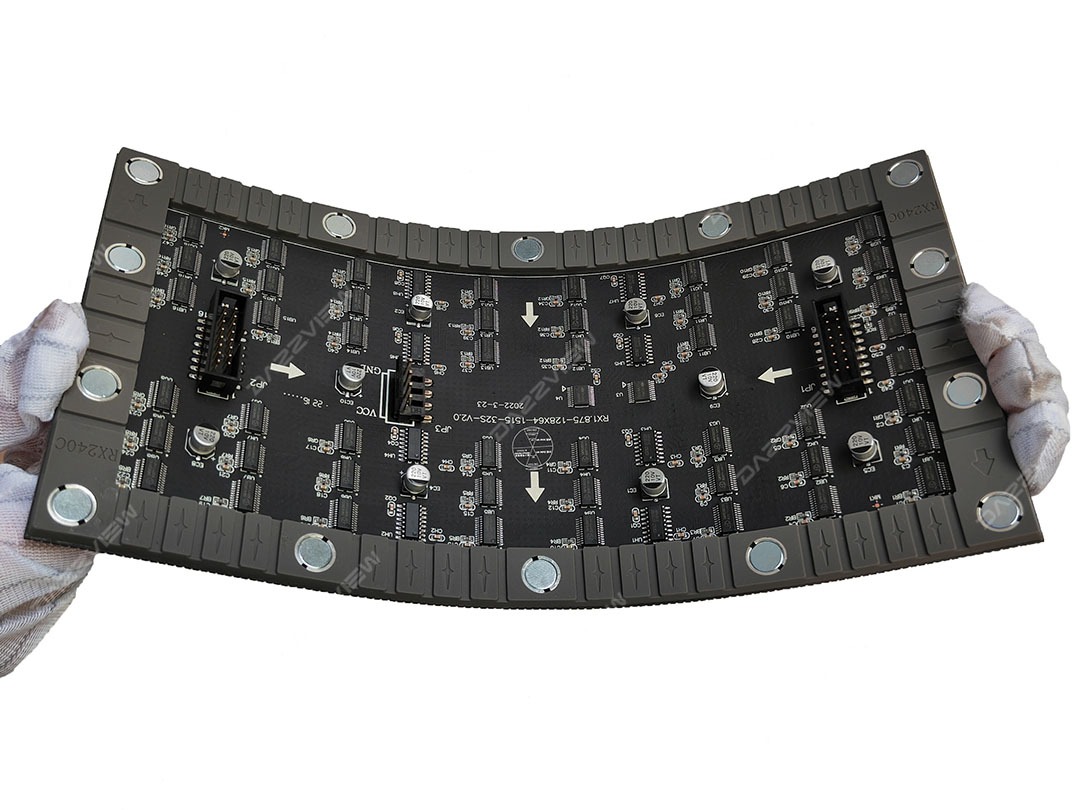

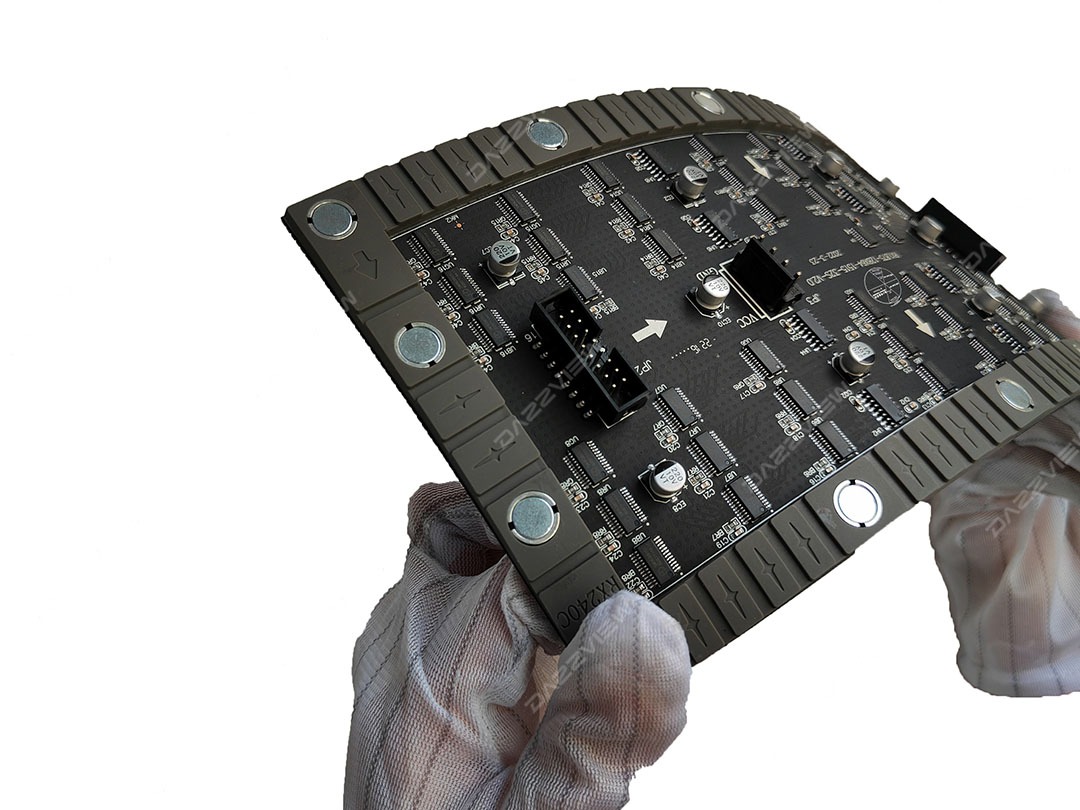

Concave and convex curved can be achieved with the soft module. This is the base function to achieve creative special shapes.
DAZZVIEW LED DISPLAY
Long Lifespan With The Stable Materials To Be Used!
With the stable material to be used, the LED display has a long lifespan, and the screen will not lose shape after long time working.
DAZZVIEW LED DISPLAY

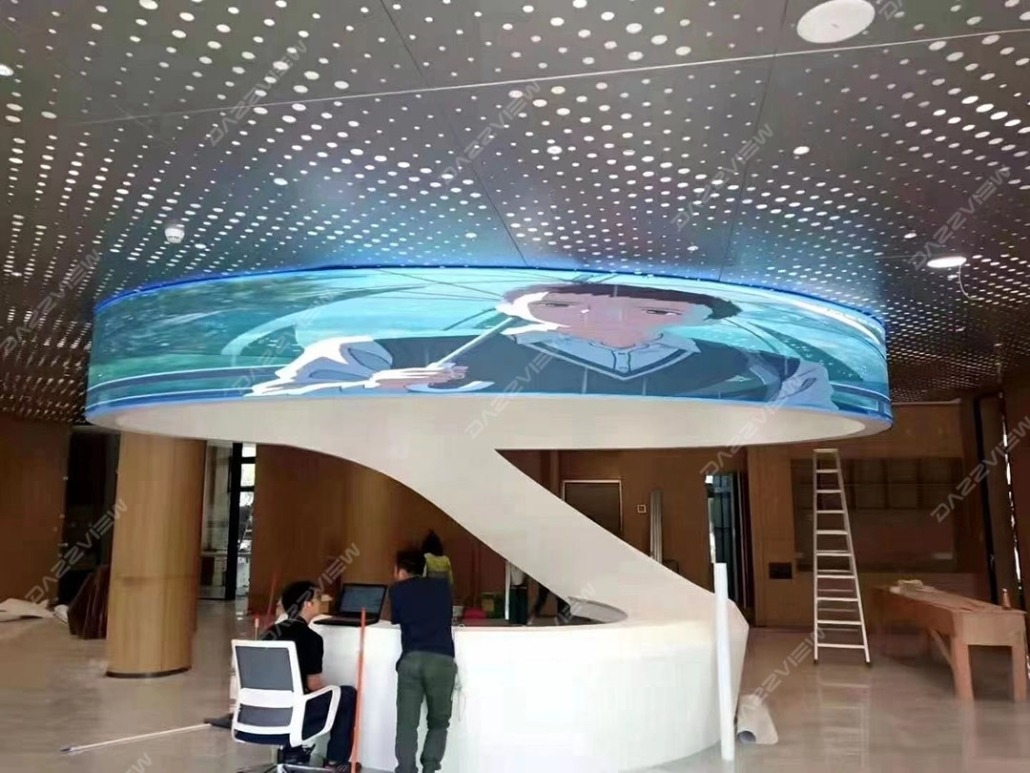

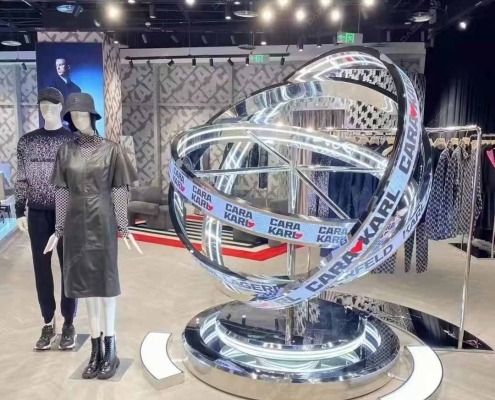

Creative Shape With Customized!
The circle shape and size can be customized base on the project. The diameter, width of the circle, can be customized base on the module size, when there is a LED display project, we can calculate for you.
DAZZVIEW LED DISPLAY

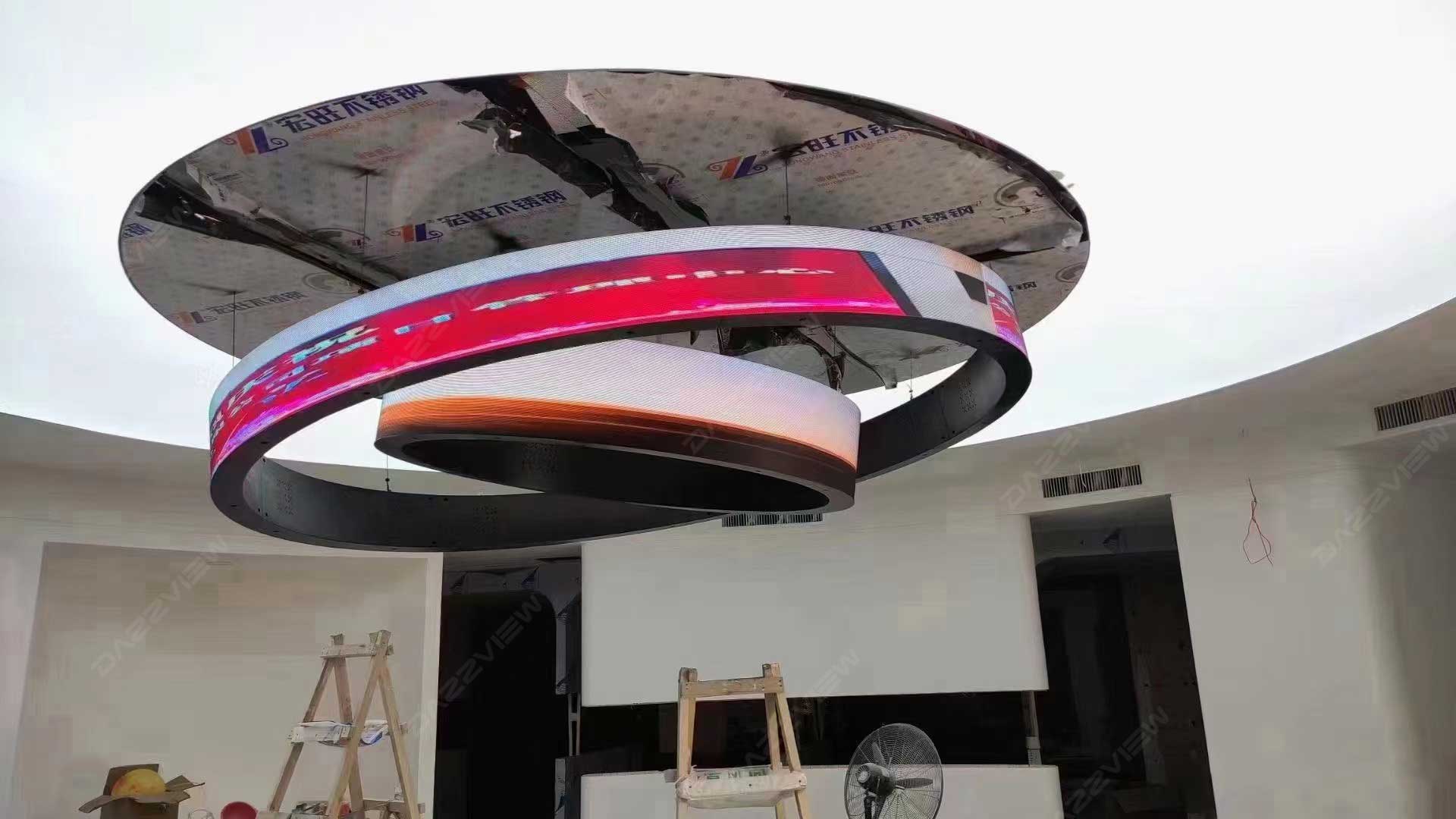

Multiple Installation Ways!

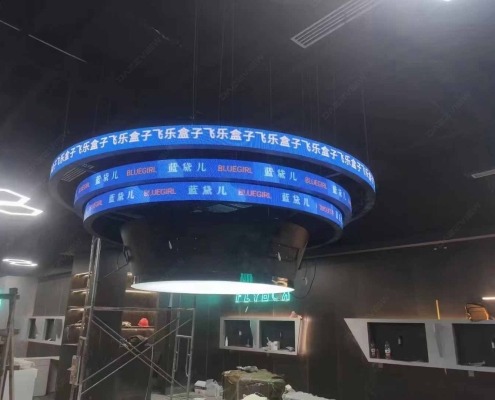

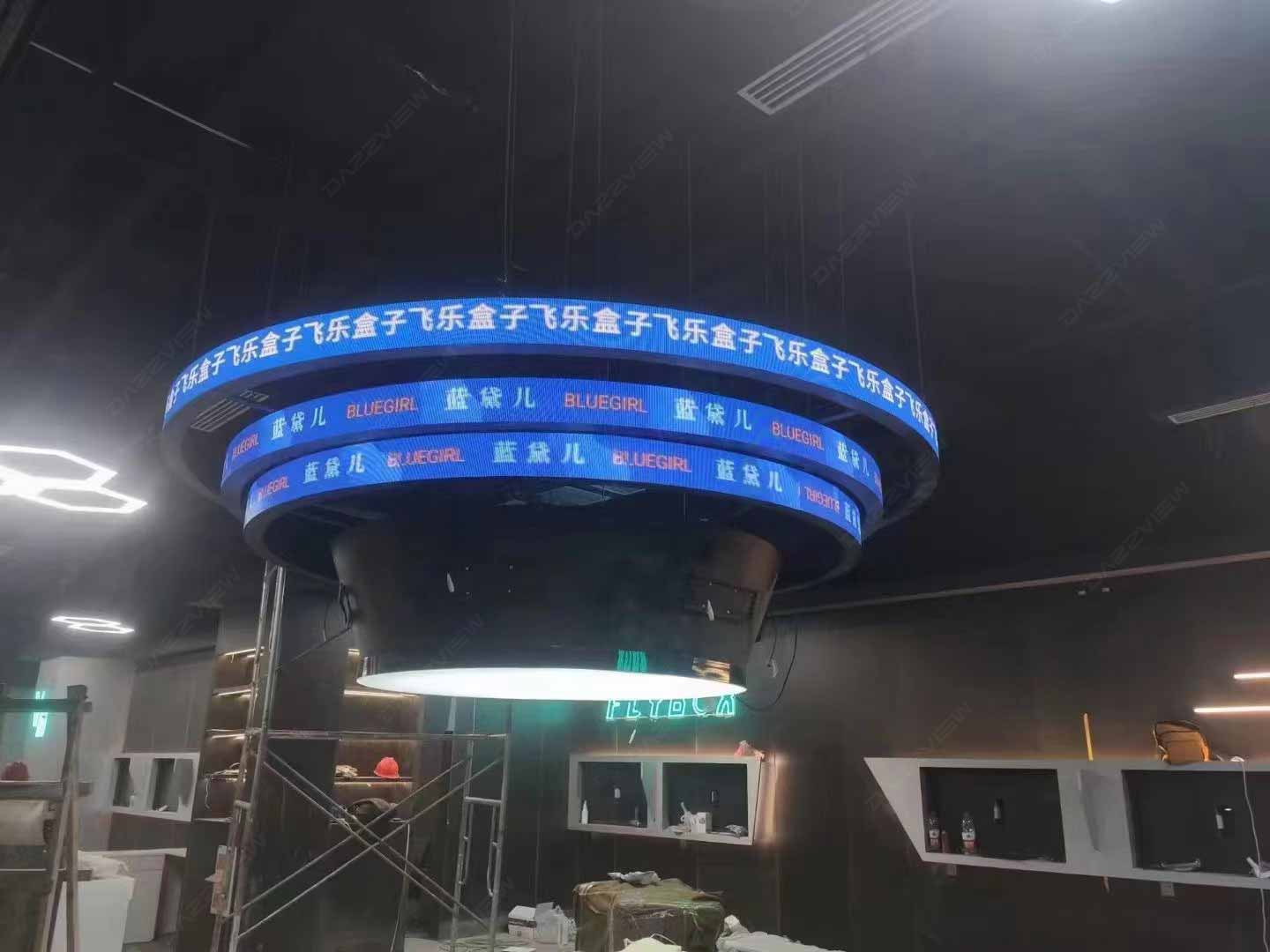

The circle LED display can be hanged installation and standing installation. The structure will be customized and manufacture for you and drawing of the structure can be also provided.
DAZZVIEW LED DISPLAY
Customized Project Size!
Basic module size are the same, what we need to do is design, manufacture the structure of the object, and stick the modules on it. No matter how large of the structure, we can do it for you.
DAZZVIEW TECHNOLOGY
Specs That Will Blow You Away!
320x160mm:
| Specification | ||||||||
| Model NO. | Dsoft1.25 | Dsoft1.5 | Dsoft1.6 | Dsoft1.8 | Dsoft2 | Dsoft2.5 | Dsoft3 | Dsoft4 |
| Pixel Pitch | P1.25mm | P1.538mm | P1.667mm | P1.86mm | 2mm | 2.5mm | 3.076mm | 4mm |
| LED Type | SMD1010 | SMD1212 | SMD1212 | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| Pixel configuration | 1R1G1B | |||||||
| Size of module(W*H) | 320x160mm | |||||||
| Resolution of module(W*H) | 256x128dot | 208x104dot | 192x96dot | 172x86dot | 160x80dot | 128x64dot | 104x52dot | 80x40dot |
| Density(dots/㎡) | 640000 | 422,500 | 360,000 | 288,906 | 250,000 | 160,000 | 105,625 | 62,500 |
| Best viewing distance | >1.2m | >1.5m | >1.6m | >1.8m | >2m | >2.5m | >3m | >4m |
| Best viewing angle | 140° | |||||||
| Brightness | 650-800cdcd/㎡ | |||||||
| Maximum power consumption | 490W/㎡ | |||||||
| Average power consumption | 165W/㎡ | |||||||
| Driving method | 1/64 scanning | 1/52 scanning | 1/48 scanning | 1/43 scanning | 1/40 scanning | 1/32 scanning | 1/26 scanning | 1/20 scanning |
| Gray scale | 14 bits | |||||||
| Refresh frequency | 3840Hz | |||||||
| IP grade | IP21 | |||||||
| Colors | 16777216 | |||||||
| Color temperature | 6500-9500k | |||||||
| Driving device | Constant current | |||||||
| Working voltage | AC220V/110V±10% | |||||||
| Working temperature | —20℃~50℃±10% | |||||||
| MTBF | >10,000 hours | |||||||
| Frame frequency | 60Hz | |||||||
| Life Span | 100,000 hours | |||||||
240x120mm:
| Specification | |||||||||
| Model NO. | Dsoft0.9 | Dsoft1.25 | Dsoft1.5 | Dsoft1.6 | Dsoft1.8 | Dsoft2 | Dsoft2.5 | Dsoft3 | Dsoft4 |
| Pixel Pitch | 0.9375mm | P1.25mm | P1.579mm | P1.667mm | P1.875mm | 2mm | 2.5mm | 3.076mm | 4mm |
| LED Type | SMD 4 in 1 | SMD1010 | SMD1212 | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| Pixel configuration | 1R1G1B | ||||||||
| Size of module(W*H) | 240x120mm | ||||||||
| Resolution of module(W*H) | 256*128 | 256x128dot | 152x76dot | 192x96dot | 128x64dot | 160x80dot | 128x64dot | 104x52dot | 80x40dot |
| Density(dots/㎡) | 137777 | 640000 | 401,111 | 360,000 | 284,444 | 250,000 | 160,000 | 105,625 | 62,500 |
| Best viewing distance | >0.9m | >1.2m | >1.5m | >1.6m | >1.8m | >2m | >2.5m | >3m | >4m |
| Best viewing angle | 140° | ||||||||
| Brightness | 650-800cdcd/㎡ | ||||||||
| Maximum power consumption | 490W/㎡ | ||||||||
| Average power consumption | 165W/㎡ | ||||||||
| Driving method | 1/64 scanning | 1/48 scanning | 1/38 scanning | 1/36 scanning | 1/32 scanning | 1/30 scanning | 1/24 scanning | 1/20 scanning | 1/15 scanning |
| Gray scale | 14 bits | ||||||||
| Refresh frequency | 3840Hz | ||||||||
| IP grade | IP21 | ||||||||
| Colors | 16777216 | ||||||||
| Color temperature | 6500-9500k | ||||||||
| Driving device | Constant current | ||||||||
| Working voltage | AC220V/110V±10% | ||||||||
| Working temperature | —20℃~50℃±10% | ||||||||
| MTBF | >10,000 hours | ||||||||
| Frame frequency | 60Hz | ||||||||
| Life Span | 100,000 hours | ||||||||
256x128mm:
| Specification | ||
| Model NO. | Dsoft2 | Dsoft4 |
| Pixel Pitch | 2mm | 4mm |
| LED Type | SMD1515 | SMD2020 |
| Pixel configuration | 1R1G1B | |
| Size of module(W*H) | 256x128mm | |
| Resolution of module(W*H) | 128x64dot | 64x32dot |
| Density(dots/㎡) | 250,000 | 62,500 |
| Best viewing distance | >2m | >4m |
| Best viewing angle | 140° | |
| Brightness | >750cd/㎡ | >850cd/㎡ |
| Maximum power consumption | 490W/㎡ | |
| Average power consumption | 165W/㎡ | |
| Driving method | 1/32 scanning | 1/16 scanning |
| Gray scale | 14 bits | |
| Refresh frequency | 3840Hz | |
| IP grade | IP21 | |
| Colors | 16777216 | |
| Color temperature | 6500-9500k | |
| Driving device | Constant current | |
| Working voltage | AC220V/110V±10% | |
| Working temperature | —20℃~50℃±10% | |
| MTBF | >10,000 hours | |
| Frame frequency | 60Hz | |
| Life Span | 100,000 hours | |
