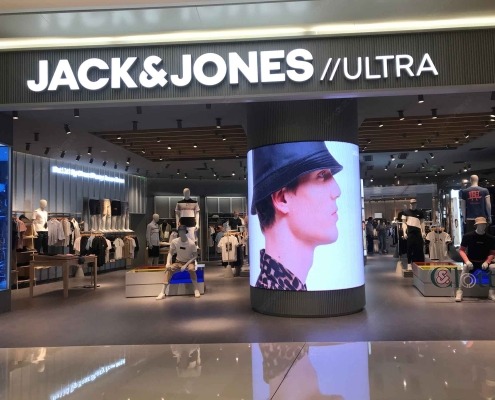

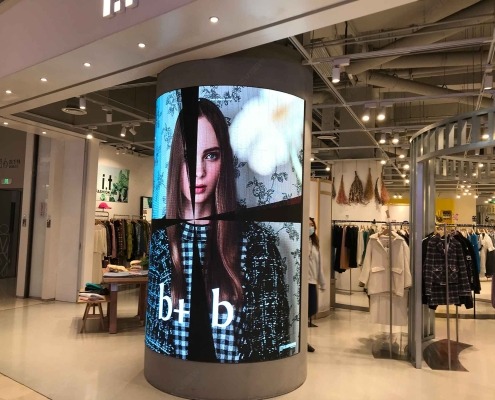

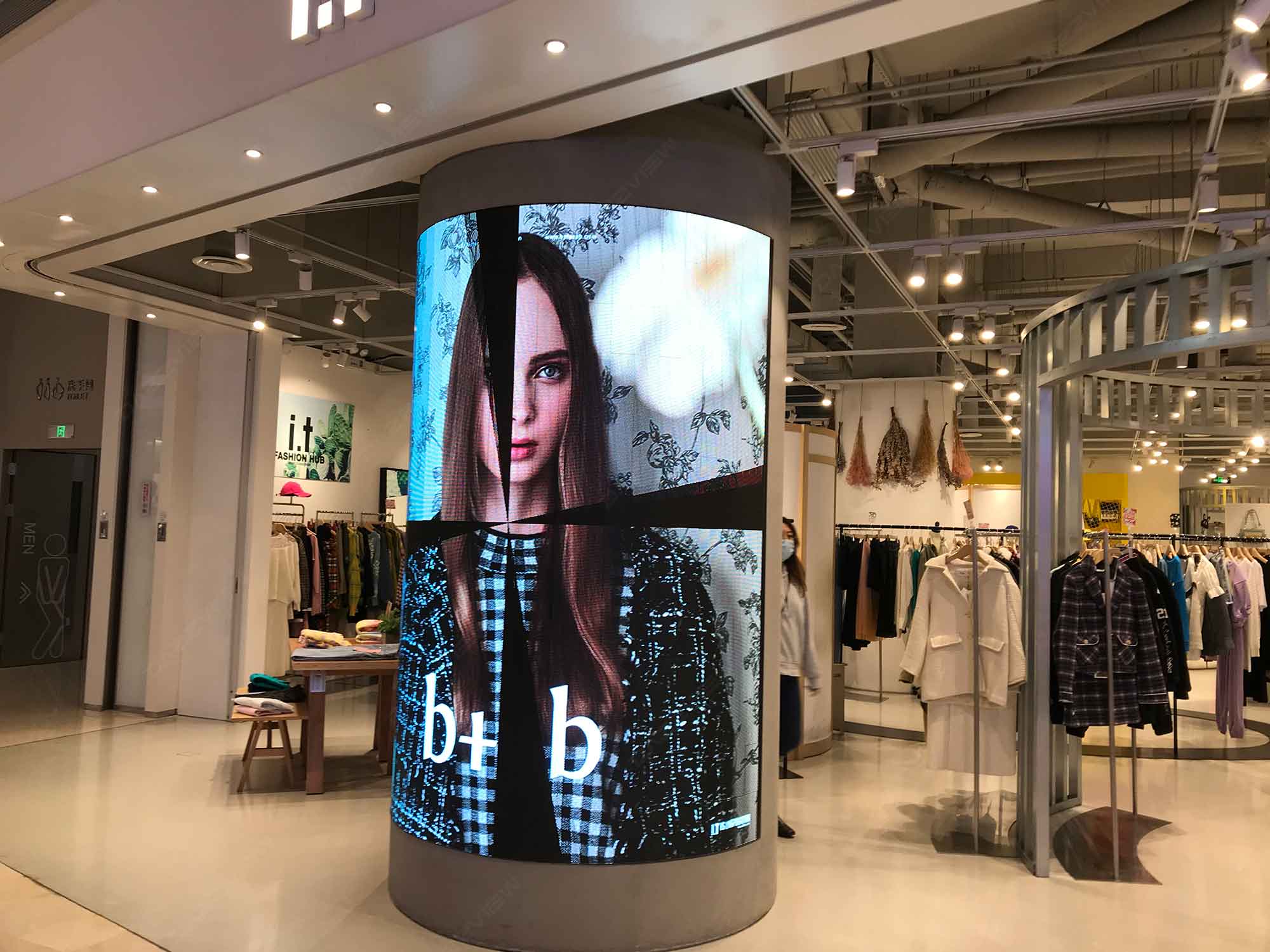

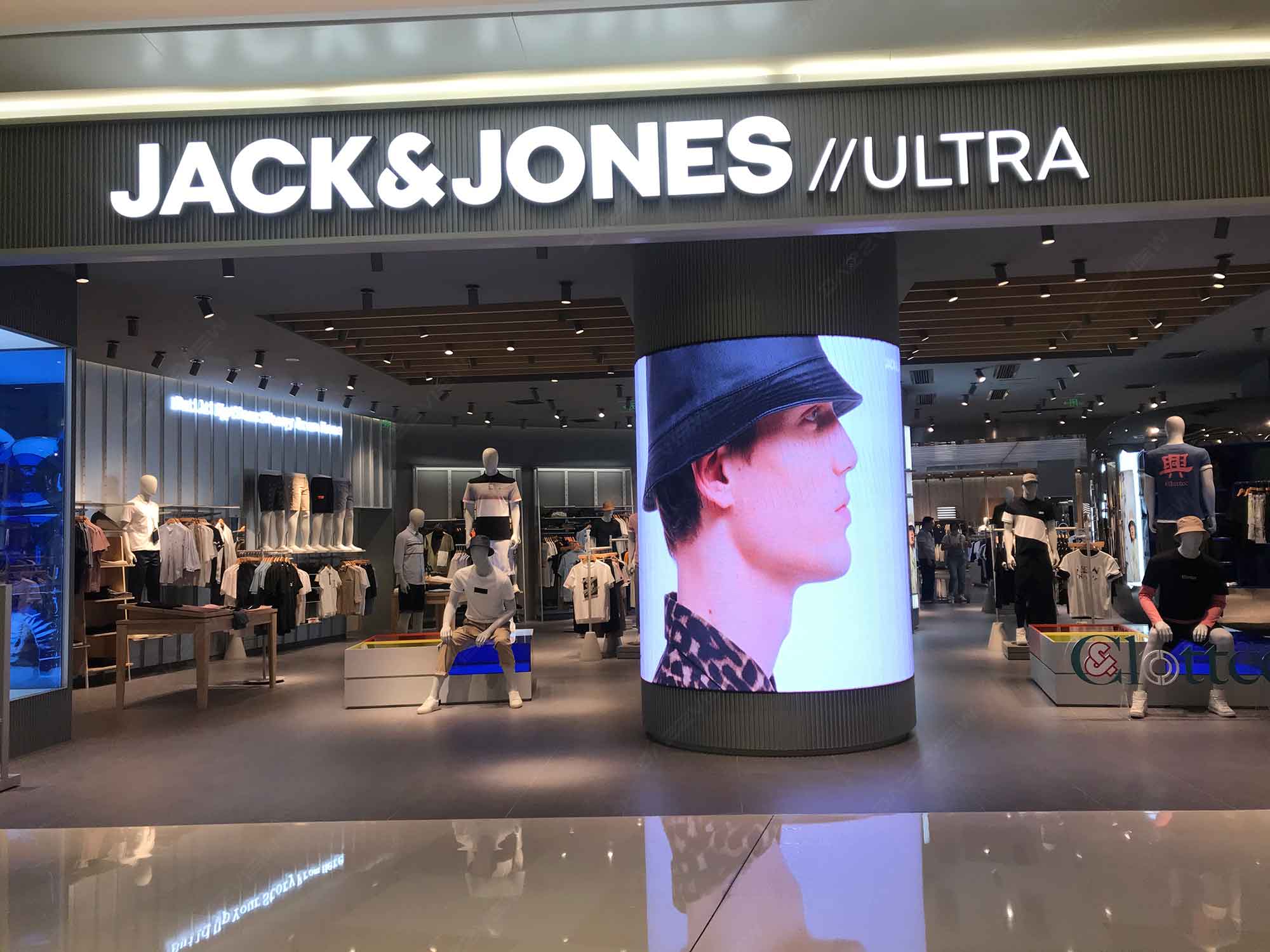

Using soft LED module to stick on the column structure of the building to achieve column LED Display which is perfect and suitable to be used in mall, shop, train station, exhibition, airport, this curved column LED display screen offers limitless creative possibilities.
Product Name: Column LED Display with Soft module!
Product Model: Dcolumn series
Product Description:
Key Features:
1.High refresh rate
2.Magnets on the back of the module
3.Fast and easy installation
4.Convex & Concave Available
5.Indoor application
6.Energy saving
7.Flexible Curve
How to achieve the colomn LED display?
We just need to assemble the simple stureture on the existing column, and then stick the soft LED module on the column. It’s very easy for the installation.
The soft LED module mounted directly onto the building column structure, it won’t take additional space, the installation time and cost can be saved.

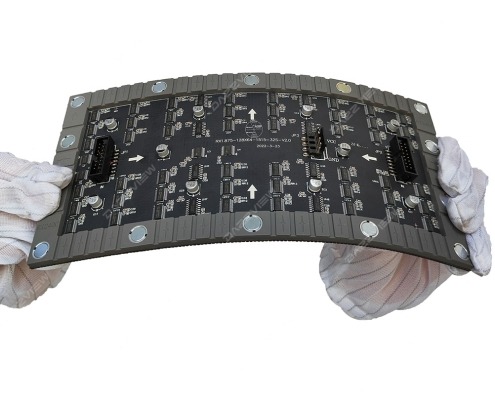

With strong magnetic design, the soft LED module can easily stick on the structure sturdy with high flatness. And easy to do the maintenance from front side.

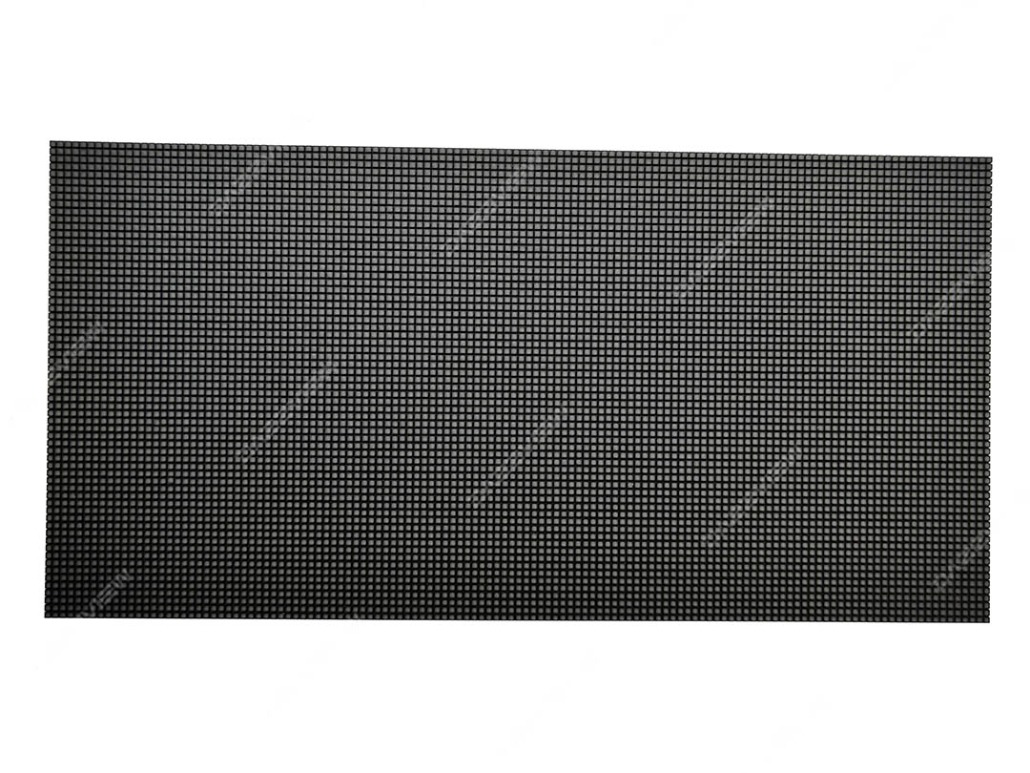

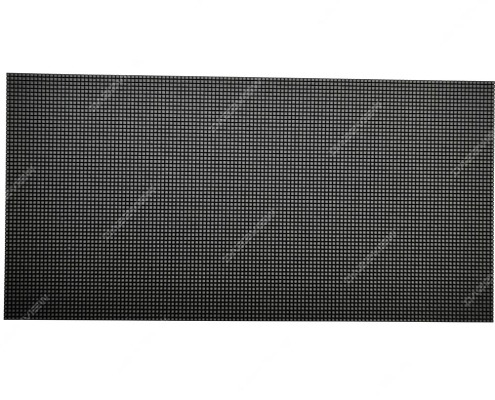

The module is slim design in 5mm which guarantee the space between module and structure is small, so it can reduce the gaps between modules.
More magnets to be used on each module for strong strick on the structure.

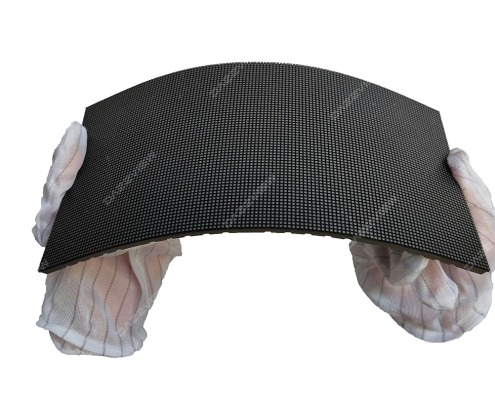

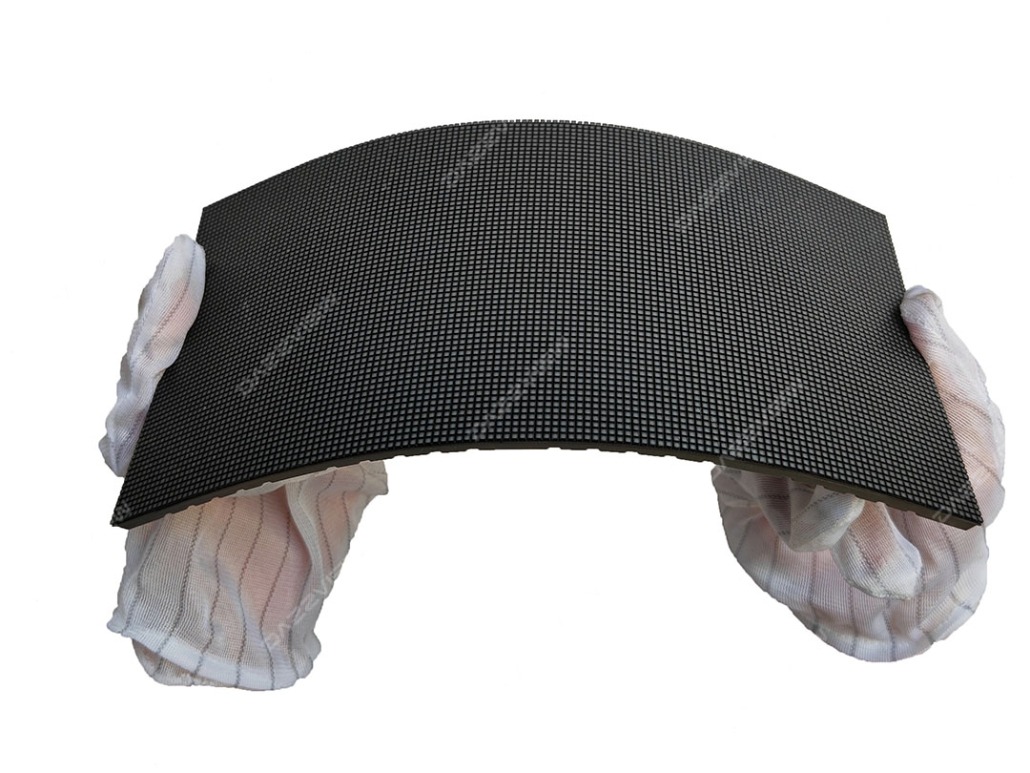

Concave and convex curved can be achieved with the soft module. This is the base function to achieve creative special shapes.
With the stable material to be used, the LED display has a long lifespan, and the screen will not lose shape after long time working.
It’s easy to achieve outer curved shape like column. First, manufacture the structure accrording to the project. Second, stick the LED modules onto the structure. The module is smooth and visual effect is awsome with no gaps between the modules.
| Specification | ||||||||
| Model NO. | Dsoft1.25 | Dsoft1.5 | Dsoft1.6 | Dsoft1.8 | Dsoft2 | Dsoft2.5 | Dsoft3 | Dsoft4 |
| Pixel Pitch | P1.25mm | P1.538mm | P1.667mm | P1.86mm | 2mm | 2.5mm | 3.076mm | 4mm |
| LED Type | SMD1010 | SMD1212 | SMD1212 | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| Pixel configuration | 1R1G1B | |||||||
| Size of module(W*H) | 320x160mm | |||||||
| Resolution of module(W*H) | 256x128dot | 208x104dot | 192x96dot | 172x86dot | 160x80dot | 128x64dot | 104x52dot | 80x40dot |
| Density(dots/㎡) | 640000 | 422,500 | 360,000 | 288,906 | 250,000 | 160,000 | 105,625 | 62,500 |
| Best viewing distance | >1.2m | >1.5m | >1.6m | >1.8m | >2m | >2.5m | >3m | >4m |
| Best viewing angle | 140° | |||||||
| Brightness | 650-800cdcd/㎡ | |||||||
| Maximum power consumption | 490W/㎡ | |||||||
| Average power consumption | 165W/㎡ | |||||||
| Driving method | 1/64 scanning | 1/52 scanning | 1/48 scanning | 1/43 scanning | 1/40 scanning | 1/32 scanning | 1/26 scanning | 1/20 scanning |
| Gray scale | 14 bits | |||||||
| Refresh frequency | 3840Hz | |||||||
| IP grade | IP21 | |||||||
| Colors | 16777216 | |||||||
| Color temperature | 6500-9500k | |||||||
| Driving device | Constant current | |||||||
| Working voltage | AC220V/110V±10% | |||||||
| Working temperature | —20℃~50℃±10% | |||||||
| MTBF | >10,000 hours | |||||||
| Frame frequency | 60Hz | |||||||
| Life Span | 100,000 hours | |||||||
| Specification | |||||||||
| Model NO. | Dsoft0.9 | Dsoft1.25 | Dsoft1.5 | Dsoft1.6 | Dsoft1.8 | Dsoft2 | Dsoft2.5 | Dsoft3 | Dsoft4 |
| Pixel Pitch | 0.9375mm | P1.25mm | P1.579mm | P1.667mm | P1.875mm | 2mm | 2.5mm | 3.076mm | 4mm |
| LED Type | SMD 4 in 1 | SMD1010 | SMD1212 | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| Pixel configuration | 1R1G1B | ||||||||
| Size of module(W*H) | 240x120mm | ||||||||
| Resolution of module(W*H) | 256*128 | 256x128dot | 152x76dot | 192x96dot | 128x64dot | 160x80dot | 128x64dot | 104x52dot | 80x40dot |
| Density(dots/㎡) | 137777 | 640000 | 401,111 | 360,000 | 284,444 | 250,000 | 160,000 | 105,625 | 62,500 |
| Best viewing distance | >0.9m | >1.2m | >1.5m | >1.6m | >1.8m | >2m | >2.5m | >3m | >4m |
| Best viewing angle | 140° | ||||||||
| Brightness | 650-800cdcd/㎡ | ||||||||
| Maximum power consumption | 490W/㎡ | ||||||||
| Average power consumption | 165W/㎡ | ||||||||
| Driving method | 1/64 scanning | 1/48 scanning | 1/38 scanning | 1/36 scanning | 1/32 scanning | 1/30 scanning | 1/24 scanning | 1/20 scanning | 1/15 scanning |
| Gray scale | 14 bits | ||||||||
| Refresh frequency | 3840Hz | ||||||||
| IP grade | IP21 | ||||||||
| Colors | 16777216 | ||||||||
| Color temperature | 6500-9500k | ||||||||
| Driving device | Constant current | ||||||||
| Working voltage | AC220V/110V±10% | ||||||||
| Working temperature | —20℃~50℃±10% | ||||||||
| MTBF | >10,000 hours | ||||||||
| Frame frequency | 60Hz | ||||||||
| Life Span | 100,000 hours | ||||||||
| Specification | ||
| Model NO. | Dsoft2 | Dsoft4 |
| Pixel Pitch | 2mm | 4mm |
| LED Type | SMD1515 | SMD2020 |
| Pixel configuration | 1R1G1B | |
| Size of module(W*H) | 256x128mm | |
| Resolution of module(W*H) | 128x64dot | 64x32dot |
| Density(dots/㎡) | 250,000 | 62,500 |
| Best viewing distance | >2m | >4m |
| Best viewing angle | 140° | |
| Brightness | >750cd/㎡ | >850cd/㎡ |
| Maximum power consumption | 490W/㎡ | |
| Average power consumption | 165W/㎡ | |
| Driving method | 1/32 scanning | 1/16 scanning |
| Gray scale | 14 bits | |
| Refresh frequency | 3840Hz | |
| IP grade | IP21 | |
| Colors | 16777216 | |
| Color temperature | 6500-9500k | |
| Driving device | Constant current | |
| Working voltage | AC220V/110V±10% | |
| Working temperature | —20℃~50℃±10% | |
| MTBF | >10,000 hours | |
| Frame frequency | 60Hz | |
| Life Span | 100,000 hours | |
