Dance floor is a very popular solution for the creative LED visual effect floor, people can dance, run, walk on it, even the car can drive on the floor. Movable for the show/event and stable to use is the biggest advantage of FA series.
Product Name: Dance Floor LED Display with Aluminum Cabinet!
Product Model: FA series
Product Description:

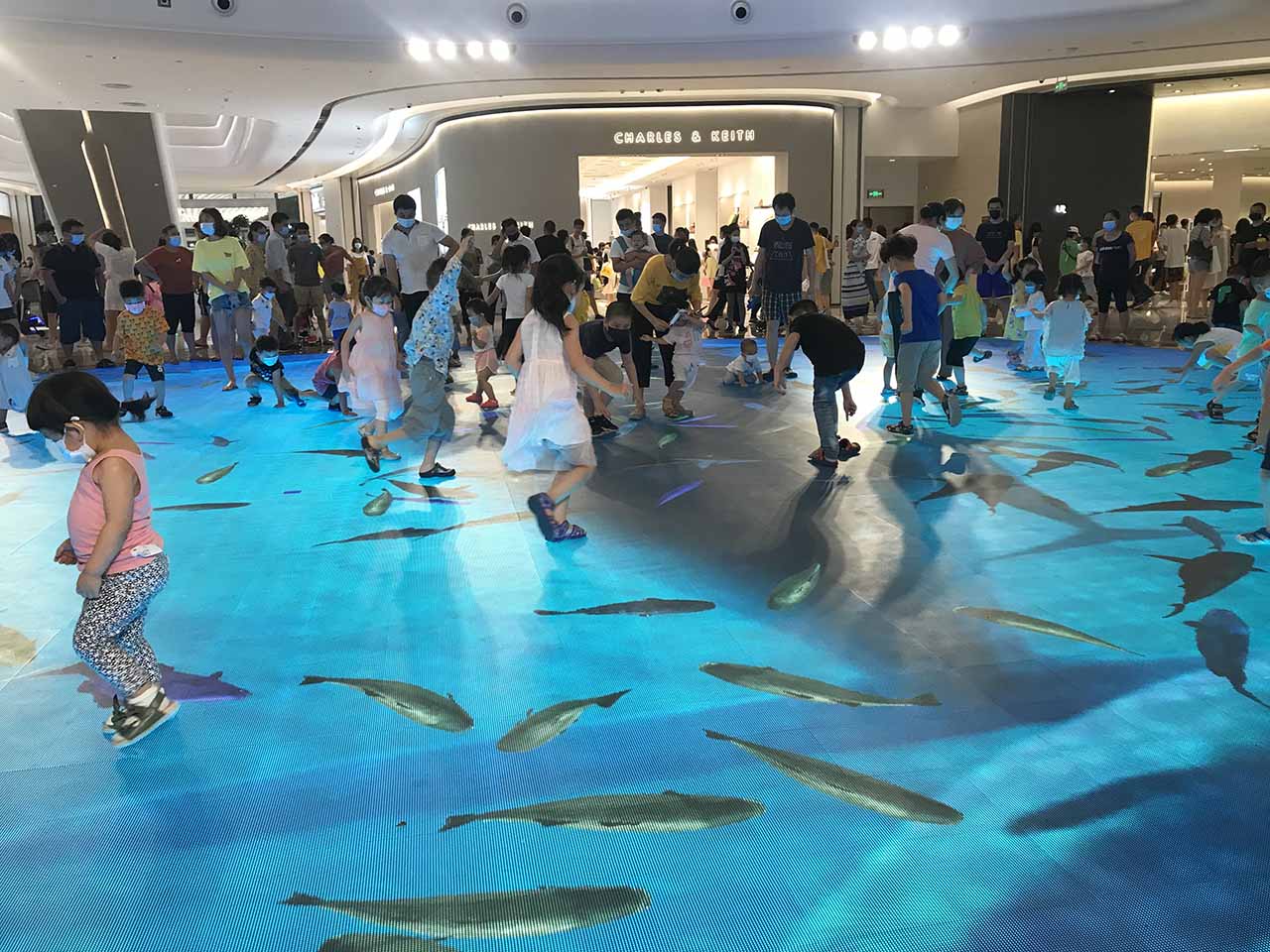

Dance floor LED displays are an exciting and engaging addition to any entertainment venue, including malls.
They provide a unique visual experience for patrons and can be customized to fit any event or theme.
With their versatility and durability, dance floor LED displays are a valuable investment for businesses
looking to enhance their entertainment offerings and attract new customers.
Advantages of Dfloor:
1. Aluminum cabinet, easy to move with handle
2. Strong masks protect the LED lamp well
3. Strong standing bracket guarantee the screen flat enough to stand on
4. Fast installation
5. Smaller pixel pitch: P1.9, P2.6, P2.9, P3.9, P4.8
6. 3 years warranty

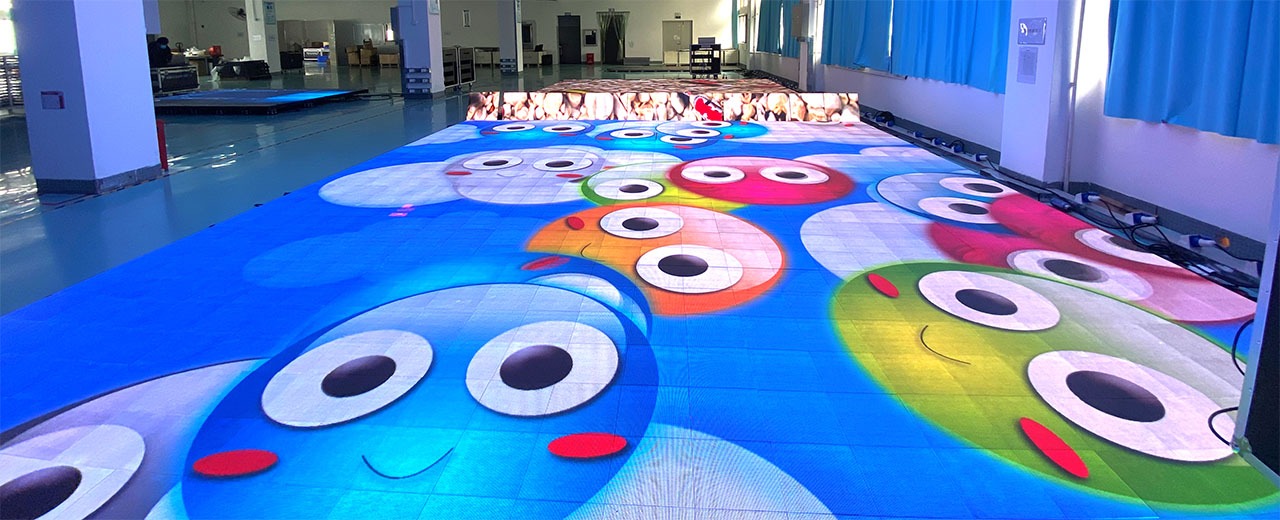

Good performance dance floor LED display, it’s a perfect choice for dancing, running, walking, promise your feet would like it.

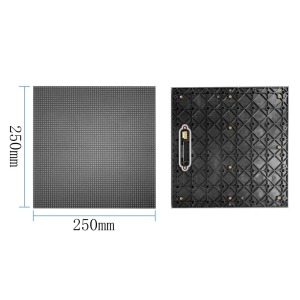

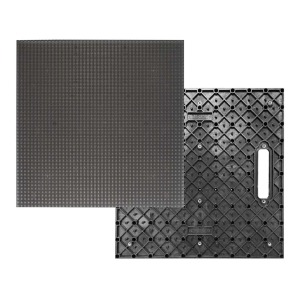

250x250mm LED module size, strong mask support standing on.

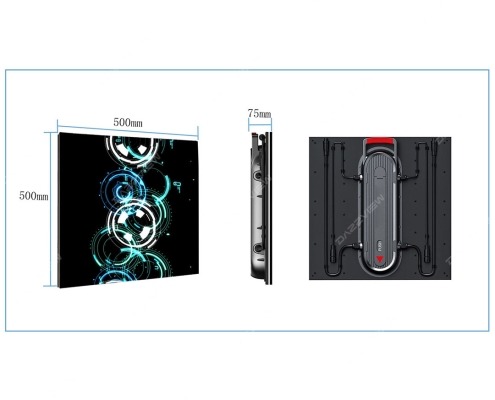

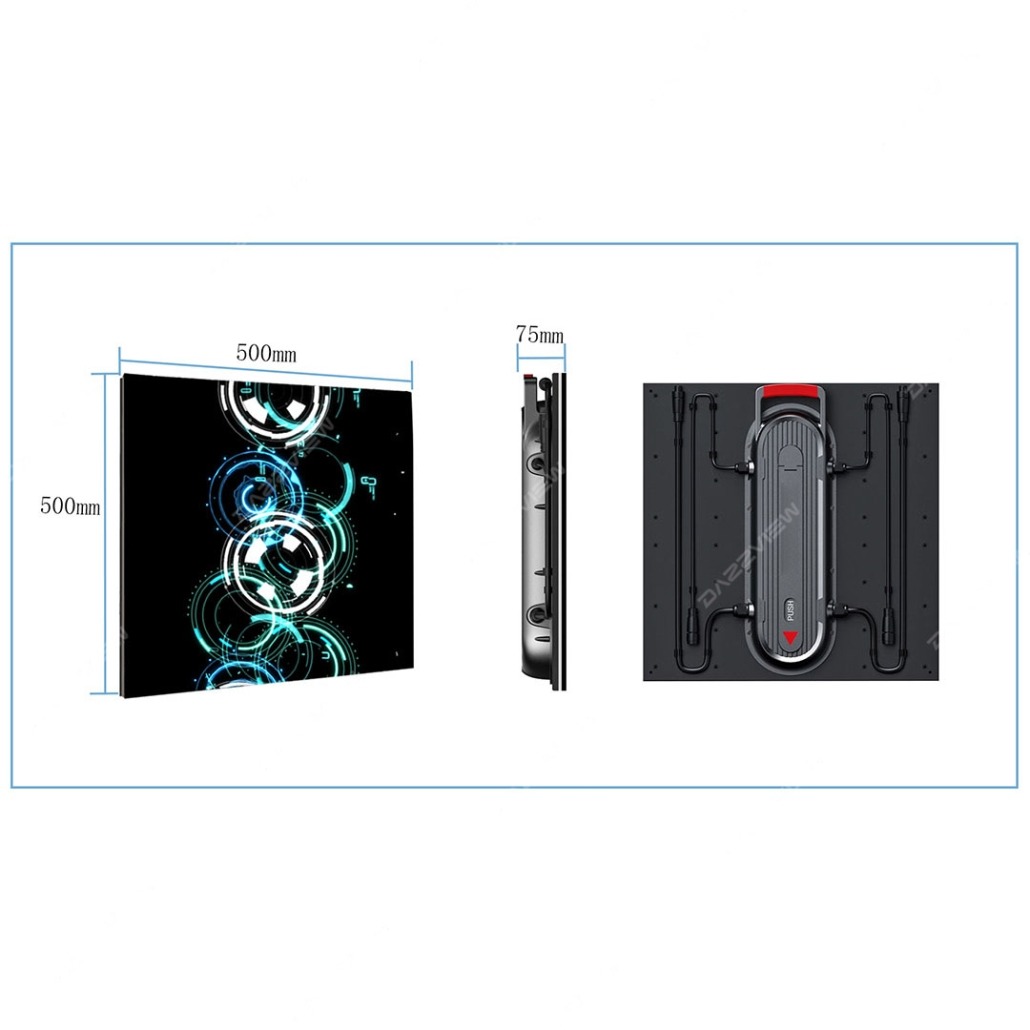

Size: 500x500mm, weight:11.5kg/pc.

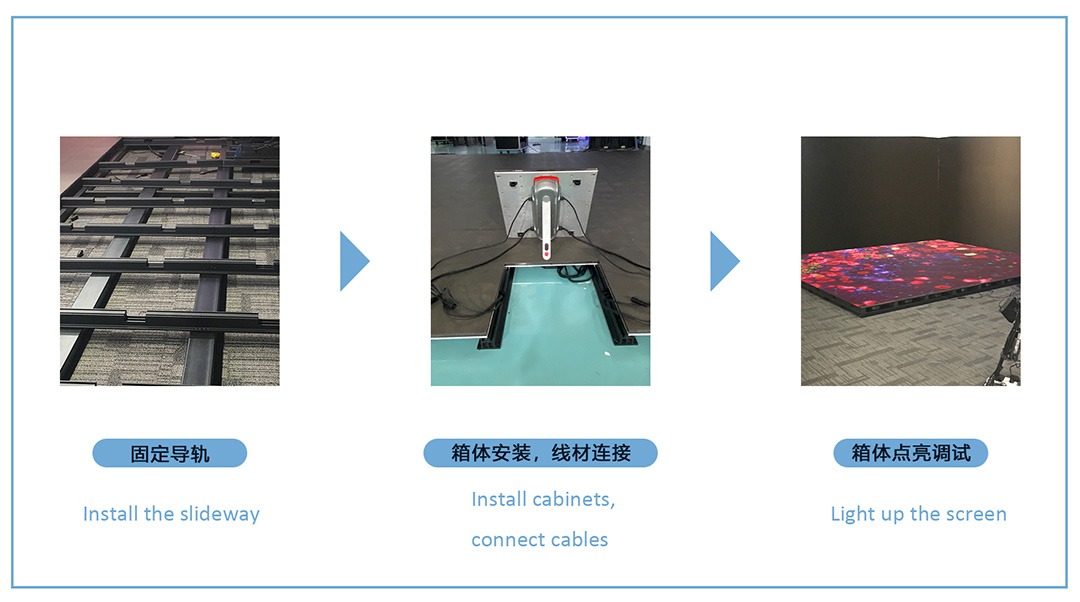

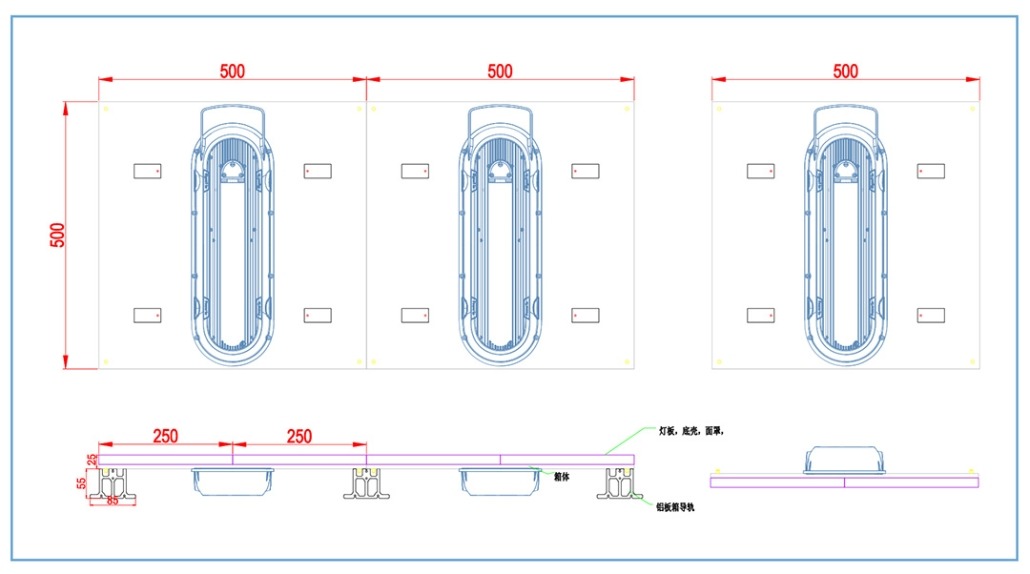

It’s simple to do the installation job.
1. Install the slideway on the ground,
2. Install cabinets,
3. Connect the cables between cabinets,
4. Light up the floor LED screen.

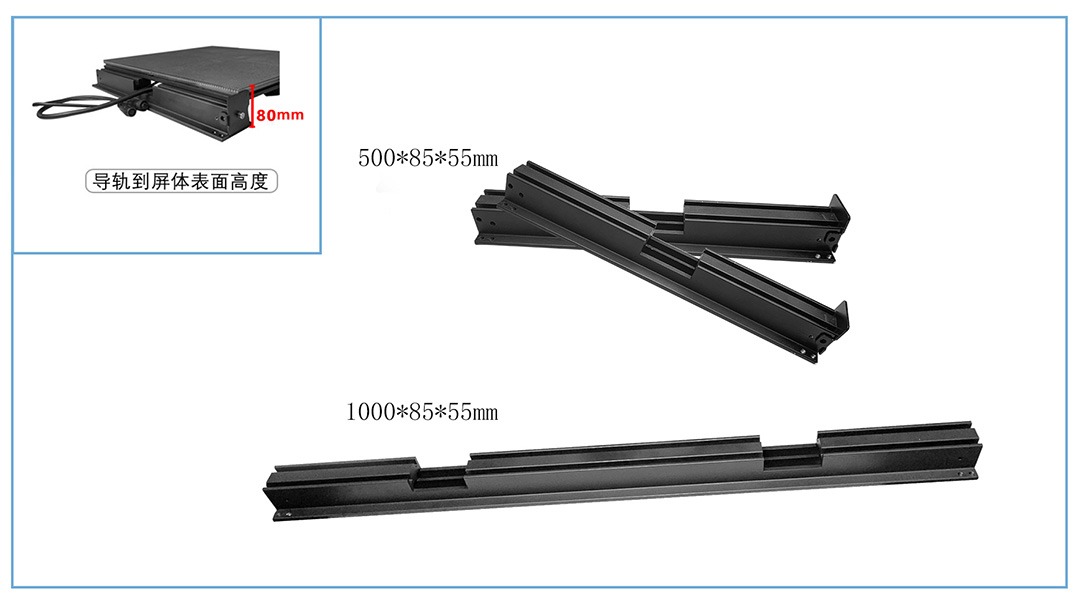

The cabinets are easy to be connected with the slideway/bracket with seamless. Strong slideway guarantee the flatness of the dance floor LED display screen and smooth to walk on, run on or dance on.
The cabinets are easy to be connected with the slideway/bracket.

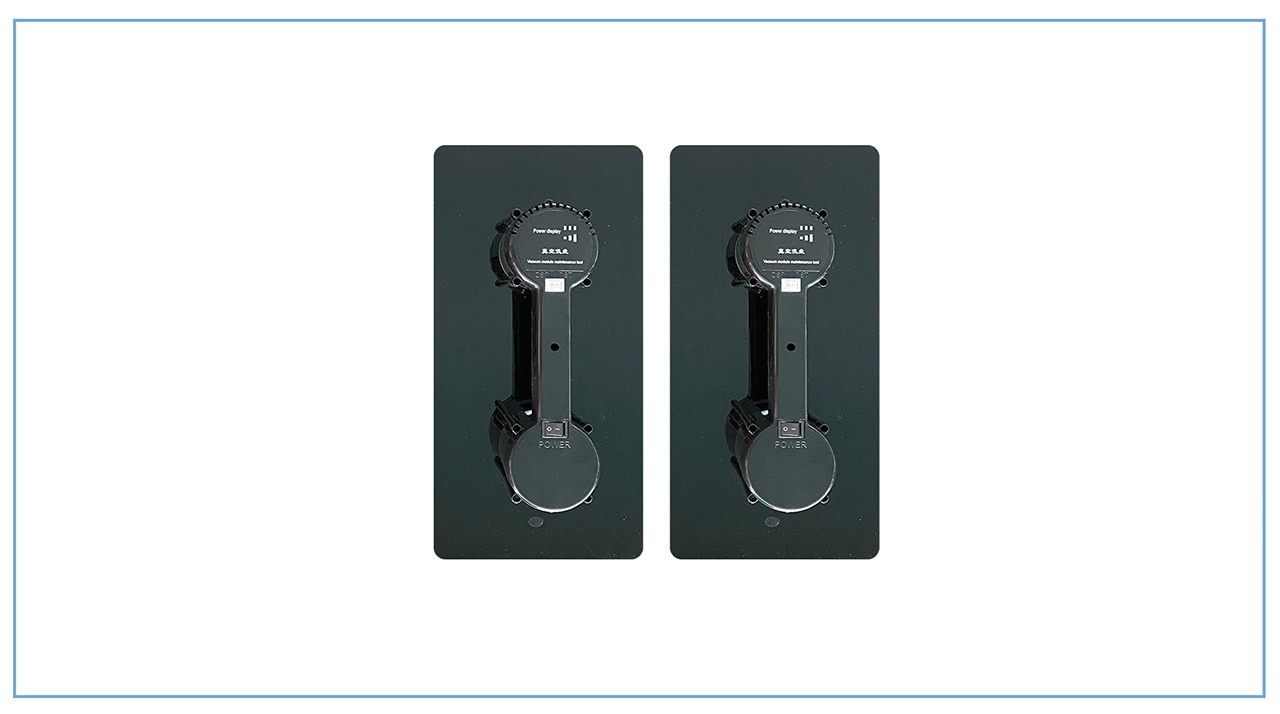

The LED cabient is easy to do maintenance with the sucking maintenance tool.

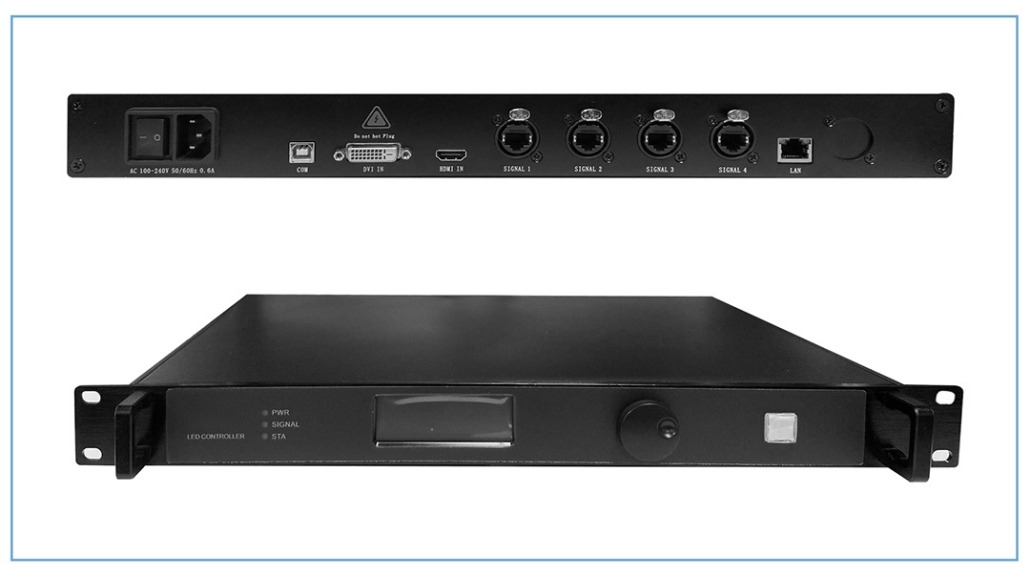

With the control system we developed, the dance floor LED display screen is easily to achieve interactive function.

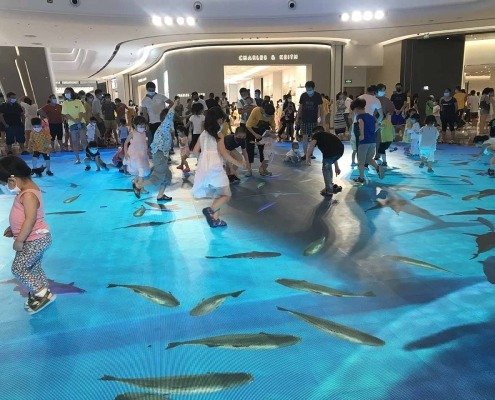

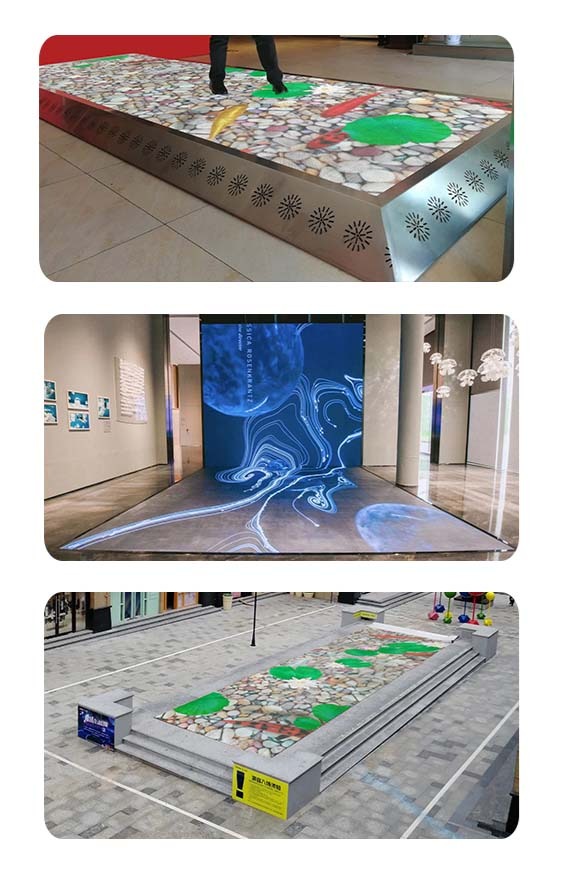

Dance floor LED display screen is suitable to be installed in anywhere you want to install like mall, shopping center, airport, stage, exhibition center, playground…
Interactive is a good function on the dance floor LED display to attract people’s attention, it bring happy, funny, joy, interets to the world. It’s suitable for the application which need to communication with the screen.
| Specification | ||||||
| Model NO. | FA2.6 | FA2.9 | FA3.9 | FA4.8 | FA(O)3.9 | FA(O)4.8 |
| Pixel Pitch | 2.6mm | 2.9mm | 3.9mm | 4.8mm | 3.9mm | 4.8mm |
| LED Type | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD1921 | SMD1921 |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Size of module(W*H) | 250mmx250mm | 250mmx250mm | 250mmx250mm | 250mmx250mm | 250mmx250mm | 250mmx250mm |
| Resolution of module(W*H) | 96x96dot | 86x86dot | 64x64dot | 52x52dot | 64x64dot | 52x52dot |
| Density | 147,456dots | 118,336dots | 65,536dots | 43,264dots | 65,536dots | 43,264dots |
| Cabinet material | Aluminum | |||||
| Size of Display(W*H) | 500x500mm | |||||
| Weight of cabinet | 11.5Kg/pc | |||||
| Brightness | 1800cd/㎡ | 1800cd/㎡ | 1800cd/㎡ | 1800cd/㎡ | 2500-3500cd/㎡cd/㎡ | 4000cd/㎡ |
| Maximum power consumption | 600W/㎡ | 600W/㎡ | 600W/㎡ | 600W/㎡ | 600W/㎡ | 600W/㎡ |
| Average power consumption | 200W/㎡ | 200W/㎡ | 200W/㎡ | 200W/㎡ | 200W/㎡ | 200W/㎡ |
| Driving method | 1/24 scanning | 1/21 scanning | 1/16 scanning | 1/13 scanning | 1/16 scanning | 1/13 scanning |
| Gray scale | 16 bits | 16 bits | 16 bits | 16 bits | 16 bits | 16 bits |
| Refresh rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| IP grade | IP31 | IP31 | IP31 | IP31 | IP68 | IP68 |
| load-bearing | 1.5tons/㎡ | 2tons/㎡ | 2tons/㎡ | 2tons/㎡ | 2tons/㎡ | 2tons/㎡ |
| Colors | 16777216 | |||||
| Color temperature | 6500-9500k | |||||
| Driving device | Constant current | |||||
| Working voltage | AC220V/110V±10% | |||||
| Working temperature | —20℃~50℃±10% | |||||
| MTBF | >10,000 hours | |||||
| Frame frequency | 60Hz | |||||
| Life Span | 100,000 hours | |||||
