Dazzview Holographic Transparent LED Display
The holographic transparent LED display is widely used for commercial buildings, brand chains, advertising media, performing and dancing…
Holographic Transparent LED Display

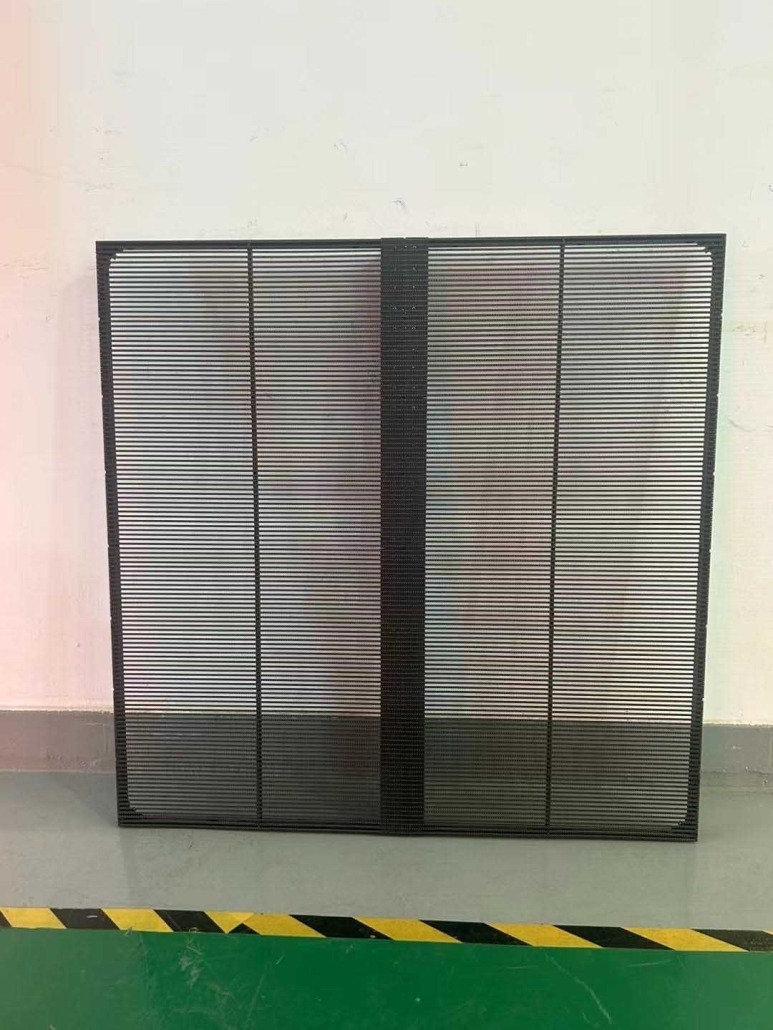

Product Name: Holographic Transparent LED Display
Product Model: Dholo Series
Product Description:

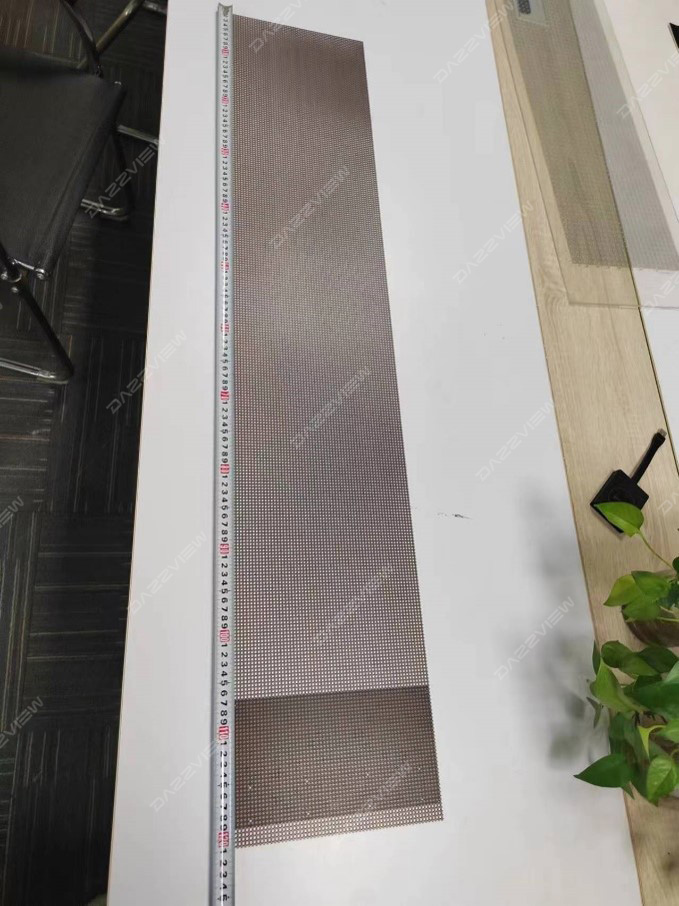

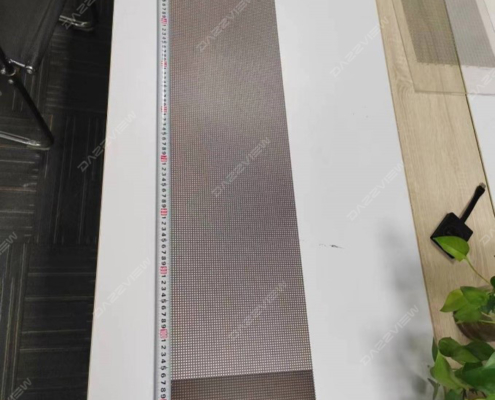

Dimension: 1000x250mm/ 1200x250mm/ 1500x250mm
Weight: 6kg/㎡
Pixel Pitch Indoor: P3.91 & P6.25
Key Features:
1. 90% High Transparency
2. Light & Thin, 6kg/㎡
3. High-definition & High-brightness
4. Without Steel Structure
5. Both sides can be mounted on the glass
Advantages and Features!

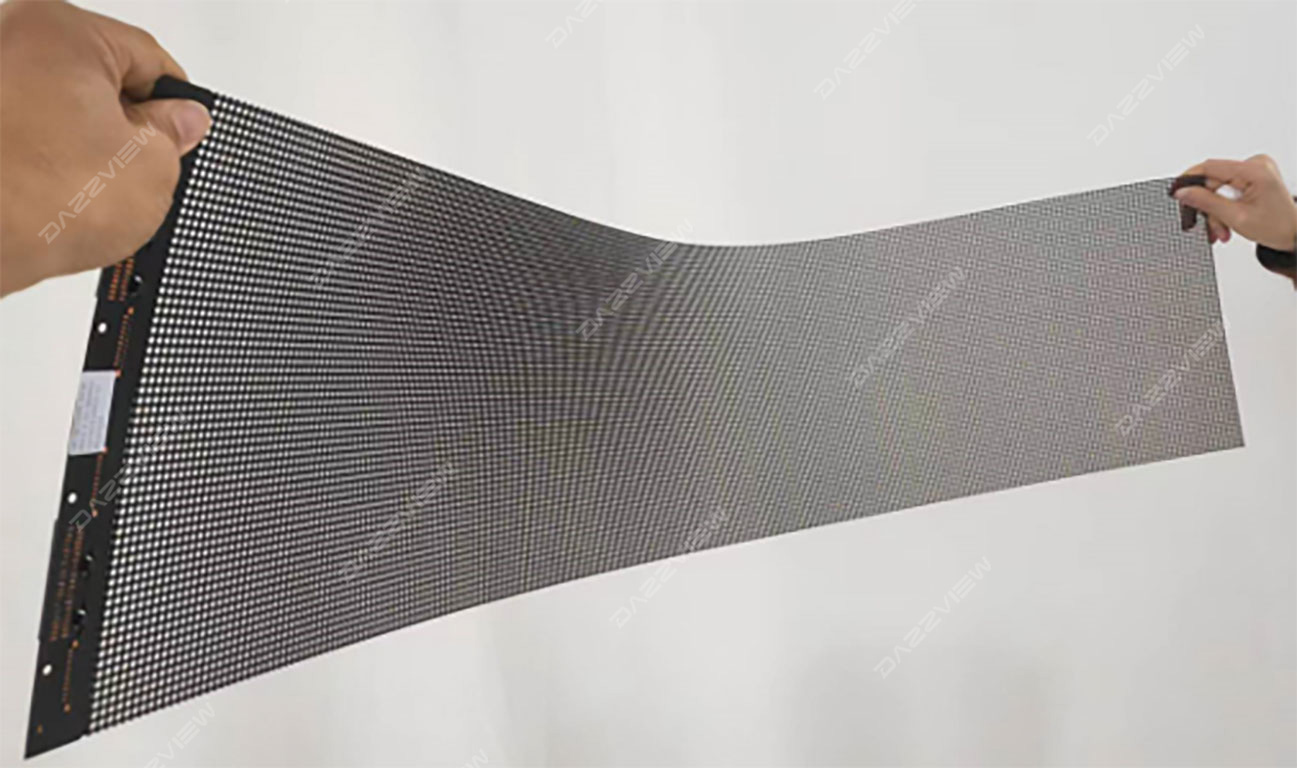

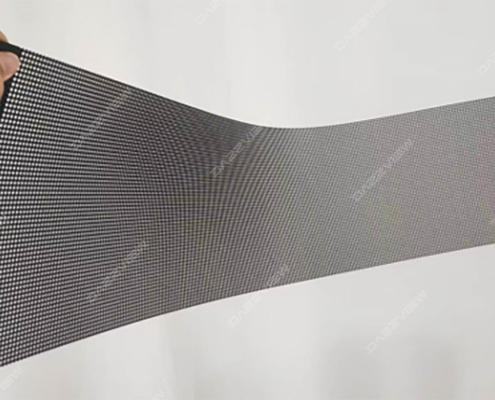

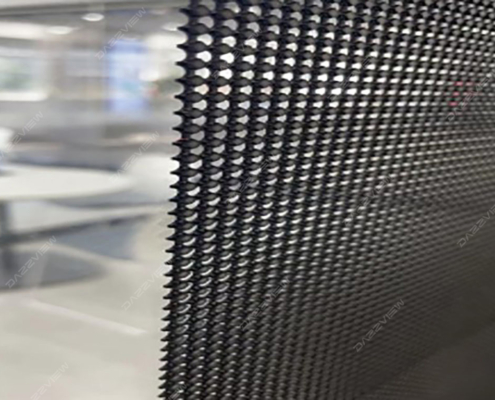

The holographic display can be flexibly cut to adapt to various complex scenes. It is also ultra-light and ultra-thin, with front and back glass installation, making installation and maintenance extremely easy.

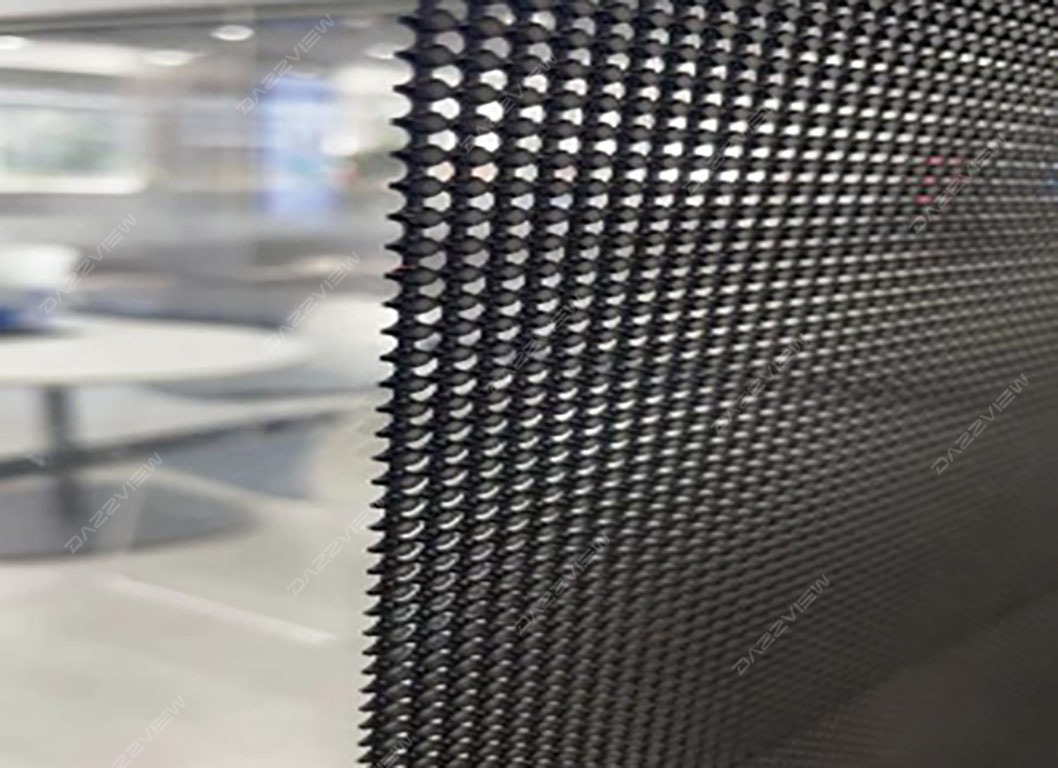

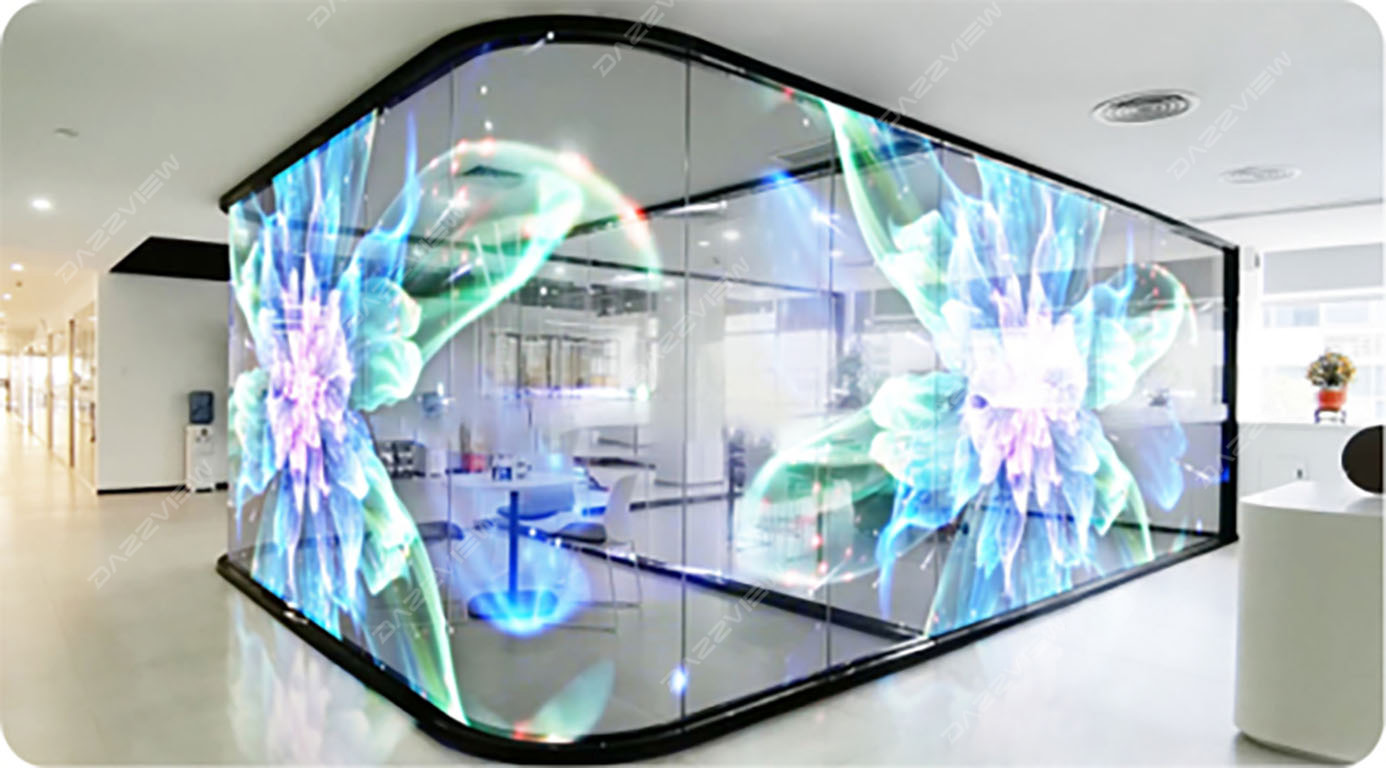

Glass Facade Glue Installation

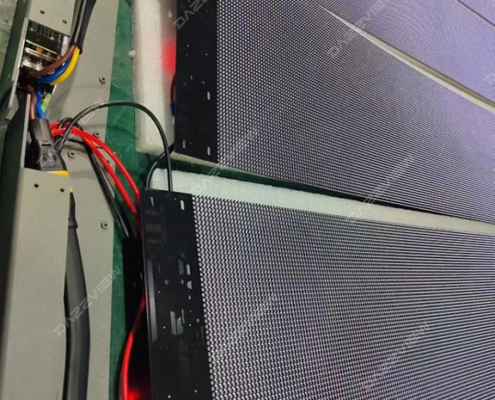

It adopts ultra-clear and ultra-thin materials with high transparency and high-temperature resistance. The overall installation without steel structure. The screen body can be spliced left and right, up and down. It has 90% transparency and both sides can be mounted on the glass.
Building Curtain Wall
- Cloud-controlled screen
- Ultra-large curtain wall, more than 200m²
- Software settings, automatic screen on/off
- Unique transparent image, 85% transparency, does not block the commercial space view
- Does not affect the appearance of the building curtain wall
- Light and thin, easy to install
- Indoor installation, outdoor viewing
- Low power consumption, good heat dissipation,
- Automatic brightness adjustment, anti-light pollution
- Recommended configuration: computer and network:

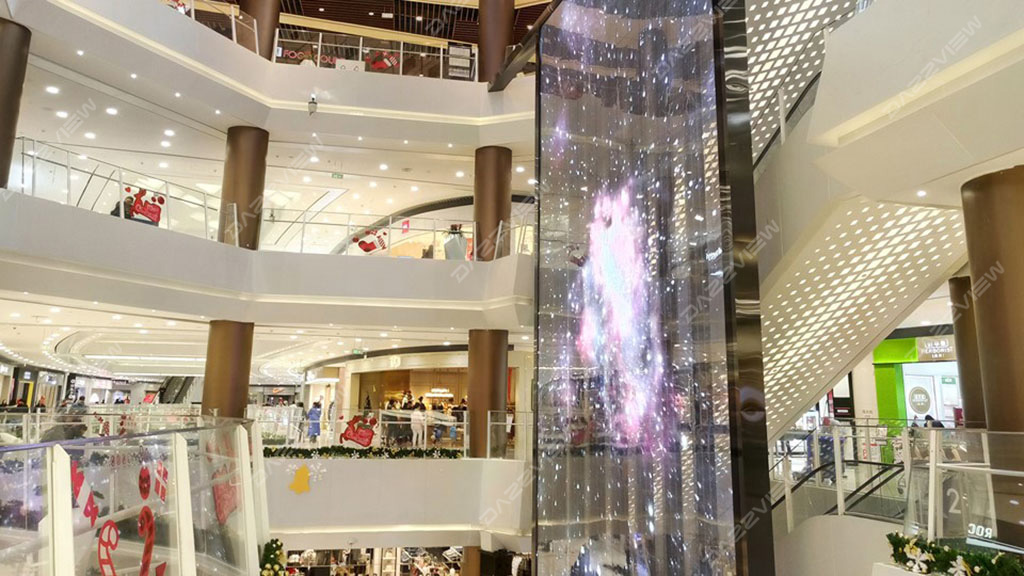

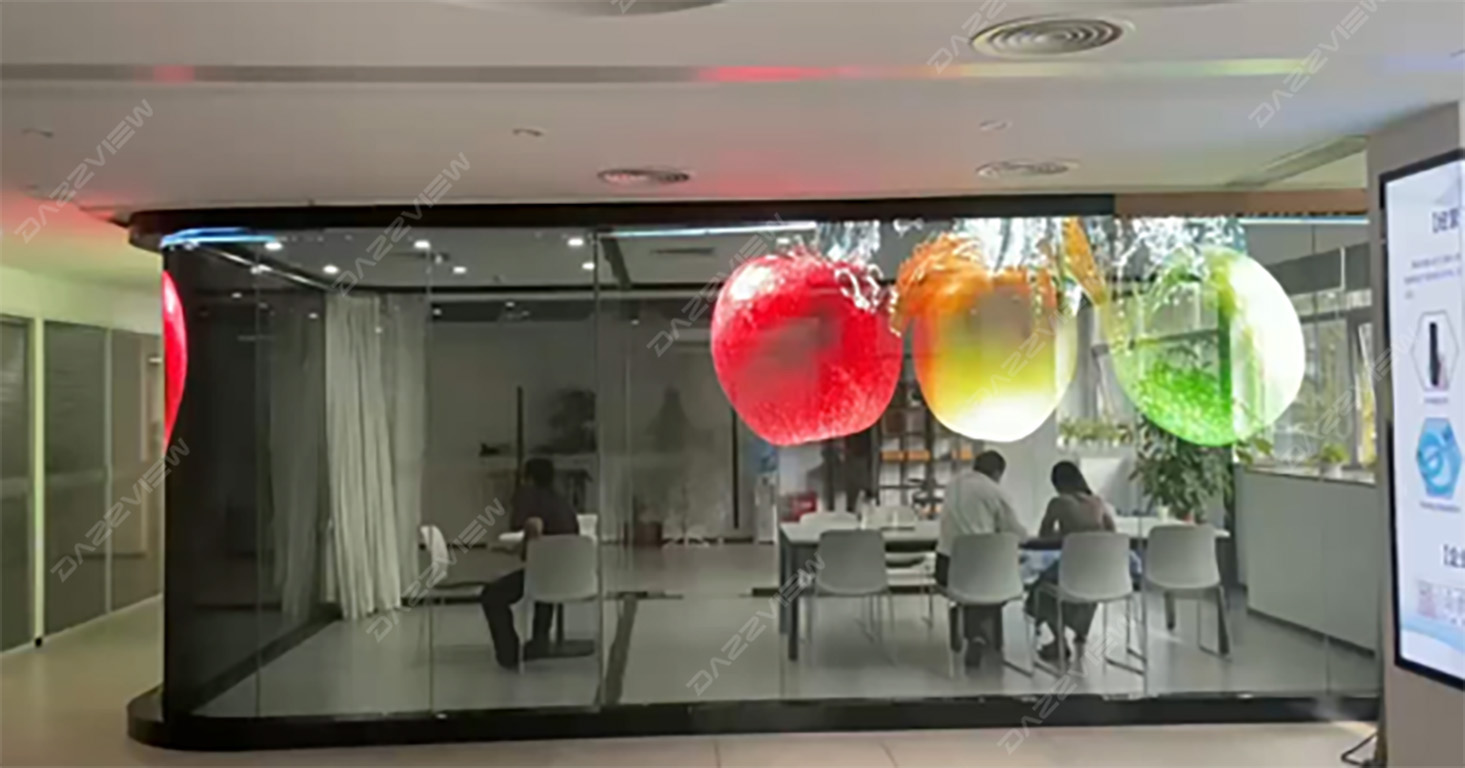

In the Mall
- Remote cloud-controlled screen
- Software settings, automatic screen on/off
- High-definition, high-brightness, transparent display
- Modular installation structure, convenient in-store maintenance
- Automatic brightness adjustment, light pollution prevention
- Recommended configuration: computer and network

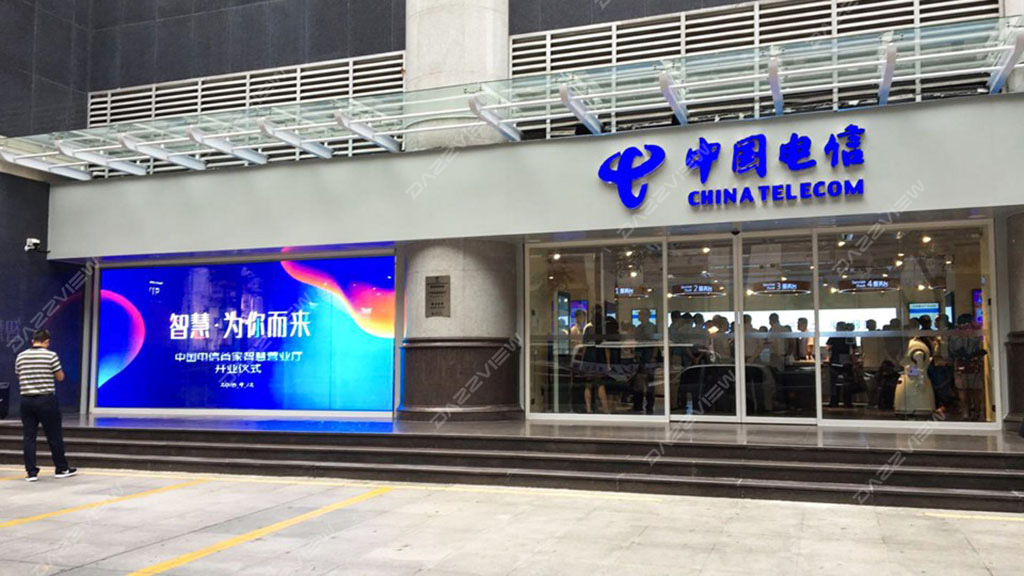

Large Street-facing Window
- Mobile phone control the screen
- 12*3 meters (100 meters visible)
- Software settings, automatic screen on/off
- Transparent front and rear masks
- Modular installation structure, convenient in-store maintenance
- High-definition picture, three-dimensional, high refresh rate, wide viewing angle;
- Easy to install, short cycle and does not affect normal business in the store;
- Good heat dissipation, low energy consumption
- Brightness above 3000nits, can be seen across the street, automatically adjusted at night
- Recommended configuration: computer and network

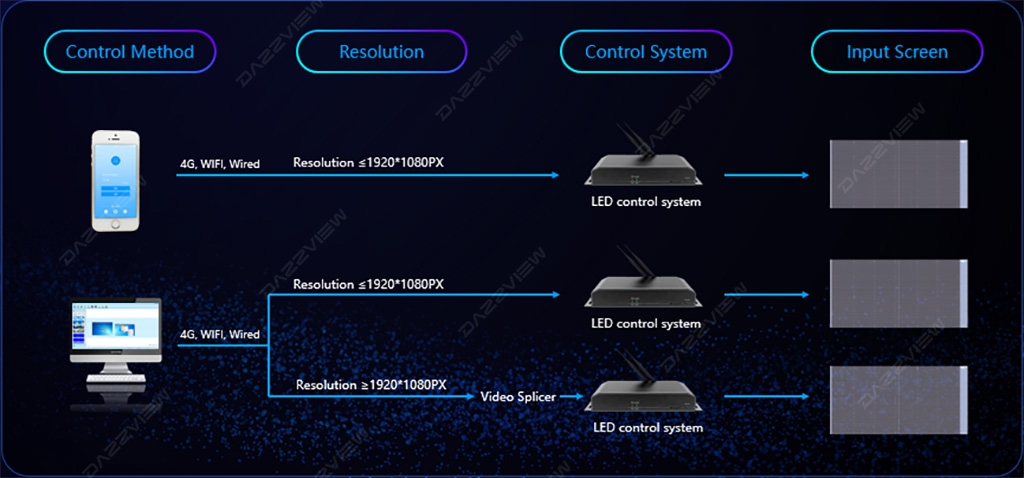

System Configuration

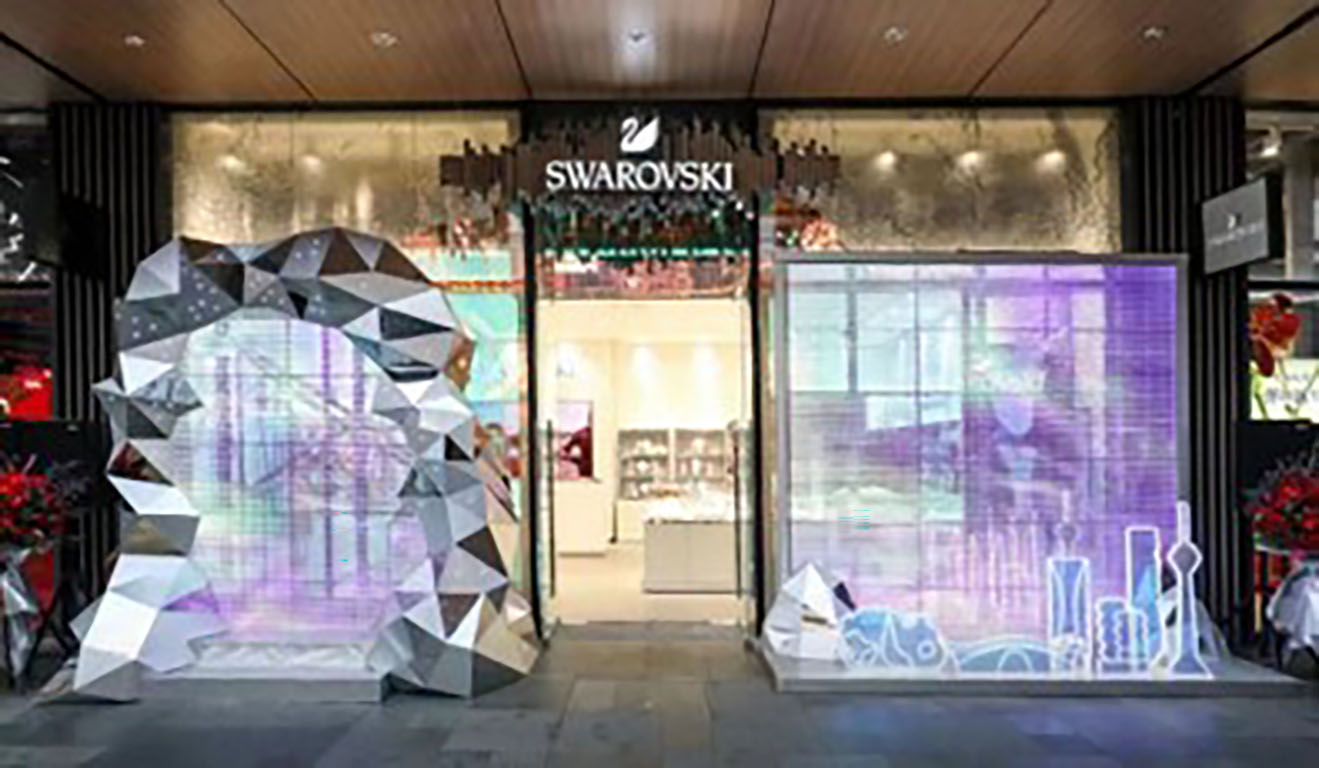

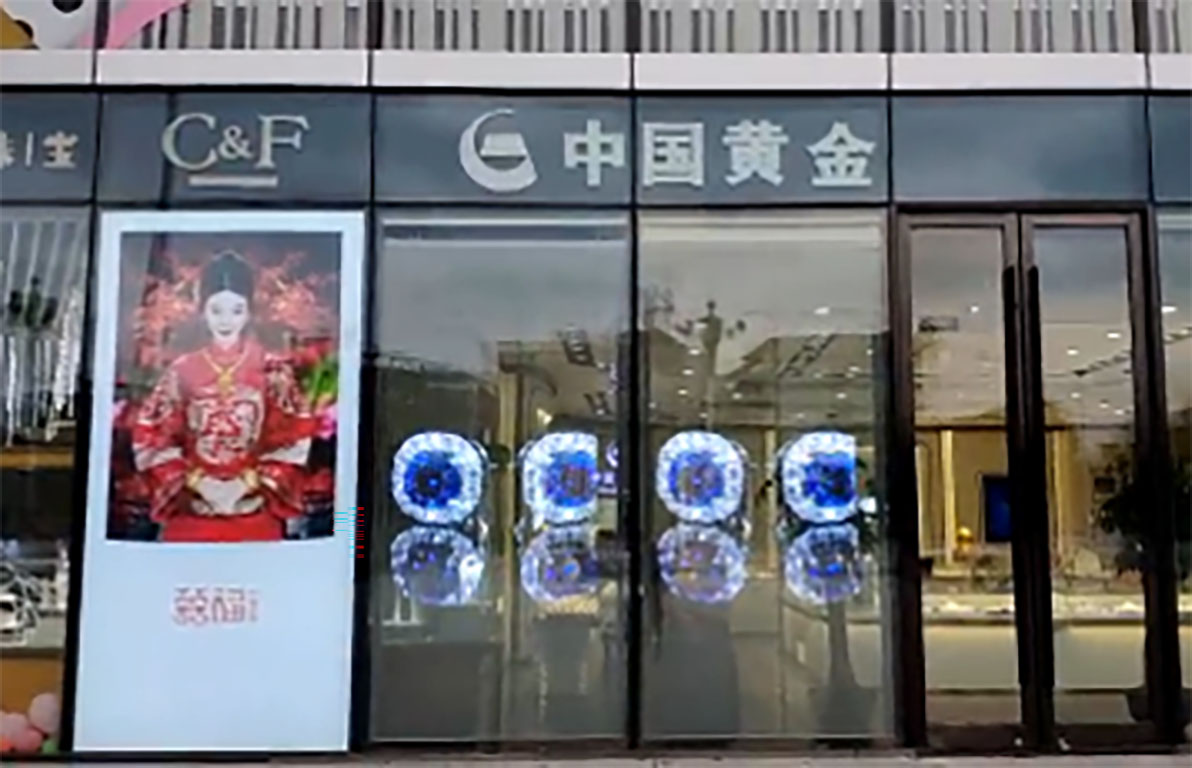

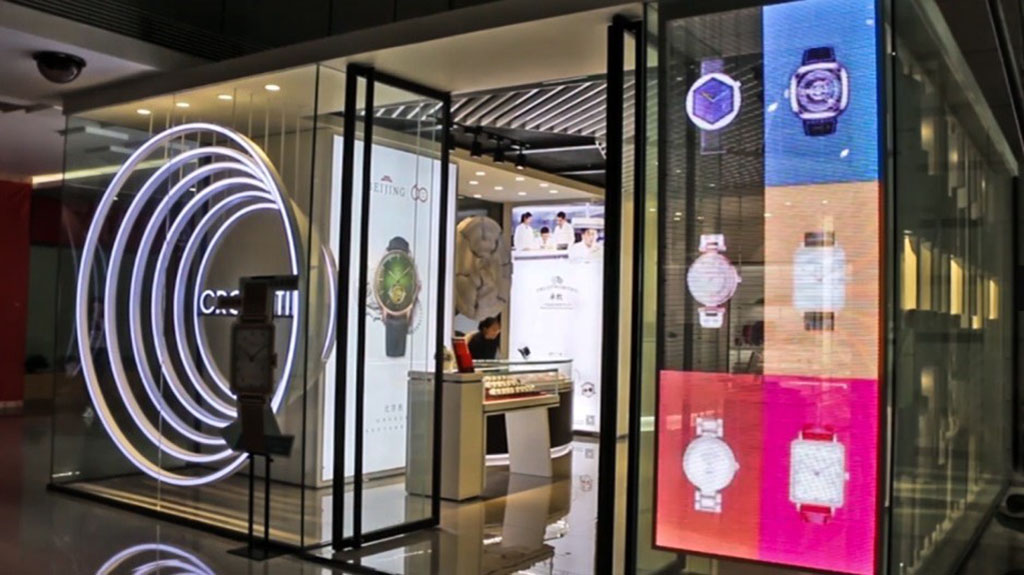

Jewelry Industry Case
Application scenarios: Brand showroom/ store window/ interactive marketing
Experience the Future with the Holographic Transparent LED Display
With the holographic transparent LED display, the possibilities for advertising, entertainment and information presentation are endless. Imagine displaying your products in a way that makes them appear as if they’re floating in mid-air, or creating a three-dimensional world for your audience to interact with. Cutting-edge technology provides a seamless display that can be used in any environment, from retail stores to corporate events, and is perfect for creating a futuristic aesthetic. It’s a game changer in the digital signage industry and will transform the way you share information with your audience.
Specs That Will Blow You Away!
| Specification | ||
| Model NO. | Dholo3.9 | Dholo6.25 |
| Pixel Pitch | 3.91mm | 6.25mm |
| LED Type | SMD1717 | SMD1717 |
| Pixel configuration | 1R1G1B | 1R1G1B |
| Density | 65536dots/㎡ | 25600dots/㎡ |
| Cabinet material | Fiberglass Board(4-layer PCB) | |
| Size of cabinet(W*H) | 1000×250/ 1200x250mm | 1000×250/ 1500x250mm |
| Resolution of cabinet(W*H) | 256×64/ 300X64 | 160×40/ 240×40 |
| Weight of cabinet | 6KG/㎡ | 6KG/㎡ |
| Transparency | 92% | 95% |
| Best viewing distance | >4m | >6m |
| Best viewing angle | 140° | |
| Brightness | 1500-3000cd/㎡ | |
| Maximum power consumption | 800W/㎡ | |
| Average power consumption | 200W/㎡ | |
| Driving method | Static | |
| Gray scale | 16 bits | |
| Refresh frequency | 1920Hz | |
| IP grade | IP33 | |
| Colors | 16777216 | |
| Color temperature | 6500-9500k | |
| Driving device | Constant current | |
| Working voltage | AC220V/110V±10% | |
| Working temperature | —20℃~50℃±10% | |
| MTBF | >10,000 hours | |
| Frame frequency | 60Hz | |
| Life Span | 100,000 hours | |
