Fixed Digital Signage LED Display Installed on Lighting Pole
Fixed Pole-Mounted LED Display, Ideal for outdoor advertising in high traffic locations. Displays high-quality images and videos for maximum impact for digital sigange.
DAZZVIEW TECHNOLOGY
Fixed Digital Signage
LED Display Installed on Pole
Product Name: Fixed Digital Signage LED Display Installed on Pole
Product Model: Dpole Series
Product Description:

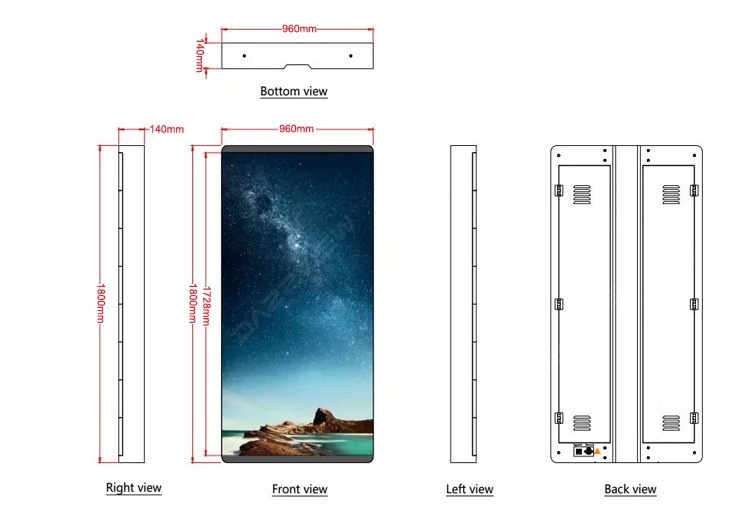

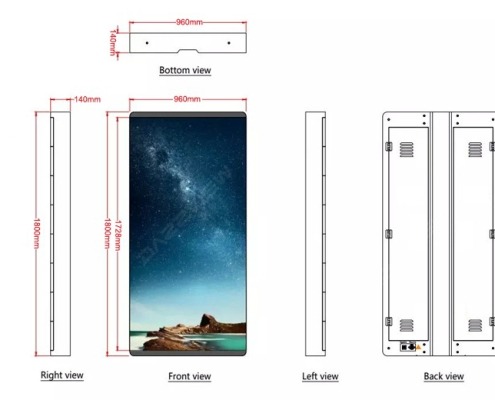

Dimension: 1000mmx1736mm / 1000mmx1800mm Or Customized
Weight: 69.5Kg/72Kg /Pc
Pixel Pitch Outdoor: P3, P4, P5
Key Features:
1.High Visibility
2.Waterproof IP65
3.Multiple Mounting Options
4.Remote Content Management
5.Customizable
6.SMD Technology
DAZZVIEW TECHNOLOGY
Customized Pole LED Display Screen!
A good LED display solution which will be installed on the lighting pole. Using SMD technology with 3mm, 4mm, 5mm pixel pitch, and the cabinet size can be customized into 640x960mm, 768x1152mm which base on the LED module size.
DAZZVIEW TECHNOLOGY

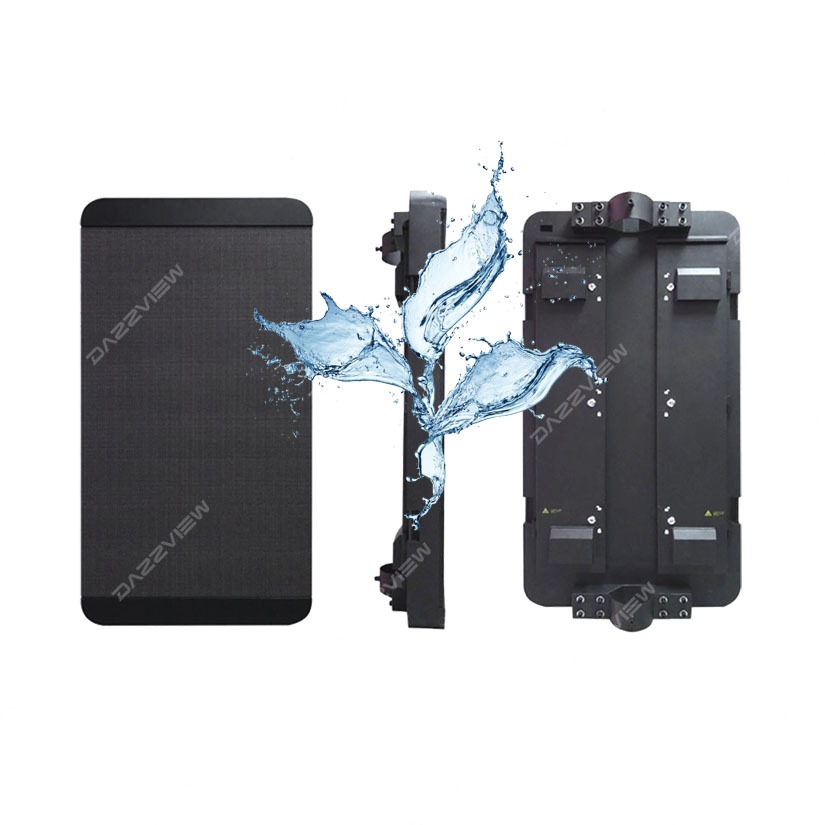

IP65 Waterproof Rate!
The outdoor steel cabinet has IP65 waterproof rate, the screen can work perfect against the bad weather and the cabinet can protect the components inside well.
DAZZVIEW TECHNOLOGY

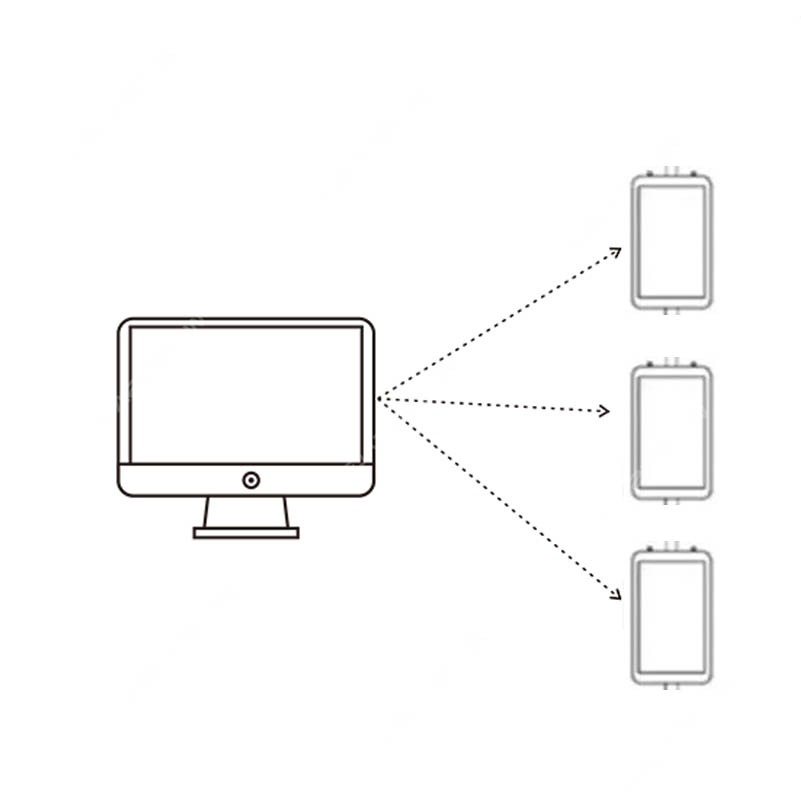

Remoted Group Control!
One PC/smartphone can control more screens, keeping all screen synchronous by Cloud or 4G control.
DAZZVIEW TECHNOLOGY

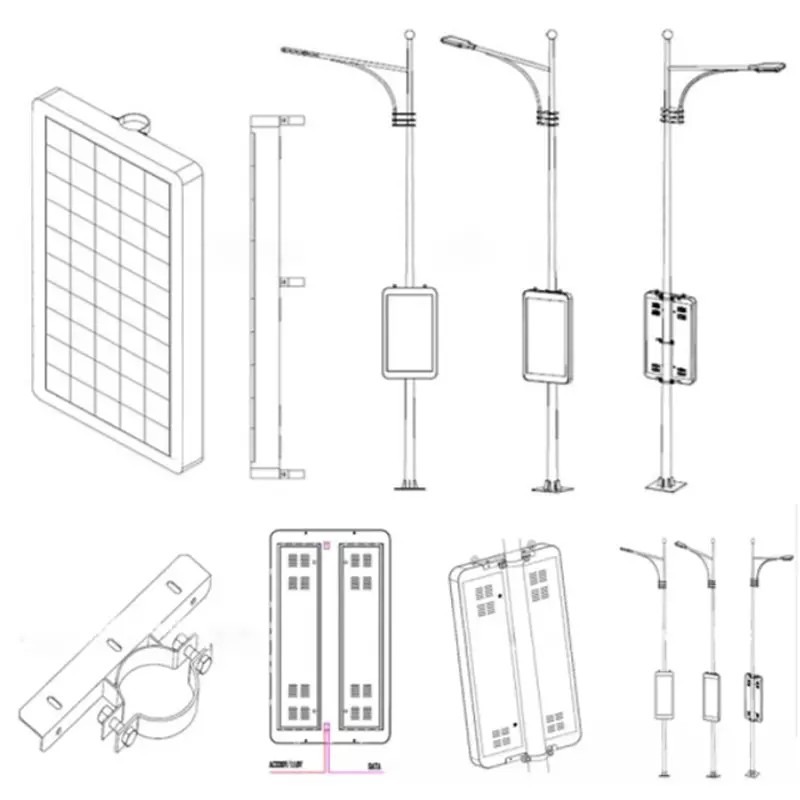

Multiple Installation Way!

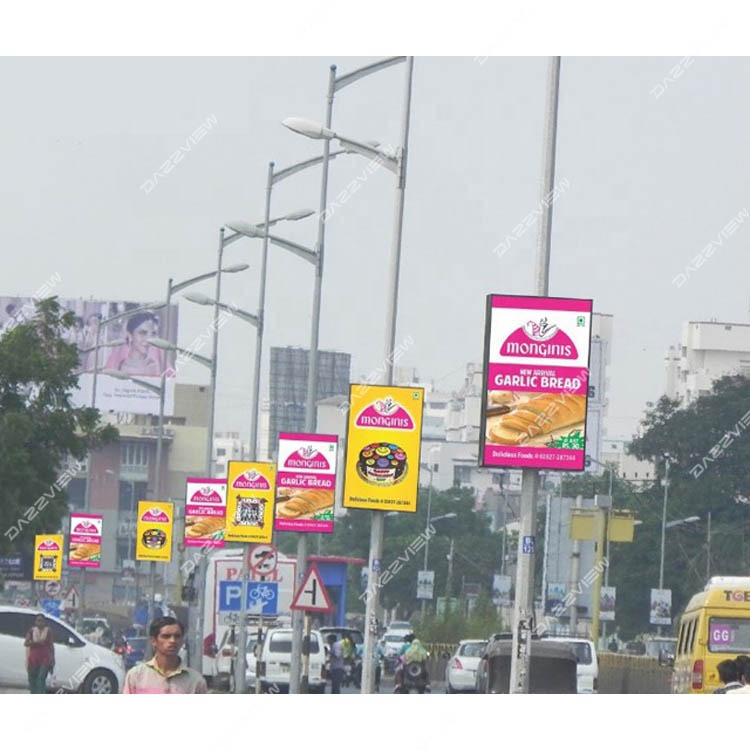

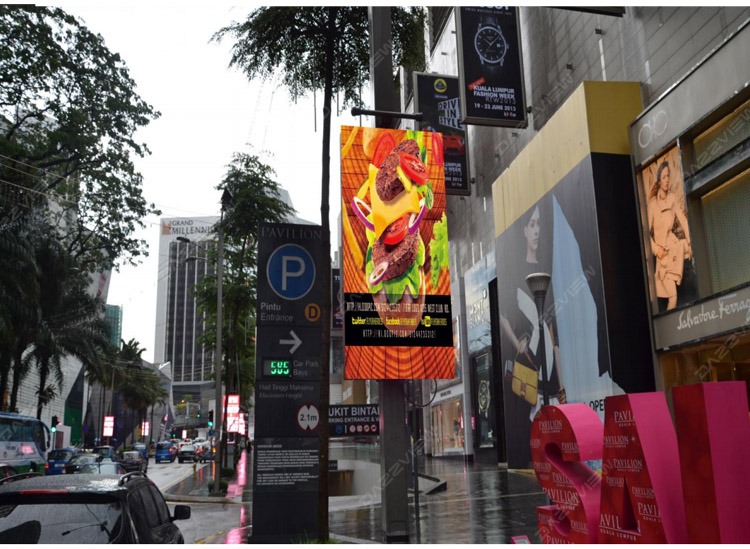

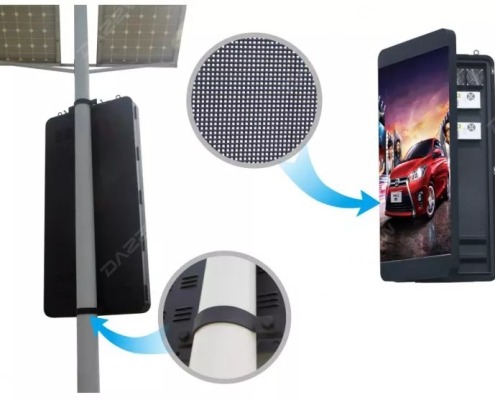

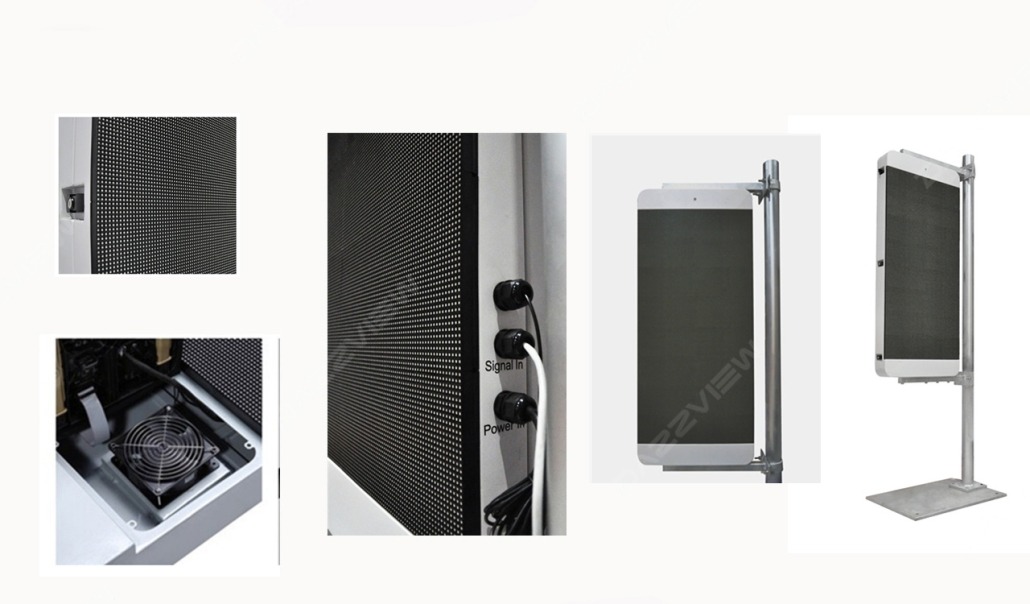

1. Install In The Middle Of The Pole!
The most simple way is to install the screen in front of the pole, and the screen connect with the pole with the bracket.
DAZZVIEW TECHNOLOGY

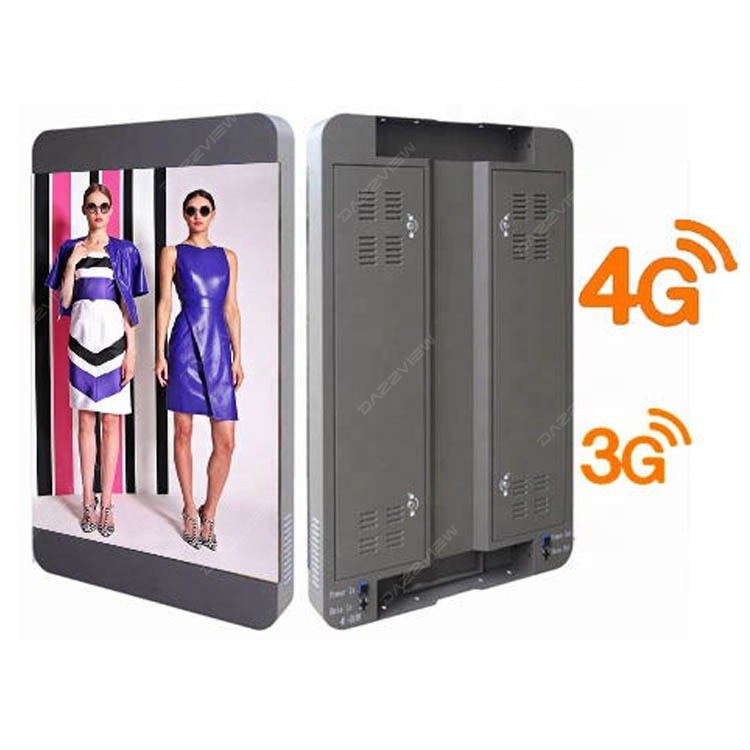

High Technology Makes The Screen Easy To Be Used!

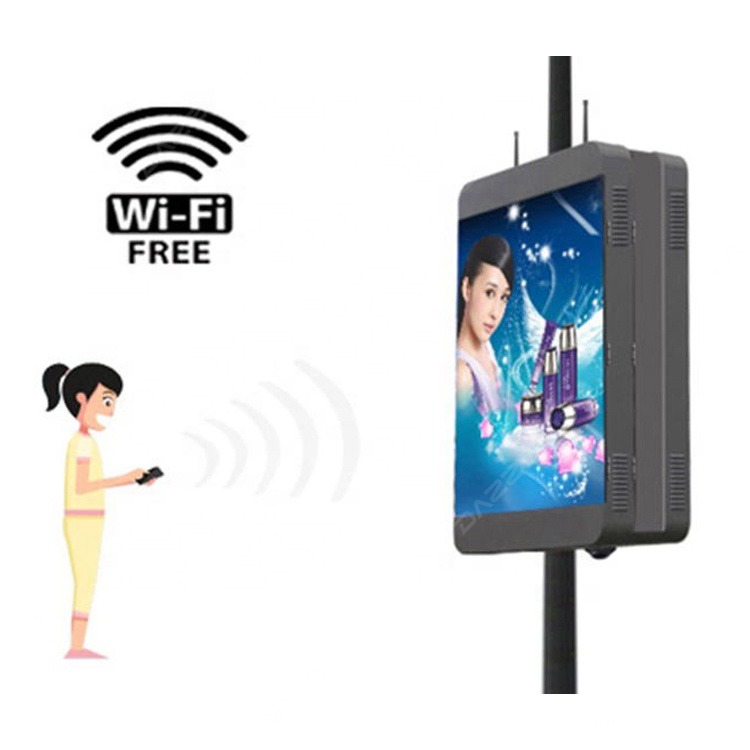

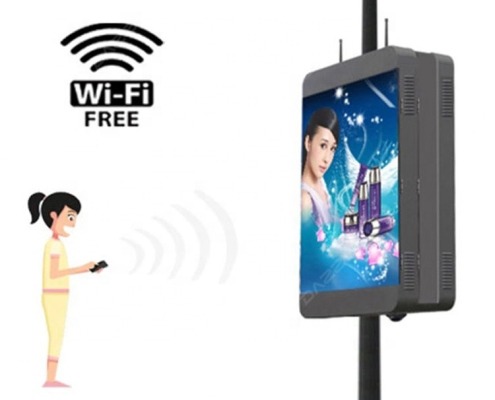

The pole LED display can be control easily with wifi or 4G technology, and you can control a group of screens in one time.
DAZZVIEW TECHNOLOGY

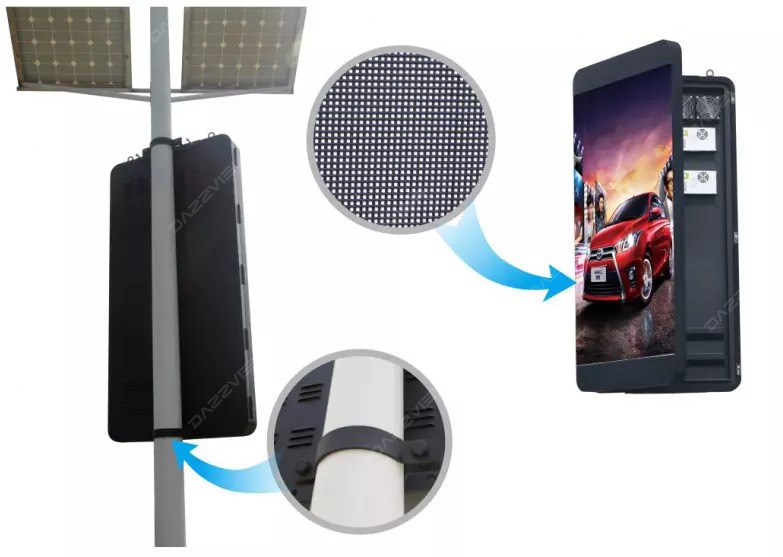

Elegant Looking And Well Fixing On The Pole!
The LED screen fixed perfect on the pole. High quality LED lamp and high refresh rate makes the image and video on the screen looks wonderful.
DAZZVIEW TECHNOLOGY

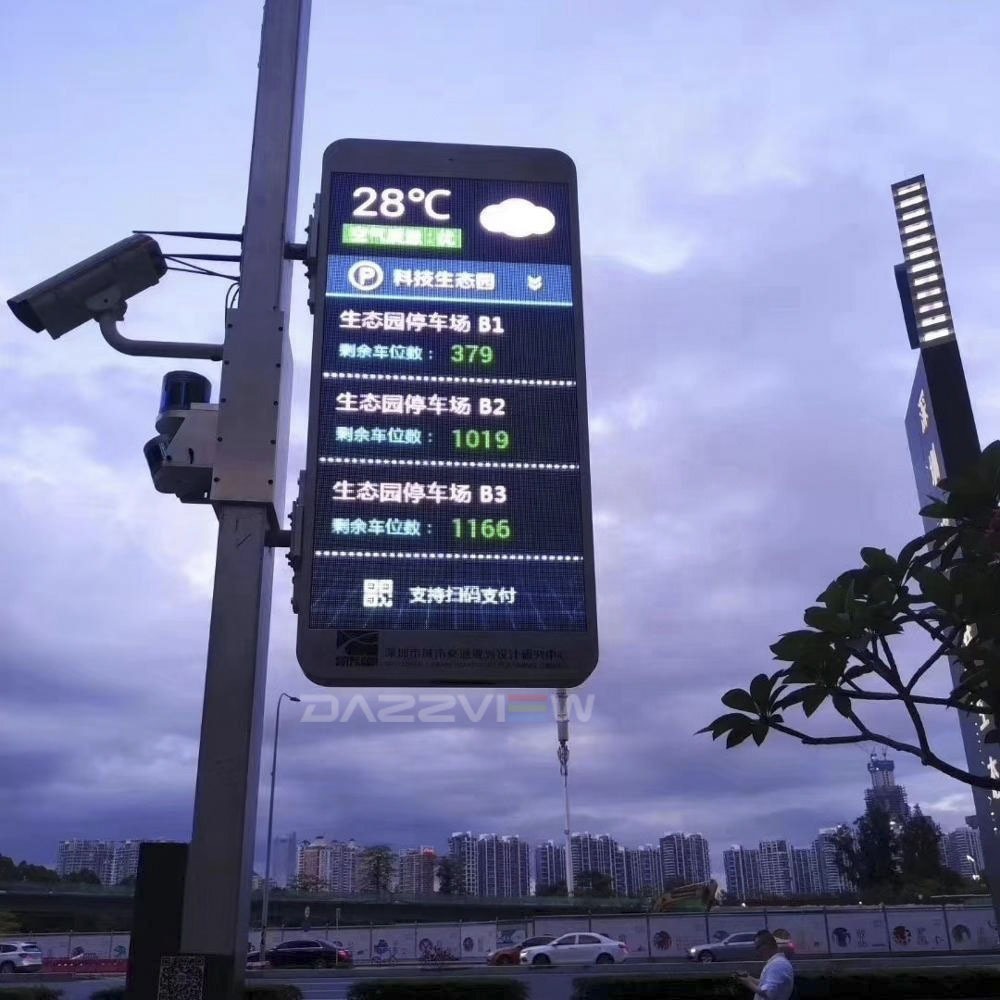

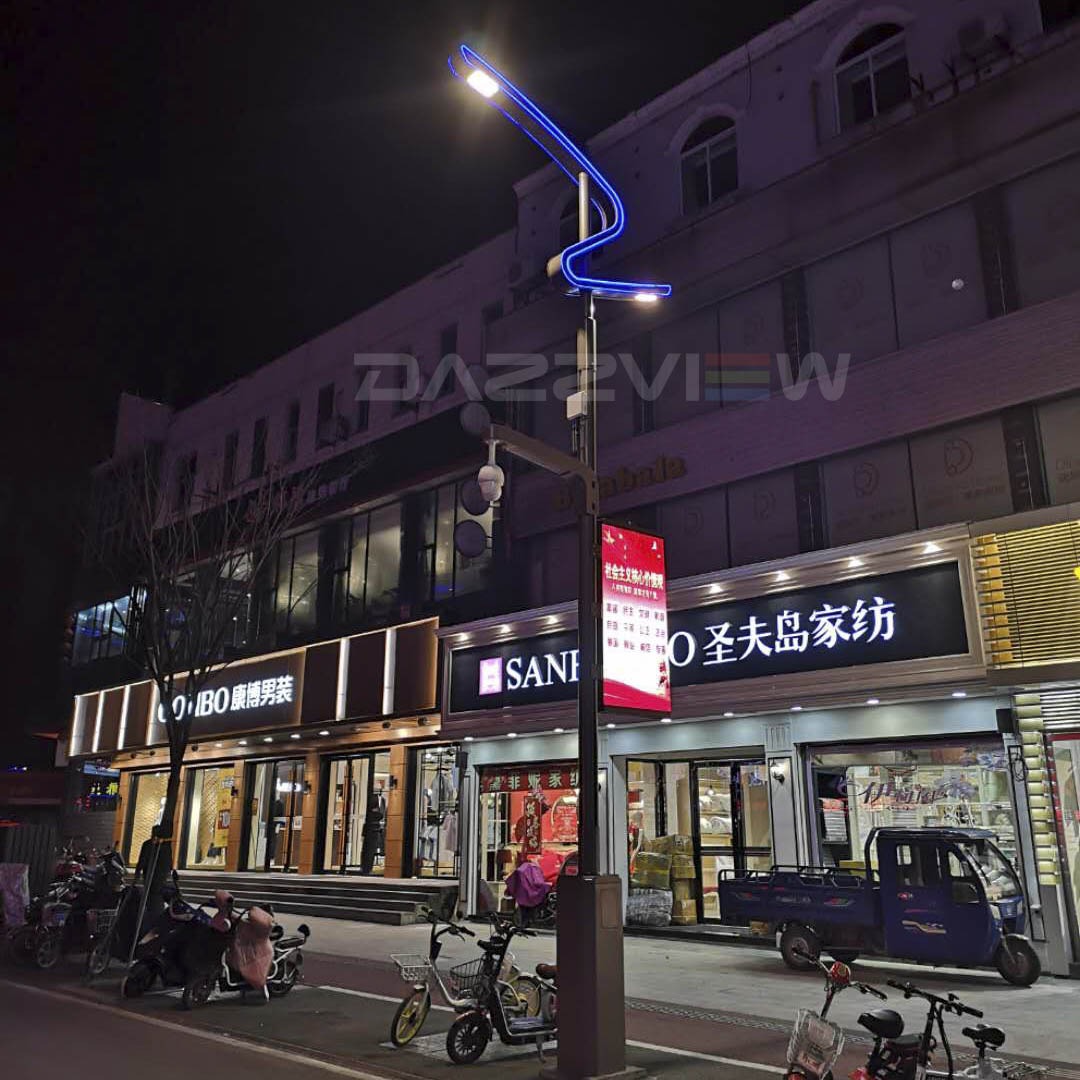

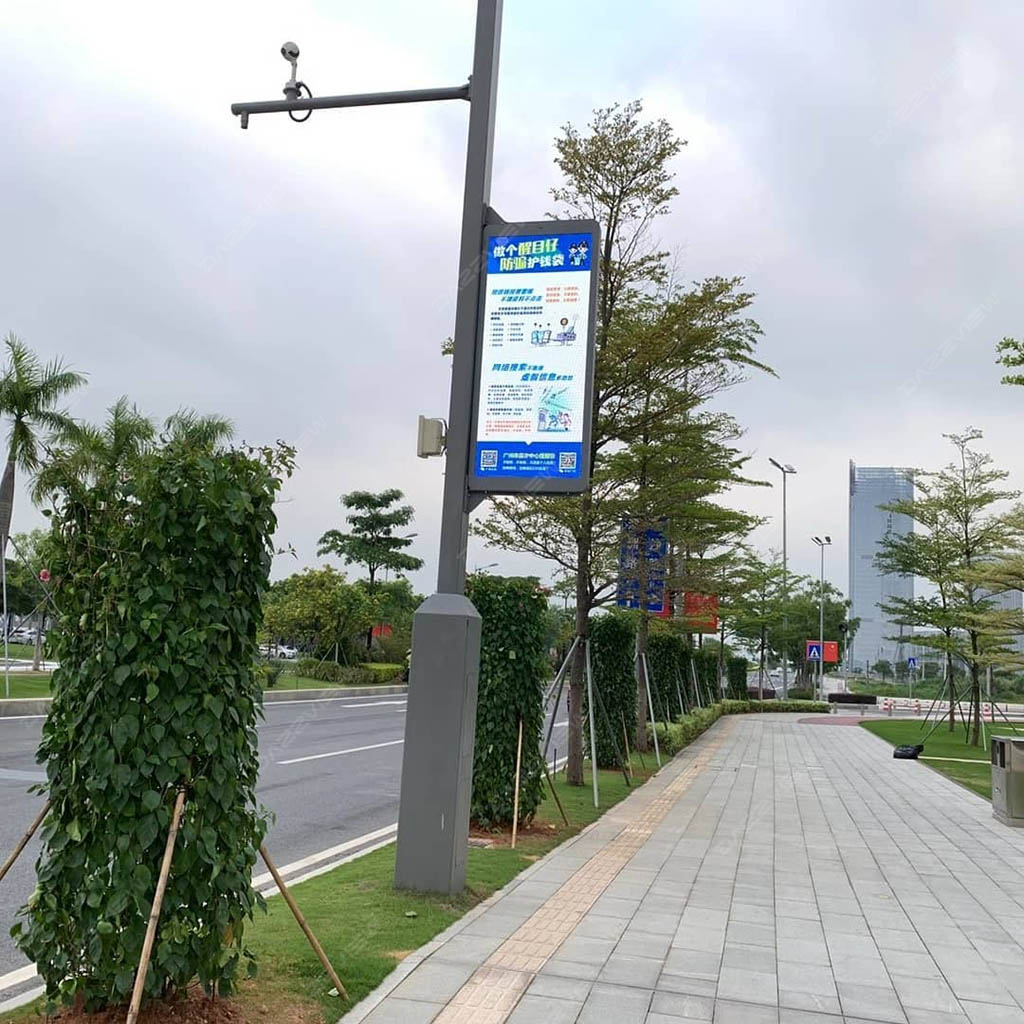

2. Side Mounted!
The pole LED display can be side mounted with the brack, it’s much more strong and stable to fix on the pole no matter what kind of the pole it is.
DAZZVIEW TECHNOLOGY

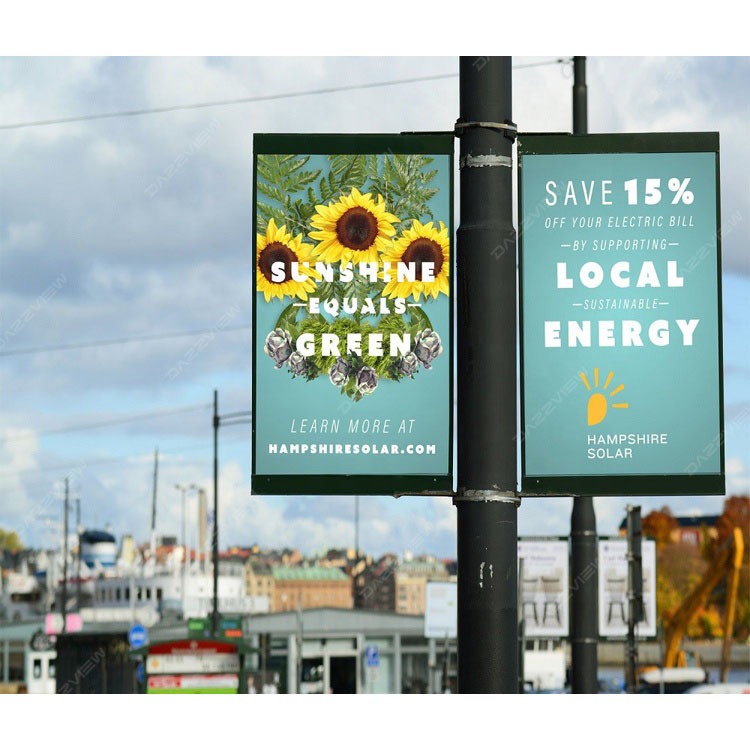

3. Side by side mounted!
Base on the side mounted, we can add another same one on the pole to be advanced type.
DAZZVIEW TECHNOLOGY

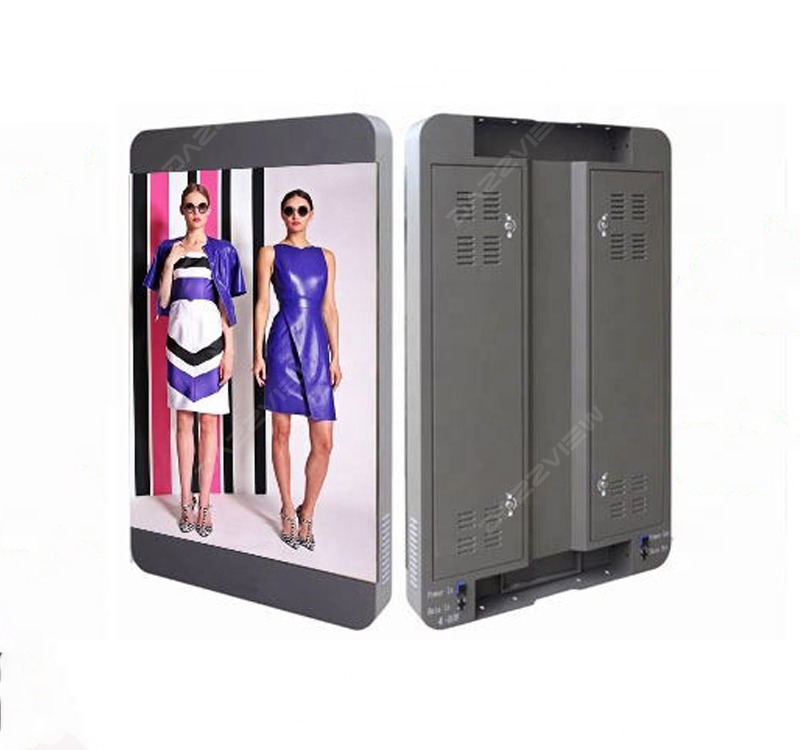

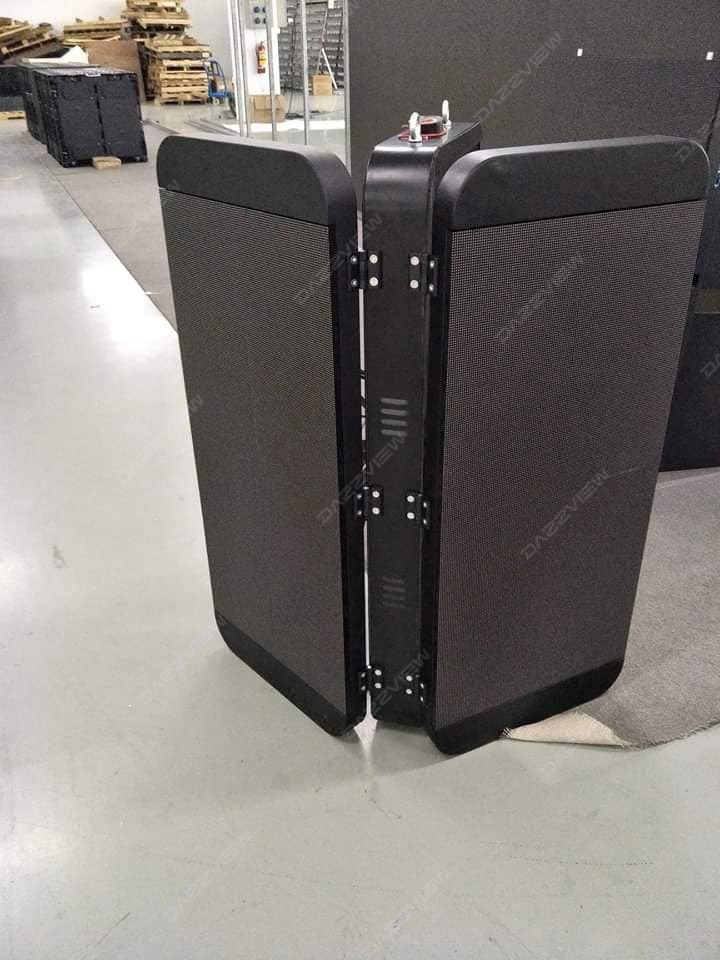

Double Sides Available!
The pole LED display screen not only can be made into one side, but also double sides. With the double sides pole LED screen, the ads can be showed two directions, the people in the cars from two directions can see the advertising.
DAZZVIEW TECHNOLOGY

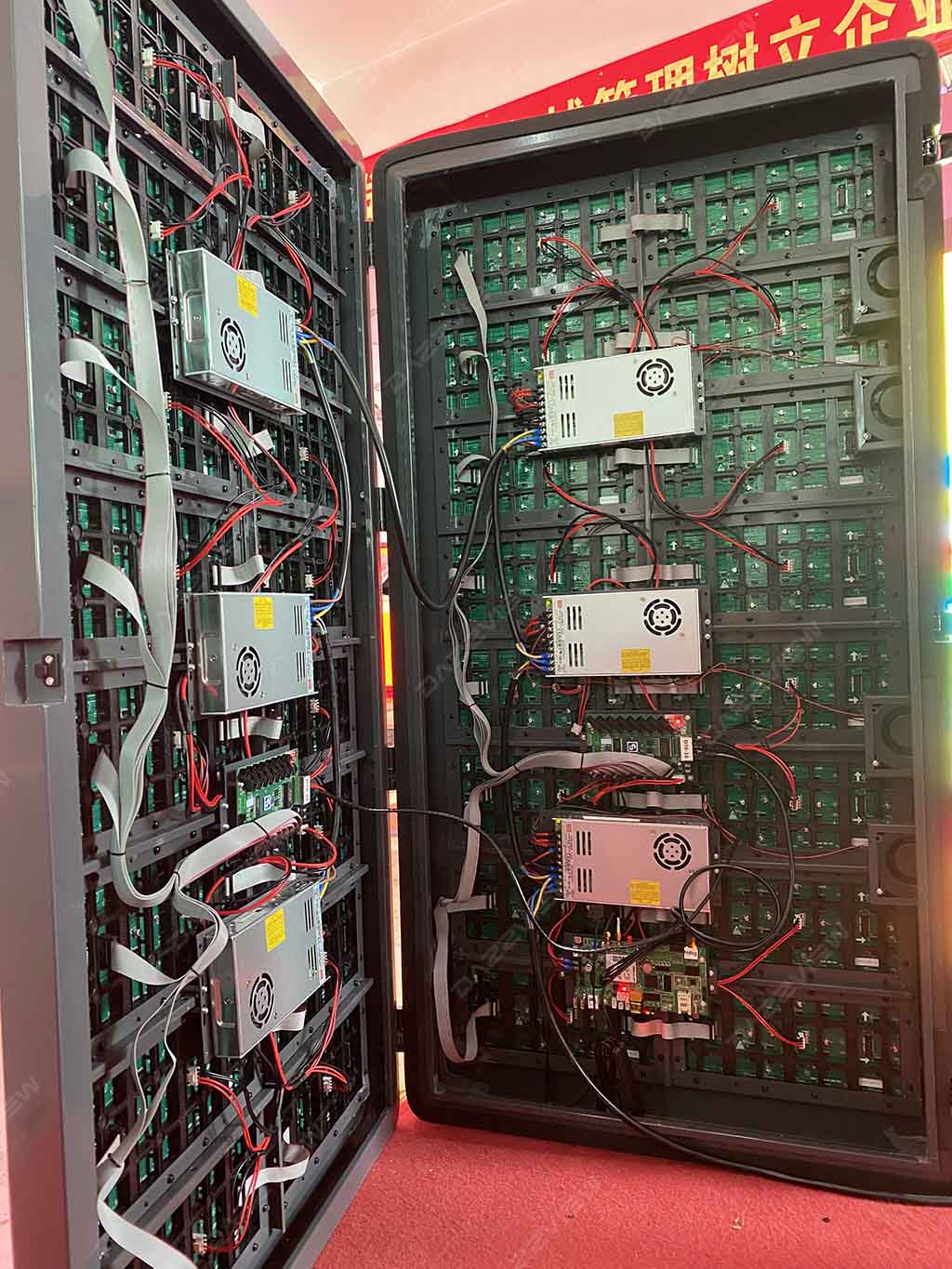

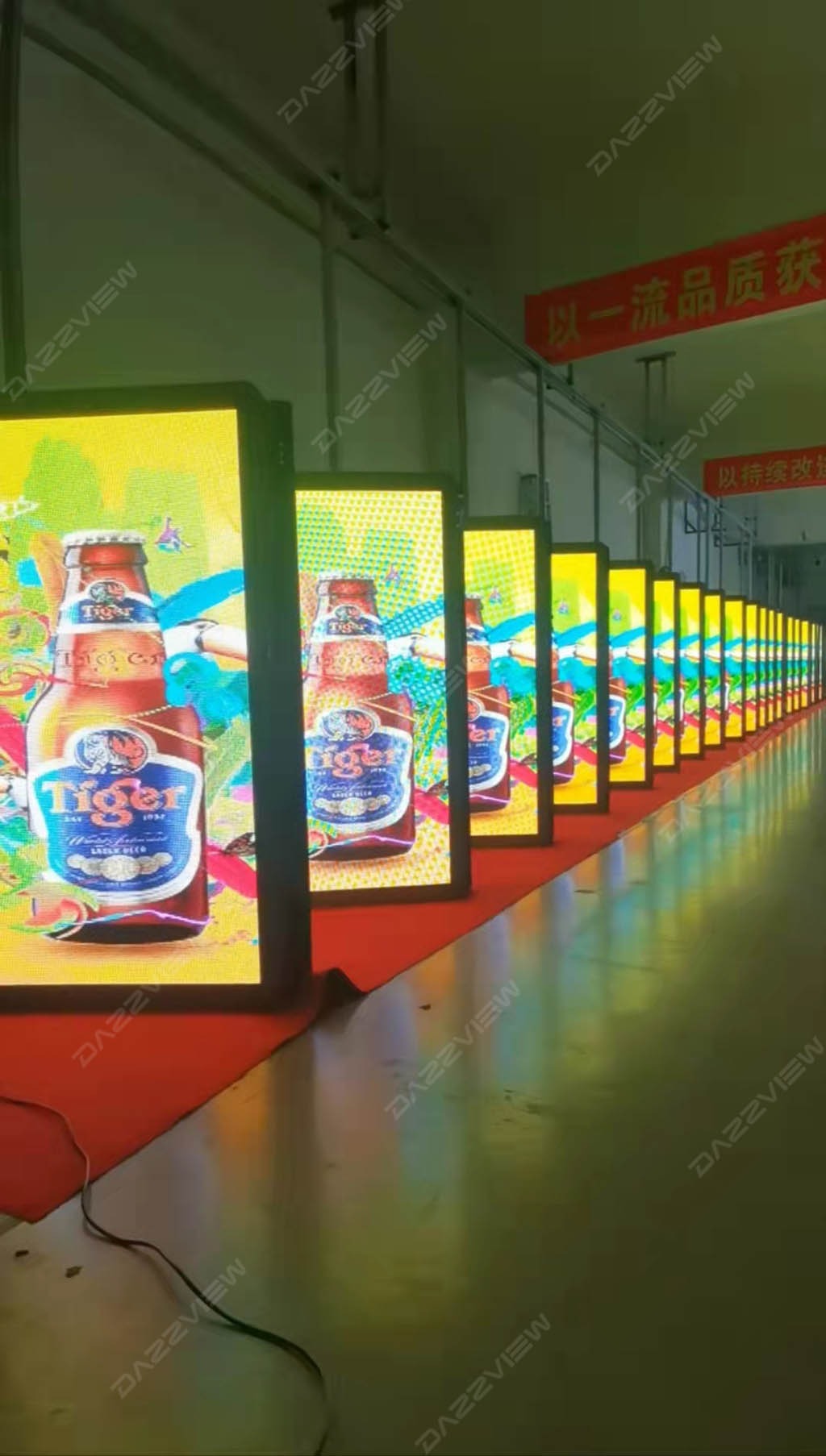

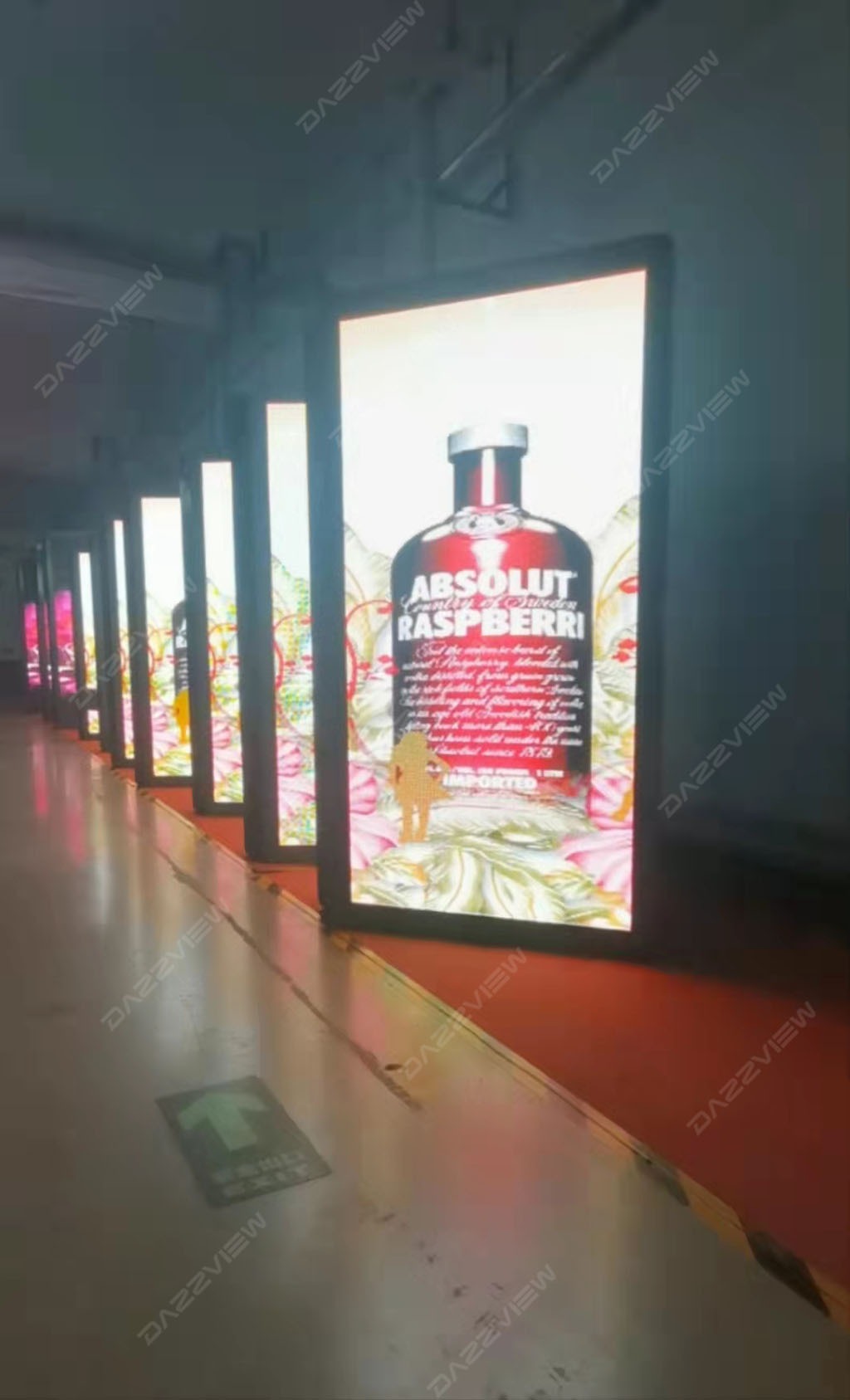

Pole LED Display Aging Test!
The pole LED display will be in aging test after well assembly with strictly quality control. With the high quality materials and components to be used, the screen has a longer lifespan and energy saving.
DAZZVIEW TECHNOLOGY

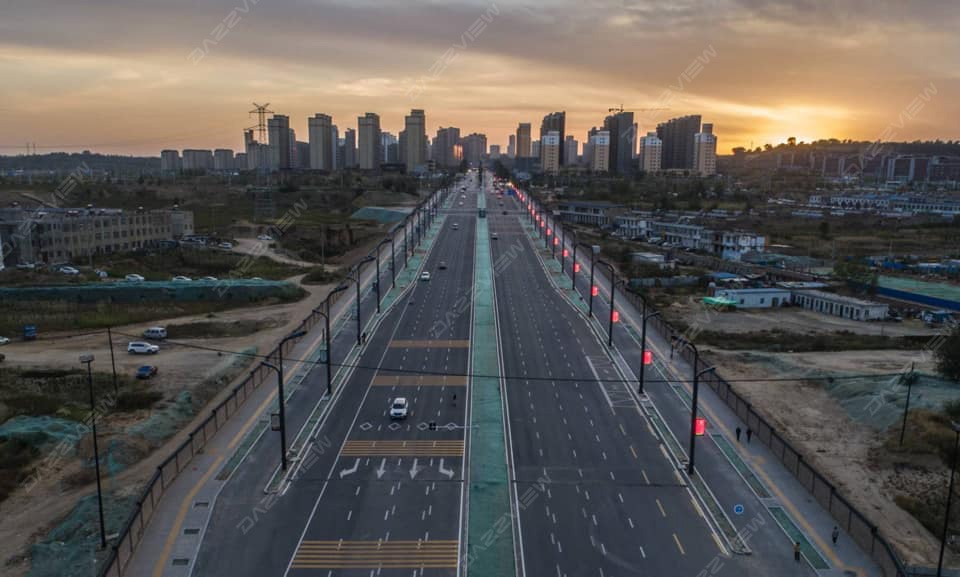

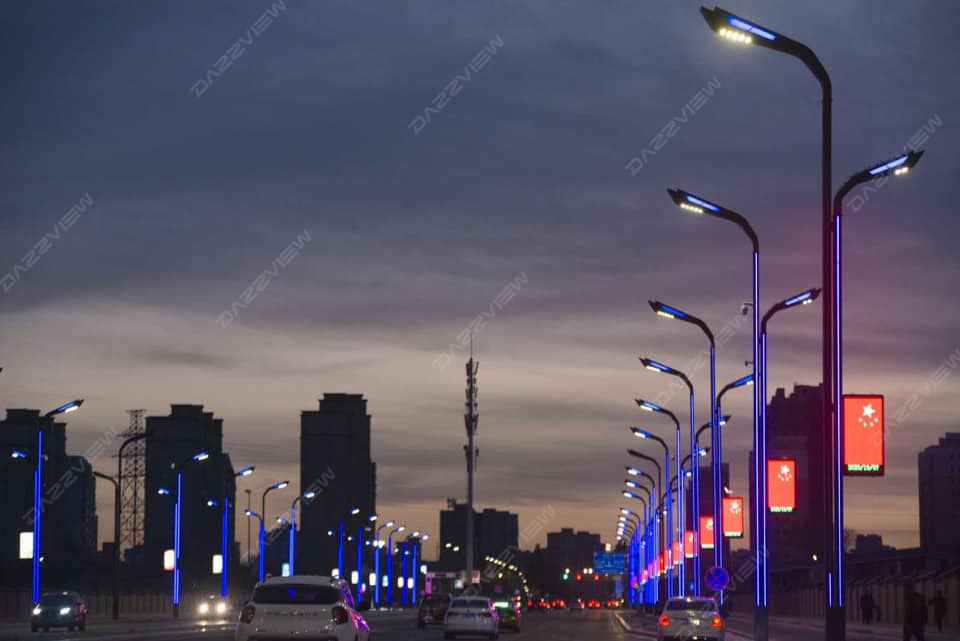

Stand Out from the Crowd!
Want to grab people’s attention? Our pole LED display grab drivers, passagers and passerbys’ attention on the street. The pole LED display screen can be installed on the street lighting pole, where there are poles on the street, they can be do the advertisement on the poles.
DAZZVIEW TECHNOLOGY
Specs That Will Blow You Away!
| Specification | |||
| Model NO. | Dpole3 | Dpole4 | Dpole5 |
| Pixel Pitch | 3mm | 4mm | 5mm |
| LED Type | SMD1921 | SMD1921 | SMD2727 |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B |
| Size of module(W*H) | 192mmx192mm | 320mmx160mm | 320mmx160mm |
| Resolution of module(W*H) | 64×64 | 80×40 | 64×32 |
| Density | 111,111dots/㎡ | 62,500dots/㎡ | 40,000dots/㎡ |
| Cabinet material | Steel | Steel | Steel |
| Size of display(W*H) | 960mmx1536mm or customized | 960mmx1600mm or customized | 960mmx1600mm or customized |
| Size of cabinet(W*H) | 1000mmx1736mm or customized | 1000mmx1800mm or customized | 1000mmx1800mm or customized |
| Weight of cabinet | 69.5KG | 72KG | 72KG |
| Best viewing distance | >5m | >5m | >5m |
| Best viewing angle | 140° | 140° | 140° |
| Brightness | 5000cd/㎡ | 5000cd/㎡ | 5000cd/㎡ |
| Maximum power consumption | 600W/㎡ | 600W/㎡ | 600W/㎡ |
| Average power consumption | 200W/㎡ | 200W/㎡ | 200W/㎡ |
| Driving method | 1/16 scanning | 1/10 scanning | 1/8 scanning |
| Gray scale | 16 bits | 16 bits | 16 bits |
| Refresh frequency | 1920Hz | 1920Hz | 1920Hz |
| IP grade | IP65 | IP65 | IP65 |
| Colors | 16777216 | 16777216 | 16777216 |
| Color temperature | 6500-9500k | 6500-9500k | 6500-9500k |
| Driving device | Constant current | Constant current | Constant current |
| Working voltage | AC220V/110V±10% | AC220V/110V±10% | AC220V/110V±10% |
| Working temperature | —20℃~50℃±10% | —20℃~50℃±10% | —20℃~50℃±10% |
| MTBF | >10,000 hours | >10,000 hours | >10,000 hours |
| Frame frequency | 60Hz | 60Hz | 60Hz |
| Life Span | 100,000 hours | 100,000 hours | 100,000 hours |
