Outdoor front maintenance LED display which LED module can be directly stick on the cabinet with strong magnetic design. This solution can achieve full front service and high waterproof rate and mainly used for pixel pitch like P4.8, P3.9, P2.9, P2.6 which has same pitch as rental LED display type.

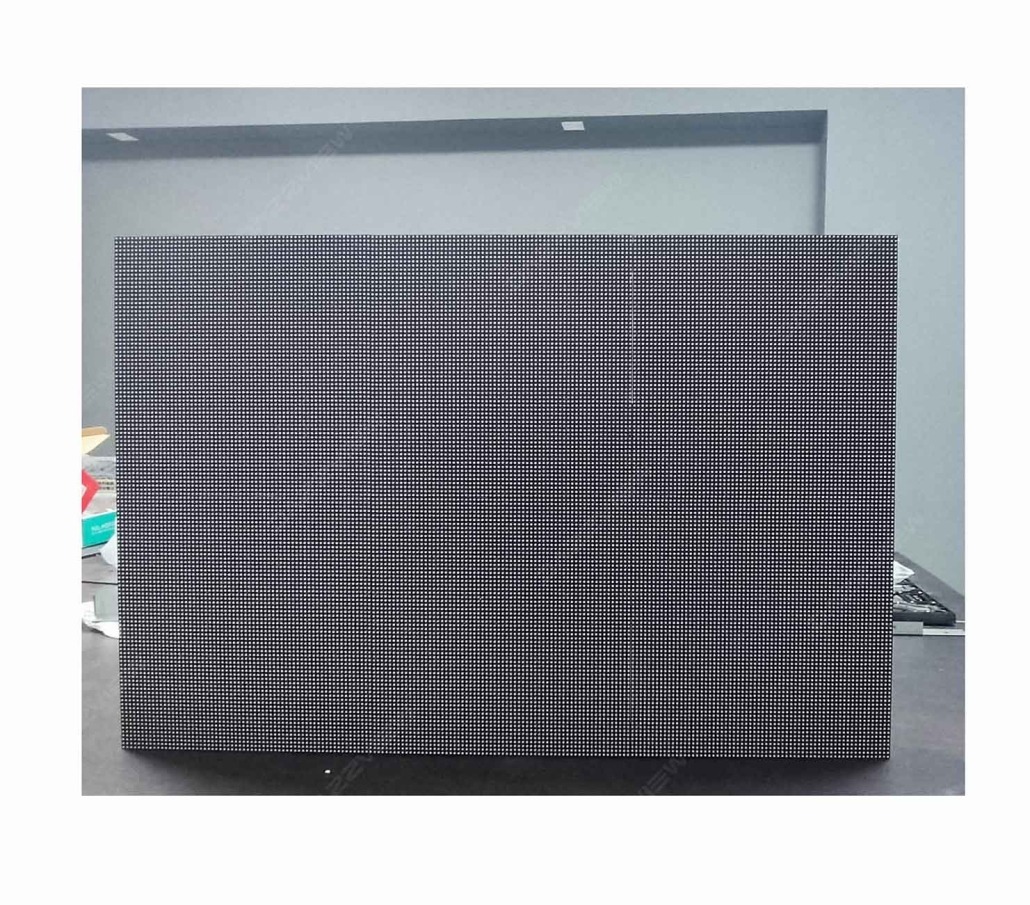

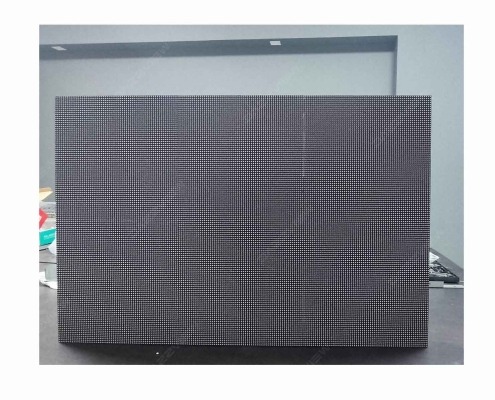

Product Name: Outdoor Front Service Fixed LED Display with Magnetic Design
Product Model: GX Series
Product Description:
Dimension: 1000mmx1000mm
Weight: 40kg/pc
Pixel Pitch Indoor: P2.9, P3.9, P4.8
Key Features:
1.Waterproof Design
2.Front Service Access
3.Fixed Installation
4.High Brightness and Visibility
5.Energy Efficiency
6.Weather Resistance and Durability
Want to grab people’s attention? Our LED displays will do the trick!

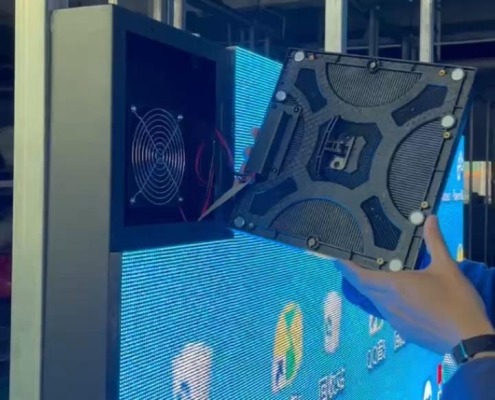

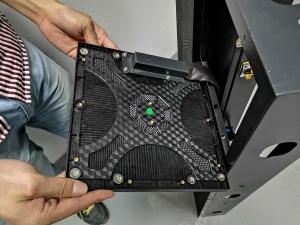

Waterproof LED module and cabinet are stable working for outdoor fixed permanent commercial LED display solution which is easy to do the maintenance from the front side.

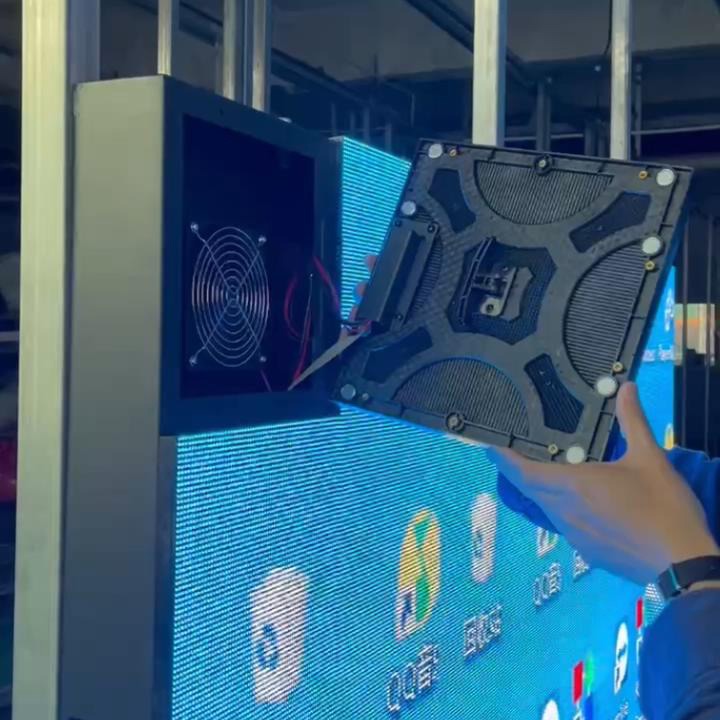

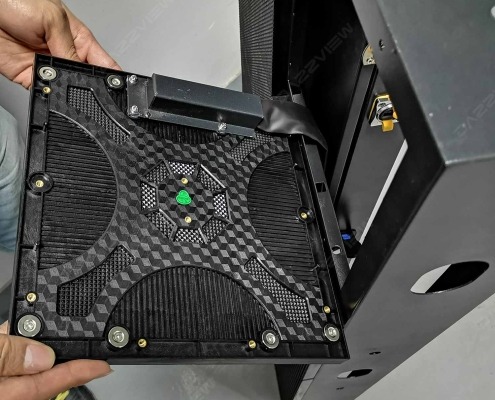

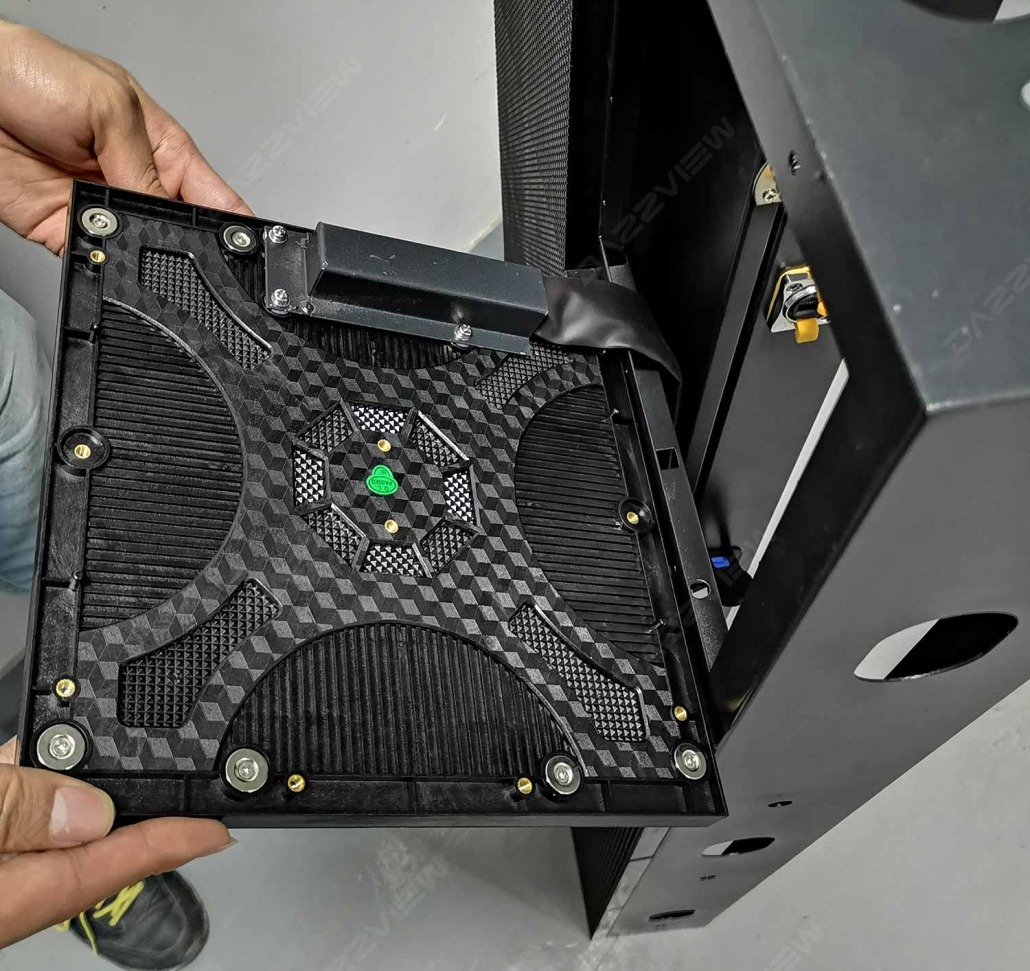

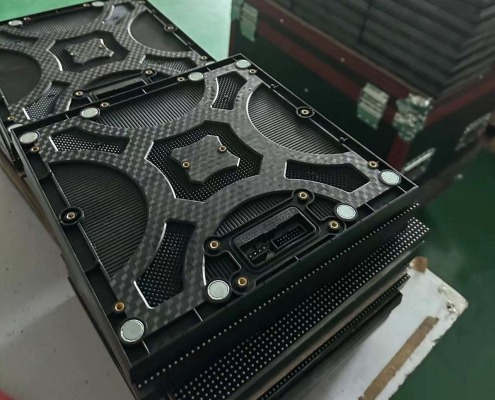

Module with magnets is easy to mount on the cabinet!

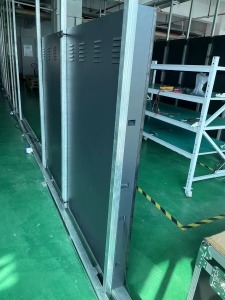

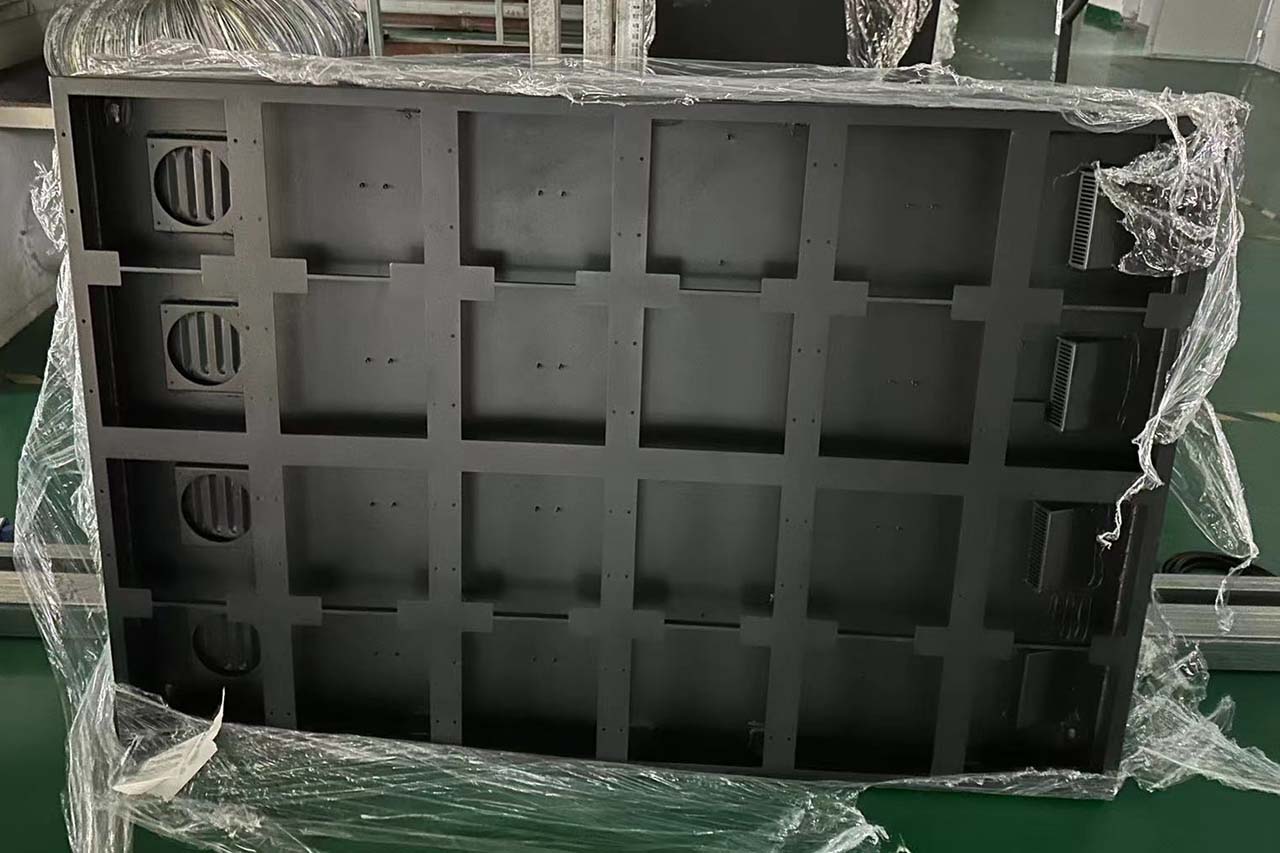

Steel cabinet works stable for fixed installation!

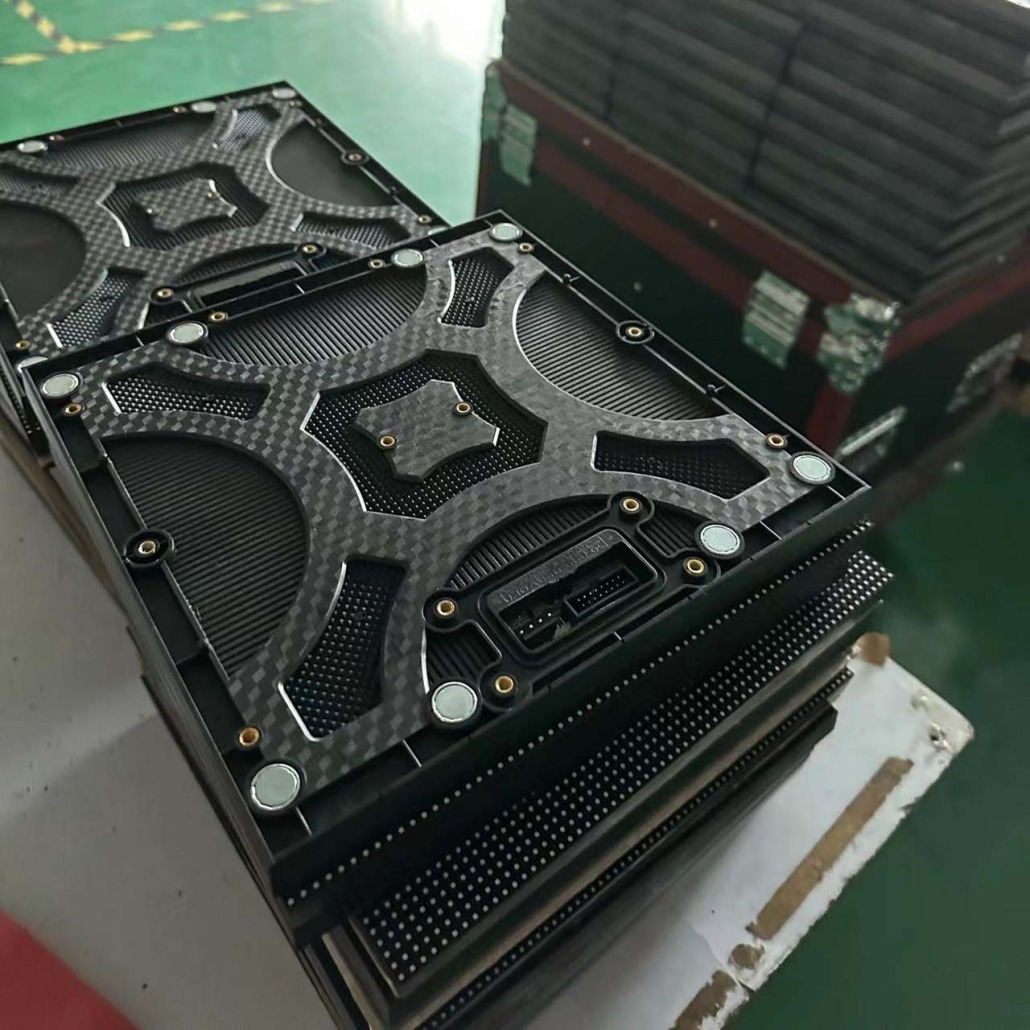

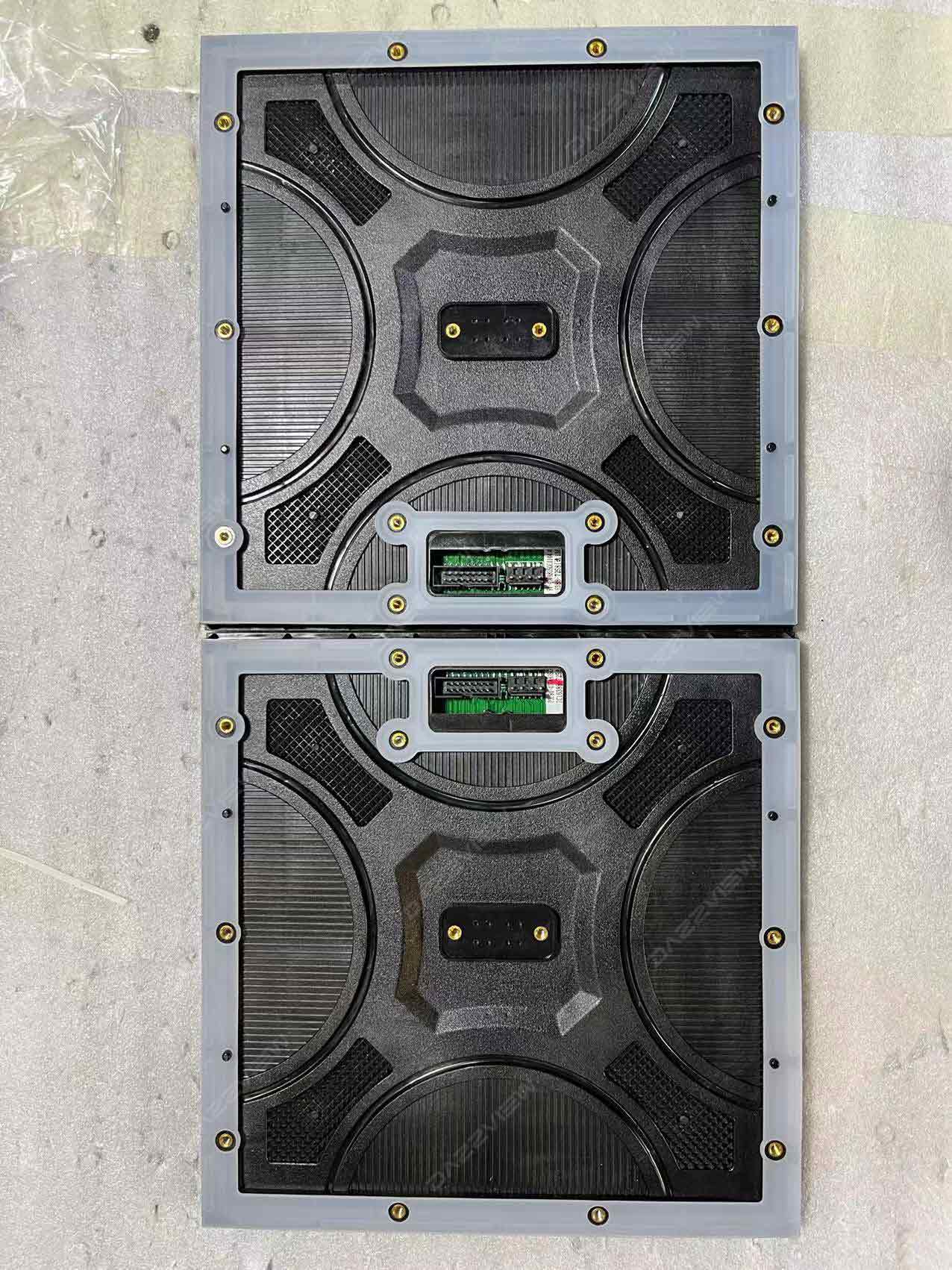

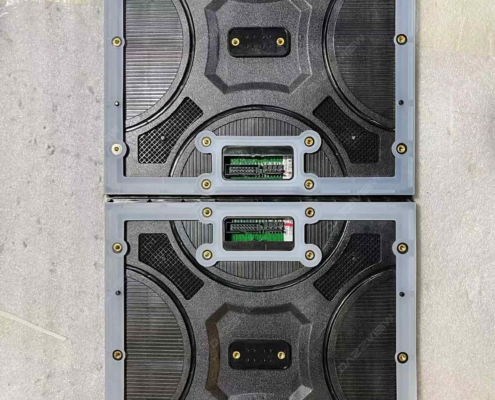

LED module with high waterproof rate connector which can protect the module well and stable for working. The magnetic design suitable for the maintenance from the front side. GX series is a easy installation waterproof outdoor front service LED display screen solution.
LED module and cabinet are special design which is suitable for various of outdoor front service applications.
It can be mounted directly on the wall, if there is no back maintenance space, our GX series is a very good solution for it.

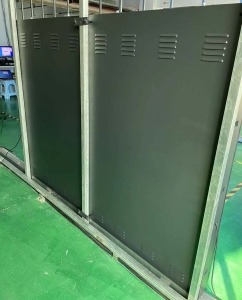

This solution has ventilation system with fans in order to get a better air flowing for cooling the LED screen.
GX series is a full front serivce solution LED display product suitable to be used in especially the wall mounted installation LED video wall project or any other project which no back maintenance space.
| Specification | |||
| Model No. | GX2.9 | GX3.9 | GX4.8 |
| Pixel Pitch | 2.976mm | 3.91mm | 4.81mm |
| LED Type | SMD1415 | SMD1921 | SMD1921 |
| Pixel configuration | 1R1G1B | ||
| Size of module(W*H) | 250x250mm | ||
| Resolution of module(W*H) | 84×84 dot | 64×64 dot | 52×52 dot |
| Density | 112,896dots/㎡ | 65536dot//㎡ | 43264dot//㎡ |
| Cabinet material | Steel/Aluminum | ||
| Size of cabinet(W*H) | 1000x1000mm | ||
| Weight of cabinet | 40kg | 40kg | 40kg |
| Best viewing distance | >2.9m | ＞4m | ＞5m |
| Best viewing angle | 140° | ||
| Brightness | 5500cd/㎡ | ||
| Maximum power consumption | 550W/㎡ | 550W/㎡ | 550W/㎡ |
| Average power consumption | 200W/㎡ | 200W/㎡ | 200W/㎡ |
| Driving method | 1/21 scanning | 1/16 scanning | 1/13 scanning |
| Gray scale | 14-16bit | ||
| Refresh frequency | ≥3840HZ | ||
| IP grade | IP65 | ||
| Colors | 16777216 | ||
| Color temperature | 6500-9500k | ||
| Driving device | Constant current | ||
| Working voltage | AC220V/110V±10% | ||
| Working temperature | —20℃~50℃±10% | ||
| MTBF | >10,000 hours | ||
| Frame frequency | 60Hz | ||
| Life Span | 100,000 hours | ||
