Narrow pixel pitch front service LED display is ideal for indoor environments where high resolution and clarity are required, such as conference rooms, control rooms and retail spaces. Its sleek design and front service function make it easy to install and maintain.
Product Name: Narrow Pixel Pitch Front Service LED Display
Product Model: DX Series
Product Description:
Dimension: 640x480mm
Weight: 7.5kg/pc
Pixel Pitch Indoor: P1.2, P1.5, P1.6,, P1.8, P2.0, P2.5
Key Features:
1.640x480mm cabinet size
2.High precision

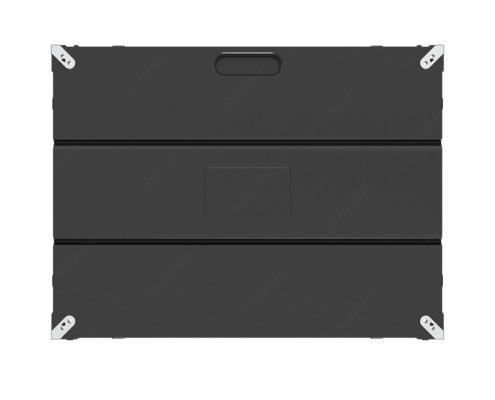

3.Narrow pixel pitch die-casting aluminum cabinet
4.Connecting area with CNC processing, guarantee flatness and seamless
5.Groove for hanging
6.Location holes for connecting the cabinets with connecting plate.
7.Holes for the cables go through

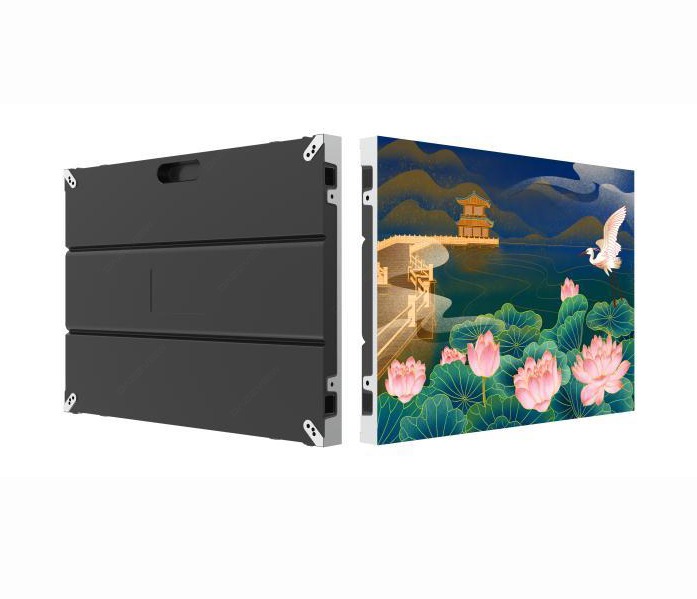

Narrow Pixel Pitch also called fine pitch. HD LED display with narrow pixel pitch solution in 1.2mm, 1.5mm, 1.6mm, 1.8mm, 2mm, 2.5mm. It’s suitable for some project which has high demand of resolution and definition.

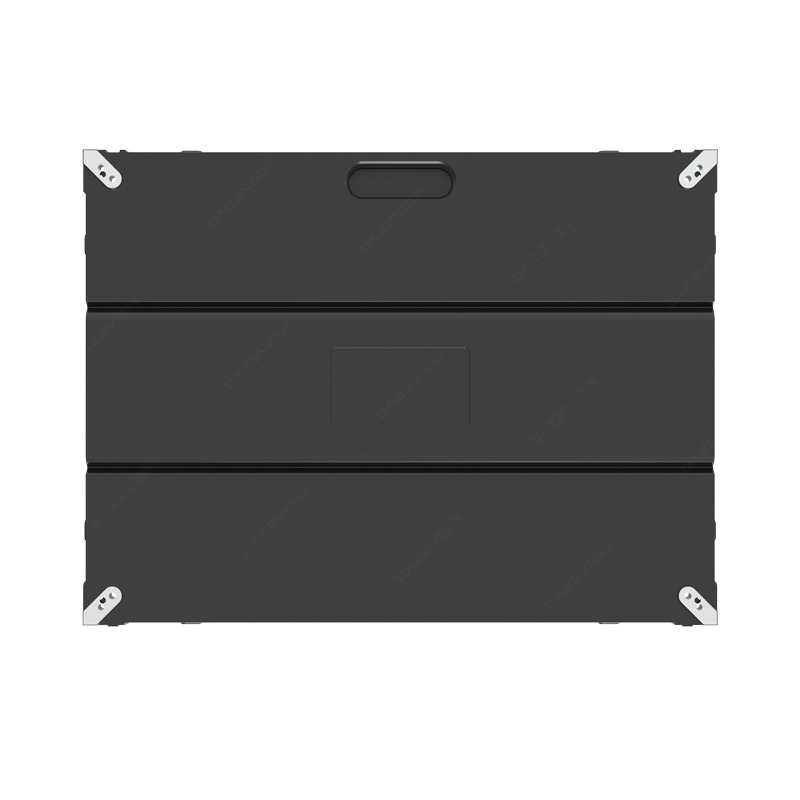

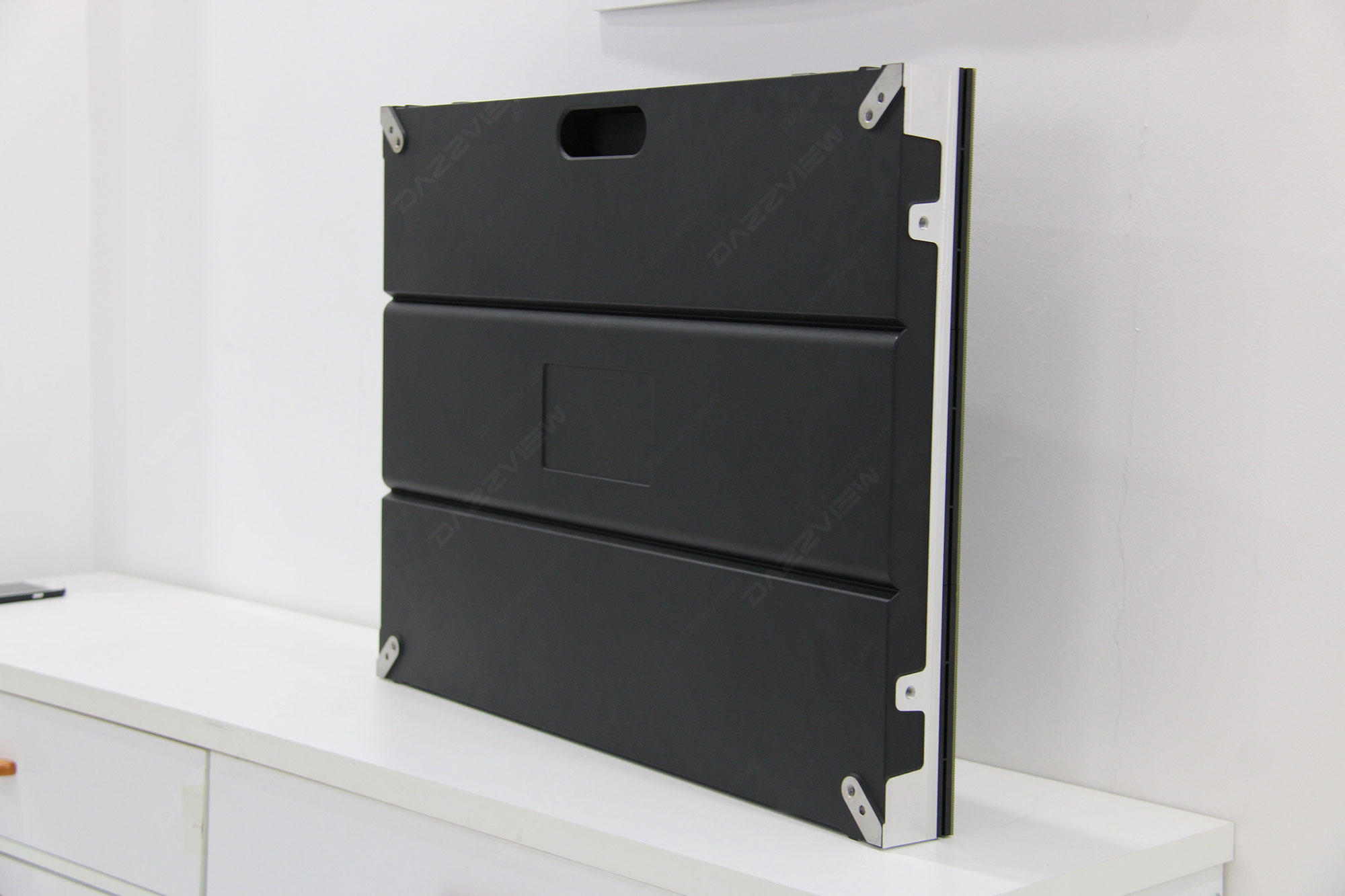

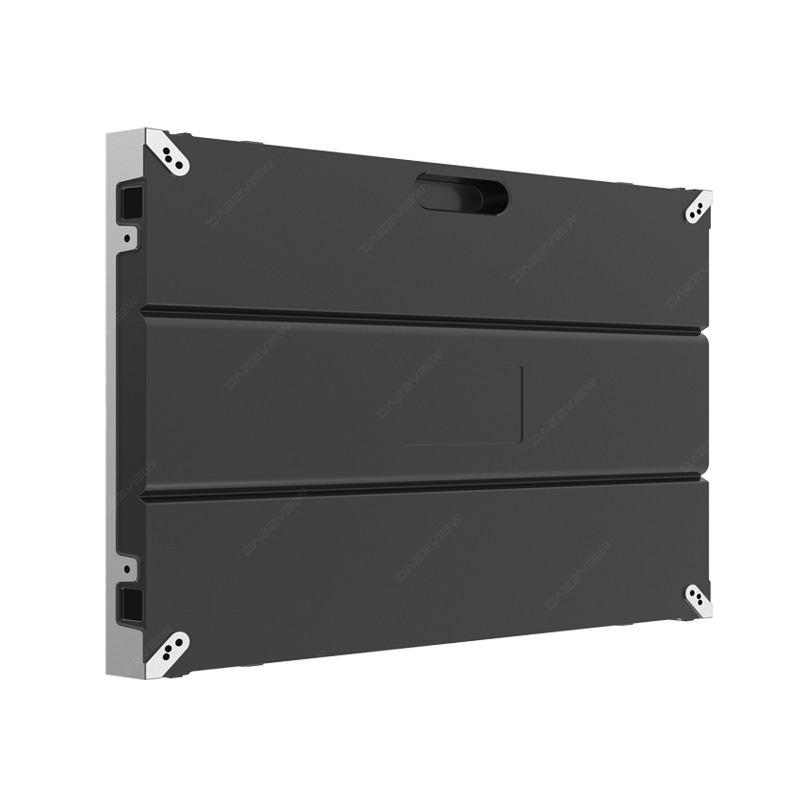

Connecting area with CNC processing, guarantee the flatness and seamless. Holes at side for the cables go through. Location holes at back for connecting the cabinets with connecting plate.

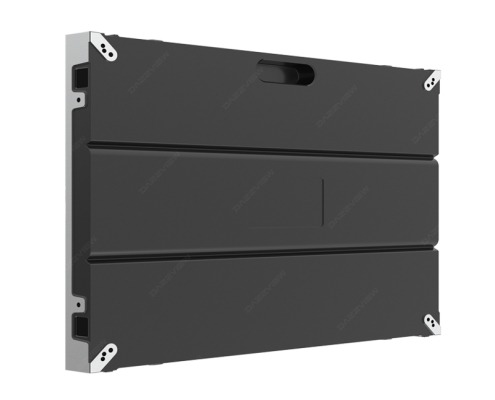

Connecting area with CNC processing, guarantee the flatness and seamless. Holes at side for the cables go through. Location holes at back for connecting the cabinets with connecting plate.

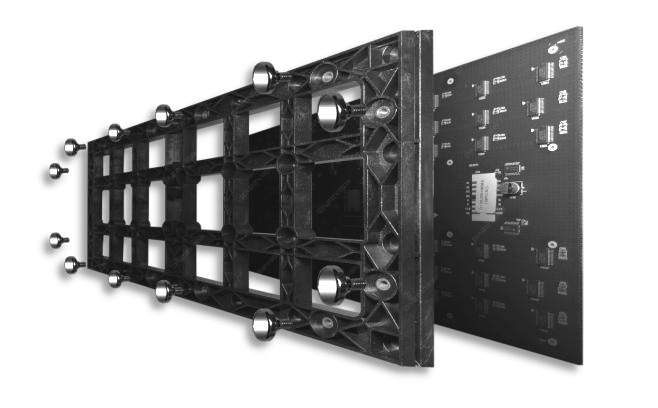

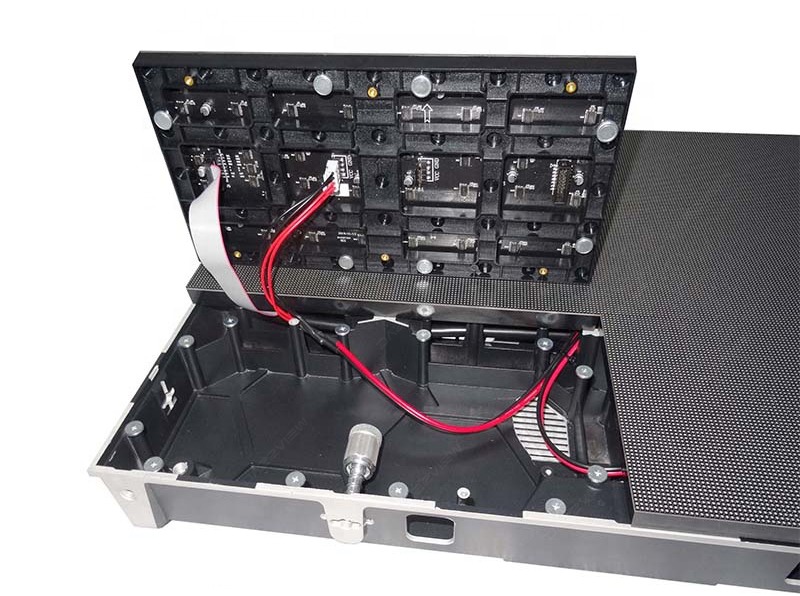

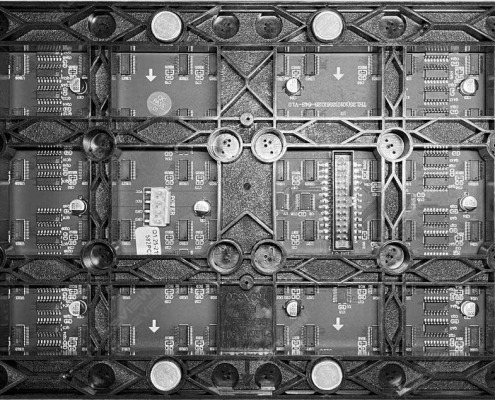

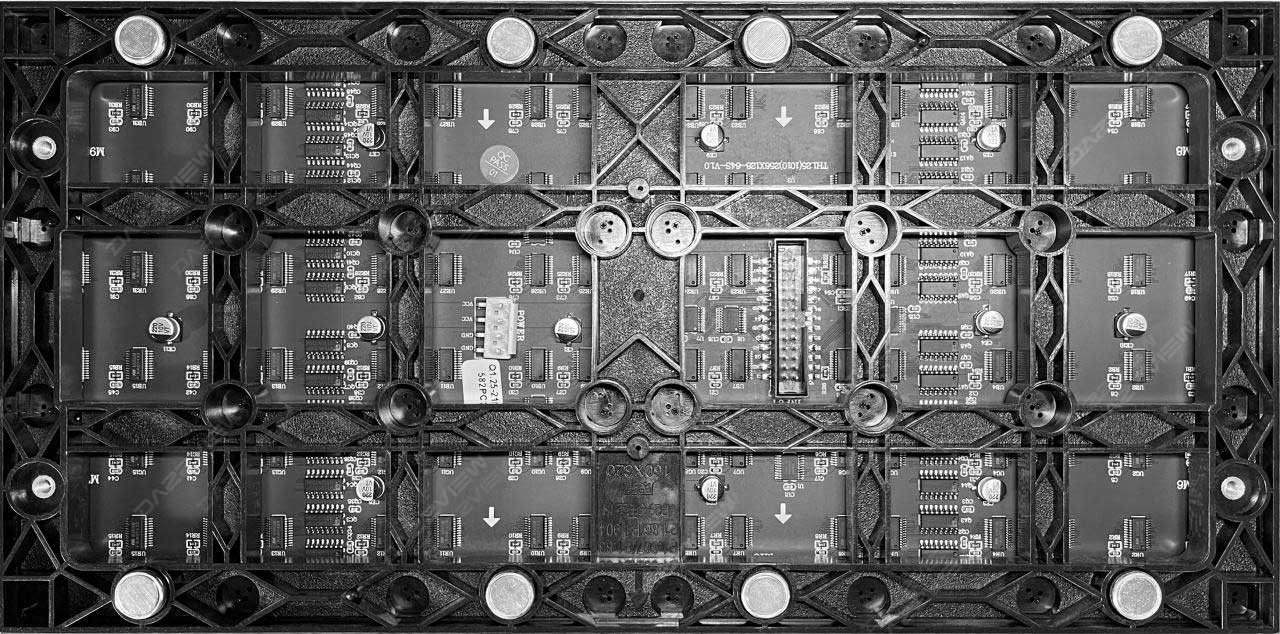

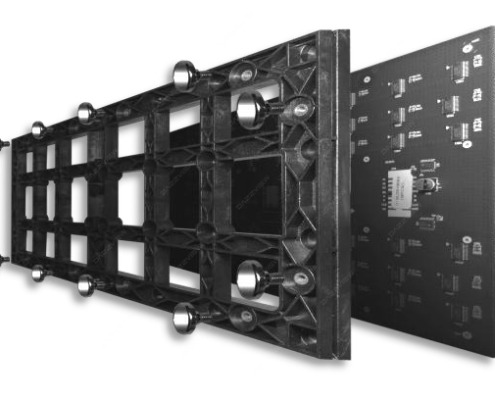

With the Magnetic design, the LED module can be served from front side which means the LED module, power supply, receiving card can be took out from front side.

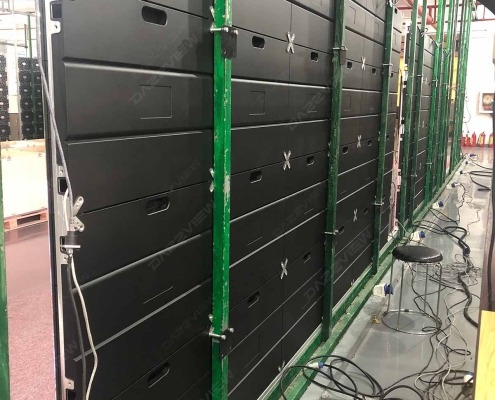

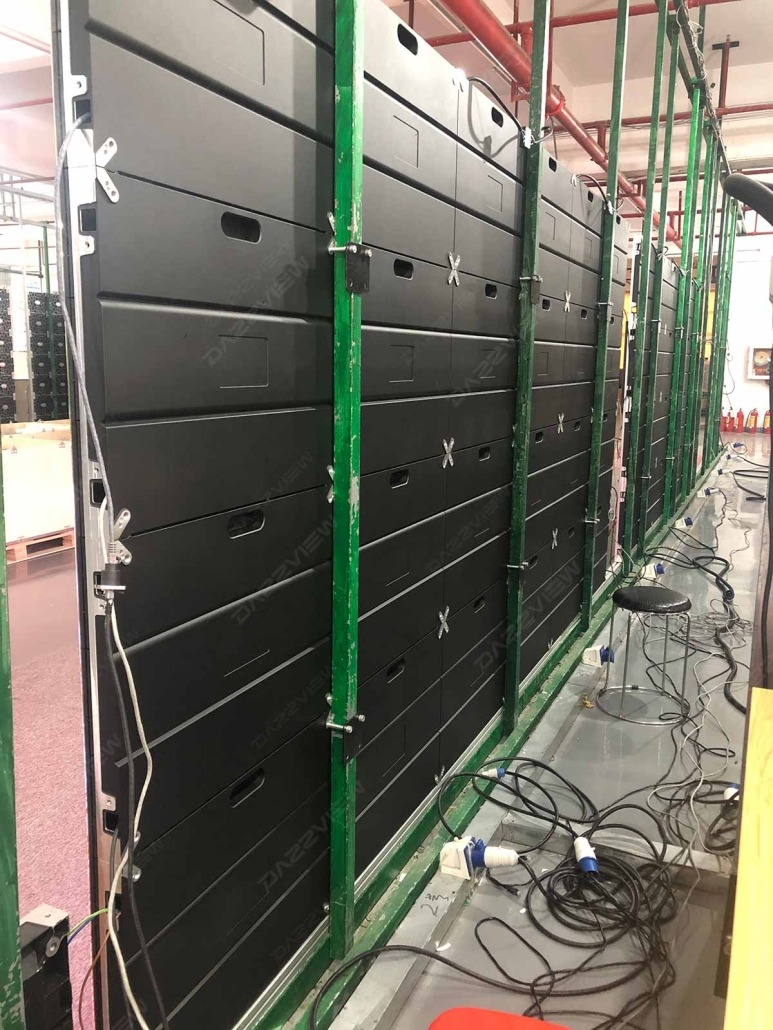

The narrow pixel pitch LED display will be in aging test after the LED cabinet well assembly. We guarantee our customers receive satisfied LED display products.

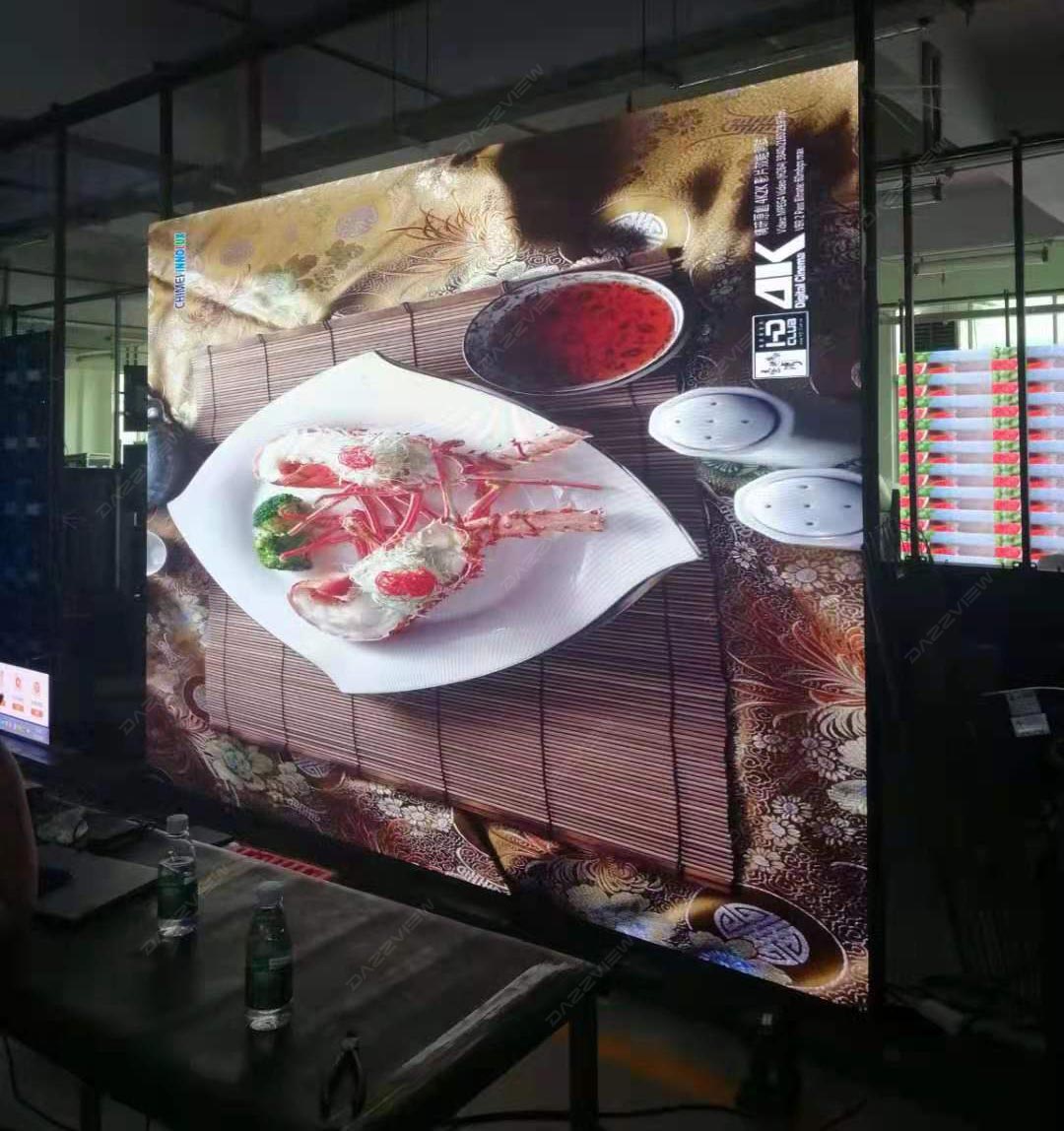

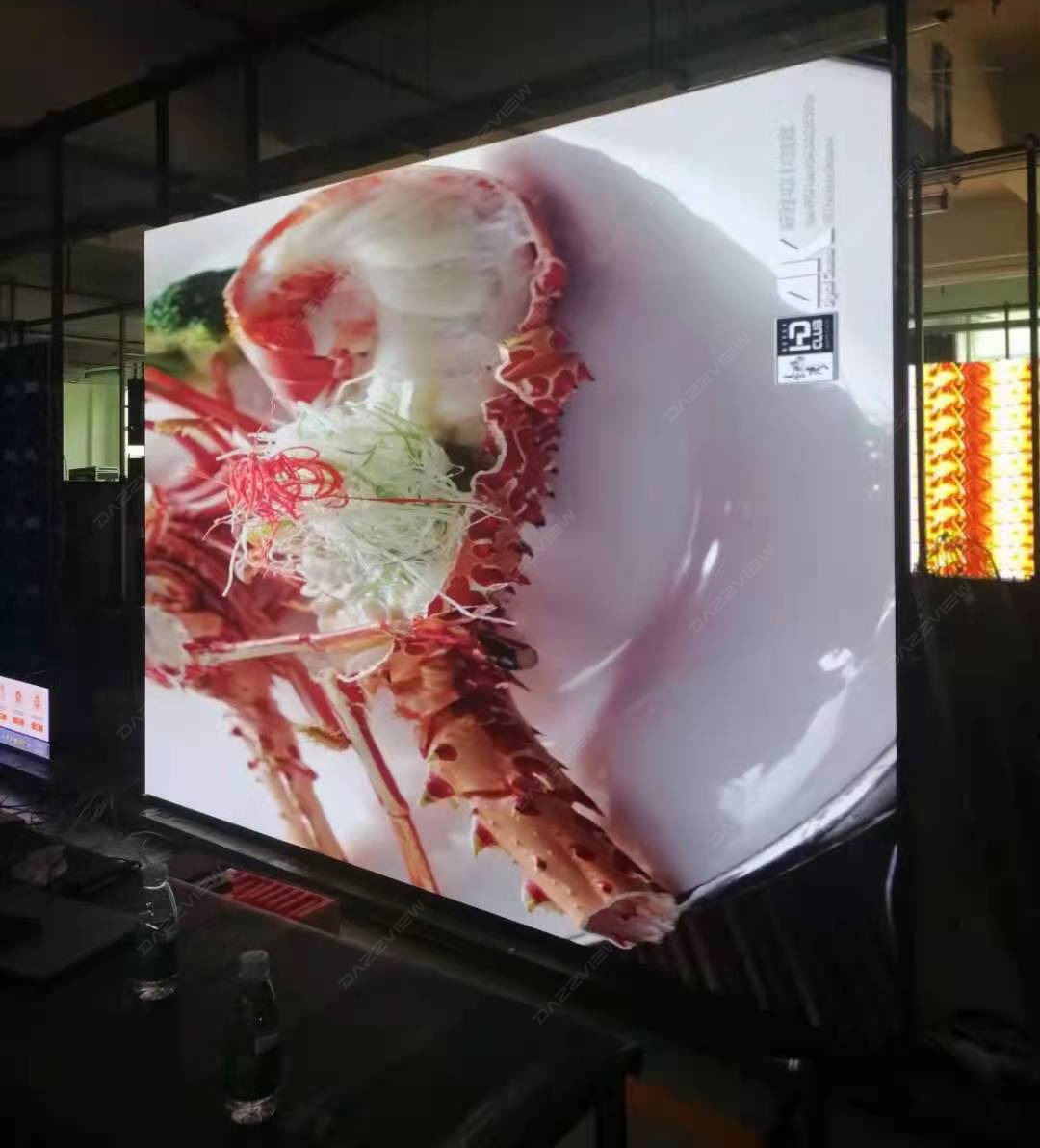

Narrow pixel pitch LED display screen is suitable for indoor used meeting room, control room, exihibition center, studio, stadium hall, school…
The Narrow Pixel Pitch has a high resolution which is suitable to work in a project which needs high demand of the difinition and resolution.
The video shows you how our DY series performance!
| Specification | ||||||
| Model No. | DX1.2 | DX1.5 | DX1.6 | DX1.8 | DX2.0 | DX2.5 |
| Pixel Pitch | 1.25mm | 1.53mm | 1.66mm | 1.86mm | 2.0mm | 2.5mm |
| LED Type | SMD1010 | SMD1212 | SMD1212 | SMD1515 | SMD1515 | SMD1515 |
| Pixel configuration | 1R1G1B | |||||
| Size of module(W*H) | 320mmx160mm | |||||
| Resolution of module(W*H) | 256x128dot | 208x104dot | 192x96dot | 172x86dot | 160x80dot | 128x64dot |
| Density | 640,000dots/㎡ | 422,500dots/㎡ | 360000dots/㎡ | 288,906dots/㎡ | 250,000dots/㎡ | 160,000dots/㎡ |
| Cabinet material | Die-cast magnesium aluminum | |||||
| Size of cabinet(W*H) | 640x480mm | |||||
| Weight of cabinet | 7.5kg | |||||
| Best viewing distance | >1.2m | >1.5m | >1.6m | >1.8m | >2.0m | >2.5m |
| Best viewing angle | 160° | |||||
| Brightness | 600-800cd/㎡ | |||||
| Maximum power consumption | ≤600W/㎡ | |||||
| Average power consumption | ≤230W/㎡ | |||||
| Driving method | 1/64 scanning | 1/52 scanning | 1/48 scanning | 1/43 scanning | 1/40 scanning | 1/32 scanning |
| Gray scale | 16 bits | |||||
| Refresh frequency | 3840Hz | |||||
| IP grade | IP43 | |||||
| Colors | 16777216 | |||||
| Color temperature | 6500-9500k | |||||
| Driving device | Constant current | |||||
| Working voltage | AC220V/110V±10% | |||||
| Working temperature | —20℃~50℃±10% | |||||
| MTBF | >10,000 hours | |||||
| Frame frequency | 60Hz | |||||
| Life Span | 100,000 hours | |||||
