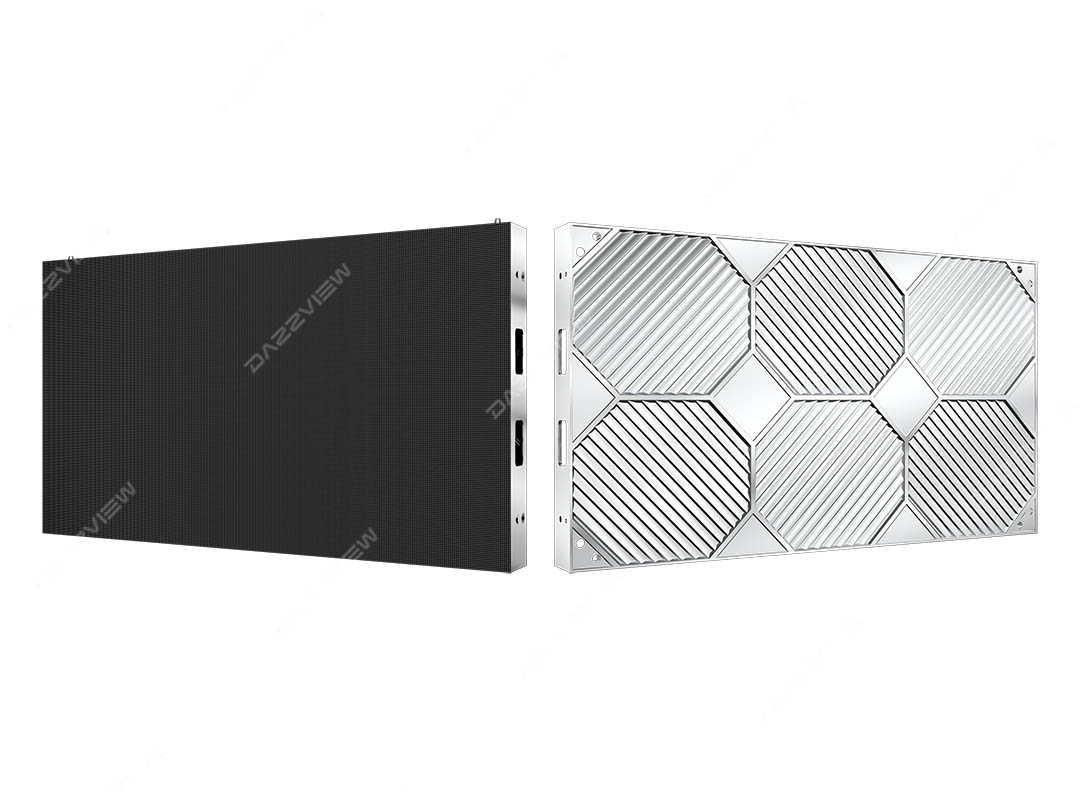

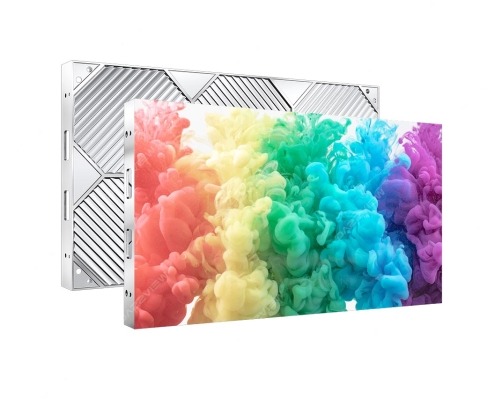

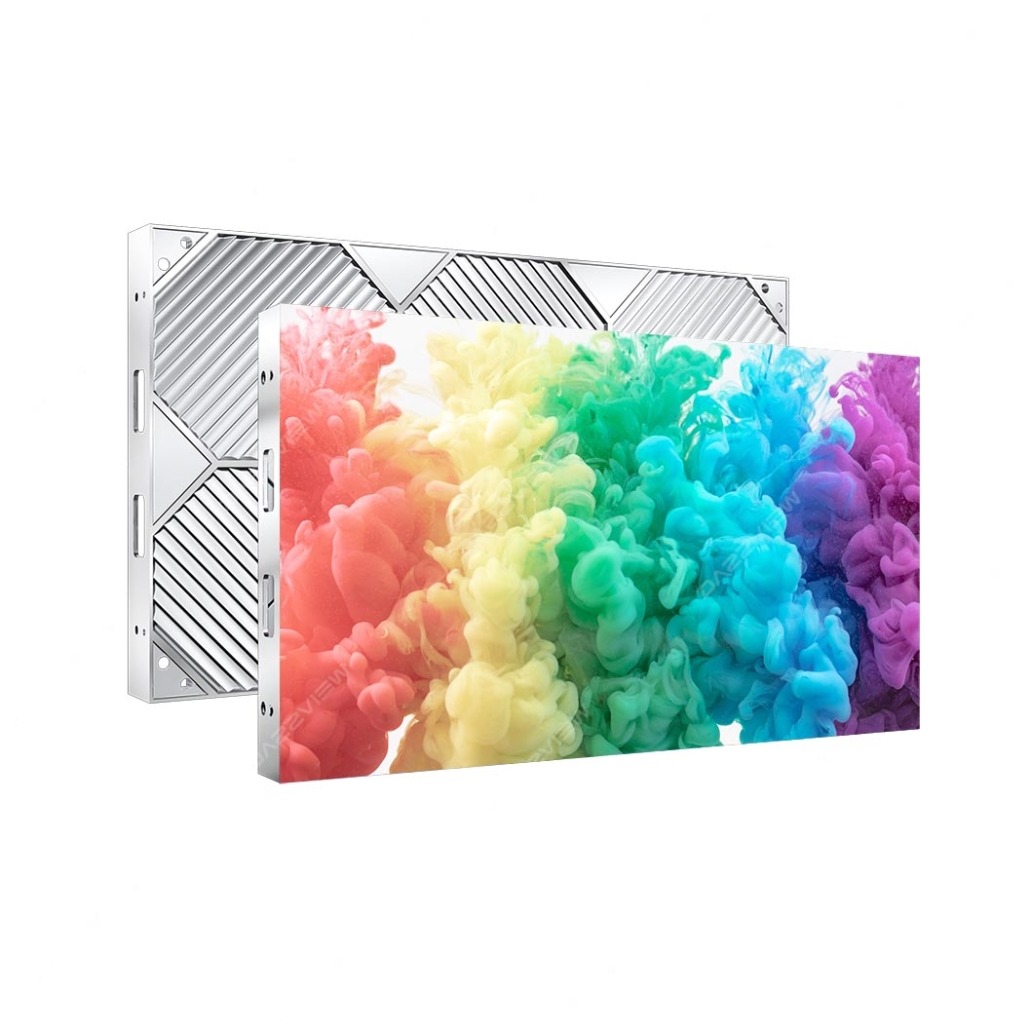

Dazzview High definition Narrow Pixel Pitch LED Display

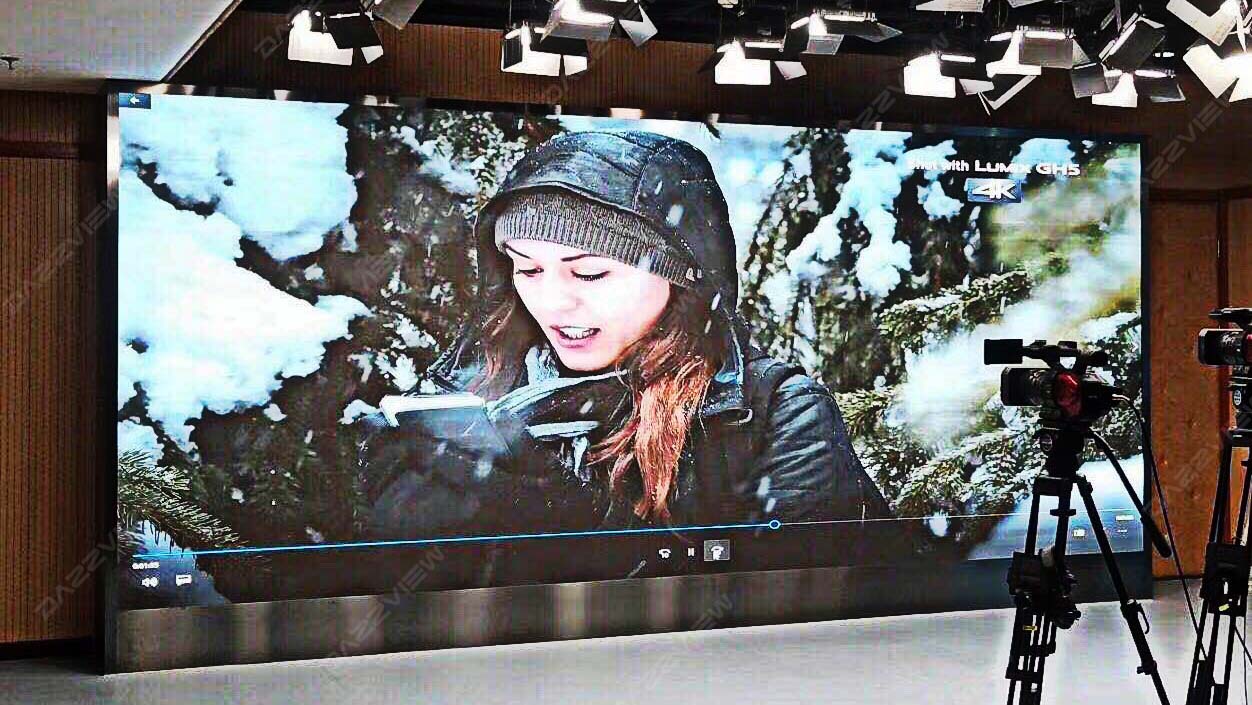

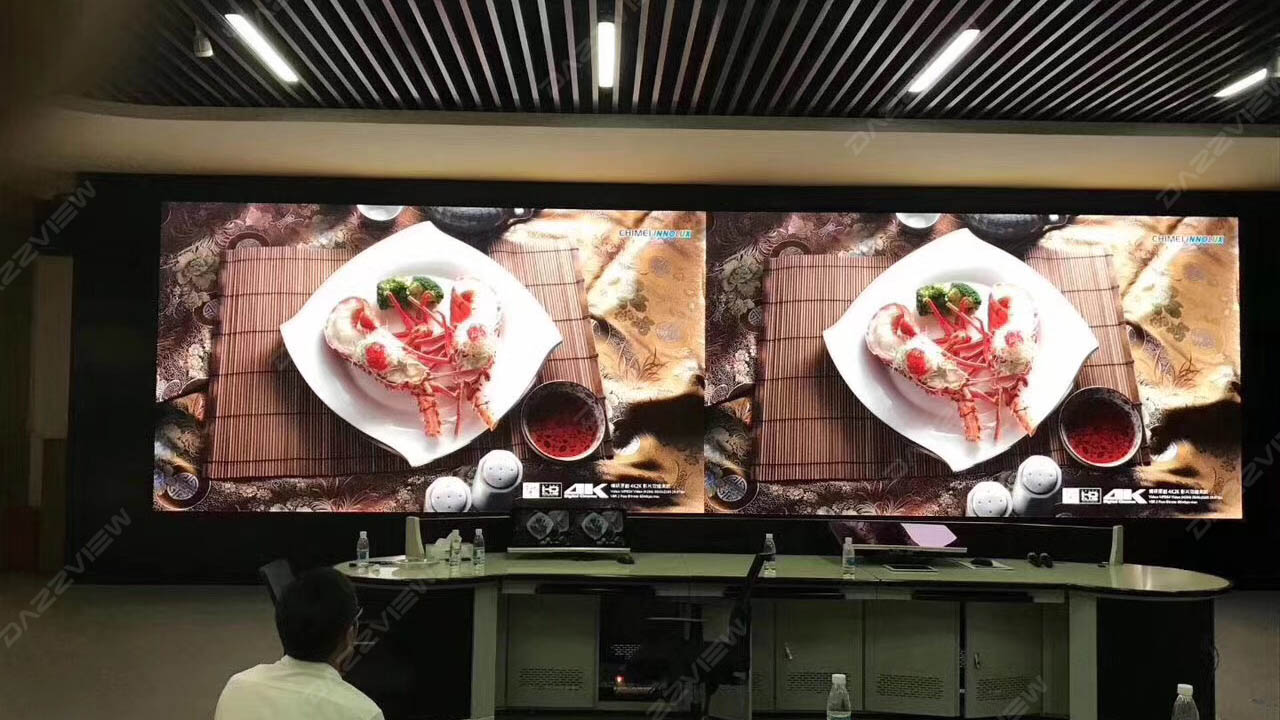

Narrow pixel pitch LED display is also called fine pitch or HD LED display, it’s widely used for studio, broadcast, control room, meeting LED display…
High definition Narrow Pixel Pitch LED Display
Product Name: High definition Narrow Pixel Pitch LED Display
Product Model: DZ Series
Product Description:
Dimension: 600×337.5x52mm
Weight: 6.9kg/pc
Pixel Pitch Indoor: P0.9, P1.25, P1.53, P1.86
Key Features:
1. 16:9 Golden ratio
2. Seamless for Flatness
3. Transforming/Thin/Smart/Cost-Benefit
4. High Grayscale Levels
5. High Refresh Rate
6. High Contrast Ratios at Low Brightness Levels
7. Multi-size for More Option: 600×168.75mm, 300×337.5mm, 300×168.75mm.
8. Multi-functional Shape: LED poster, Conference LED display, 90° corner LED display, double sides for option.
High Definition Narrow Pixel Pitch LED Display Screen!
Narrow Pixel Pitch is also called fine pitch. HD LED display with narrow pixel pitch solution in 0.9mm, 1.2mm, 1.5mm, 1.8mm. It is suitable for some projects that require high resolution and definition.

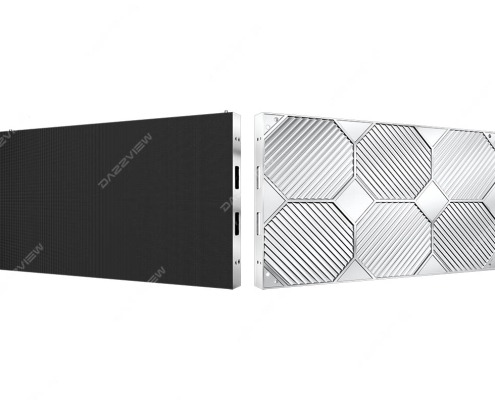

600×337.5mm Cabinet Size Combined with 300×168.75mm Popular Module Size!
High precision die-casting aluminum cabinet in size 600×337.5mm, LED module size: 300×168.75mm is a good design for the 16:9 golden ratio.
DAZZVIEW

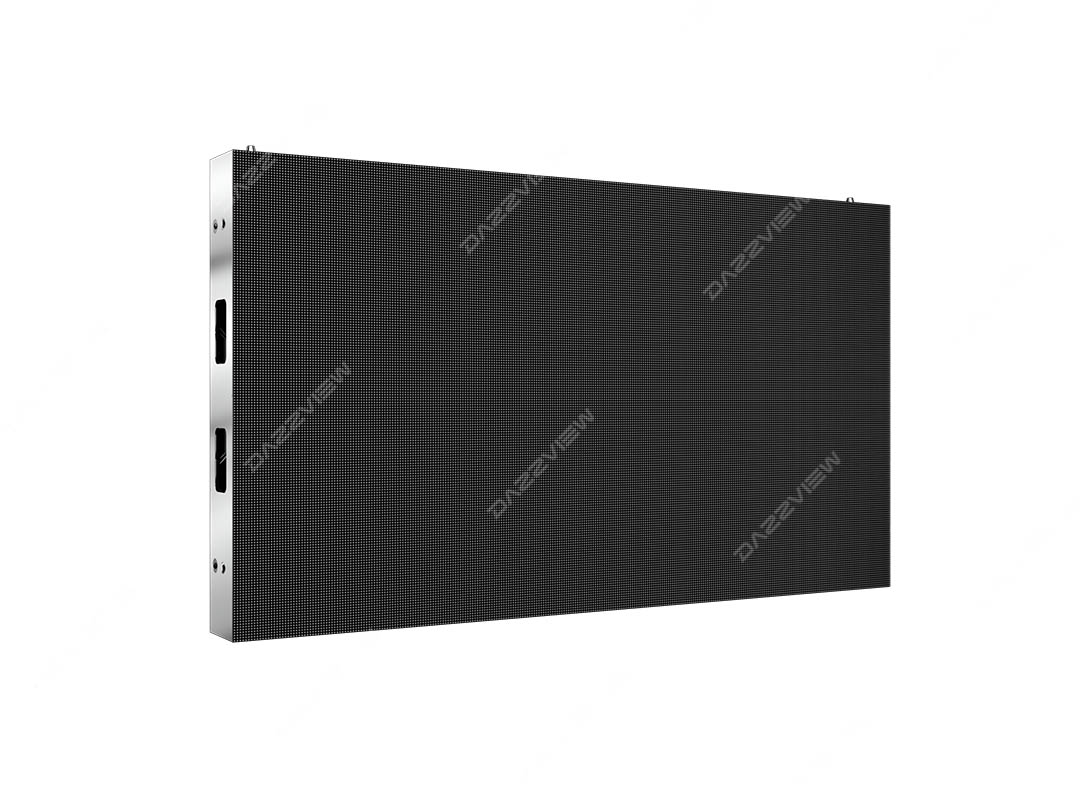

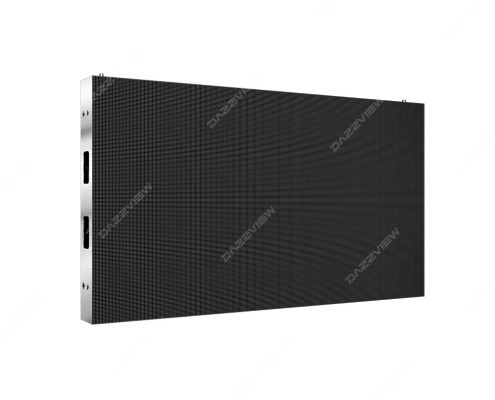

High quality side connectors in seamless!
DAZZVIEW

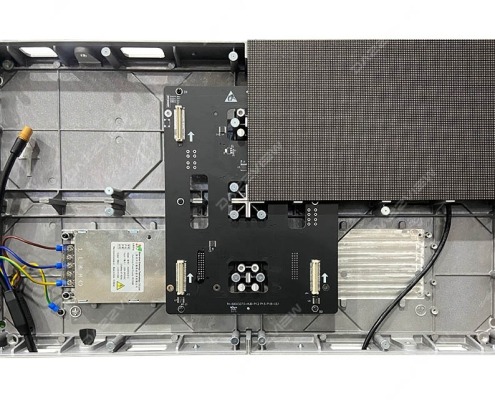

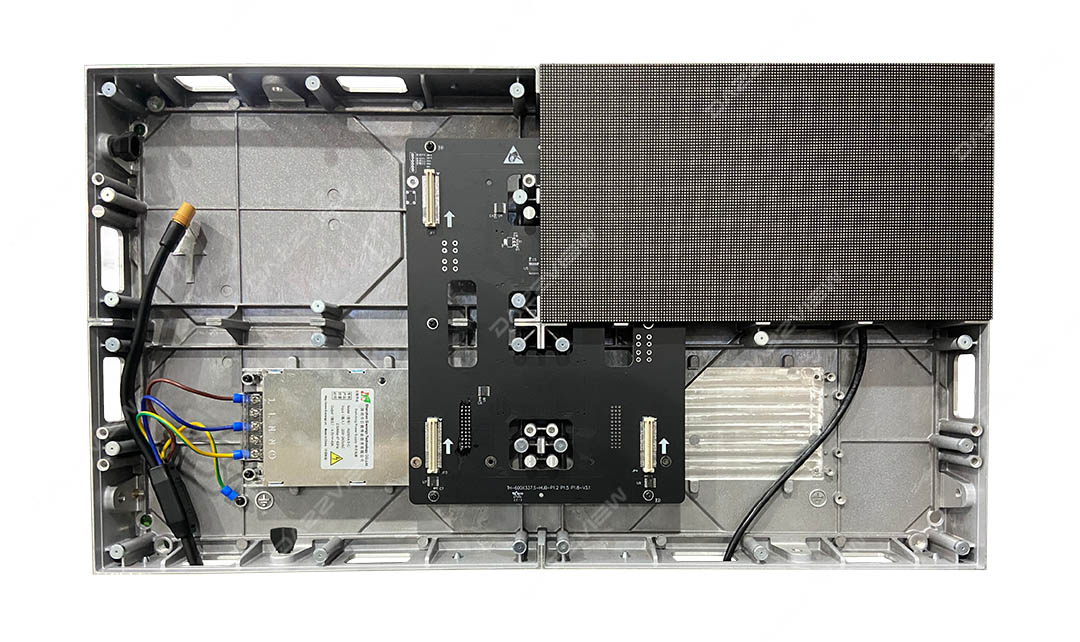

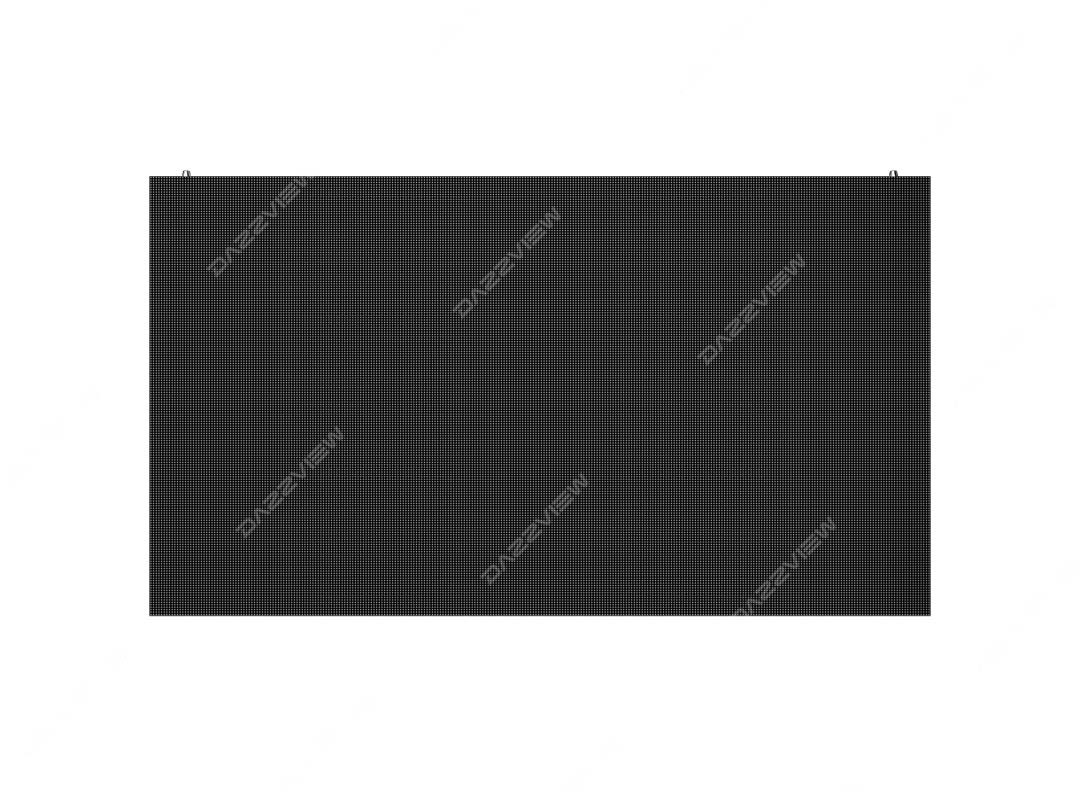

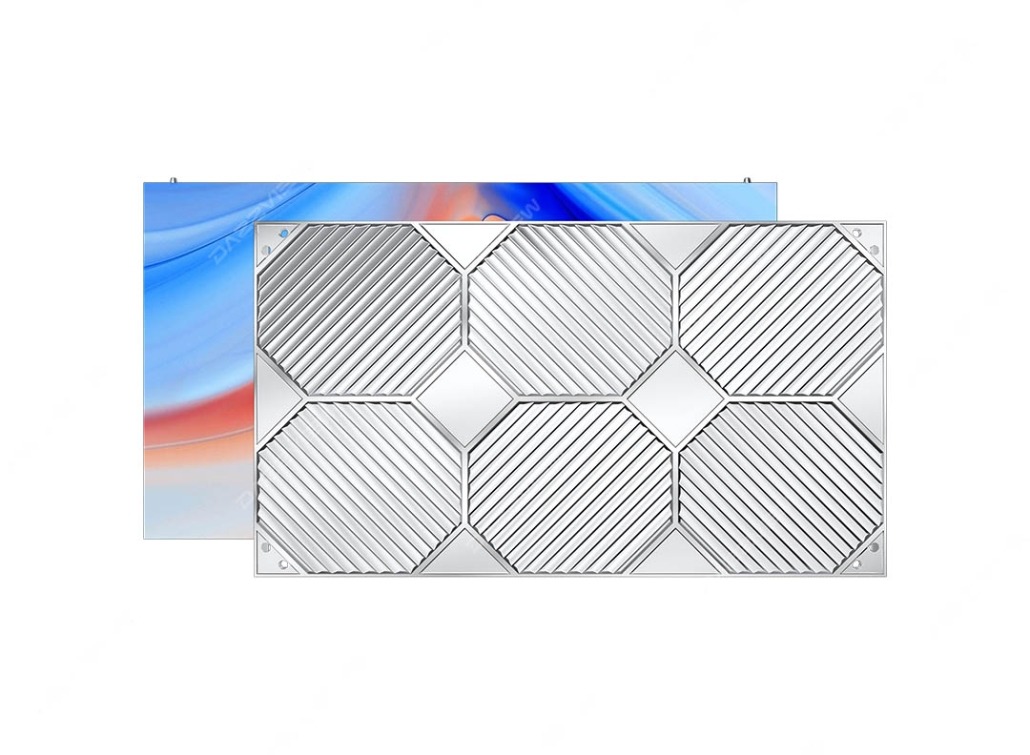

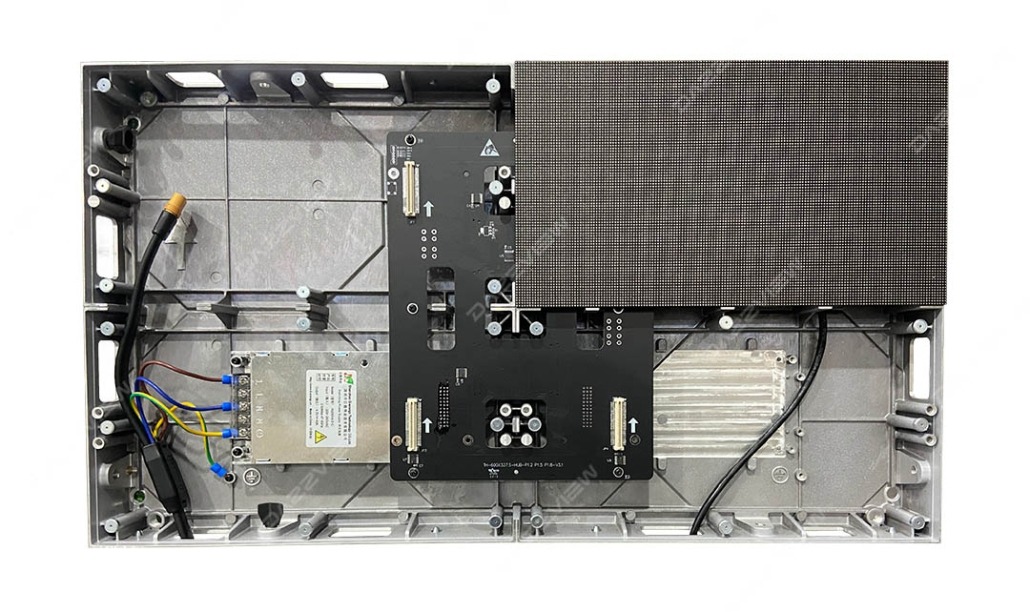

600×337.5mm cabinet with 300×168.75mm LED module!
DAZZVIEW

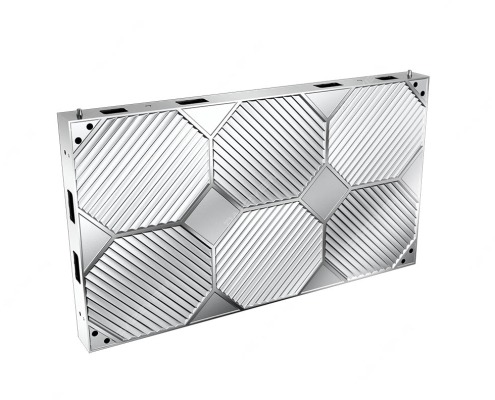

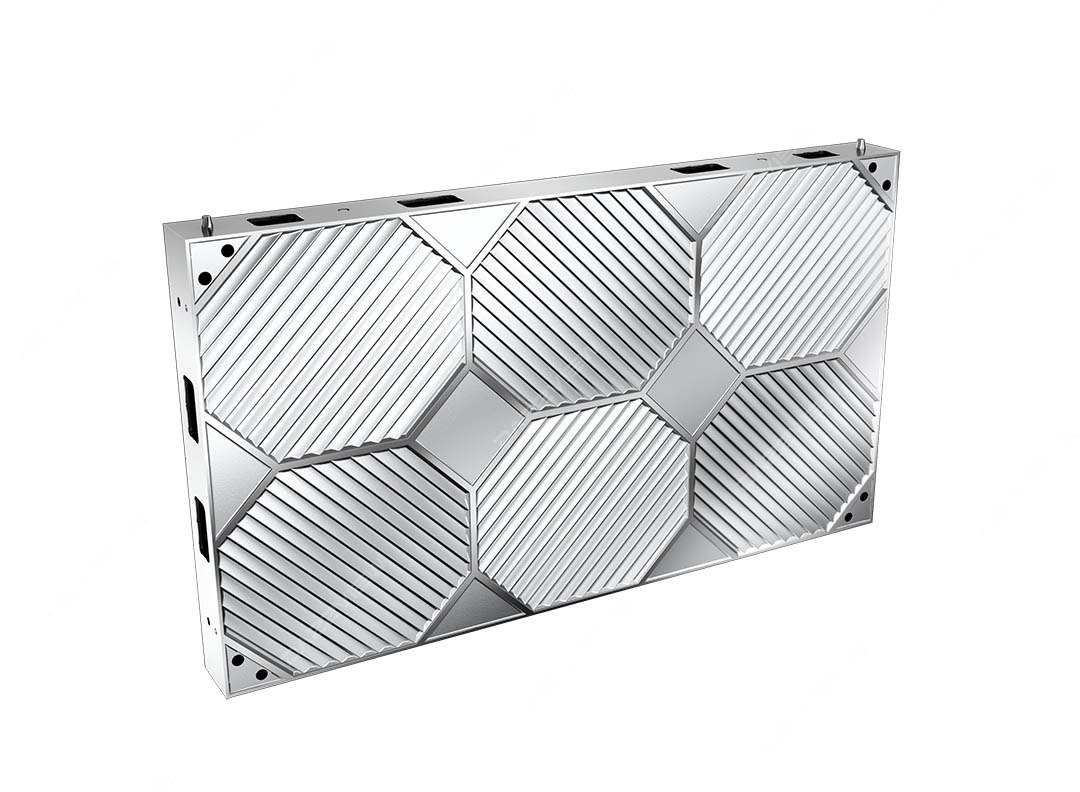

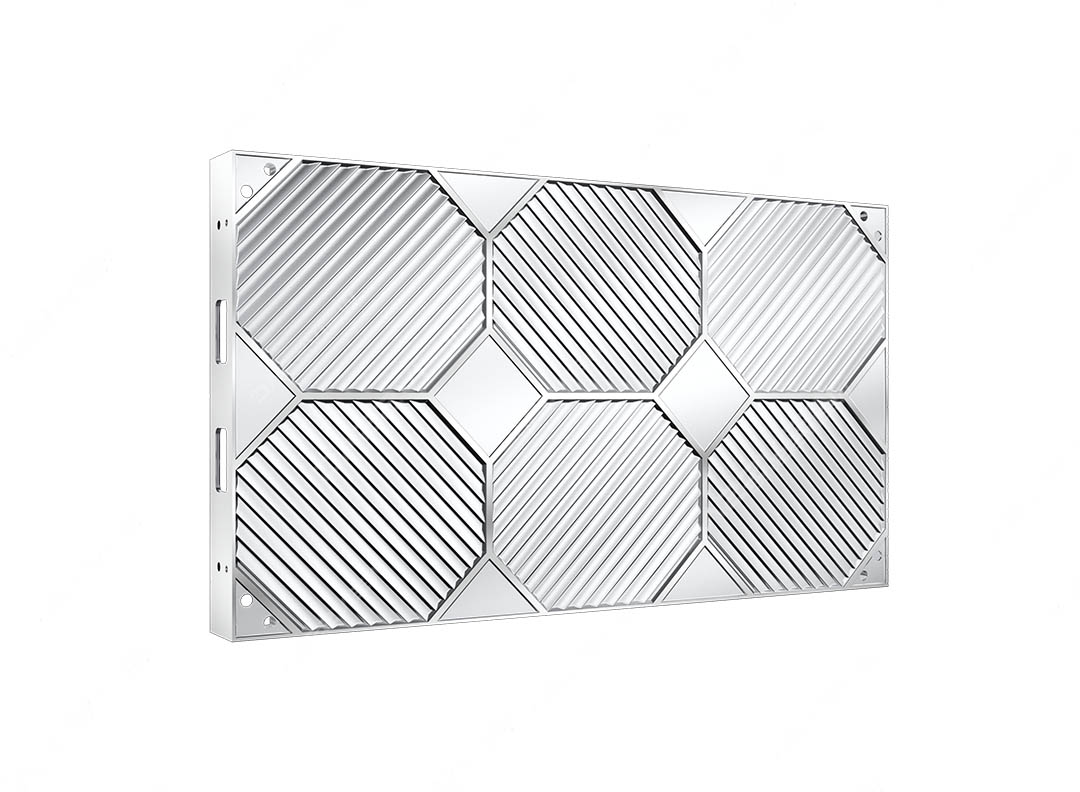

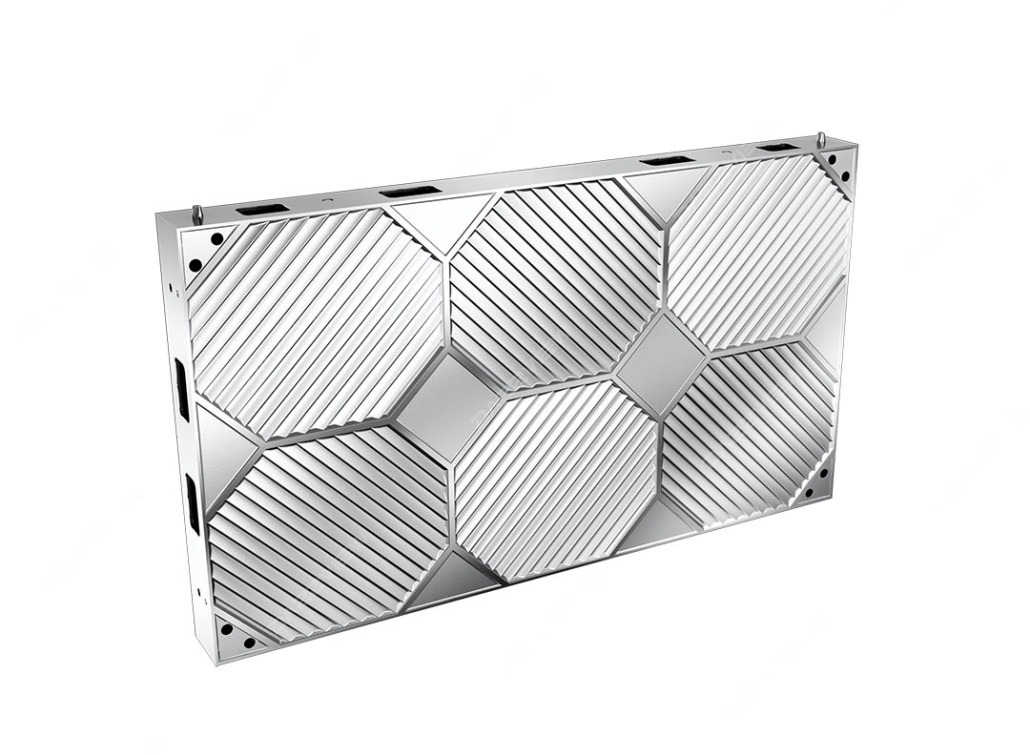

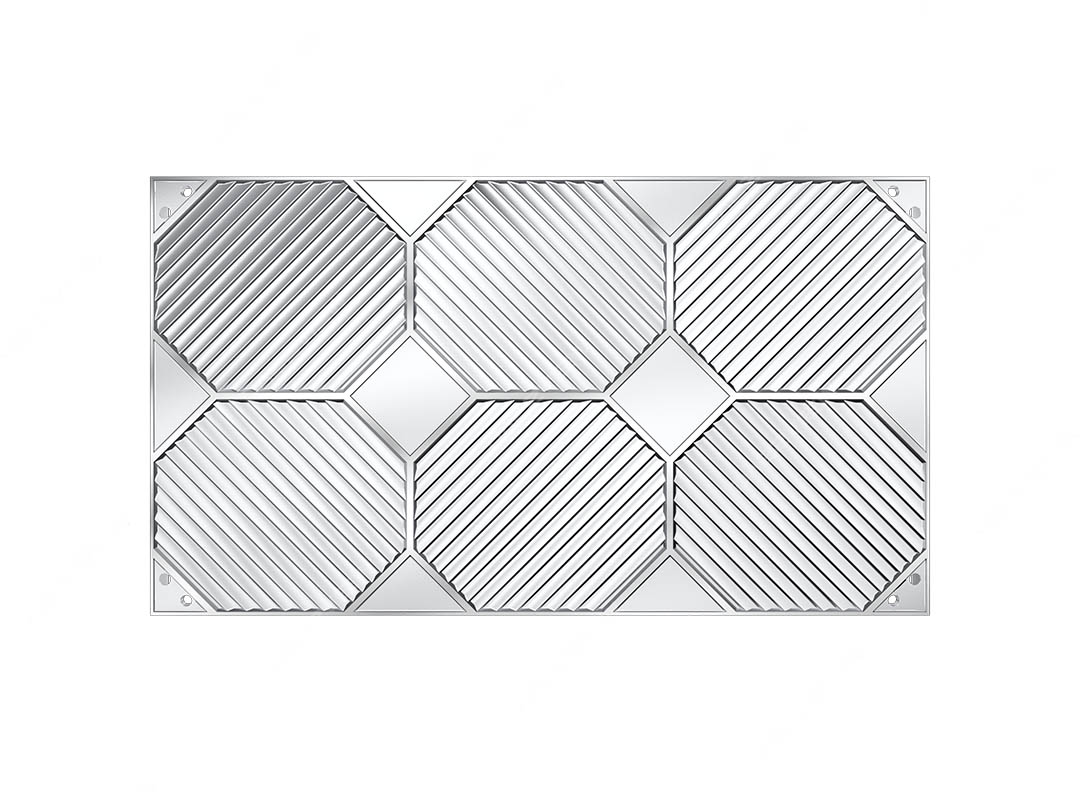

Die-casting aluminum cabinet guarantee the high flatness!

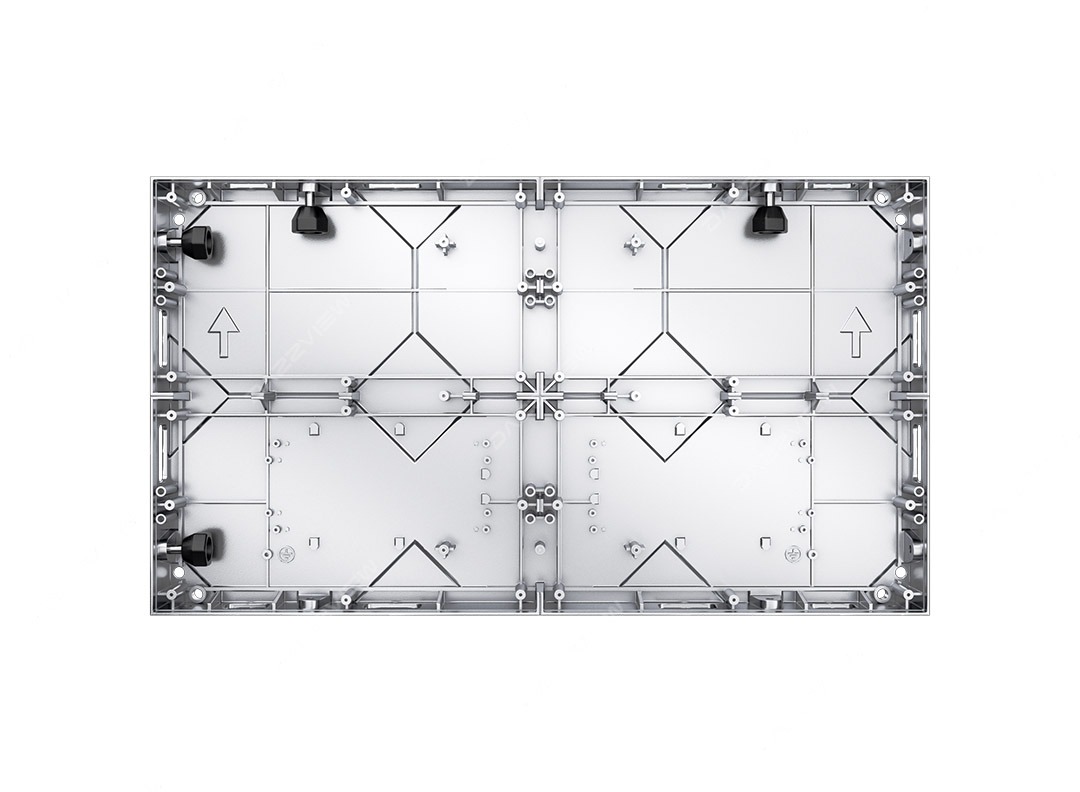

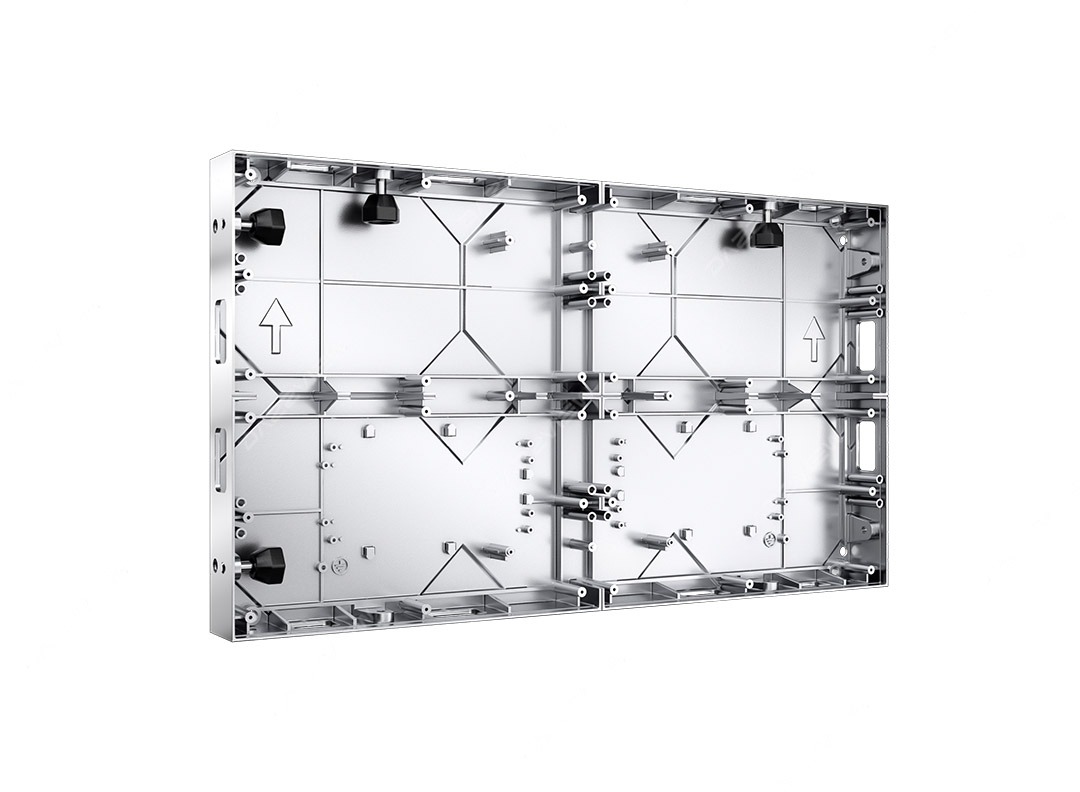

Perfect Cabinet Design for the Narrow Pixel Pitch LED Display screen!
Joints are CNC machined to ensure flatness and seamlessness. Sides have holes for cables to pass through. Holes on the back for connecting the cabinet to the connection plate.

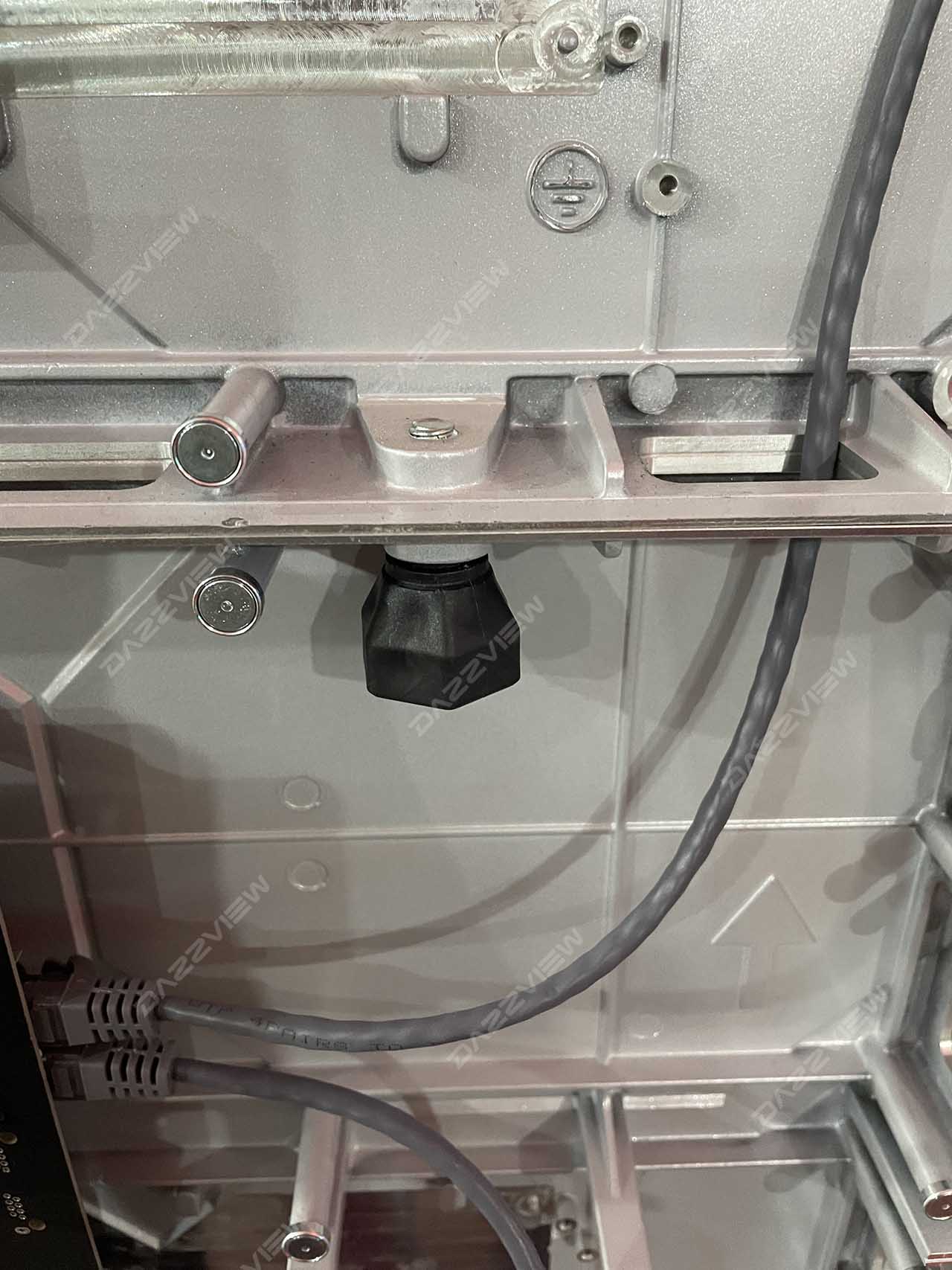

Fast Lock Save the Installation Time!
Joints are CNC machined to ensure flatness and seamlessness. Sides have holes for cables to pass through. Holes on the back for connecting the cabinet to the connection plate.

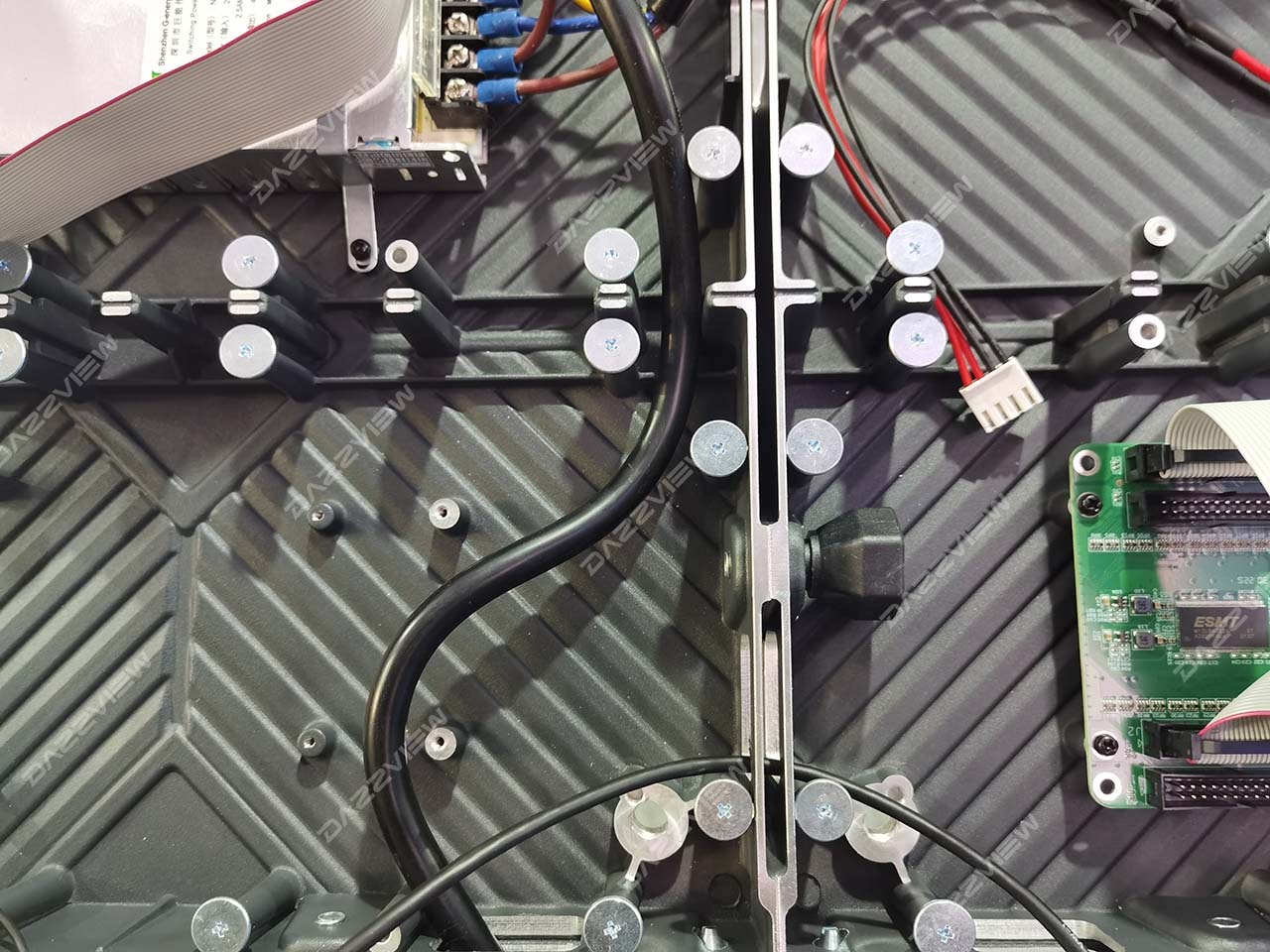

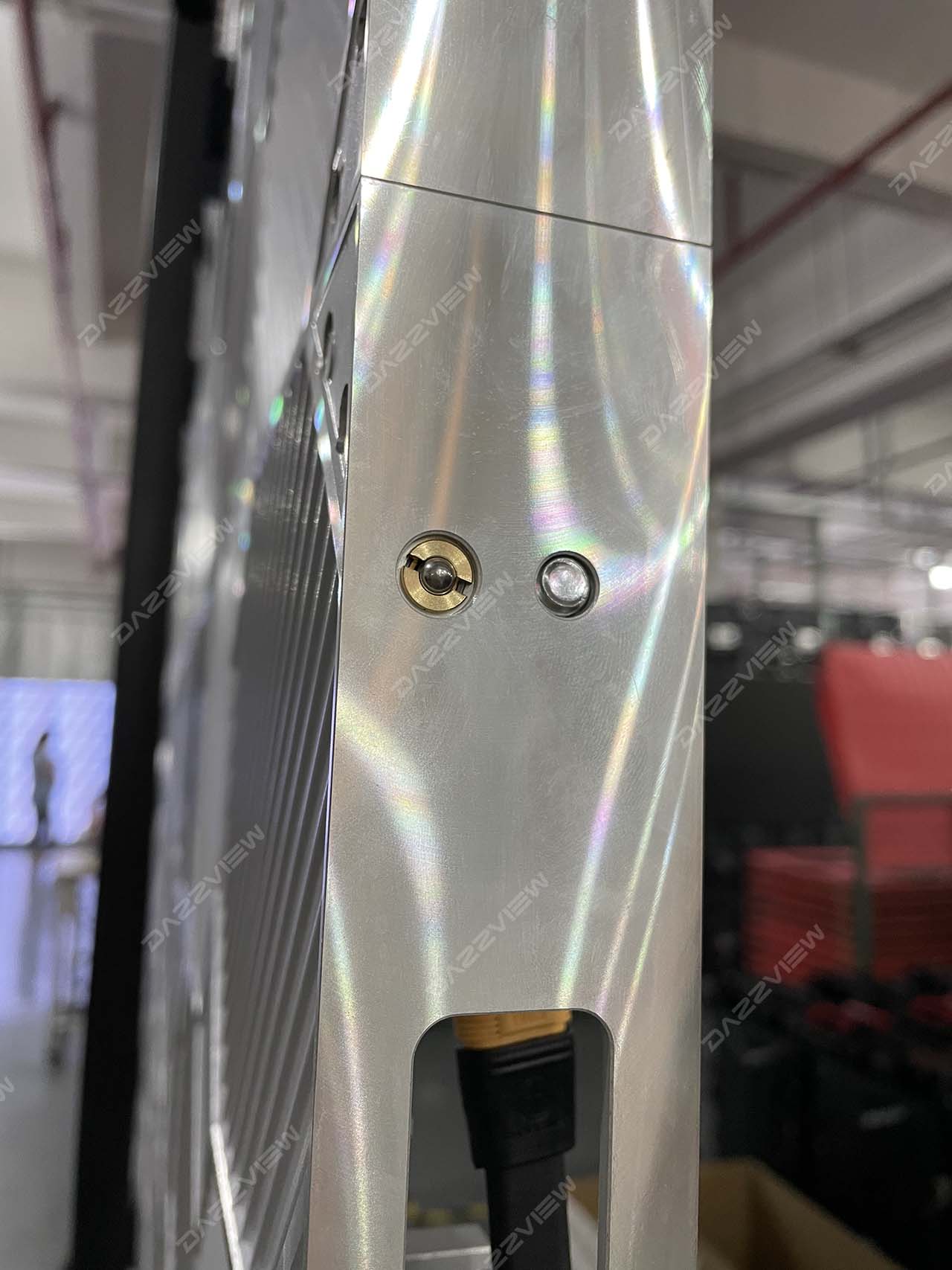

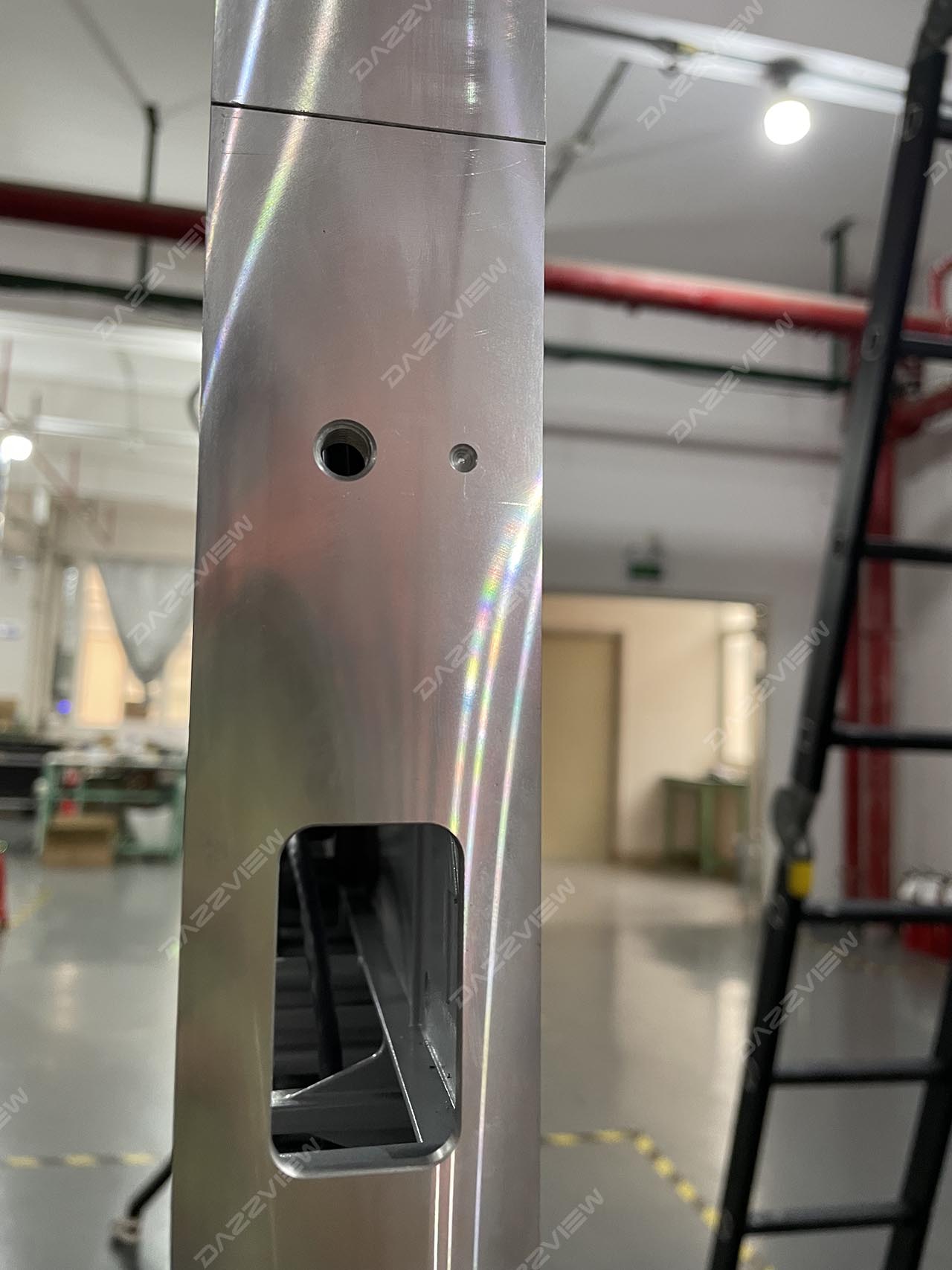

Easy for Cabinets Connection!
Joints are CNC machined to ensure flatness and seamlessness. Sides have holes for cables to pass through. Holes on the back for connecting the cabinet to the connection plate.
Easy and Stable Working!
Joints are CNC machined to ensure flatness and seamlessness. Sides have holes for cables to pass through. Holes on the back for connecting the cabinet to the connection plate.
High Flatness Cabinet Design!
Joints are CNC machined to ensure flatness and seamlessness. Sides have holes for cables to pass through. Holes on the back for connecting the cabinet to the connection plate.

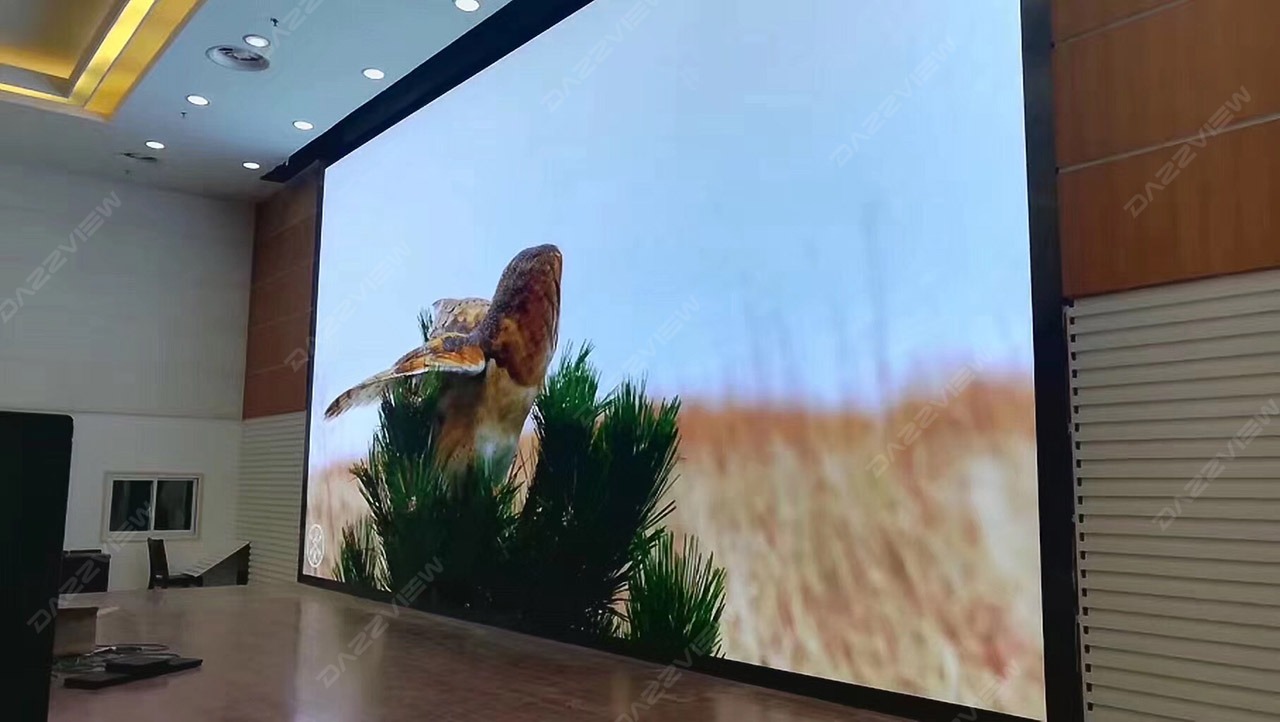

Can Be Used for Conference Room!
The cabinets can be combined into a video wall with the movable standing supporter which is suitable to work in the conference room for a company meeting.

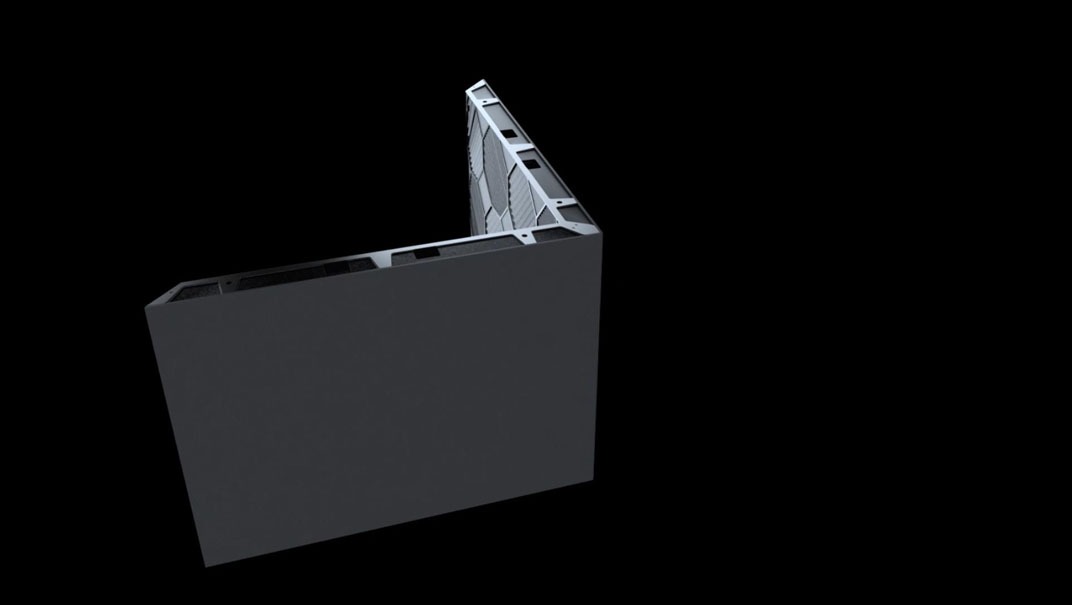

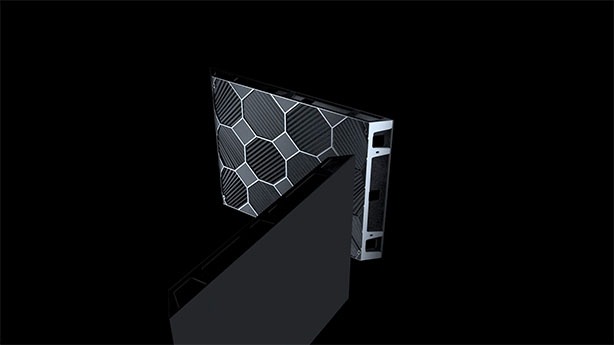

90 Degrees Corner Solution Available!
The DZ series cabinet can be made in to 45 cutting cabinet in order to combine to a 90 degrees corner solution. When there is an indoor corner LED display demand, DZ series is a very suitable and good solution.

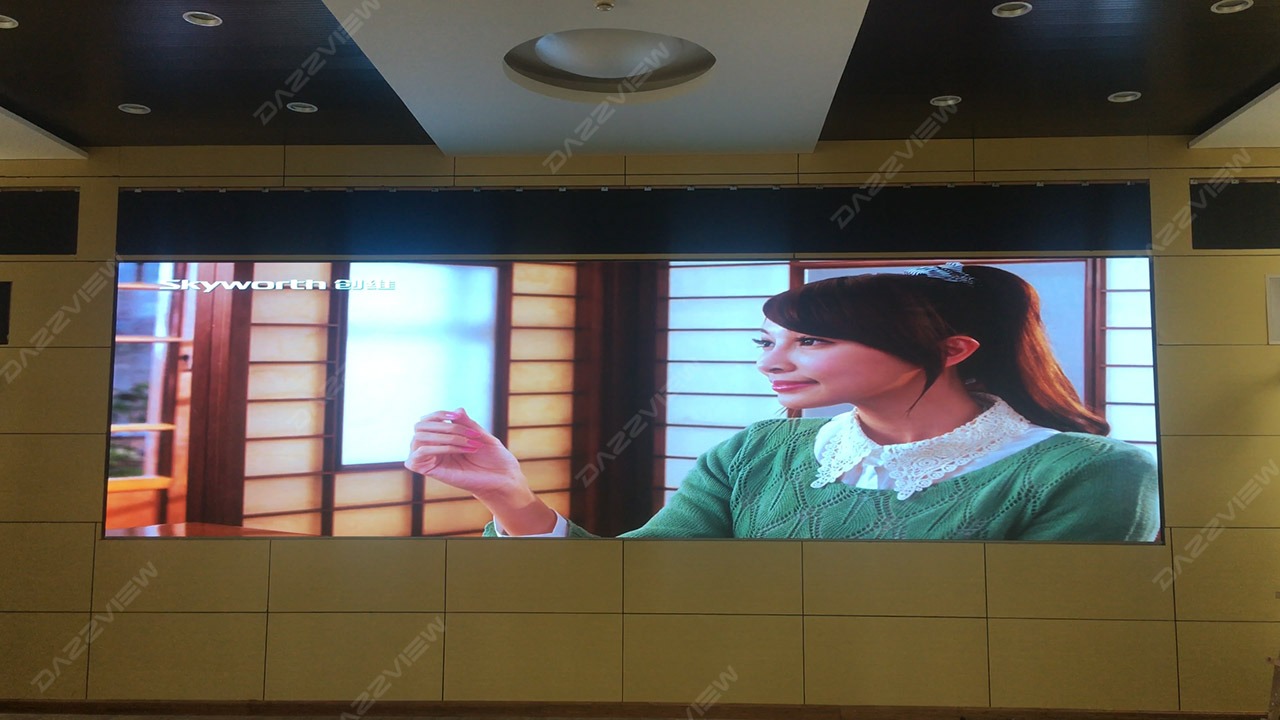

Suitable for Various Applications!

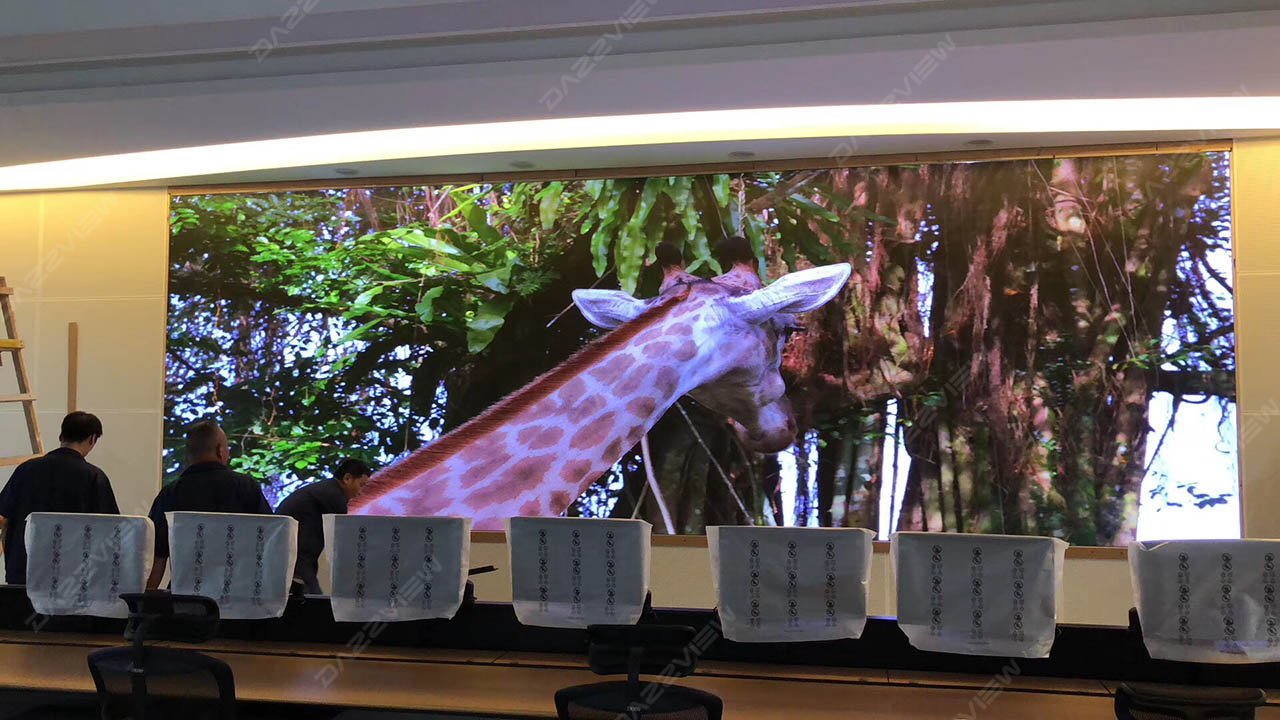

Narrow pixel pitch LED display screen is suitable for indoor used meeting room, control room, exihibition center, studio, stadium hall, school…
Install Anywhere with Ease!
The Narrow Pixel Pitch has a high resolution which is suitable to work in a project that needs high demand of definition and resolution.
The video shows you how our DZ series performance!
Specs That Will Blow You Away!
| Specification | ||||
| Model NO. | DZ0.9 | DZ1.2 | DZ1.5 | DZ1.8 |
| Pixel Pitch | 0.9375mm | 1.25mm | 1.56mm | 1.87mm |
| LED Type | Mini LED | SMD1010 | SMD1010 | SMD1010 |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Size of module(W*H) | 300mmx168.75mm | 300mmx168.75mm | 300mmx168.75mm | 300mmx168.75mm |
| Resolution of module(W*H) | 320x180dots | 240x135dots | 192x108dots | 160x90dots |
| Density | 1,137,777dots/㎡ | 640,000dots/㎡ | 409,600dots/㎡ | 284,444dots/㎡ |
| Cabinet material | Die-casting Alu | |||
| Size of cabinet(W*H) | 600mmx337.5mmx52mm | |||
| Weight of cabinet | 6.9KG | |||
| Best viewing distance | >0.9m | >1.2m | >1.5m | >1.8m |
| Best viewing angle | 140° | 140° | 140° | 140° |
| Brightness | 600cd/㎡ | 600cd/㎡ | 600cd/㎡ | 600cd/㎡ |
| Maximum power consumption | 500W/㎡ | 500W/㎡ | 550W/㎡ | 550W/㎡ |
| Average power consumption | 160W/㎡ | 160W/㎡ | 180W/㎡ | 180W/㎡ |
| Driving method | 1/60 scanning | 1/60 scanning | 1/64 scanning | 1/45 scanning |
| Gray scale | 16 bits | |||
| Refresh frequency | 3840Hz | |||
| IP grade | IP43 | |||
| Colors | 16777216 | |||
| Color temperature | 6500-9500k | |||
| Driving device | Constant current | |||
| Working voltage | AC220V/110V±10% | |||
| Working temperature | —20℃~50℃±10% | |||
| MTBF | >10,000 hours | |||
| Frame frequency | 60Hz | |||
| Life Span | 100,000 hours | |||
