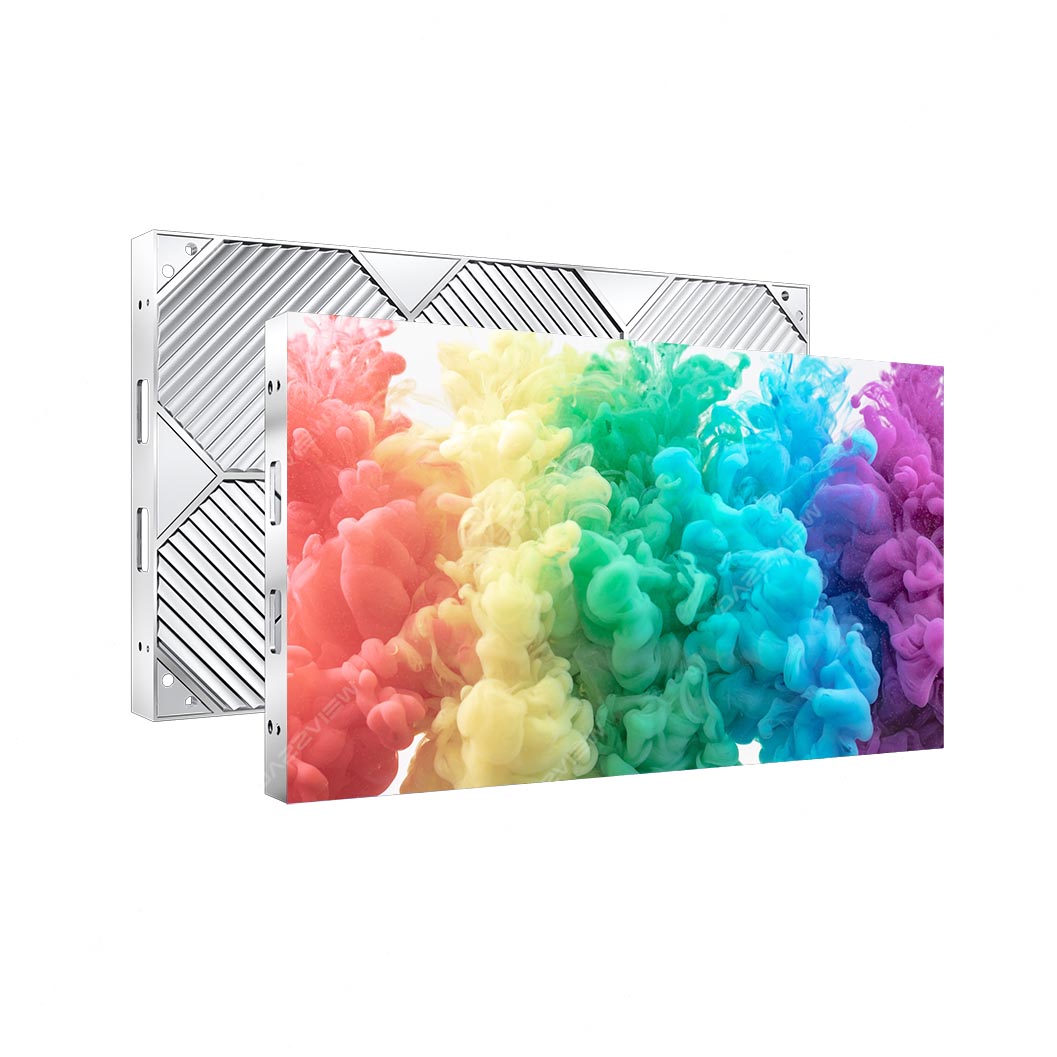

High definition Narrow Pixel Pitch LED Display
Narrow pixel pitch LED display also called fine pitch or HD LED display, it’s widely to be used studio, broadcast, control room, meeting LED display…
DAZZVIEW TECHNOLOGY
High definition Narrow Pixel Pitch
LED Display
Product Name: High definition Narrow Pixel Pitch LED Display
Product Model: DY Series
Product Description:
Dimension: 640x480x65mm
Weight: 6.5kg/pc
Pixel Pitch Indoor: P1.25, P1.53, P1.66, P1.86, P2.0, P2.5
Key Features:
1. 4:3 Golden Ratio
2. Seamless for Flatness

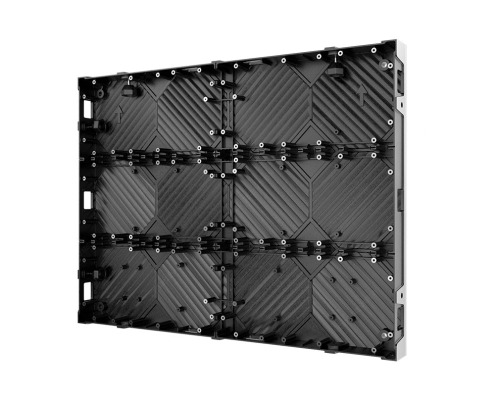

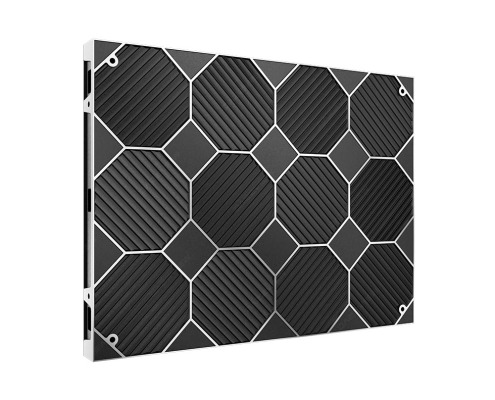

3. Transforming/Thin/Smart/Cost-Benefit
4. High Grayscale Levels
5. High Refresh Rate

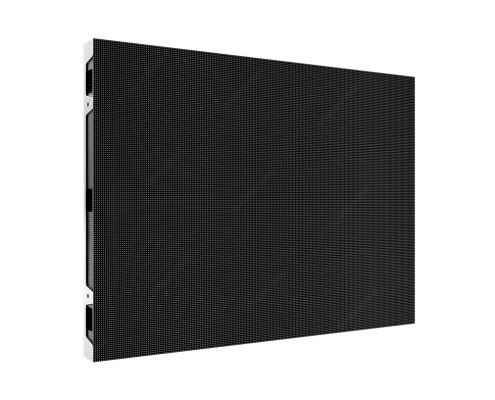

6. High Contrast Ratios at Low Brightness Levels
7. Multi-size for More Option: 640x320mm, 640x160mm, 320x480mm.

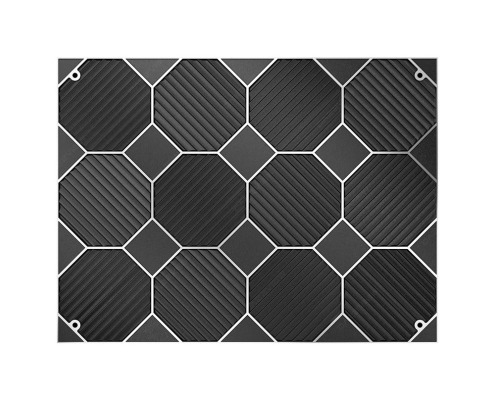

8. Multi-functional Shape: LED poster, Conference LED display, 90° corner LED display, double sides for option.
DAZZVIEW TECHNOLOGY
High Definition Narrow Pixel Pitch LED Display Screen!
Narrow Pixel Pitch is also called fine pitch. HD LED displays are available in narrow pixel pitch solutions of 1.2 mm, 1.5 mm, 1.6 mm, 1.8 mm, 2 mm, and 2.5 mm. It is suitable for some projects that require high resolution and definition.
DAZZVIEW LED DISPLAY

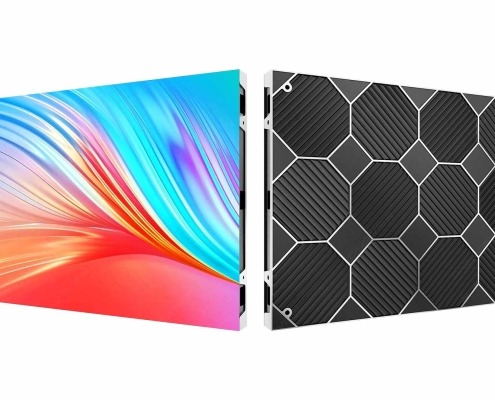

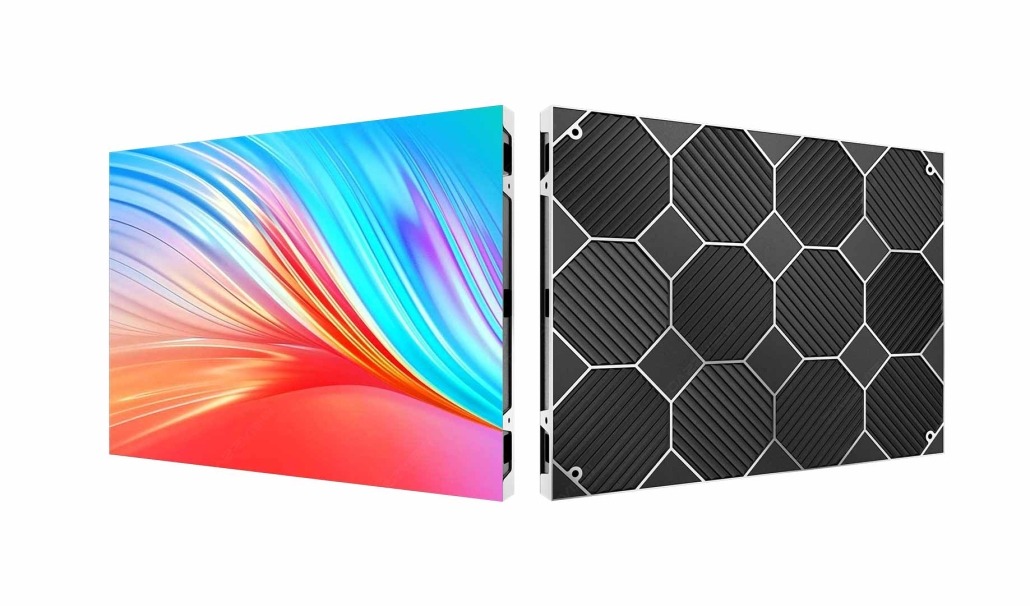

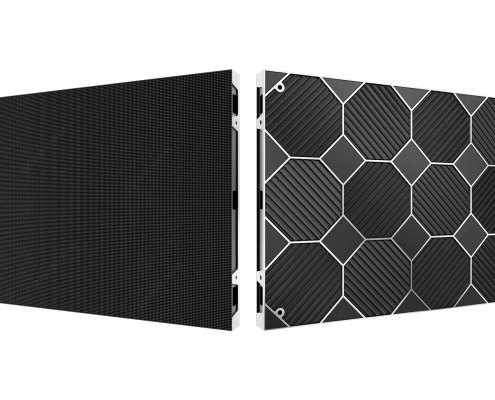

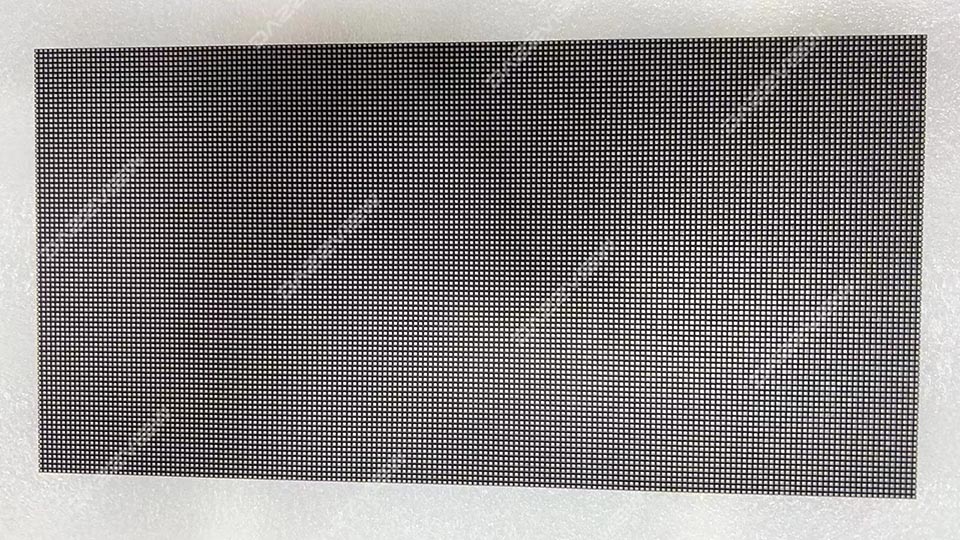

640x480mm Cabinet Size Combined With 320x160mm Popular Module Size!
High precision die-casting aluminum cabinet in size 640x480mm, LED module size: 320x160mm is popular and common to be used.
DAZZVIEW
Side
High quality side connectors in seamless!
DAZZVIEW

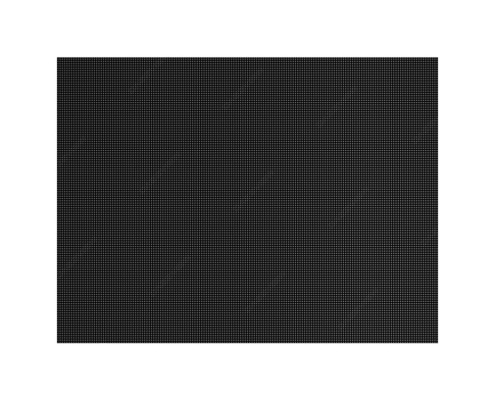

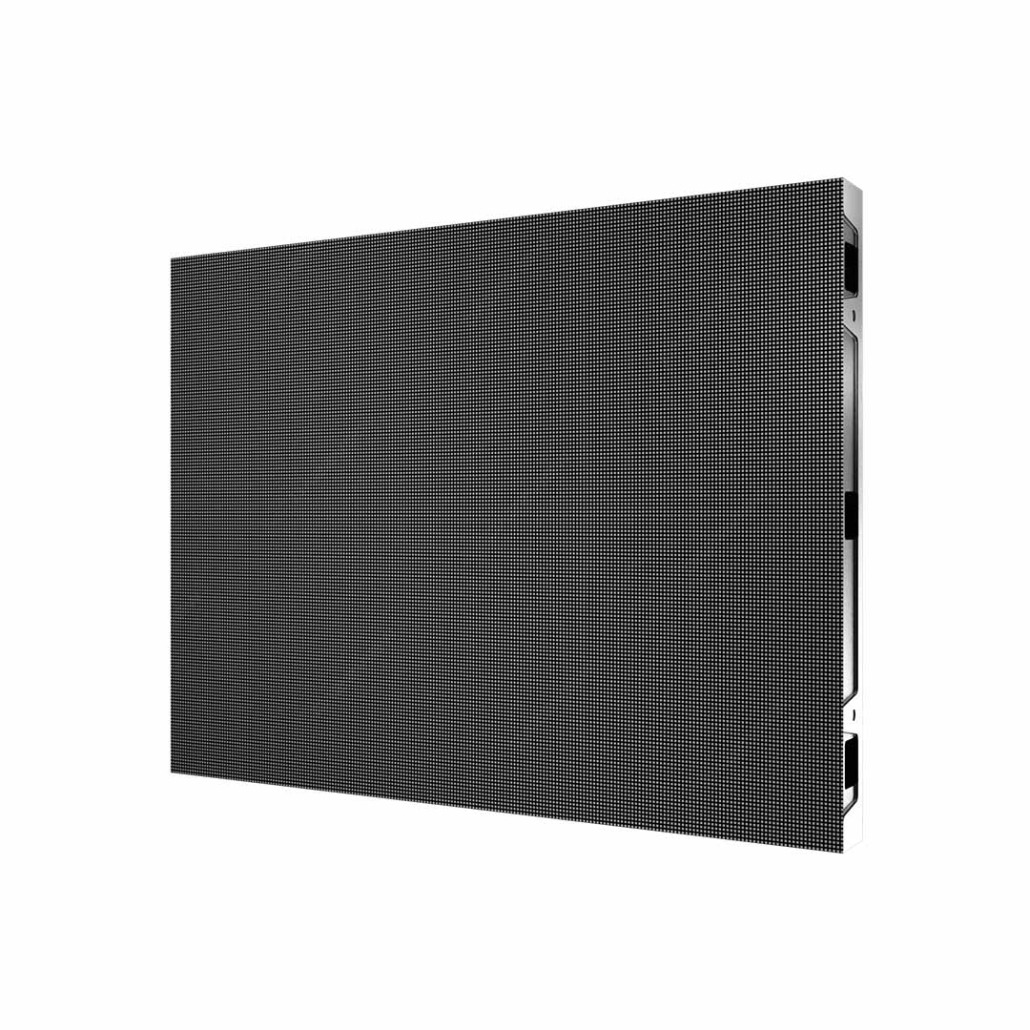

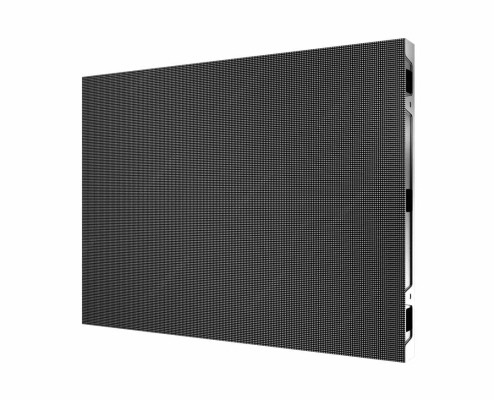

Front

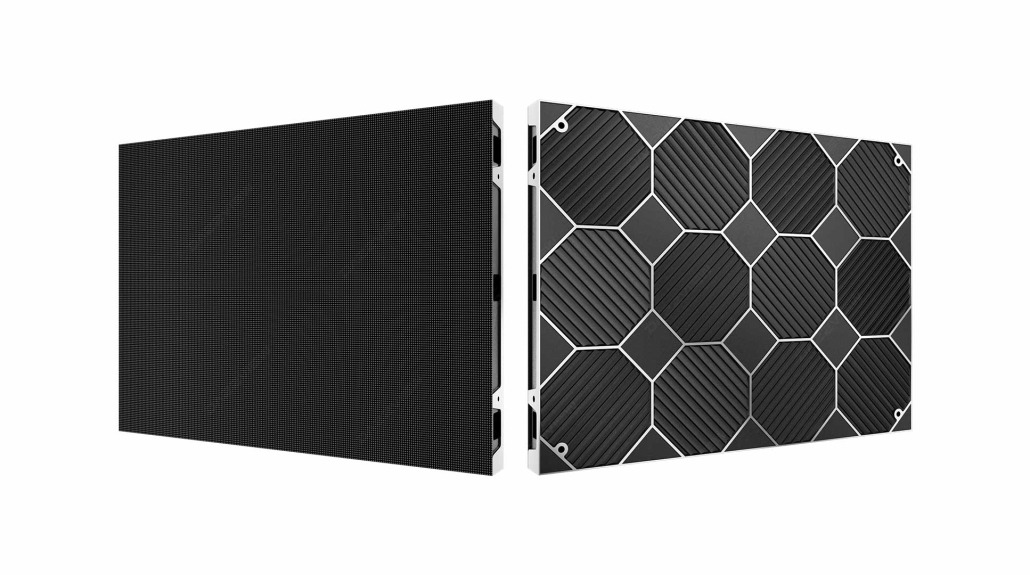

640x480mm cabinet with 320x160mm LED module!
DAZZVIEW

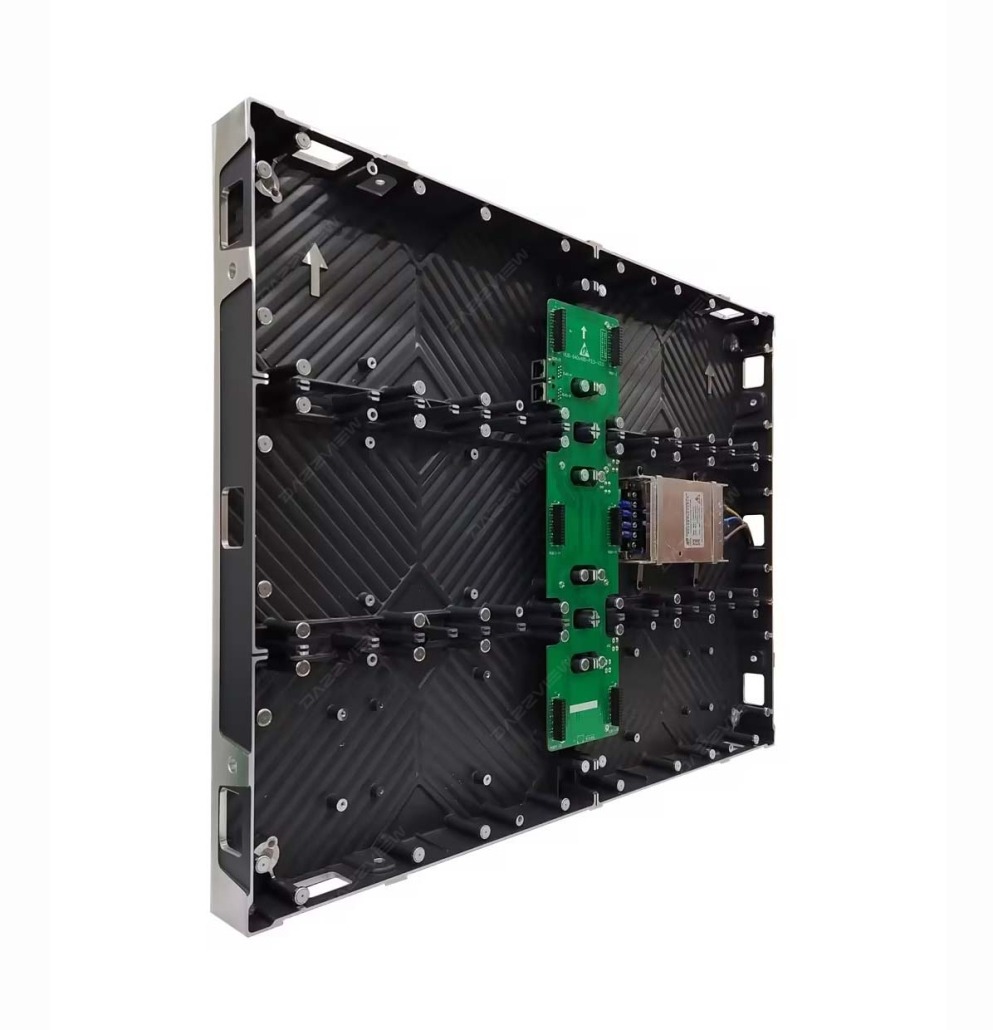

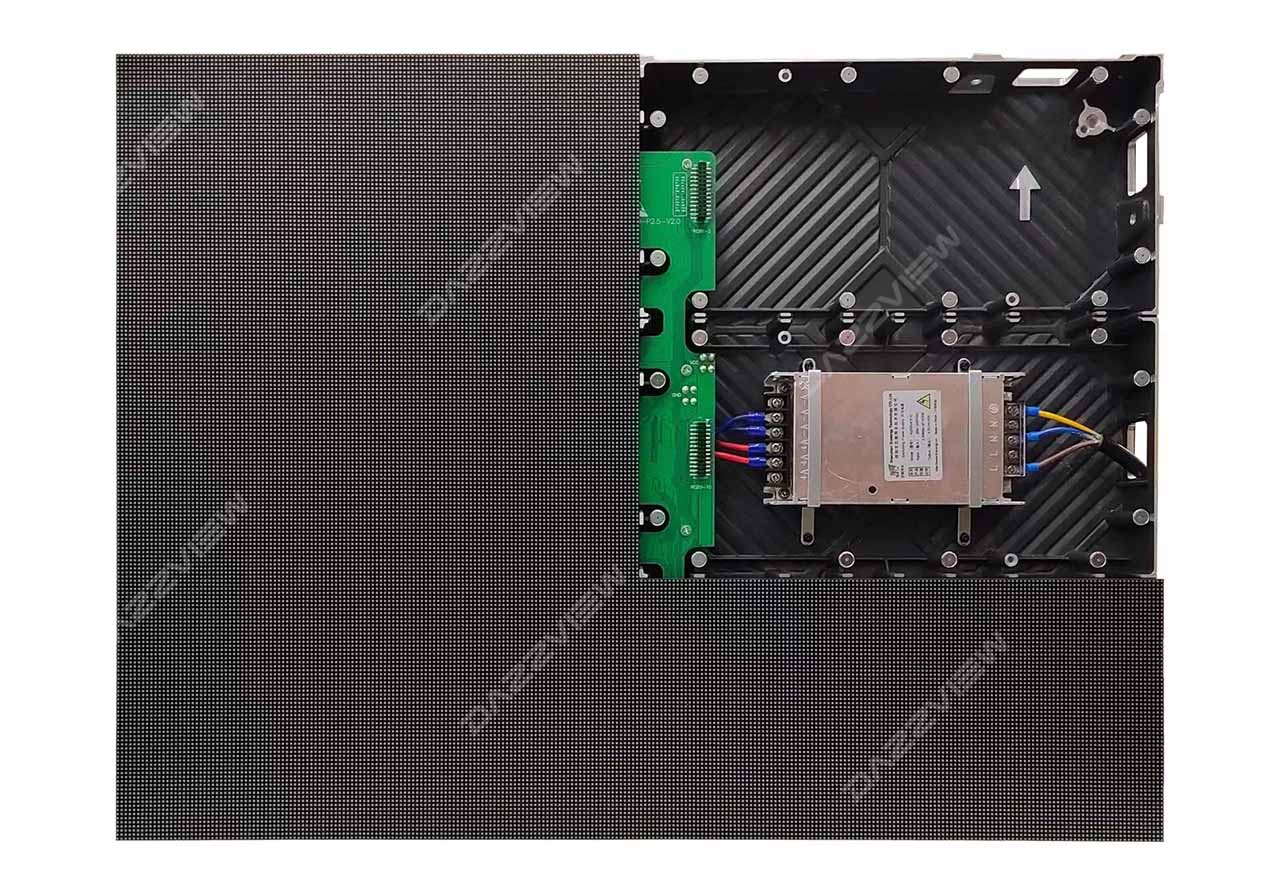

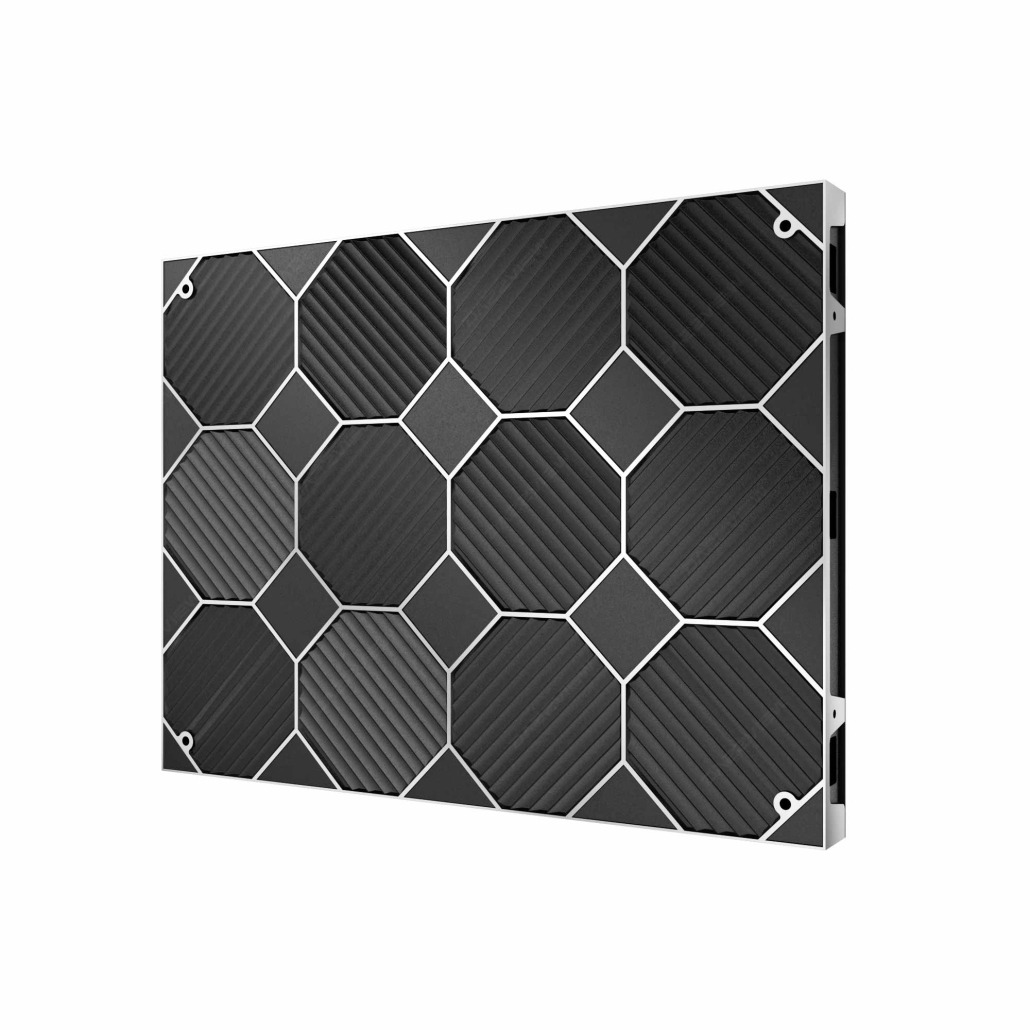

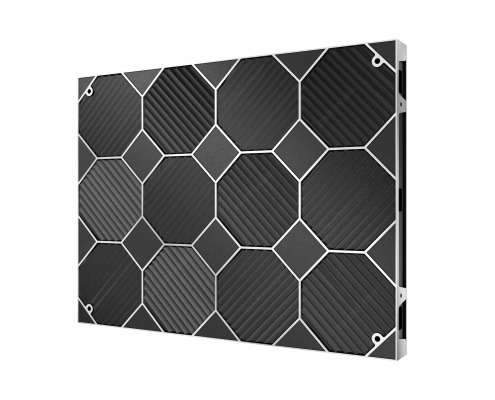

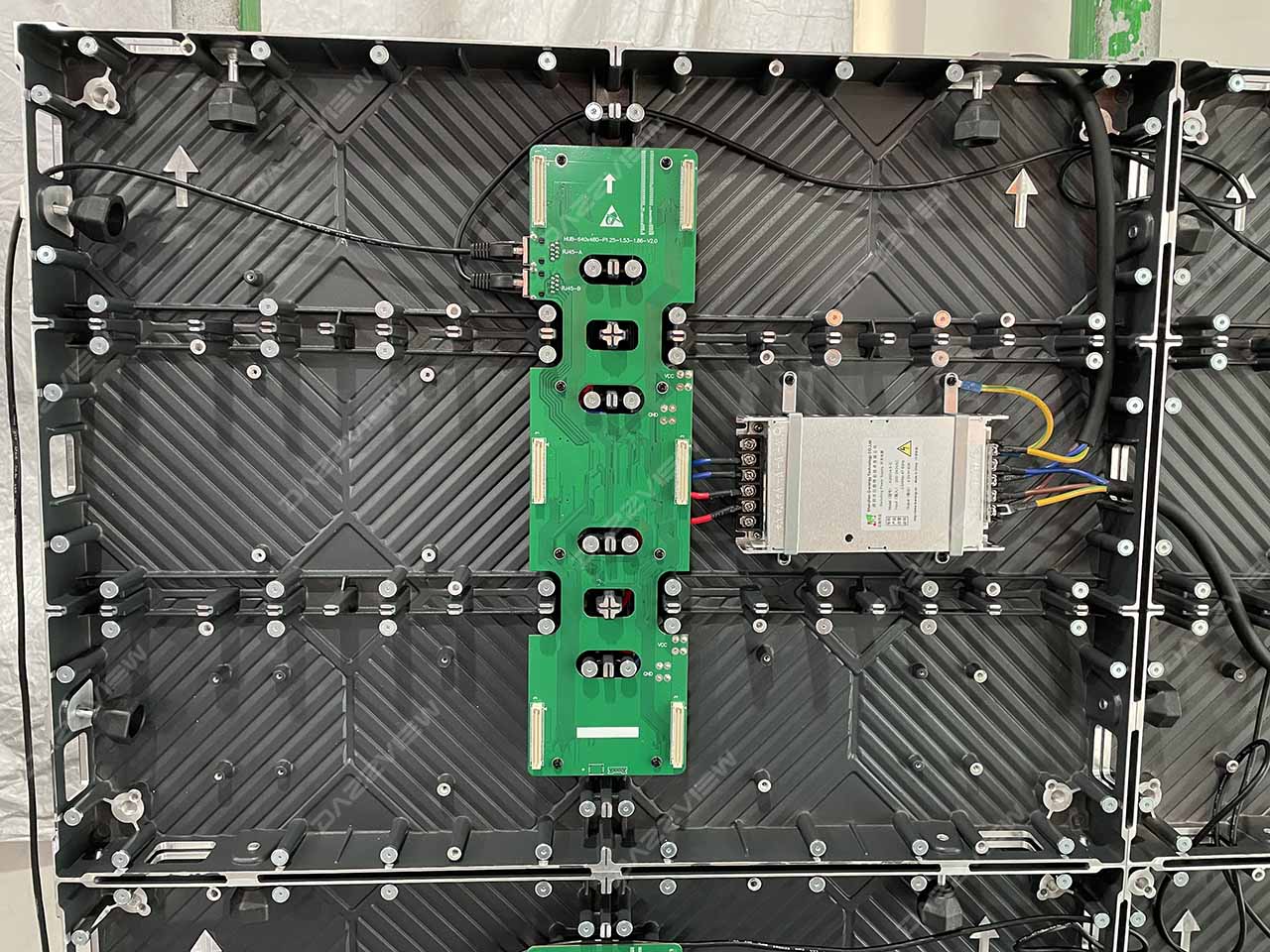

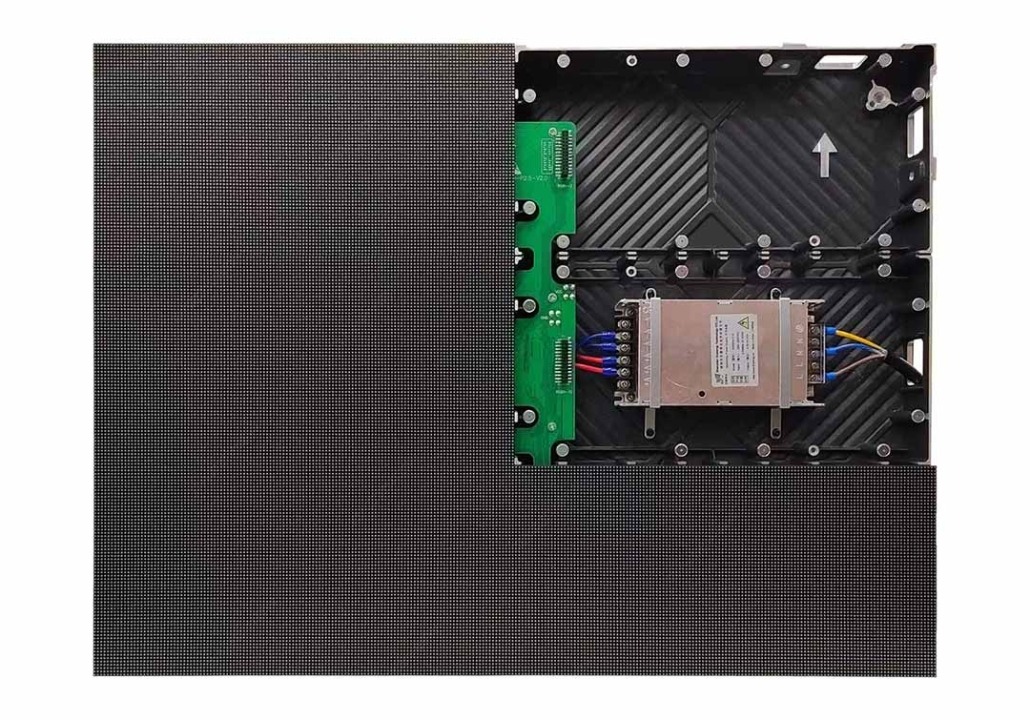

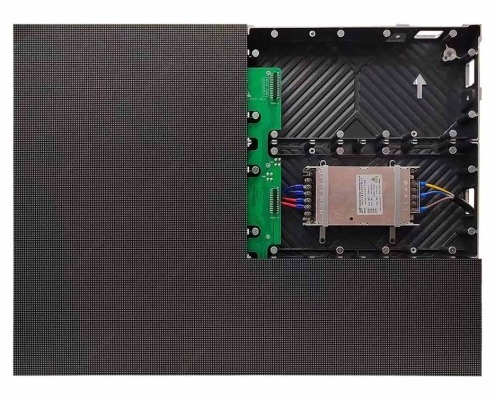

Inside
Die-casting aluminum cabinet guarantee the high flatness!
DAZZVIEW LED DISPLAY

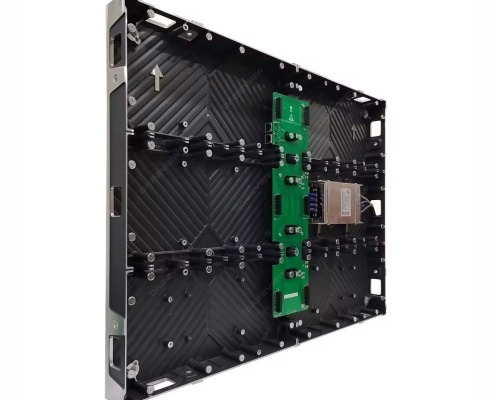

Perfect Cabinet Design for the Narrow Pixel Pitch LED Display screen!
Joints are CNC machined to ensure flatness and seamlessness. Sides have holes for cables to pass through. Holes on the back for connecting the cabinet to the connection plate.
DAZZVIEW LED DISPLAY

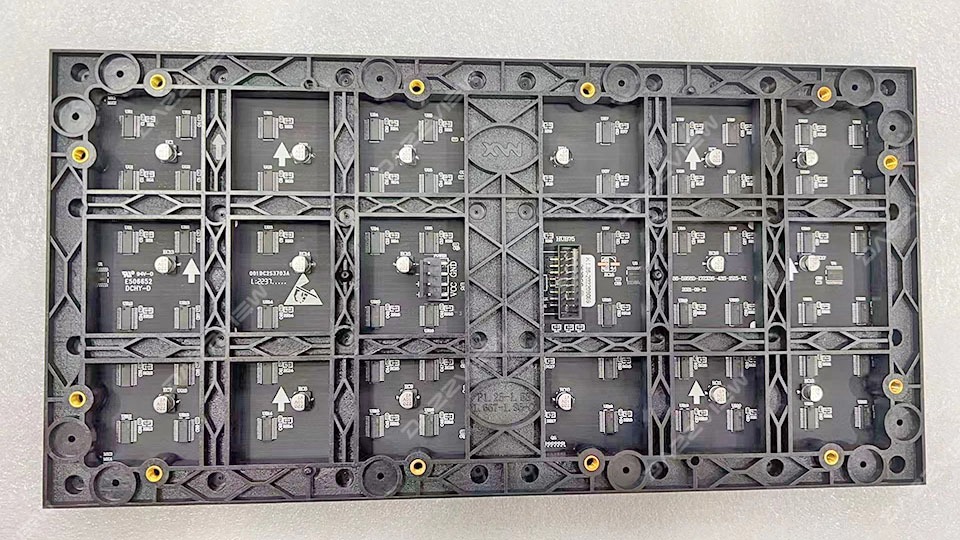

High Quality and High Flatness Module with Magnetic Design!
Joints are CNC machined to ensure flatness and seamlessness. Sides have holes for cables to pass through. Holes on the back for connecting the cabinet to the connection plate.
DAZZVIEW LED DISPLAY
Fast Lock Save the Installation Time!
Joints are CNC machined to ensure flatness and seamlessness. Sides have holes for cables to pass through. Holes on the back for connecting the cabinet to the connection plate.
DAZZVIEW LED DISPLAY
Easy for Cabinets Connection!
Joints are CNC machined to ensure flatness and seamlessness. Sides have holes for cables to pass through. Holes on the back for connecting the cabinet to the connection plate.
DAZZVIEW LED DISPLAY

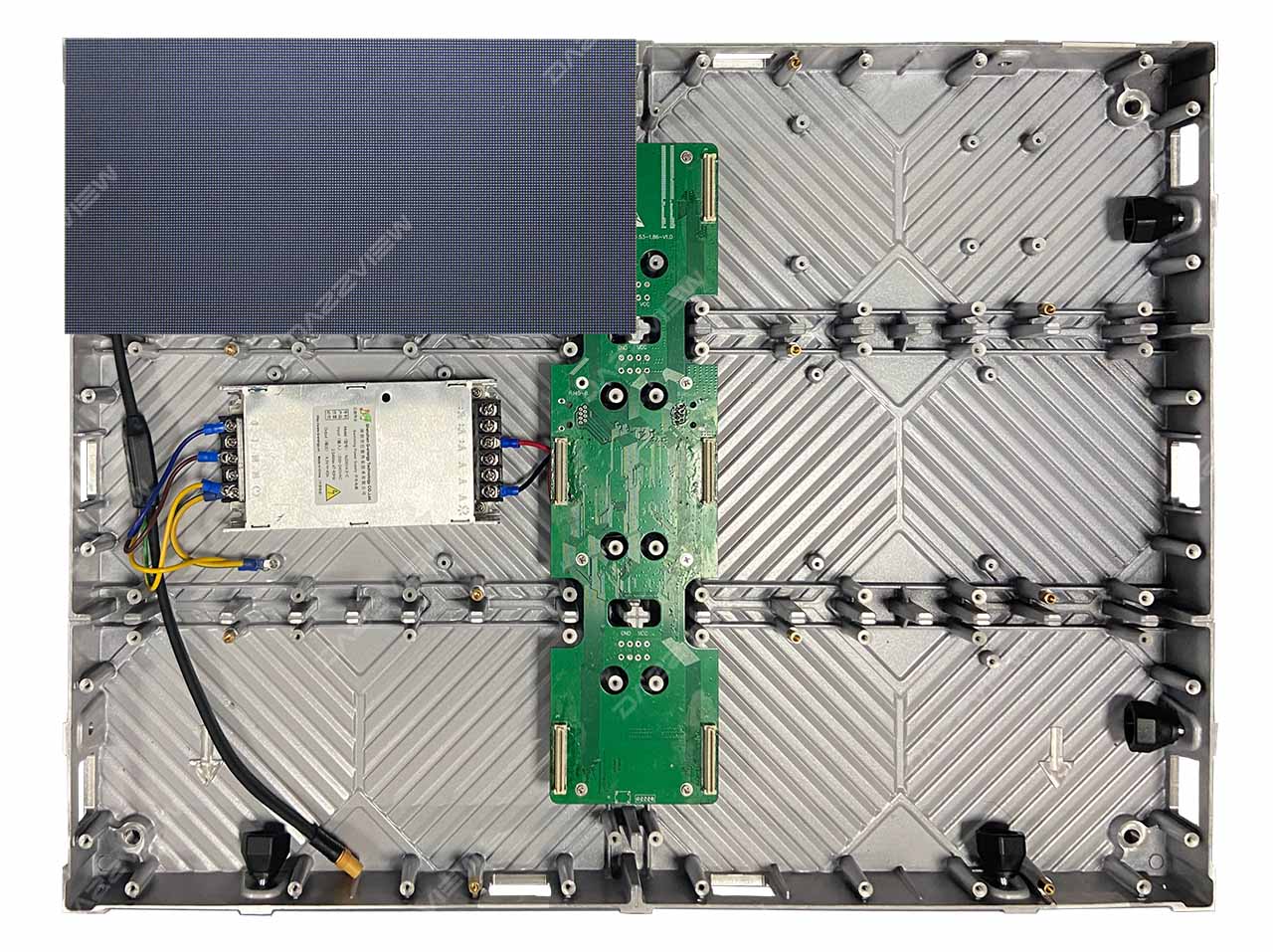

Easy and Stable Working!
Joints are CNC machined to ensure flatness and seamlessness. Sides have holes for cables to pass through. Holes on the back for connecting the cabinet to the connection plate.
DAZZVIEW LED DISPLAY

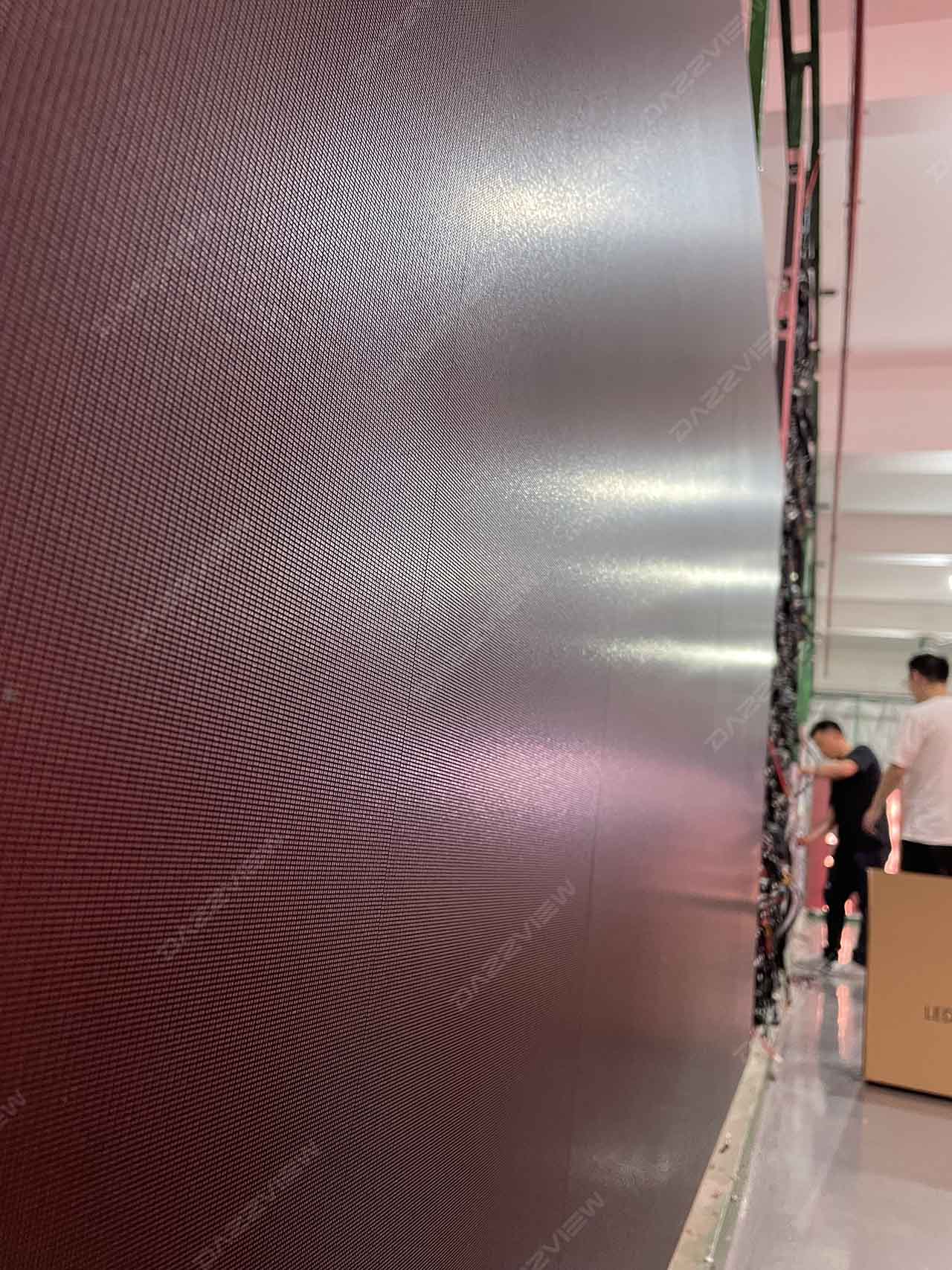

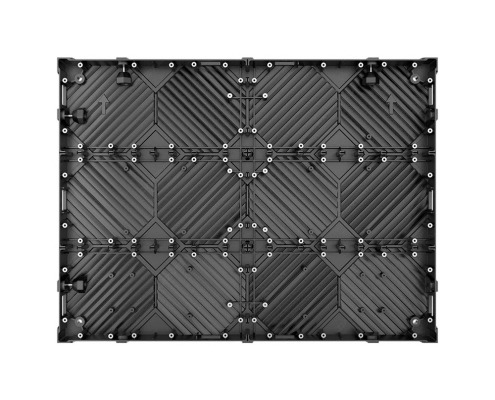

High Flatness Cabinet Design!
Joints are CNC machined to ensure flatness and seamlessness. Sides have holes for cables to pass through. Holes on the back for connecting the cabinet to the connection plate.
DAZZVIEW LED DISPLAY

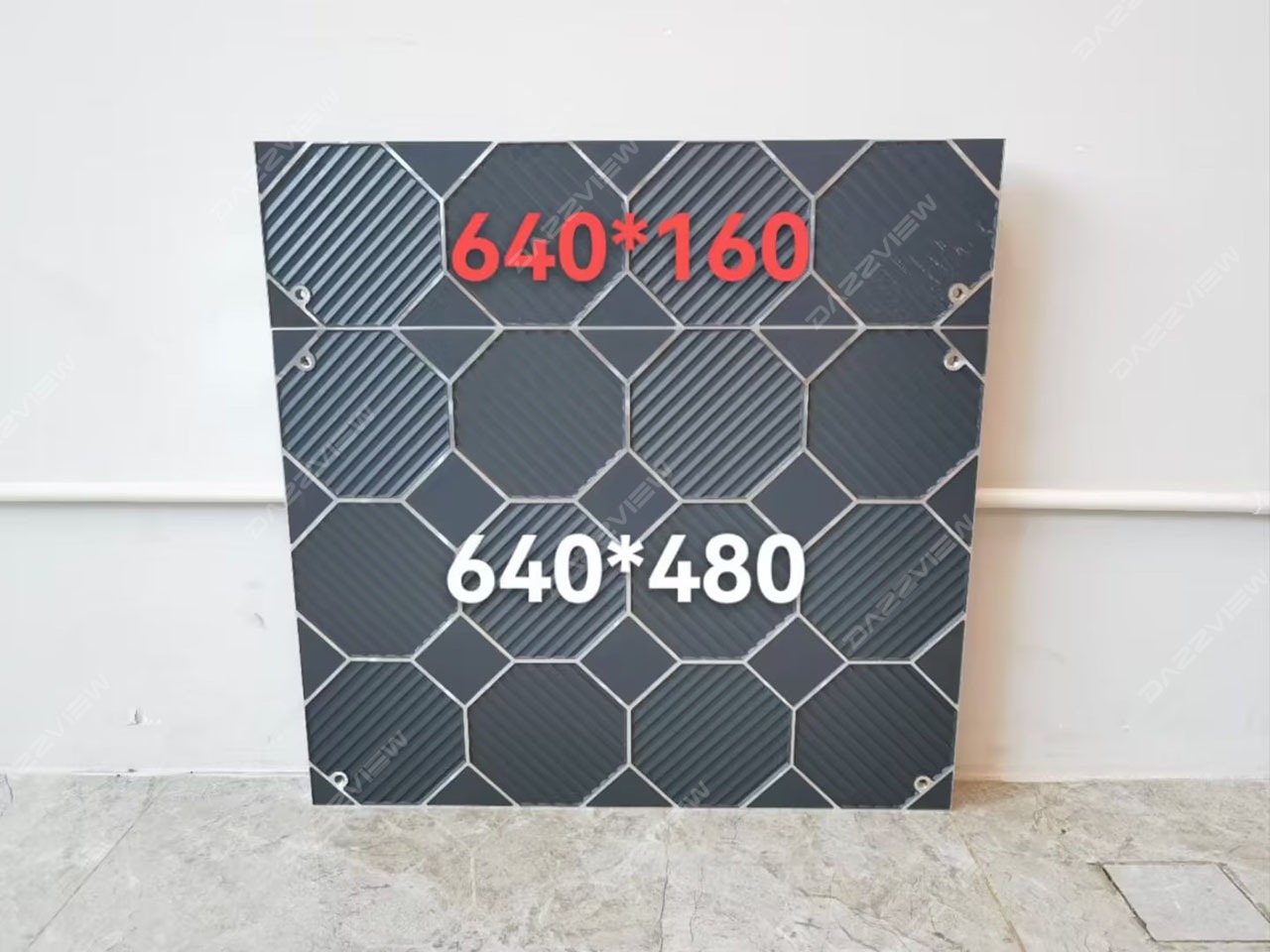

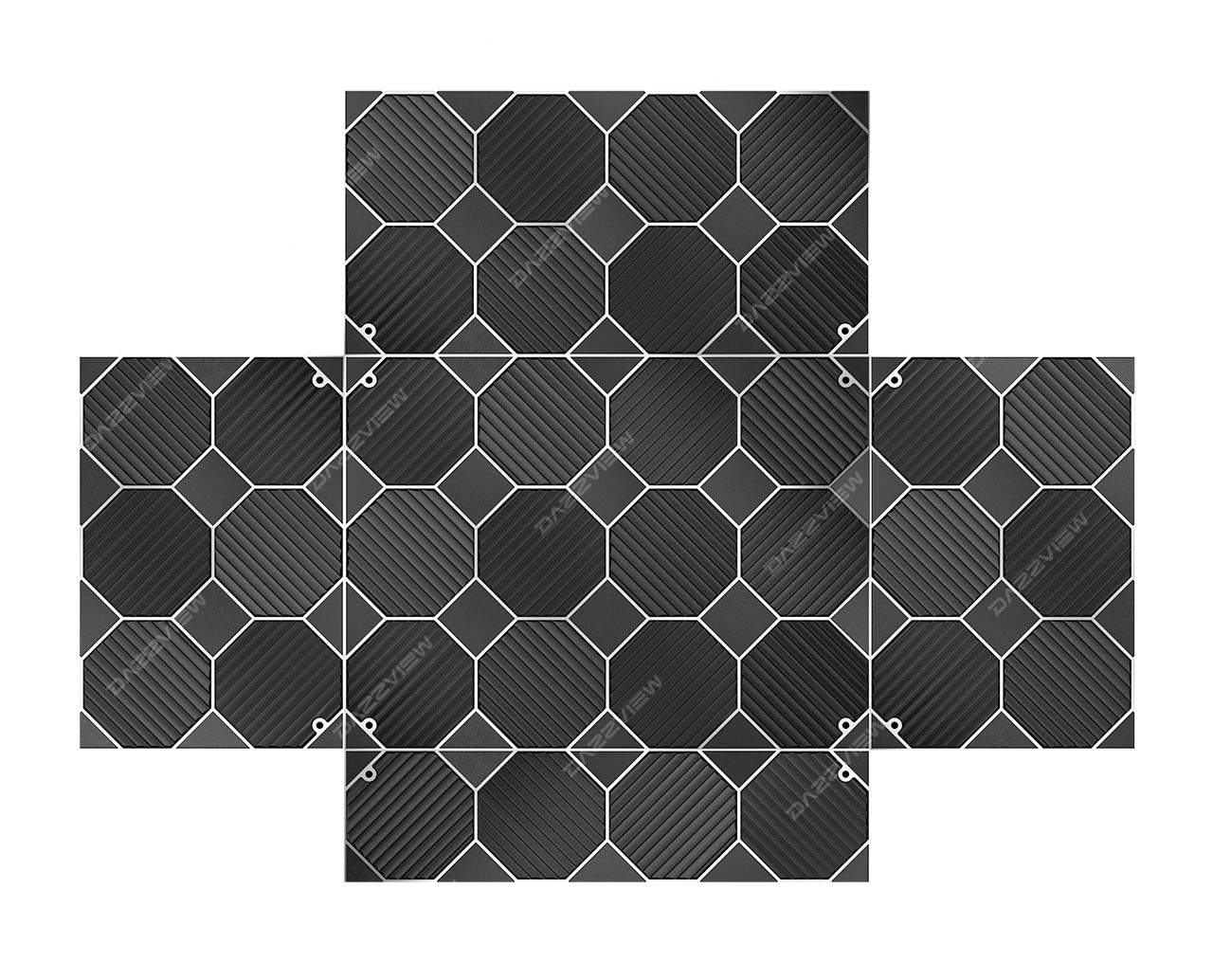

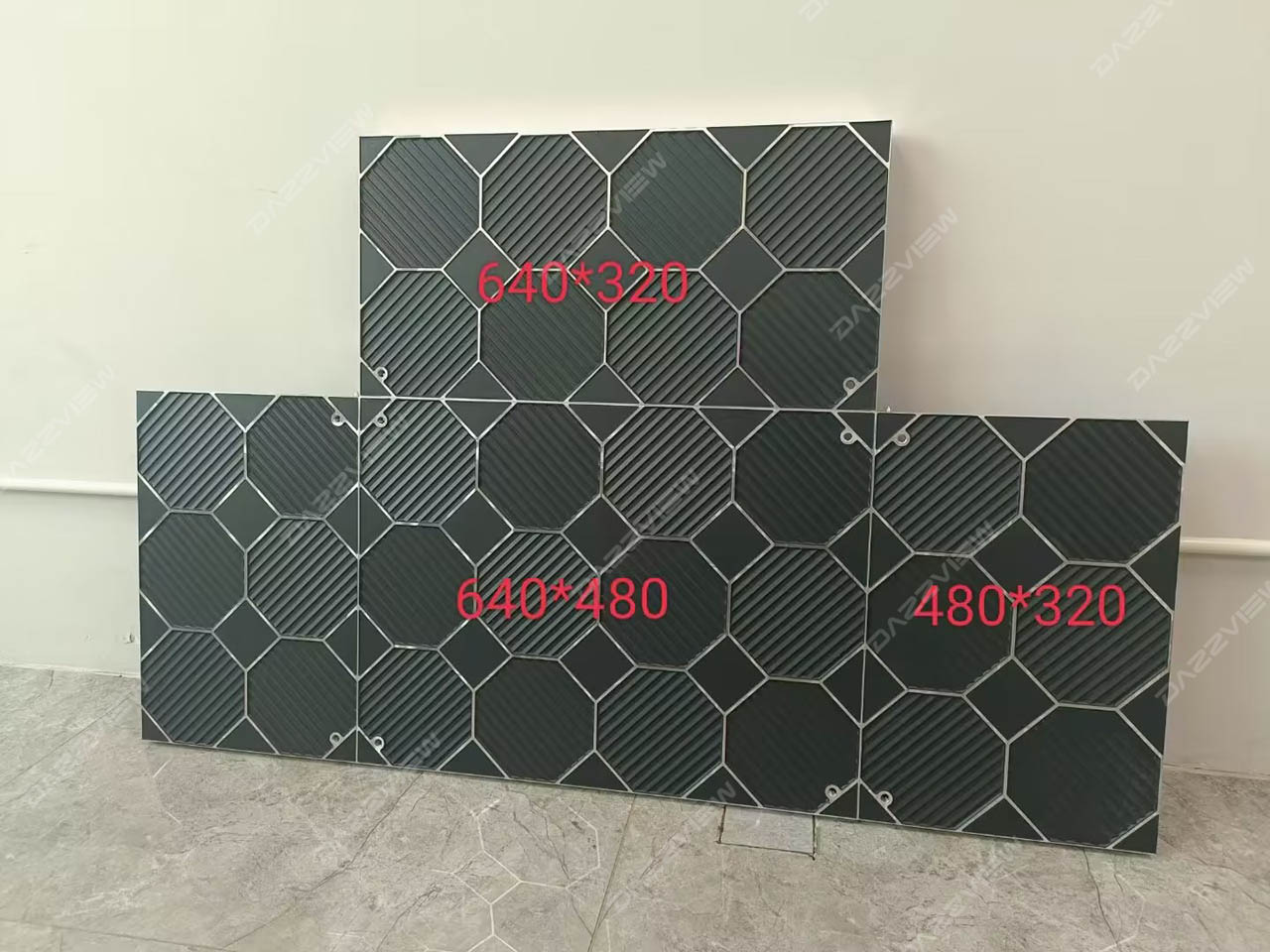

Special Cabinet Size Combined With The 320x160mm Basic Module Size!
Joints are CNC machined to ensure flatness and seamlessness. Sides have holes for cables to pass through. Holes on the back for connecting the cabinet to the connection plate.
DAZZVIEW LED DISPLAY

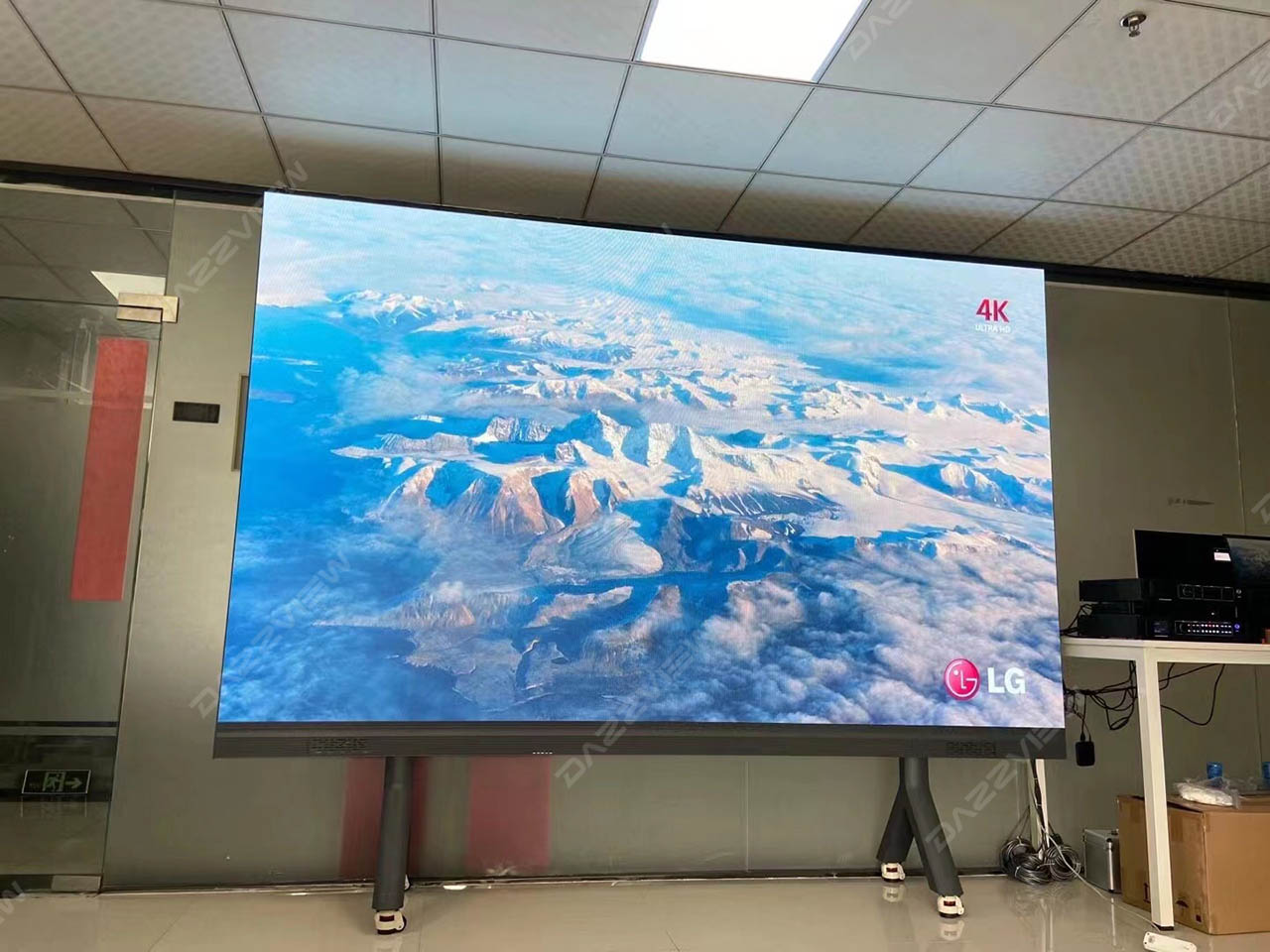

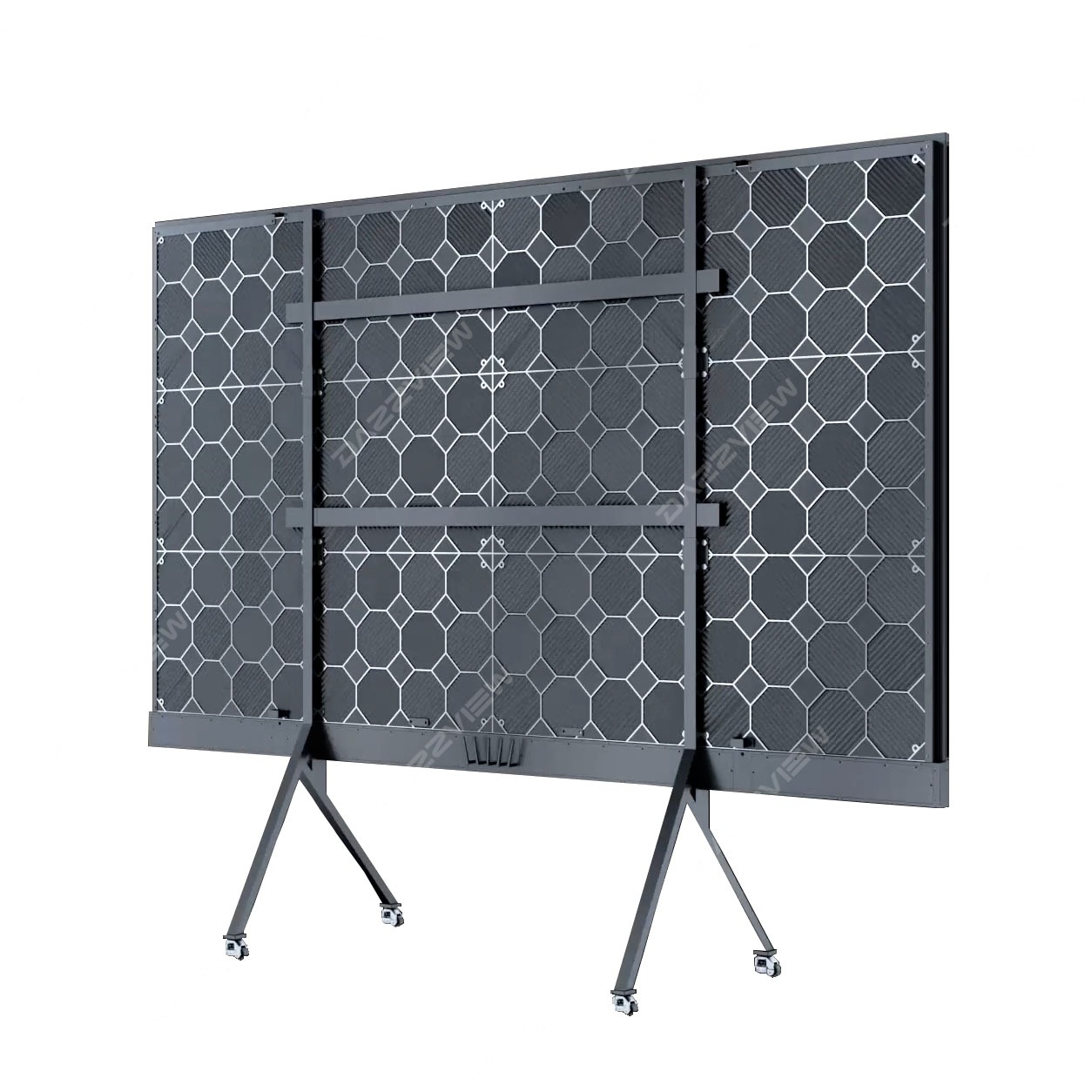

Can Be Used for Conference Room!
The cabinets can be combined into a video wall with the movable standing supporter which is suitable to work in the conference room for a company meeting.
DAZZVIEW LED DISPLAY

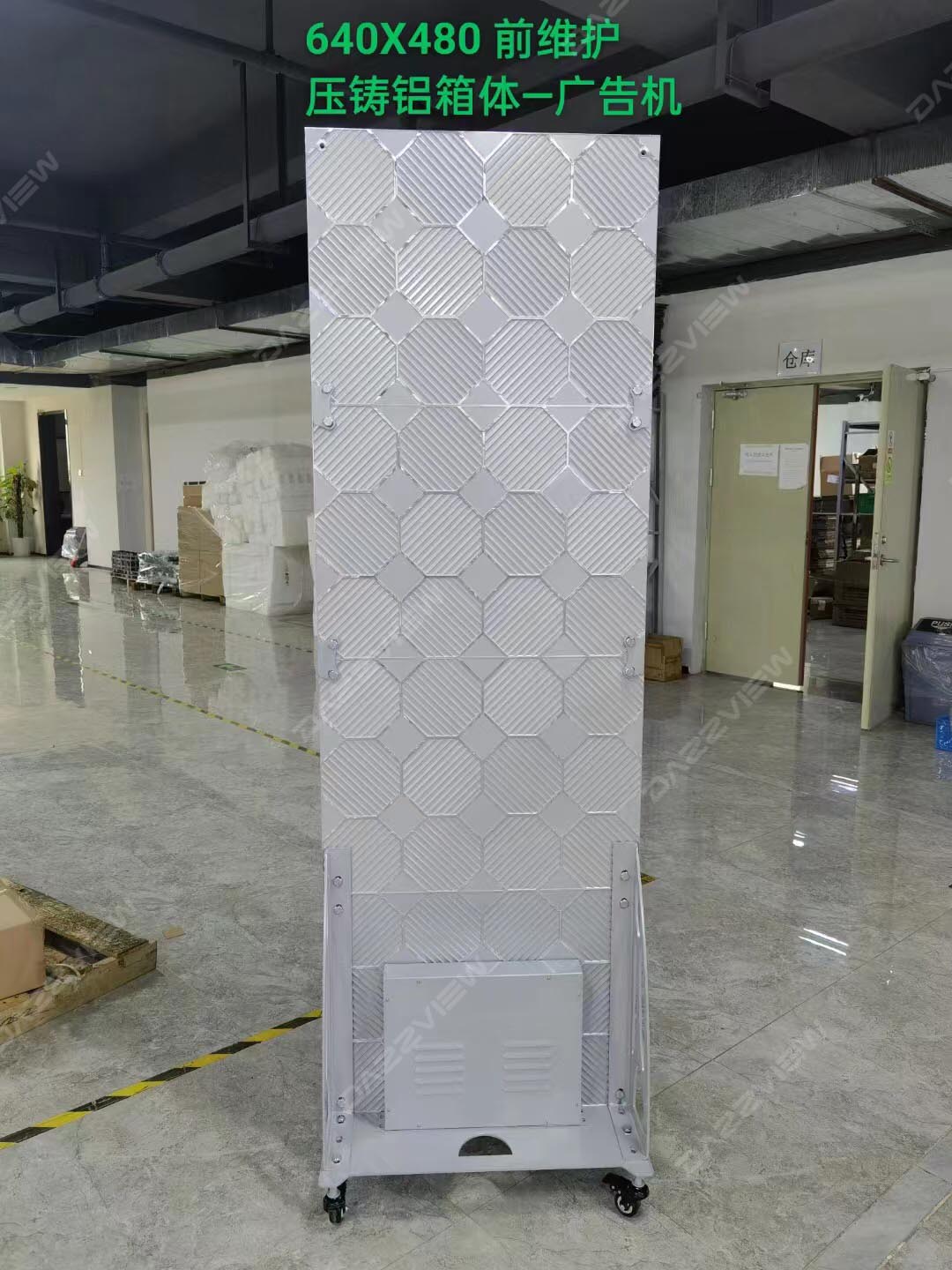

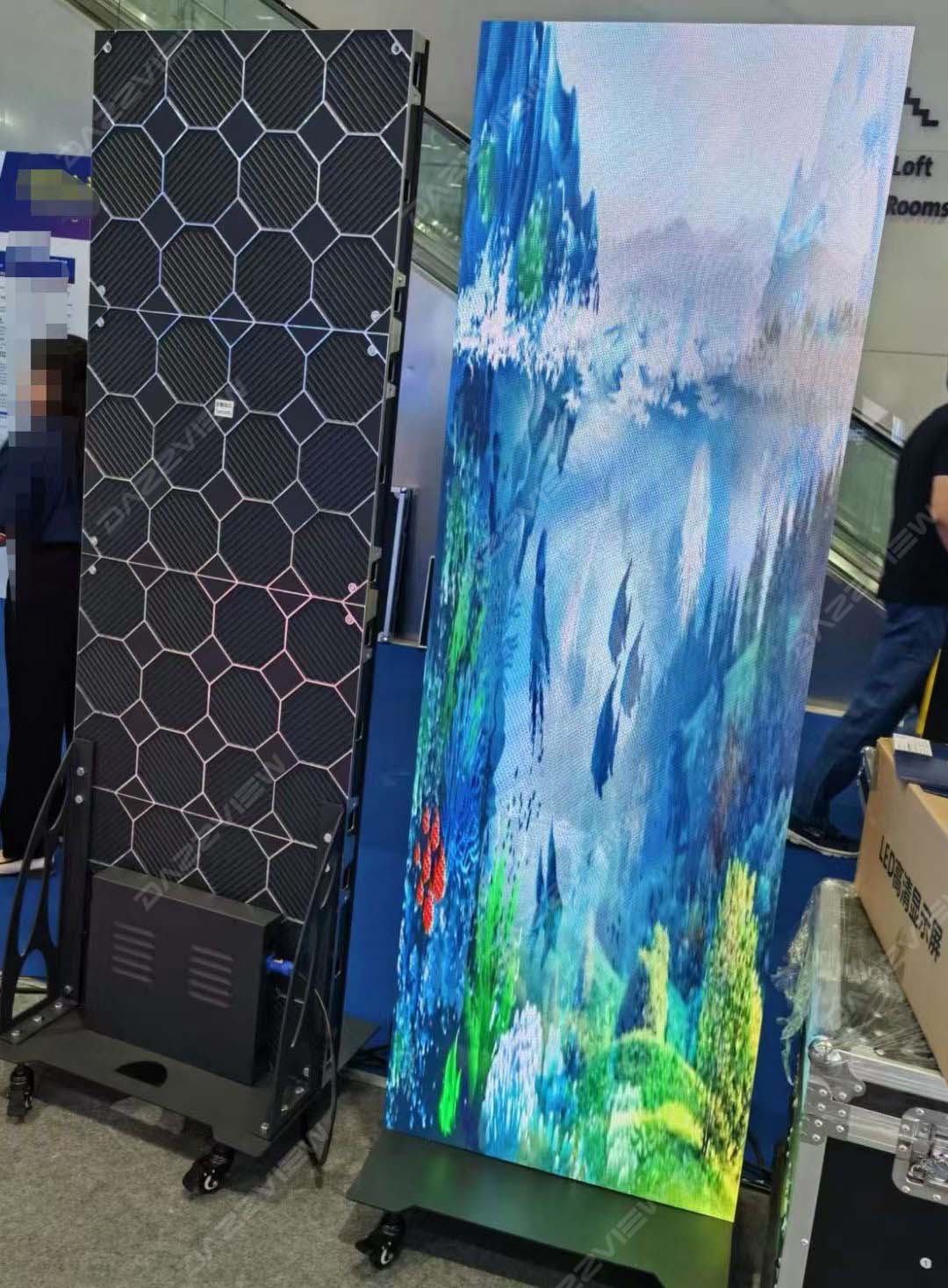

Can Be Used for LED Poster!
The cabinets can be combined together with the movable standing bracket for a LED poster which is suitable to work in the digital signage shop.
DAZZVIEW LED DISPLAY

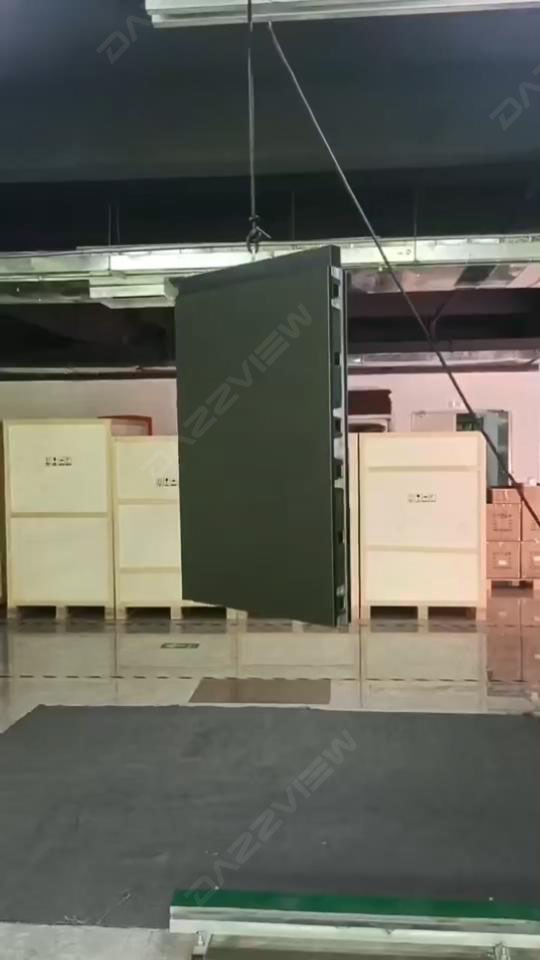

Double Sides LED display Available!
DY series also can be made into double LED display screen which is suitable for hanging and showing the contents to different directions.
DAZZVIEW LED DISPLAY
90 Degrees Corner Solution Available!
The DY series cabinet can be made in to 45 cutting cabinet in order to combine to a 90 degrees corner solution. When there is an indoor corner LED display demand, DY series is a very suitable and good solution.
DAZZVIEW LED DISPLAY

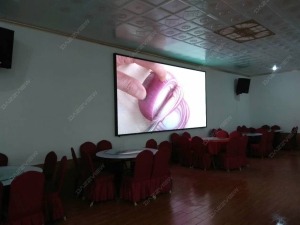

Suitable for Various Applications!

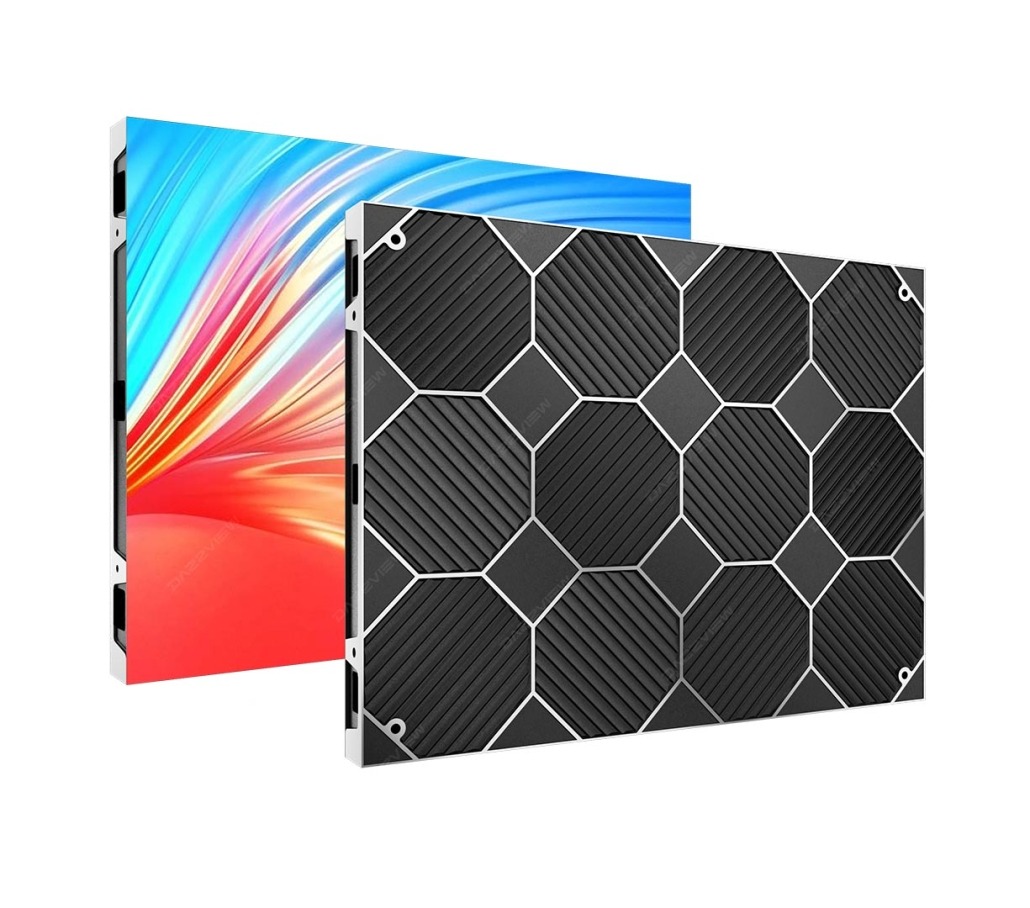

Narrow pixel pitch LED display screen is suitable for indoor used meeting room, control room, exihibition center, studio, stadium hall, school…
DAZZVIEW LED DISPLAY
Install Anywhere with Ease!
The Narrow Pixel Pitch has a high resolution which is suitable to work in a project which needs high demand of the difinition and resolution.
DAZZVIEW LED DISPLAY
Introduction Video!
The video shows you how our DY series performance!
DAZZVIEW TECHNOLOGY
Specs That Will Blow You Away!
| Specification | ||||||
| Model No. | DY1.2 | DY1.5 | DY1.6 | DY1.8 | DY2.0 | DY2.5 |
| Pixel Pitch | 1.25mm | 1.53mm | 1.66mm | 1.86mm | 2.0mm | 2.5mm |
| LED Type | SMD1010 | SMD1212 | SMD1212 | SMD1515 | SMD1515 | SMD1515 |
| Pixel configuration | 1R1G1B | |||||
| Size of module(W*H) | 320mmx160mm | |||||
| Resolution of module(W*H) | 256x128dot | 208x104dot | 192x96dot | 172x86dot | 160x80dot | 128x64dot |
| Density | 640,000dots/㎡ | 422,500dots/㎡ | 360000dots/㎡ | 288,906dots/㎡ | 250,000dots/㎡ | 160,000dots/㎡ |
| Cabinet material | Die-casting aluminum | |||||
| Size of cabinet(W*H) | 640x480x65mm | |||||
| Weight of cabinet | 6.5kg | |||||
| Best viewing distance | >1.2m | >1.5m | >1.6m | >1.8m | >2.0m | >2.5m |
| Best viewing angle | 160° | |||||
| Brightness | 600-800cd/㎡ | |||||
| Maximum power consumption | ≤600W/㎡ | |||||
| Average power consumption | ≤230W/㎡ | |||||
| Driving method | 1/64 scanning | 1/52 scanning | 1/48 scanning | 1/43 scanning | 1/40 scanning | 1/32 scanning |
| Gray scale | 16 bits | |||||
| Refresh frequency | 3840Hz | |||||
| IP grade | IP43 | |||||
| Colors | 16777216 | |||||
| Color temperature | 6500-9500k | |||||
| Driving device | Constant current | |||||
| Working voltage | AC220V/110V±10% | |||||
| Working temperature | —20℃~50℃±10% | |||||
| MTBF | >10,000 hours | |||||
| Frame frequency | 60Hz | |||||
| Life Span | 100,000 hours | |||||
