Shelf LED Display in Narrow Pixel Pitch

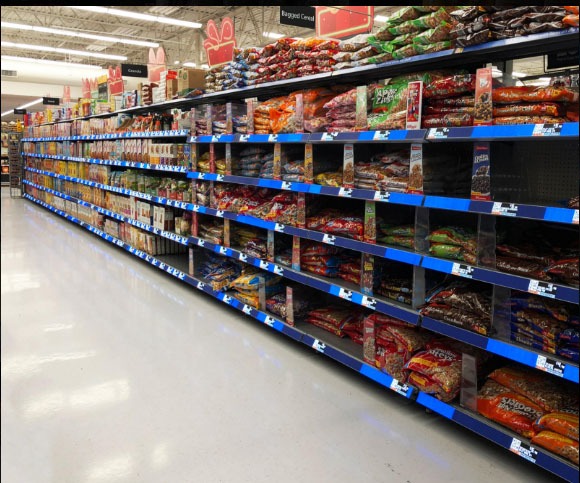

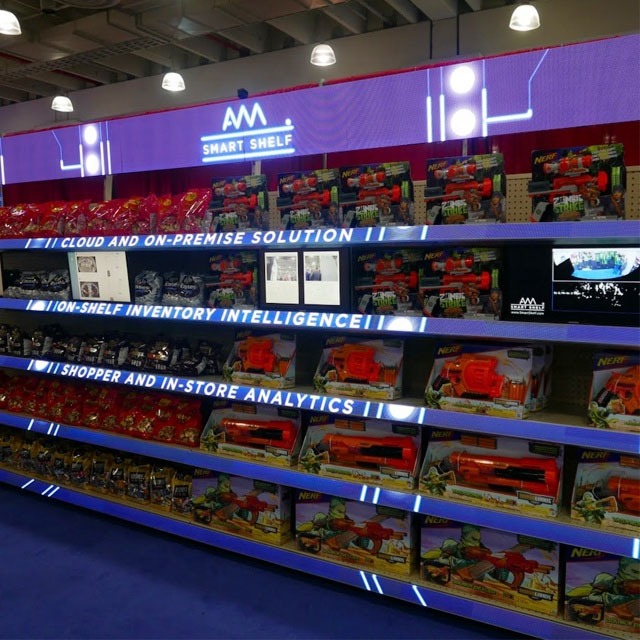

Shelf LED display is getting more and more popular in the market field, it is suitable to be used in the supermarket like Walmart, Sam’s Club….
DAZZVIEW TECHNOLOGY
Shelf LED Display
in Narrow Pixel Pitch
Product Name: Shelf LED Display in Narrow Pixel Pitch
Product Model: Dshelf Series
Product Description:
Dimension: 296×83.25mm/ 444×83.25mm/ 592×83.25mm/ 300x60mm/ 600x60mm/ 900x60mm/ 1200x60mm
Weight: 0.60kg/ 0.9kg/ 1.20kg/ 1.80kg/ 2.50kg/pc
Pixel Pitch Indoor: P0.77, P0.925, P1.25, P1.875
Key Features:
1. High Flatness
2. Thin and Light Weight
3. Wide Viewing Angle
4. GOB/ COB Technology
5. Waterproof, Dust Proof and Anti-Collision
DAZZVIEW TECHNOLOGY
Stand Out from the Crowd!
Want to grab people’s attention in the supermarket? Want to show the prices with dynamic effect? Want to promote your hot selling product or promoting product? With Dazzview shelf LED display screen, it’s easy to achieve. Dazzview is a professional LED screen manufacturer from China.
DAZZVIEW LED DISPLAY

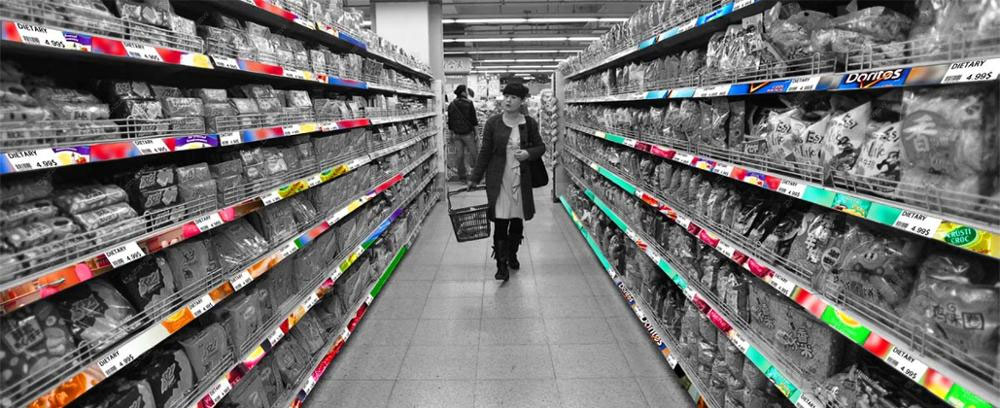

Super Design For The Supermarket!

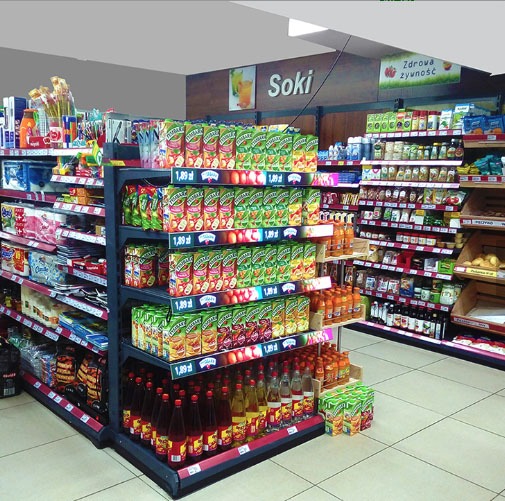

Dazzview is a shelf LED display factory that produces the shelf screen, our shelf LED display is a good solution product which is suitable for supermarkets like Walmart, Carrefour, Sam’s Club…
DAZZVIEW LED DISPLAY
High Quality Materials To Be Used!
The high quality materials to be used for the shelf LED display aim to make the product stable working, long life span, good heat dissipation.
DAZZVIEW

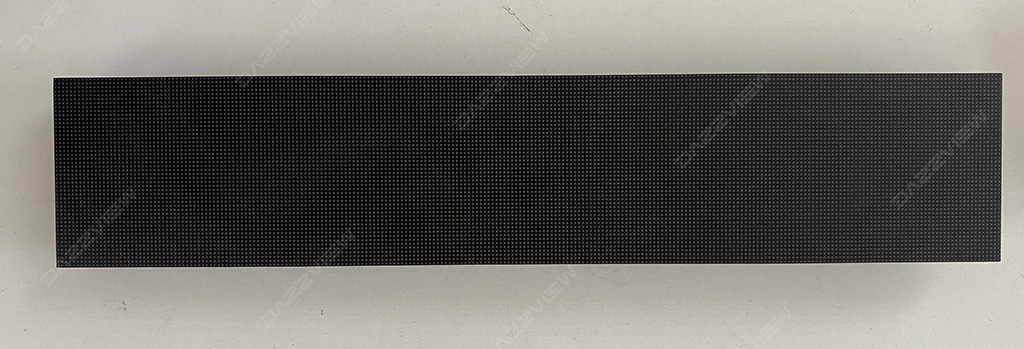

LED module front view
Narrow pixel pitch P0.77, P0.925, P1.25, P1.875 available!
DAZZVIEW

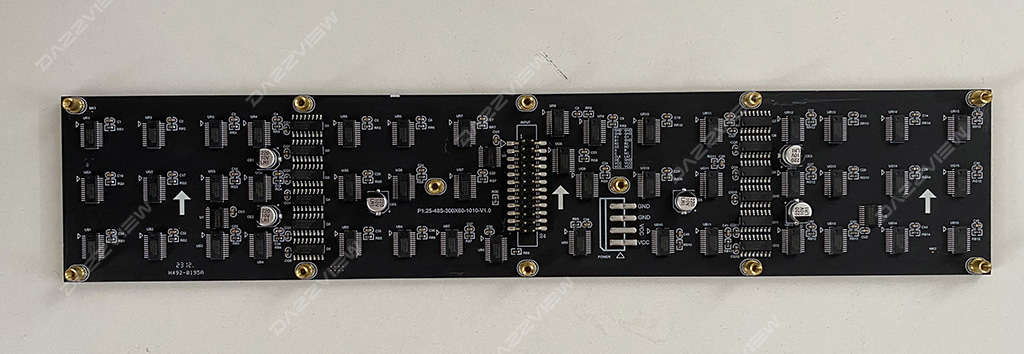

LED module back view
High quality PCB with good performance!
DAZZVIEW LED DISPLAY

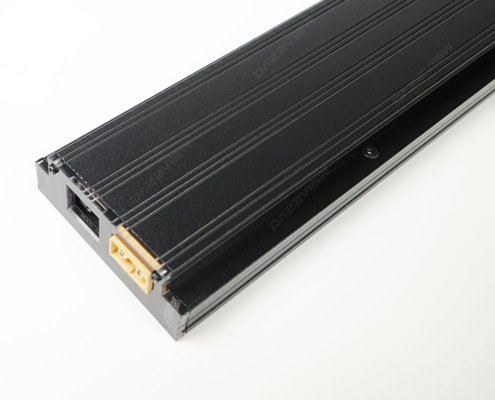

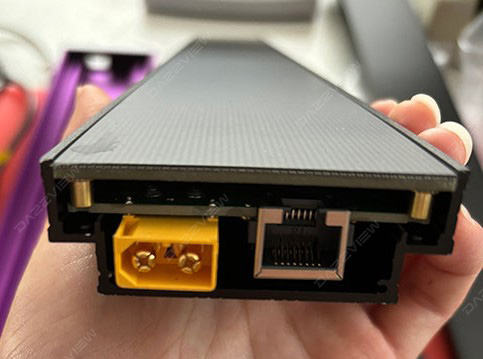

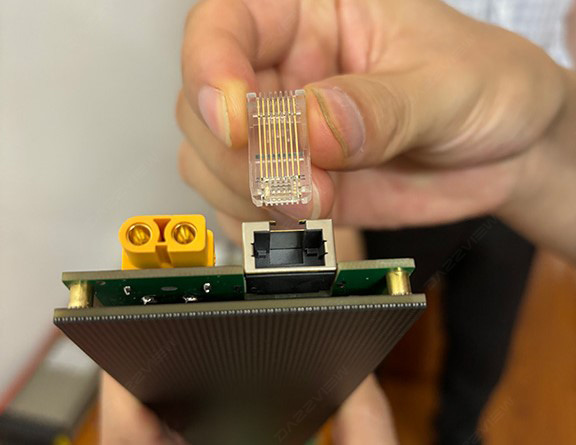

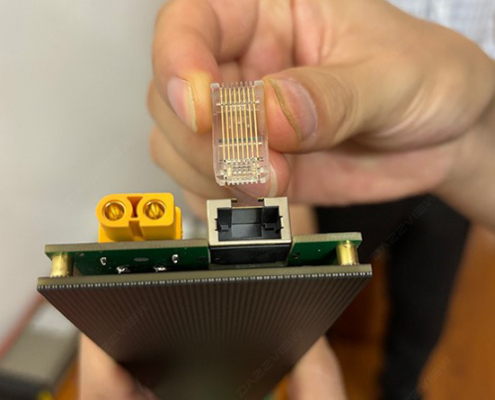

Customized Connector Design!
Two displays can be directly connected using a network connector without cable (each RJ45 for each side).
DAZZVIEW LED DISPLAY

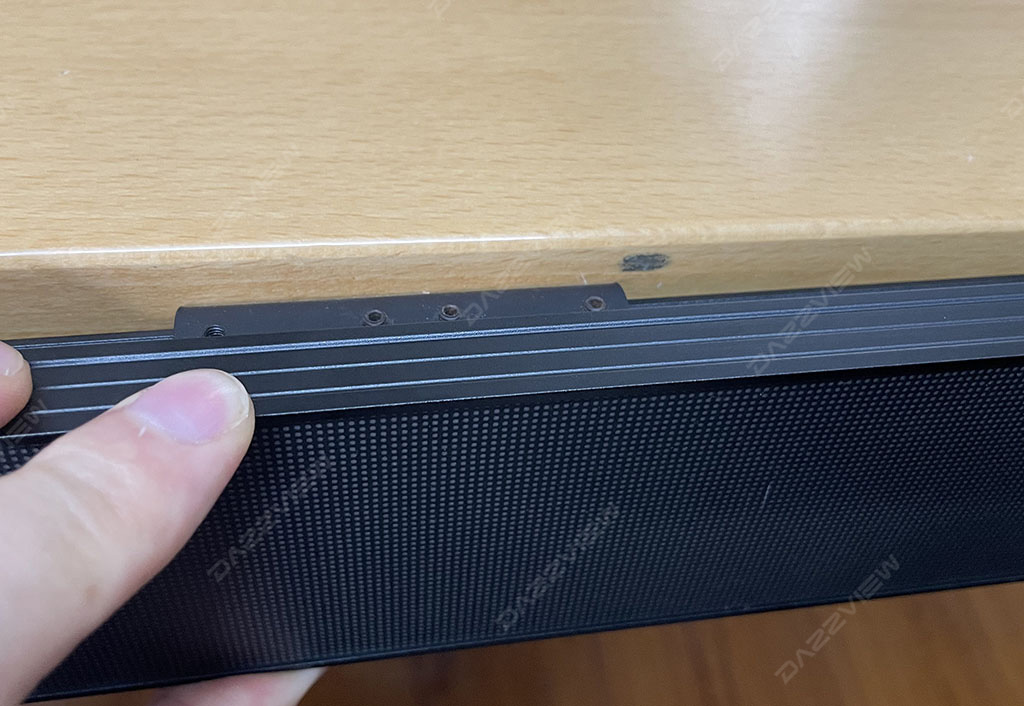

Focus On Details, High Quality Product Provided!
Dazzview focus on every details to gurantee the quality and improve the experience with using the product.

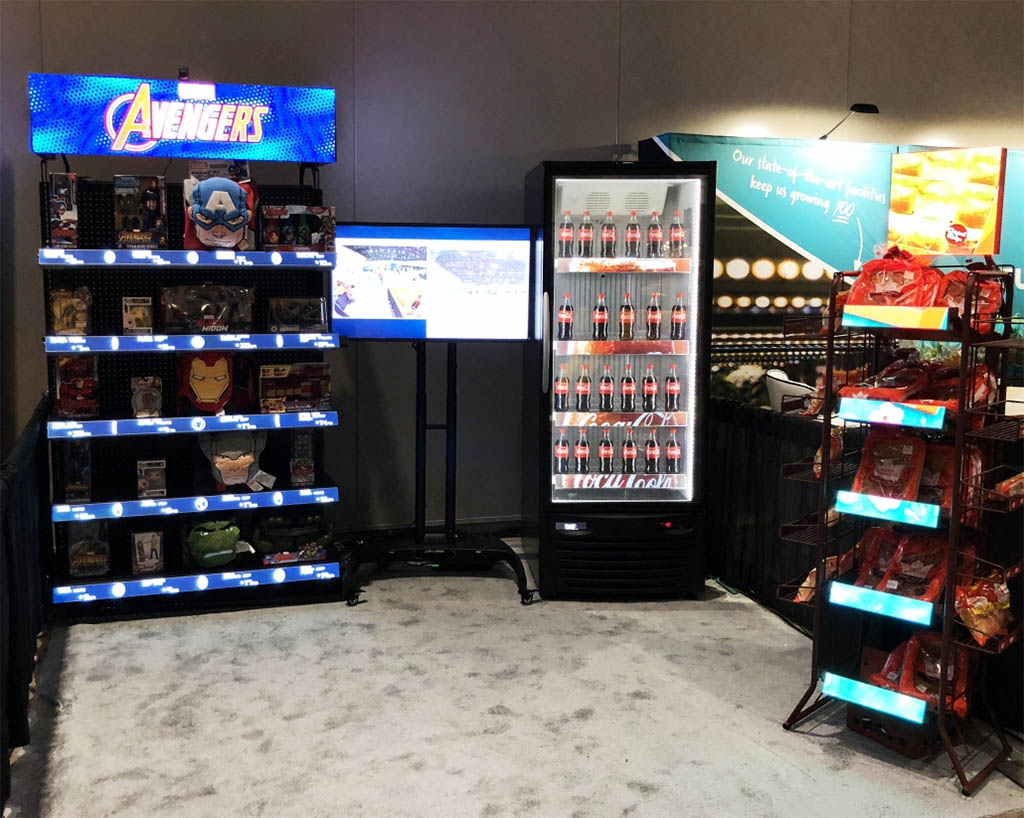

DAZZVIEW LED DISPLAY

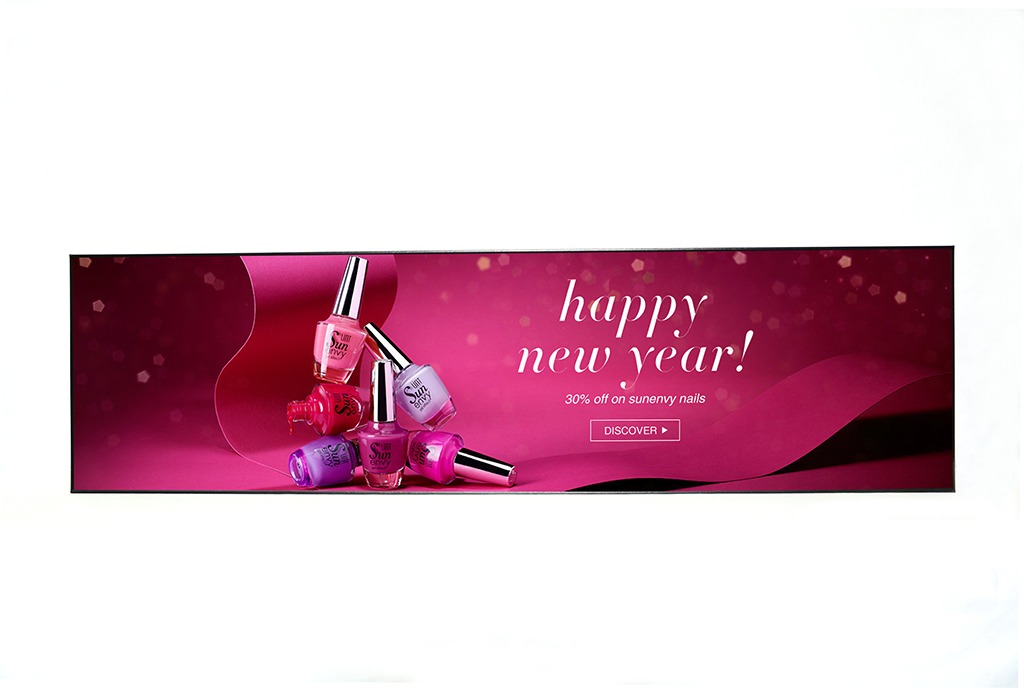

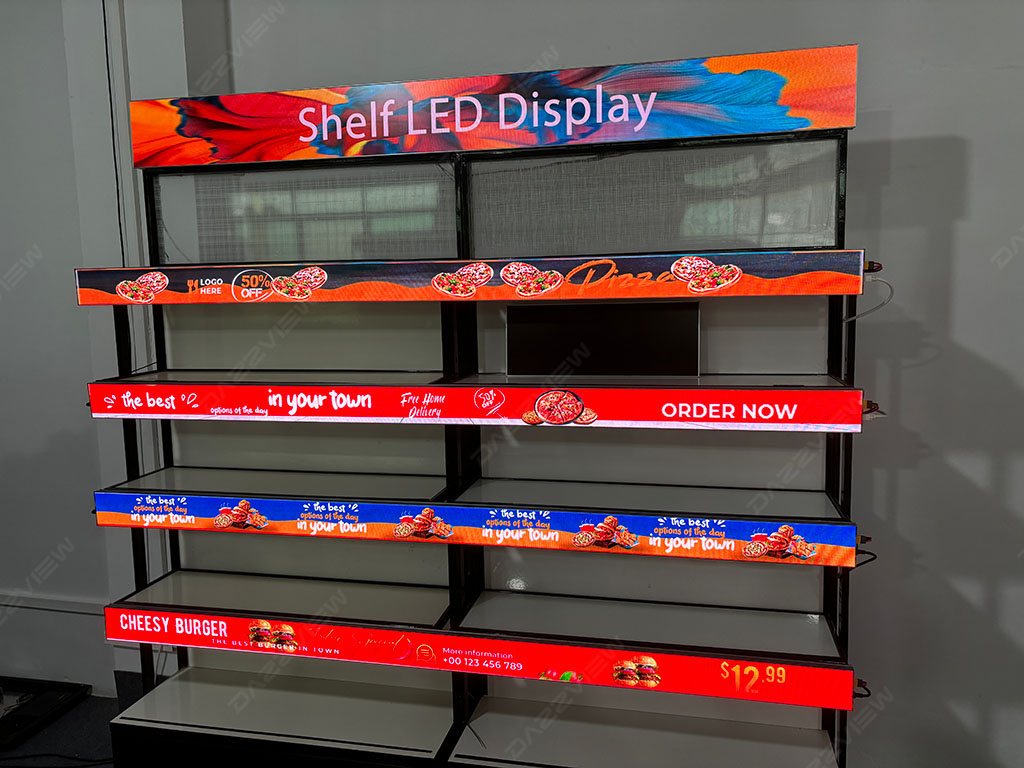

Header LED Display Installed Above The Small Shelf LED Display!
Dheader has a bigger size of 240mm as height. The most attractive advertising words can be showed here.
DAZZVIEW LED DISPLAY

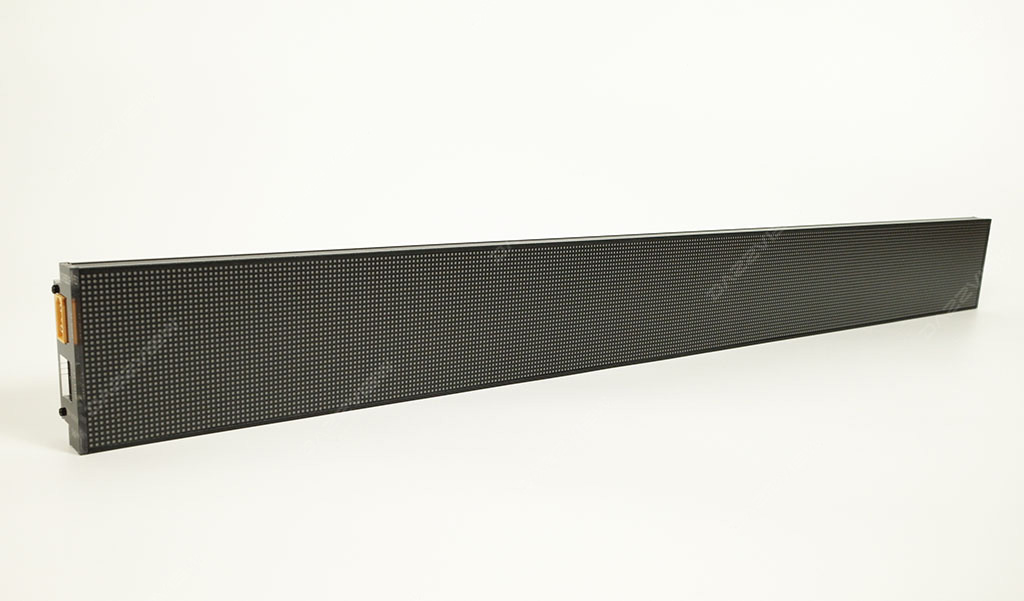

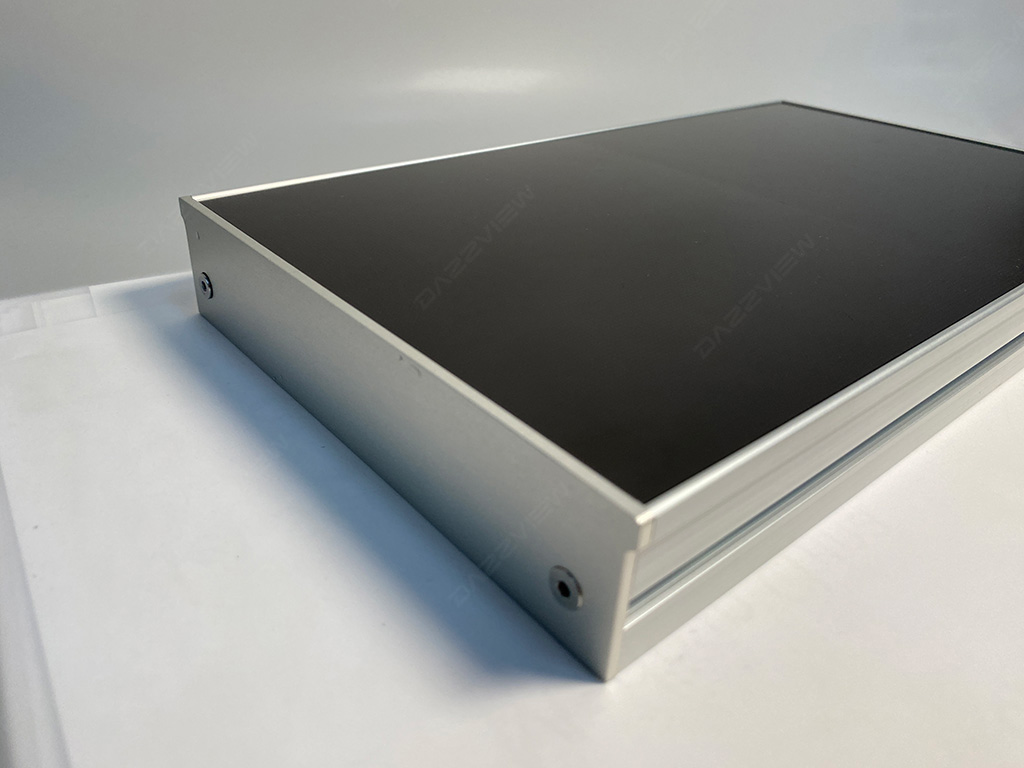

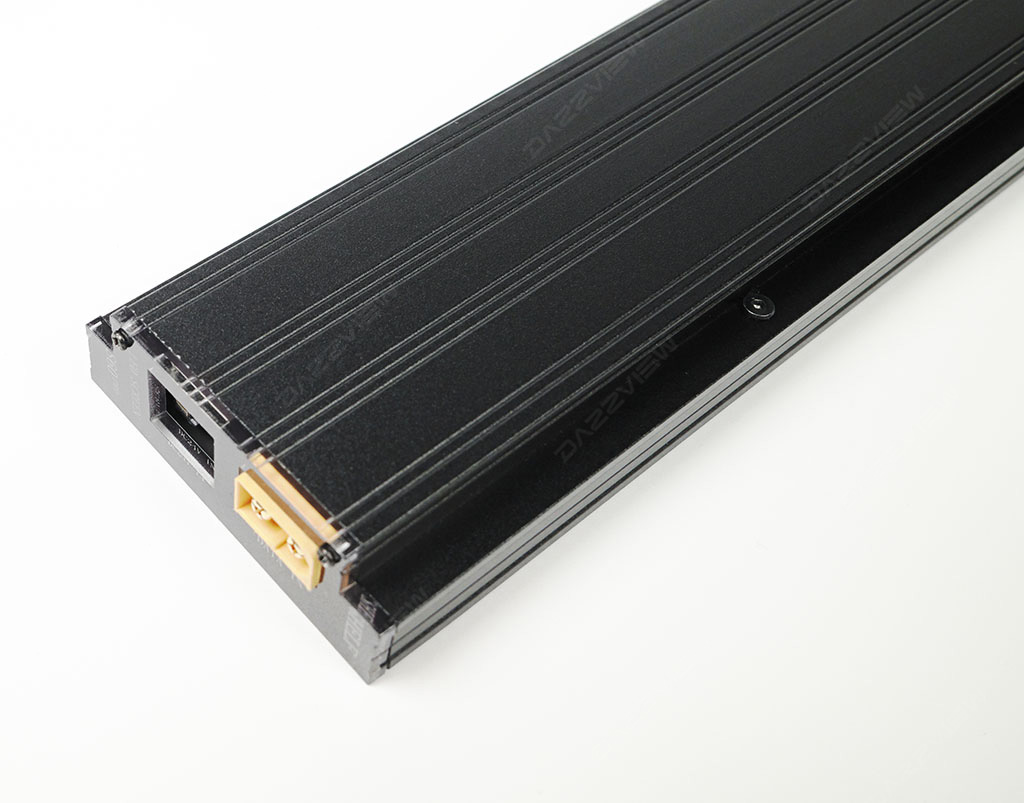

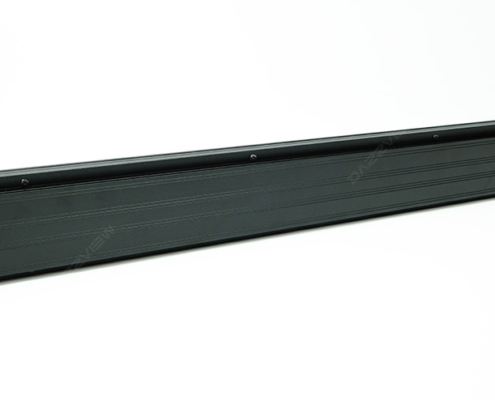

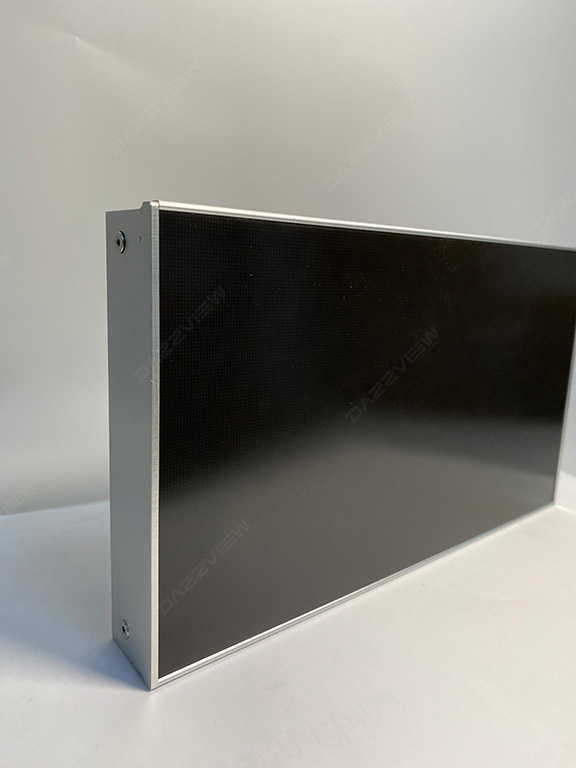

Good Materials Make the Product Work Well!

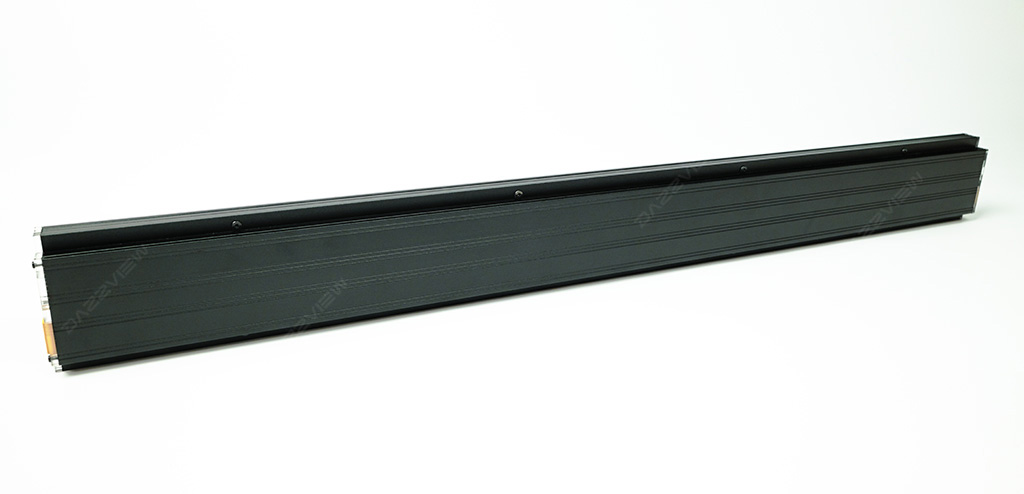

The cabinet is made of aluminum alloy, which makes the shelf LED display lighter, thinner, stronger and more heat-dissipating. GOB technology makes its surface smoother.
DAZZVIEW LED DISPLAY

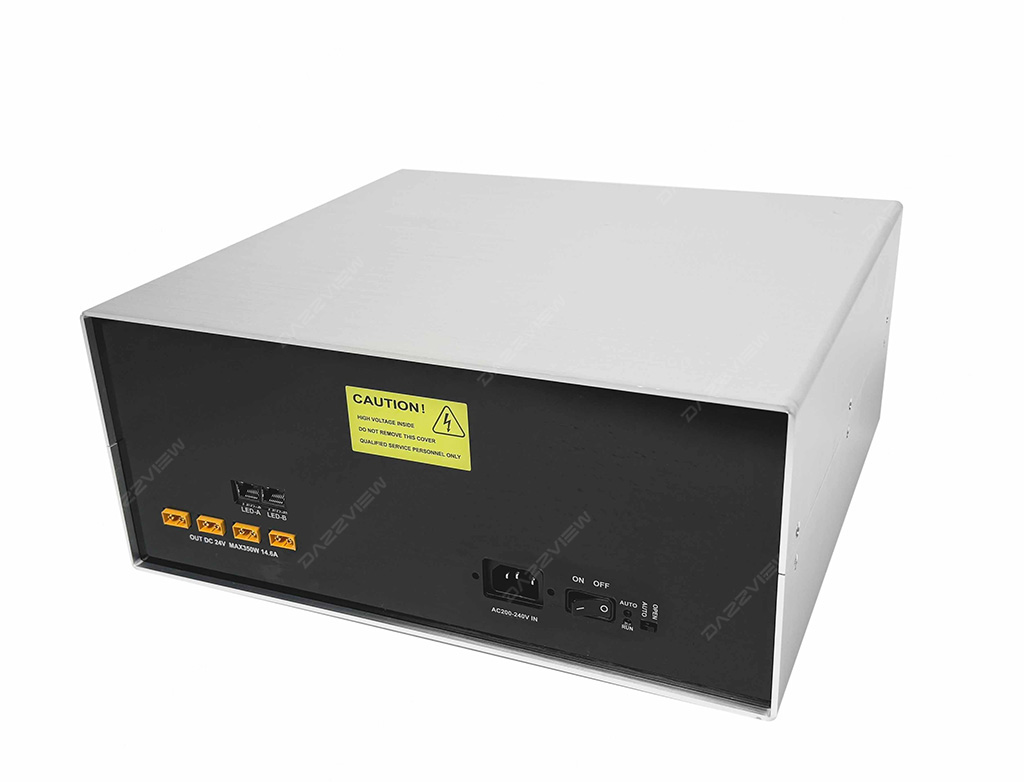

Easy To Be Handled With Power Box!
The number of power box ports and the size of the power box can be customized.
DAZZVIEW LED DISPLAY

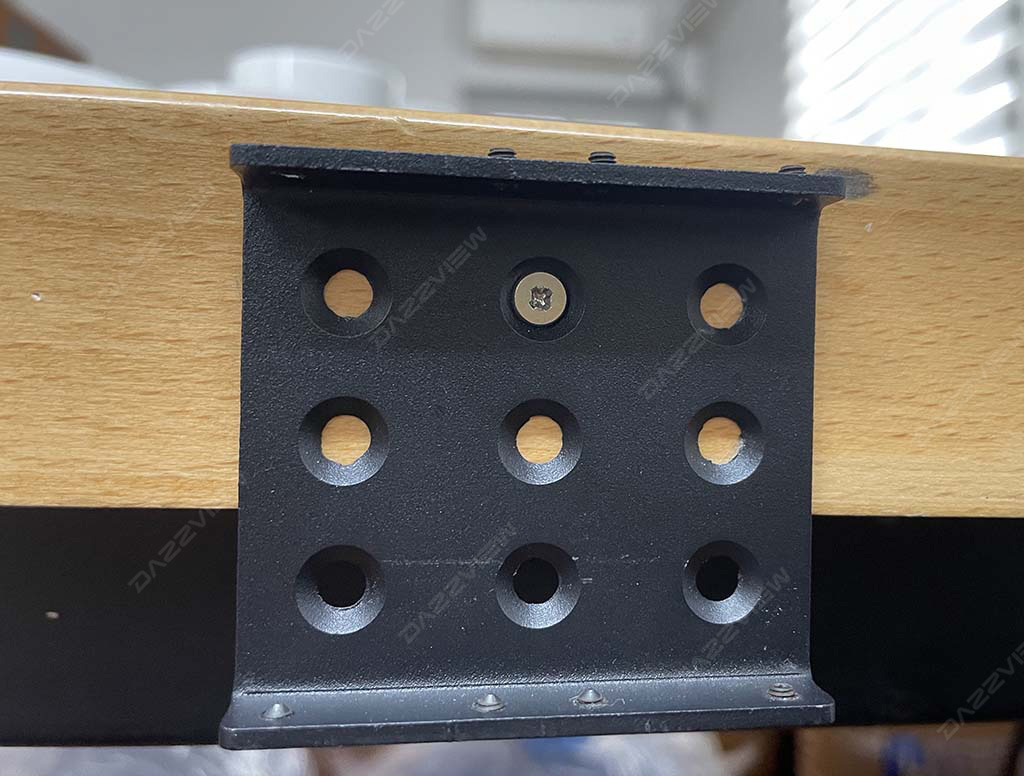

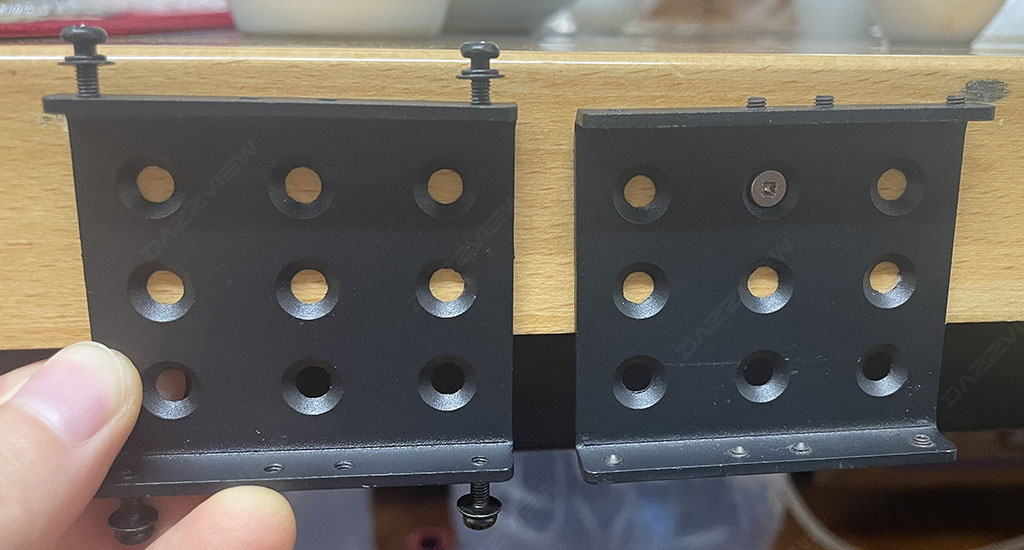

Easy For Connection & Installation!
With the screws and plates, the cabinets are easy to be connected together and also easy to be mounted installation.
DAZZVIEW LED DISPLAY
Easy For The Cables Connection!

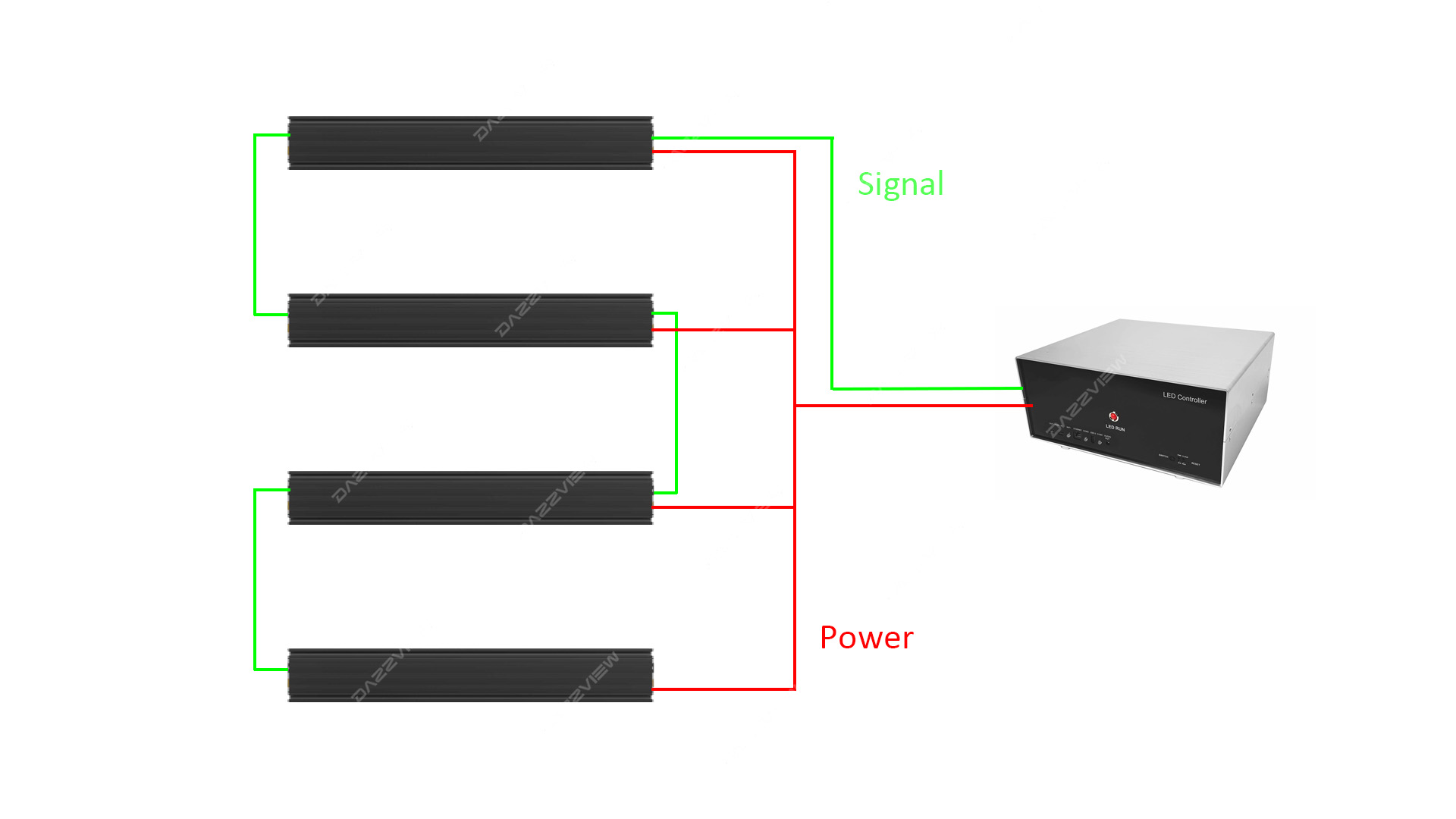

The integrated design of the power box and control system makes wiring more convenient. Cabling diagram for Dshelf LED display.
DAZZVIEW LED DISPLAY

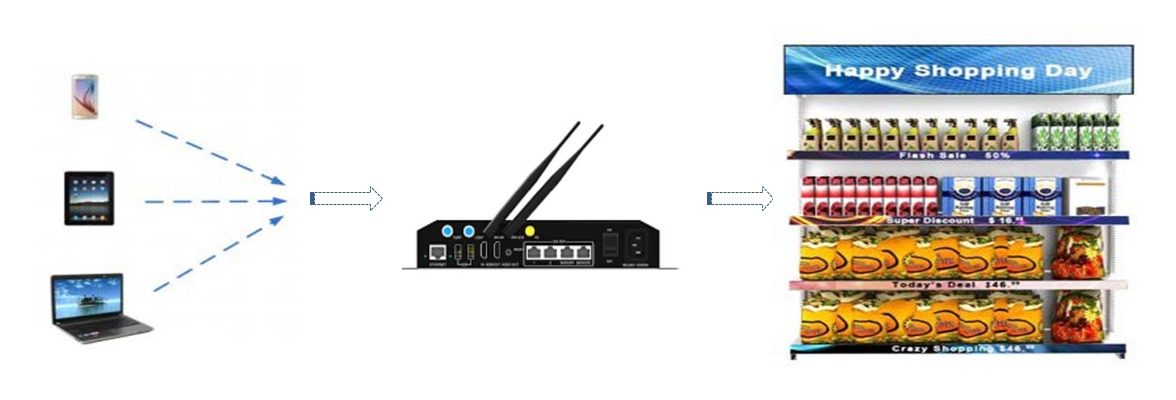

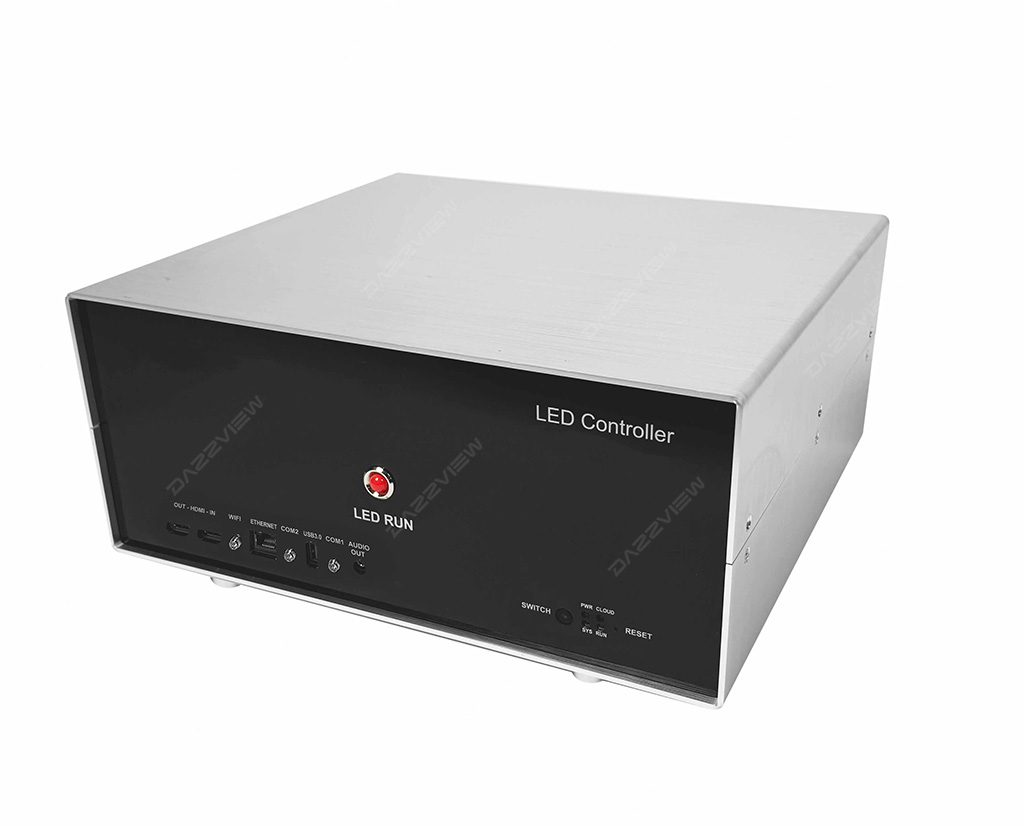

Easy to Control!
With the control box, the shelf LED screen can be display by mobile phone, pad, laptop via wifi.
DAZZVIEW LED DISPLAY

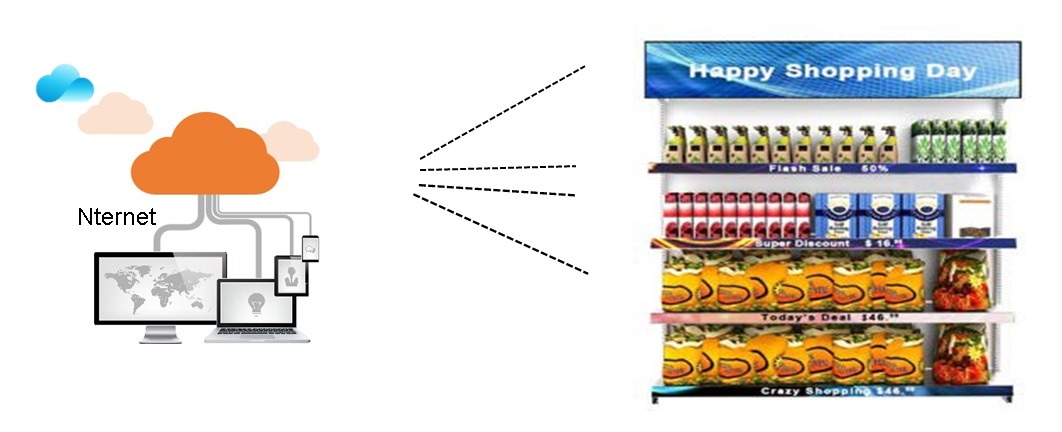

Cloud Display Available!
Connect the TB6 of the shelf LED Display to Internet via Wi-Fi / Cable. Then use your computer, cellphone, pad to log in the cloud platform, remotely control and manage the shelf LED Display in different locations.
DAZZVIEW LED DISPLAY

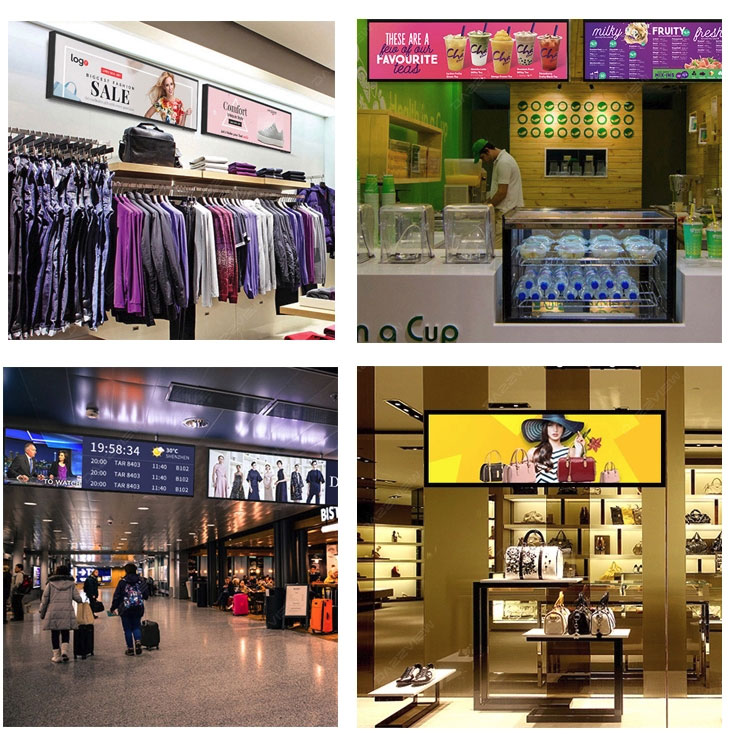

Dheader Can Also Used For Digital Signage!
Dheader has a bigger size in height, so it is also suitable for digital signage LED screen for the retail shops.
DAZZVIEW LED DISPLAY

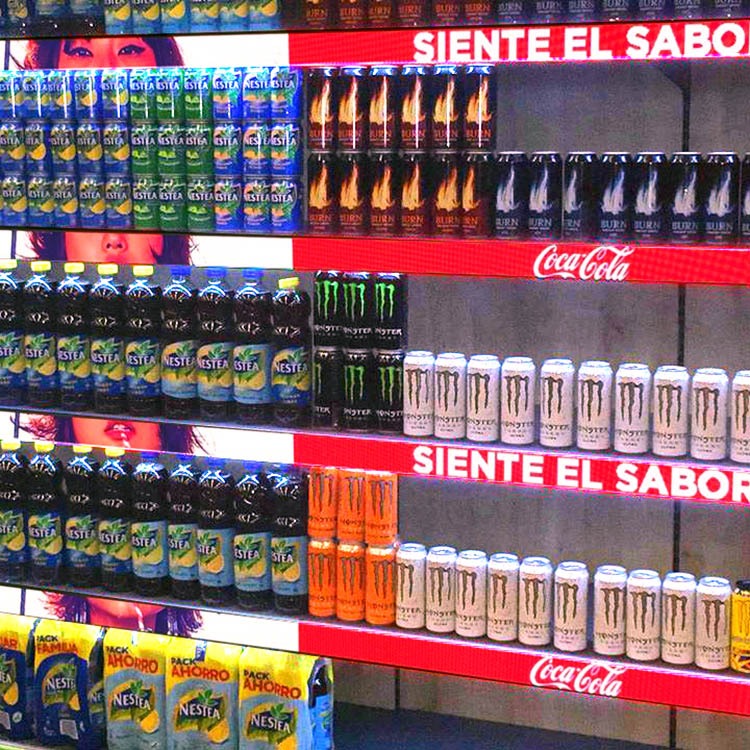

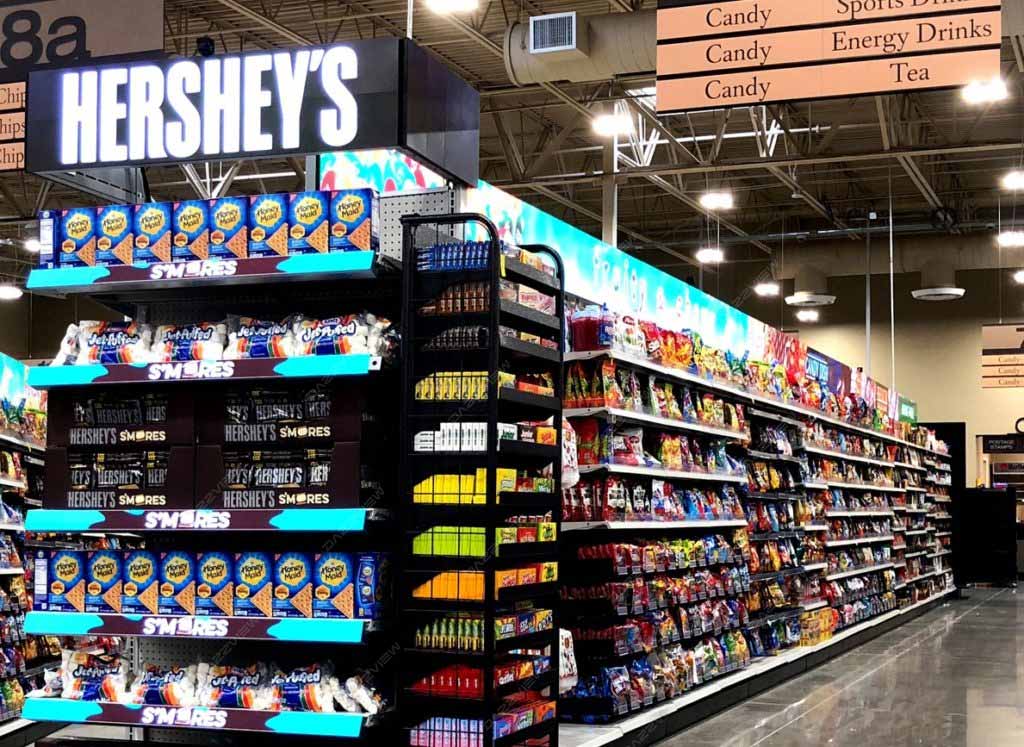

Dshelf Born and Designed For Supermarket!
The shelf LED display screen design for the shelf, and the supermarket and store are full of shelves, so we can say that the shelf LED display is born and work perfect for the supermarket and store. Where there is a supermarket and store, there can be at least a shelf LED display.
Illuminate Your Space with the Narrow Pixel Pitch Shelf LED Display
This cutting-edge display technology offers a high-definition and immersive viewing experience, making it perfect for retail settings or any location where you want to captivate visitors. With a slim design, the shelf LED display can fit seamlessly into any environment, and it can be installed with ease. It’s ultra-clear image and video display and with a high refresh rate, it delivers crystal-clear, flicker-free images.
DAZZVIEW TECHNOLOGY
Specs That Will Blow You Away!
-Dshelf
| Specification | ||||
| Model NO. | Dshelf0.77 | Dshelf0.925 | Dshelf1.25 | Dshelf1.875 |
| Pixel Pitch | 0.77mm | 0.925mm | 1.25mm | 1.875mm |
| LED Type | COB | COB | SMD1010 | SMD1515 |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Size of module(W*H) | 148mmx83.25mm | 148mmx83.25mm | 300mmx60mm | 300mmx60mm |
| Resolution of module(W*H) | 192×108dots | 160X90dots | 240x48dots | 160x32dots |
| Density | 1682979dots/㎡ | 1168735dots/㎡ | 640000dots/㎡ | 284444dots/㎡ |
| Cabinet material | Aluminum | |||
| Size of display(W*H) | 296×83.25mm/ 444×83.25mm/ 592×83.25mm | 300x60mm/ 600x60mm/ 900x60mm/ 1200x60mm | ||
| Size of cabinet(W*H) | 296×88mm/ 444×88mm/ 592×88mm | 305x65x21mm/ 605x65x21mm/ 905x65x21mm/ 1205x65x21mm | ||
| Weight of cabinet | 0.6kg/ 0.9kg/ 1.2kg | 0.60kg/ 1.20kg/ 1.80kg/ 2.50kg | ||
| Best viewing distance | >0.7m | >0.9m | >1.2m | >1.8m |
| Best viewing angle | 160° | |||
| Brightness | 600cd/㎡ | |||
| Max. power consumption/pc | 13W/ 21W/ 28W | 9W/ 18W/ 27W/ 36W | ||
| Avg. power consumption/pc | 4W/ 6.5W/ 10W | 5.5W/ 8W/ 12W/ 16W | ||
| Driving method | 1/64 scanning | 1/54 scanning | 1/48 scanning | 1/32 scanning |
| Gray scale | 16 bits | |||
| Refresh frequency | 3840Hz | |||
| IP grade | IP43 | |||
| Colors | 16777216 | |||
| Color temperature | 6500-9500k | |||
| Driving device | Constant current | |||
| Working voltage | AC220V/110V±10% | |||
| Working temperature | —20℃~50℃±10% | |||
| MTBF | >10,000 hours | |||
| Frame frequency | 60Hz | |||
| Life Span | 100,000 hours | |||
-Dheader
| Specification | |||
| Model NO. | Dheader1.2 | Dheader1.5 | Dheader1.875 |
| Pixel Pitch | 1.2mm | 1.5mm | 1.875mm |
| LED Type | SMD1010 | SMD1010 | SMD1515 |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B |
| Size of module(W*H) | 150mmx60mm | 150mmx60mm | 150mmx60mm |
| Resolution of module(W*H) | 125x50dots | 100x40dots | 80x32dots |
| Density | 694444dots/㎡ | 444444dots/㎡ | 284444dots/㎡ |
| Cabinet material | Aluminum | ||
| Size of display(W*H) | 600x240mm / 900x240mm / 1200x240mm | ||
| Size of cabinet(W*H) | 604x248x30mm / 904x248x30mm / 1204x248x30mm | ||
| Weight of cabinet | 3.2kg / 4.8kg / 6kg | ||
| Best viewing distance | >1.2m | >1.5m | >1.8m |
| Best viewing angle | 140° | 140° | 140° |
| Brightness | 600cd/㎡ | 600cd/㎡ | 600cd/㎡ |
| power consumption/pc | 128W / 192W / 256W | ||
| Driving method | 1/30 scanning | 1/32 scanning | 1/30 scanning |
| Gray scale | 16 bits | 16 bits | 16 bits |
| Refresh frequency | 3840Hz | 3840Hz | 3840Hz |
| IP grade | IP43 | IP43 | IP43 |
| Colors | 16777216 | 16777216 | 16777216 |
| Color temperature | 6500-9500k | 6500-9500k | 6500-9500k |
| Driving device | Constant current | Constant current | Constant current |
| Working voltage | AC220V/110V±10% | AC220V/110V±10% | AC220V/110V±10% |
| Working temperature | —20℃~50℃±10% | —20℃~50℃±10% | —20℃~50℃±10% |
| MTBF | >10,000 hours | >10,000 hours | >10,000 hours |
| Frame frequency | 60Hz | 60Hz | 60Hz |
| Life Span | 100,000 hours | 100,000 hours | 100,000 hours |
