Outdoor Front service mount LED display with screws is the perfect solution for permanent outdoor installations. Its high brightness and weather resistance make it ideal for advertisements, sporting events, and other large outdoor gatherings. Front serviceability of LED displays means ease of maintenance and increased efficiency.
Product Name: Front Service Fixed LED Display with Screws
Product Model: GE series
Product Description:
An outdoor waterproof LED display with front service using screws is a type of LED display specifically designed for outdoor environments. It is built to withstand harsh weather conditions and is equipped with a front service access mechanism that utilizes screws for easy maintenance and servicing.

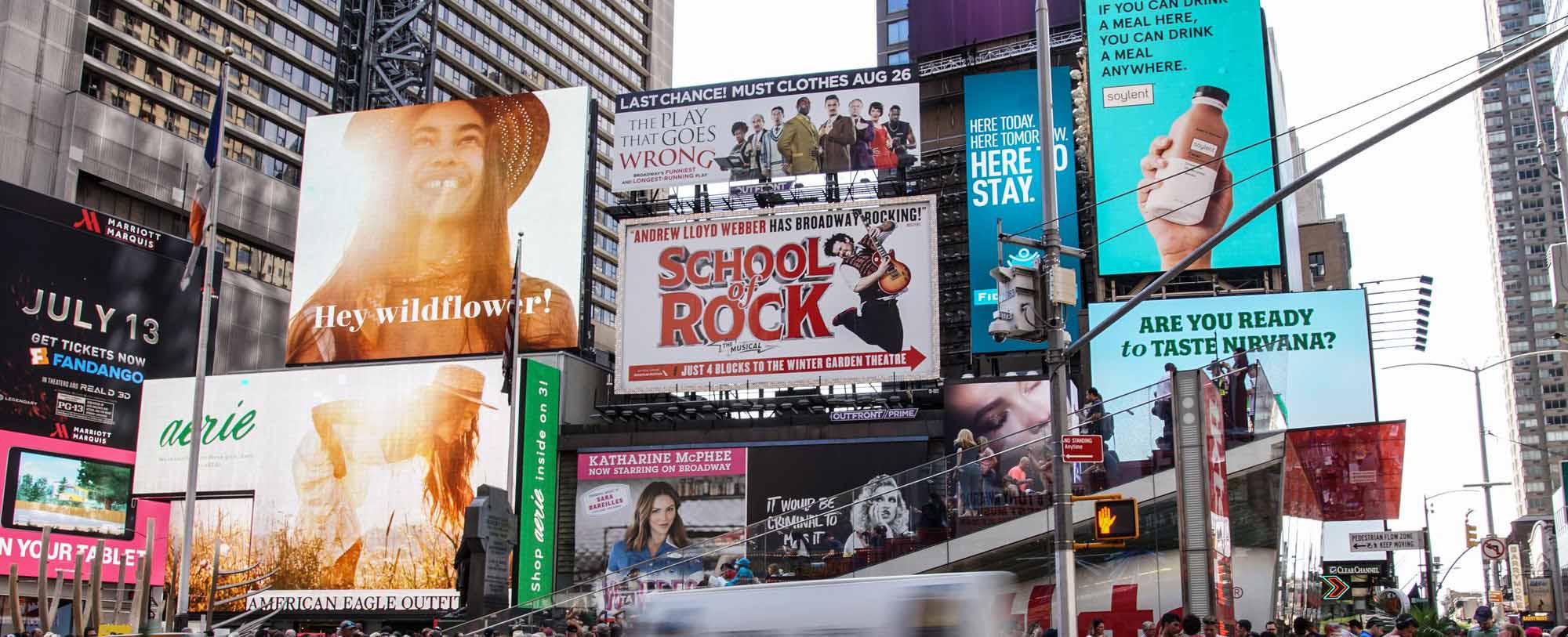

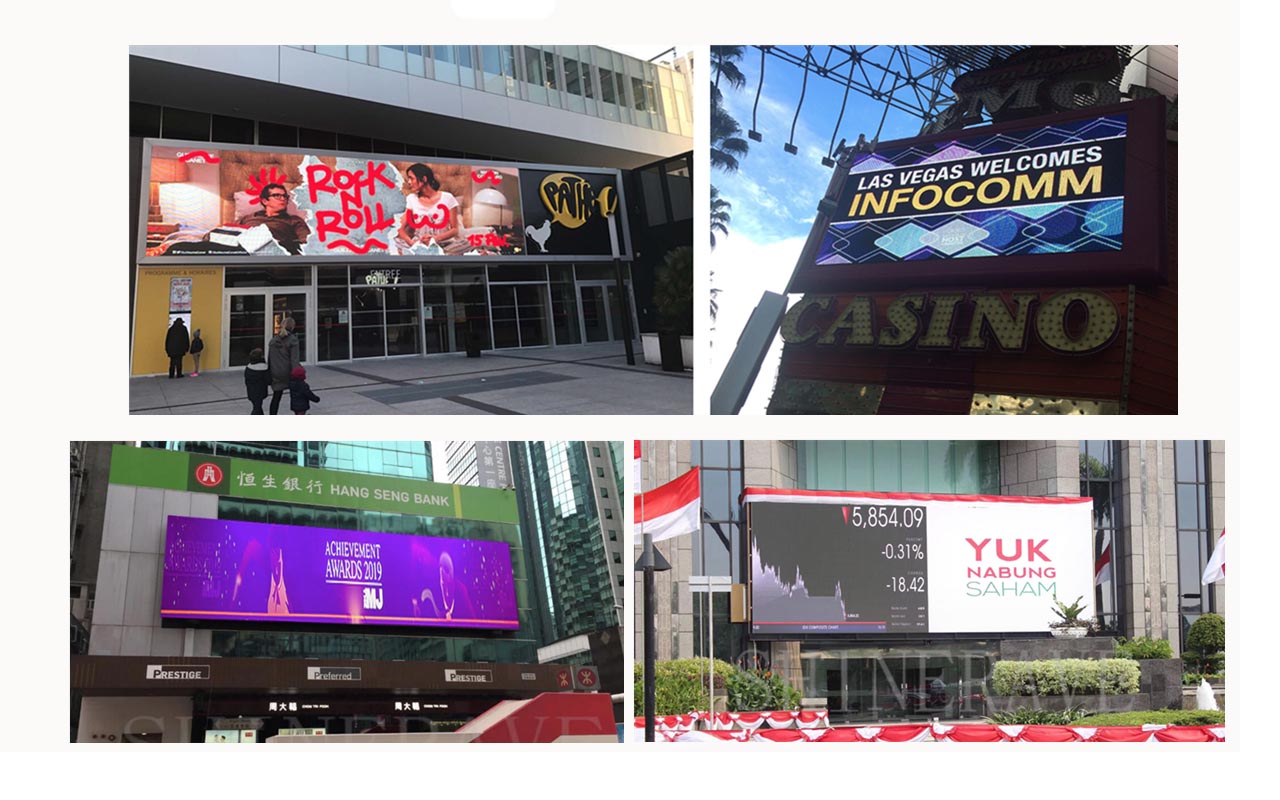

High brightness and good performance DOOH commercial LED display attract people’s eyes, make your brand stand out from crowd!

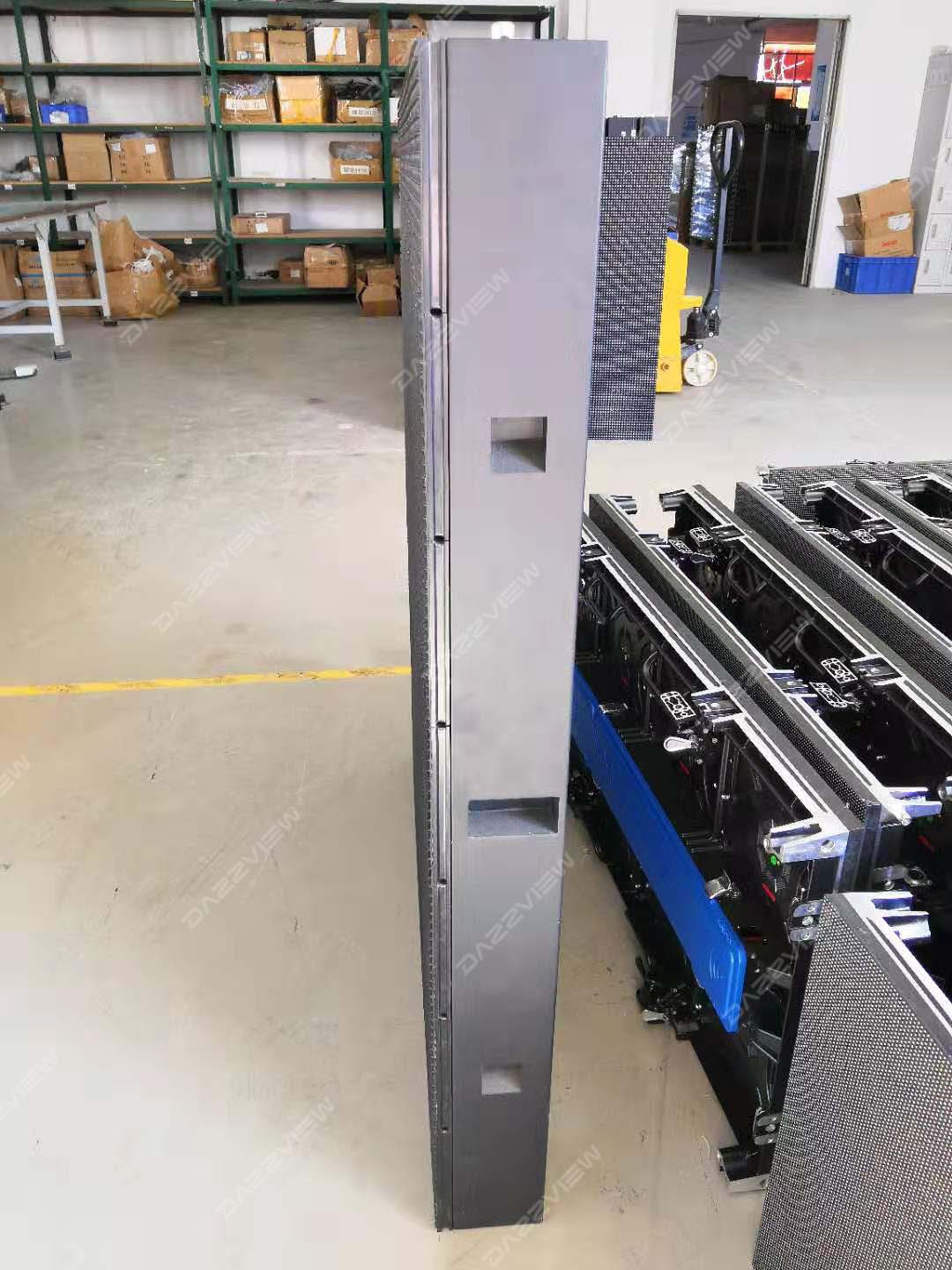

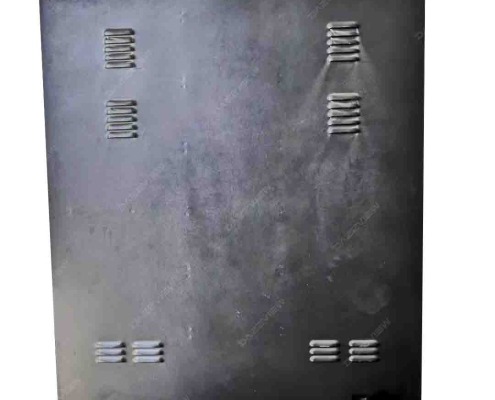

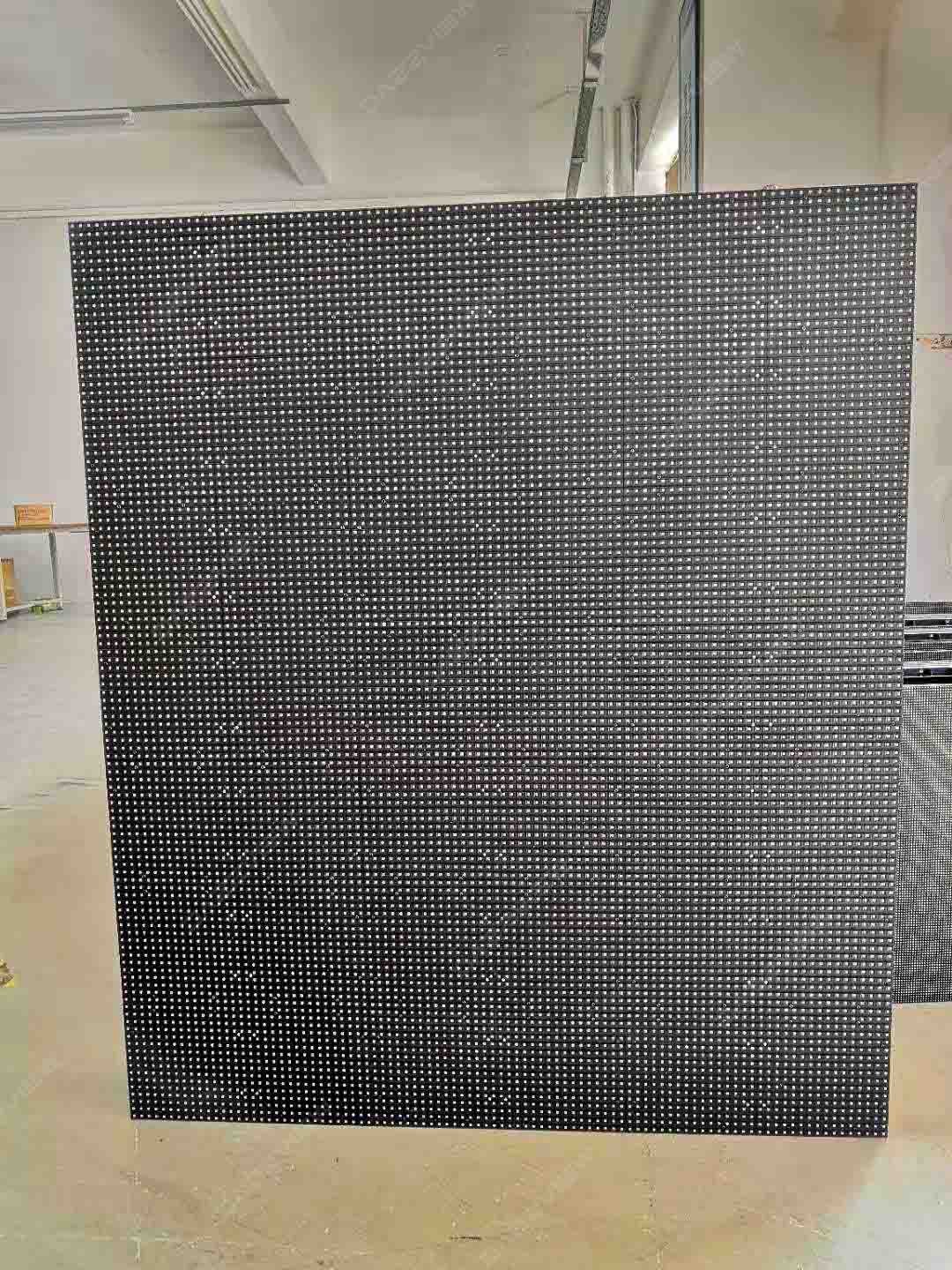

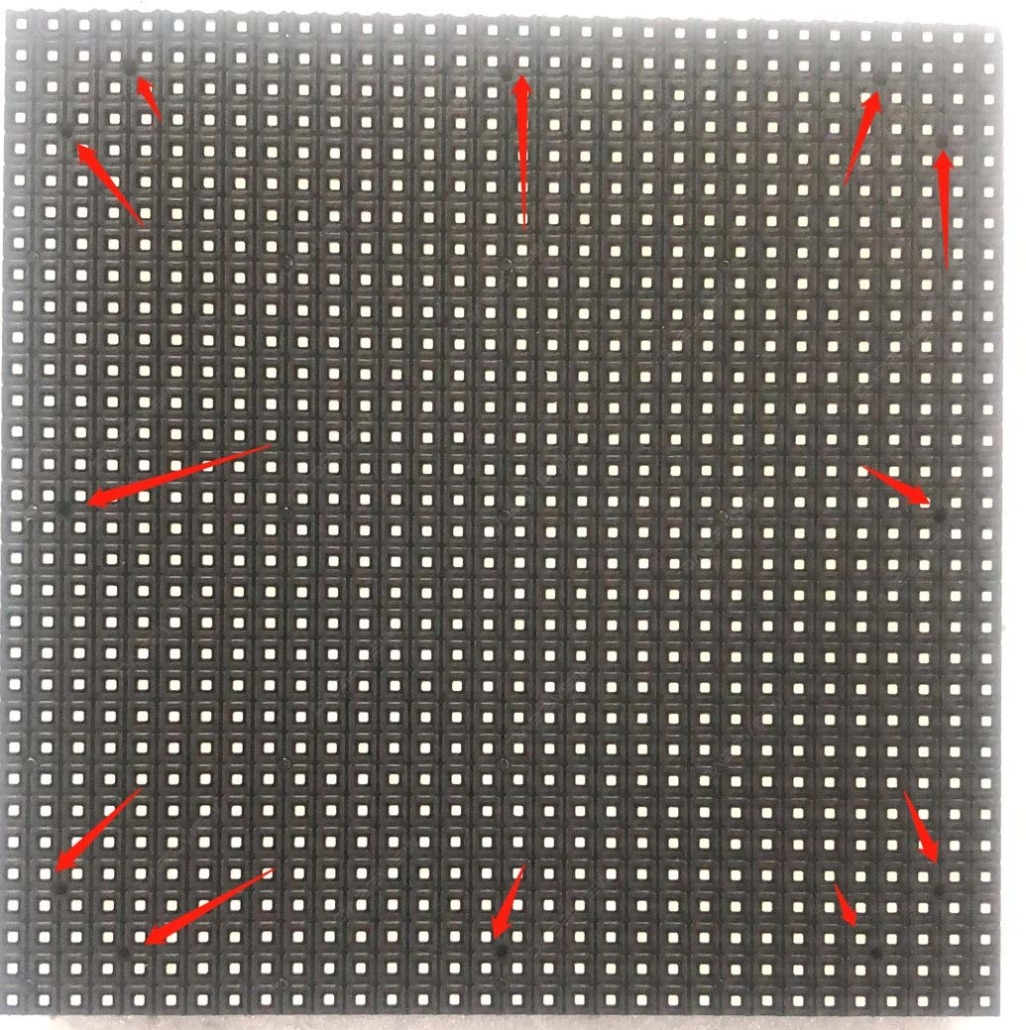

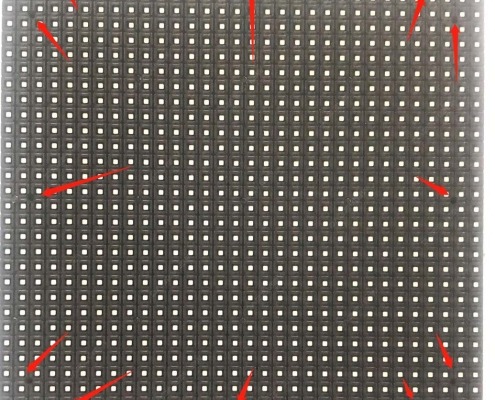

The LED module are fixed on the cabinet with screws in order to achieve the front maintenance function. The cabinet can be full front maintenance with the screw driver, the advantage with this solution is in competitive price.

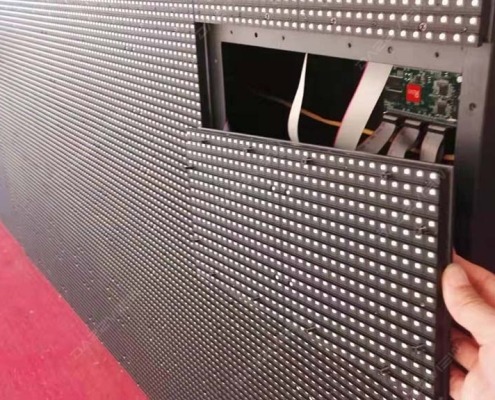

The screws are used for fixing the LED modules to the cabinet stable, and the modules, power supply, receiving card can be moved out from the front side, it’s a good solution for front maintenance with competitive price.

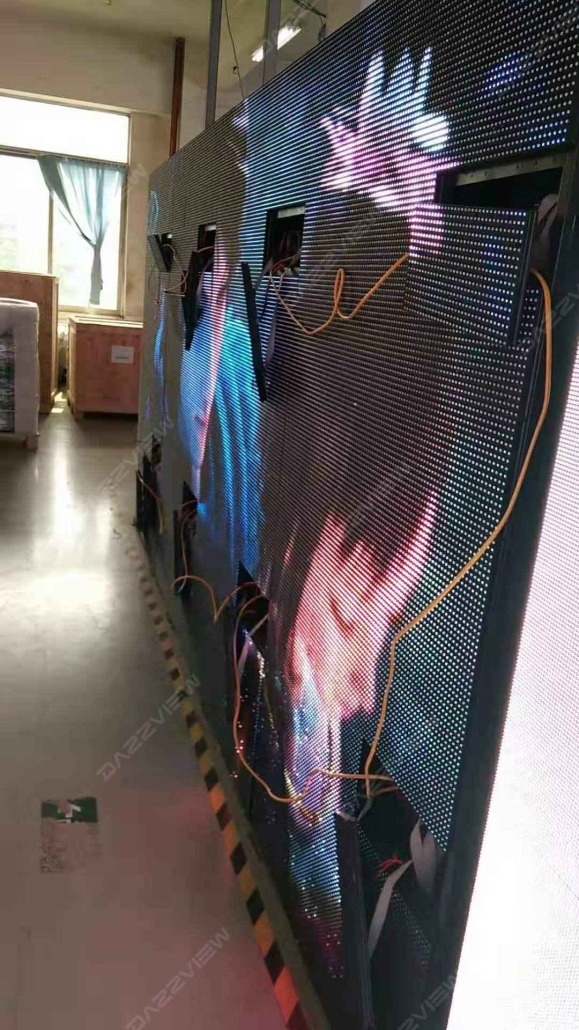

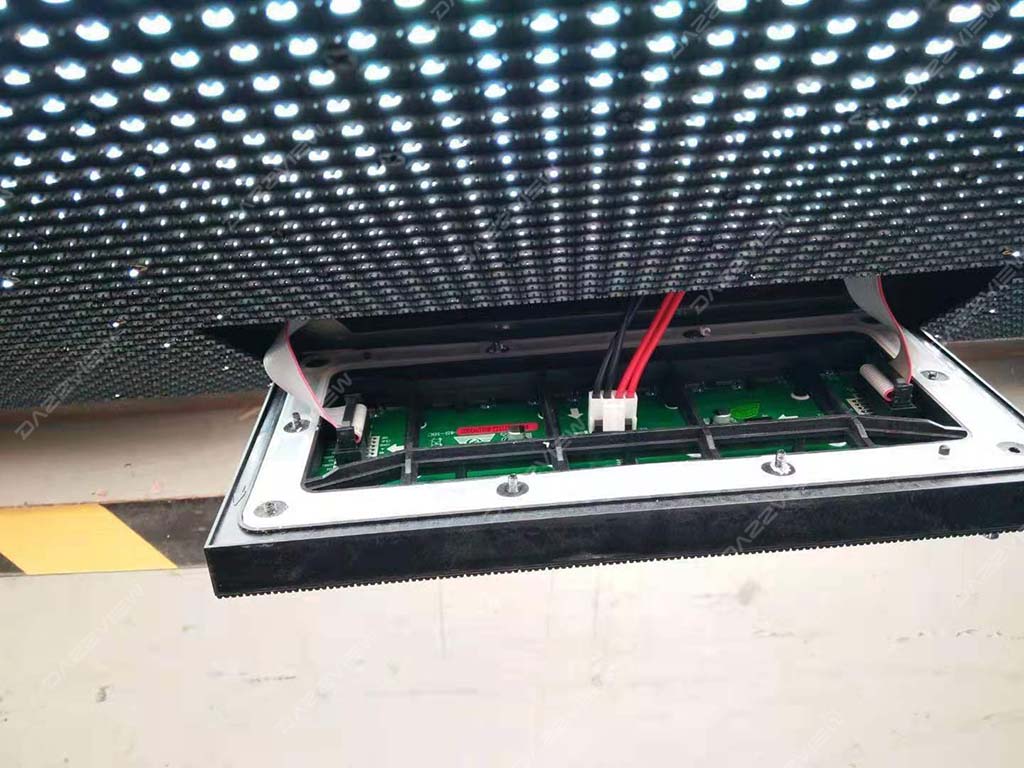

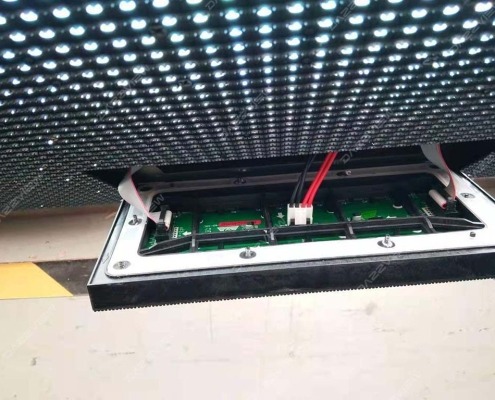

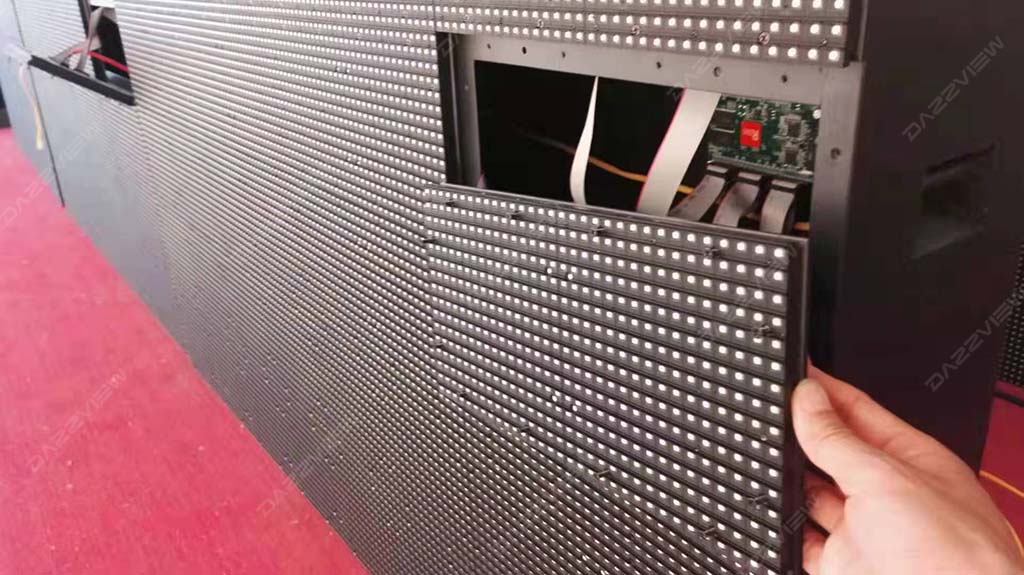

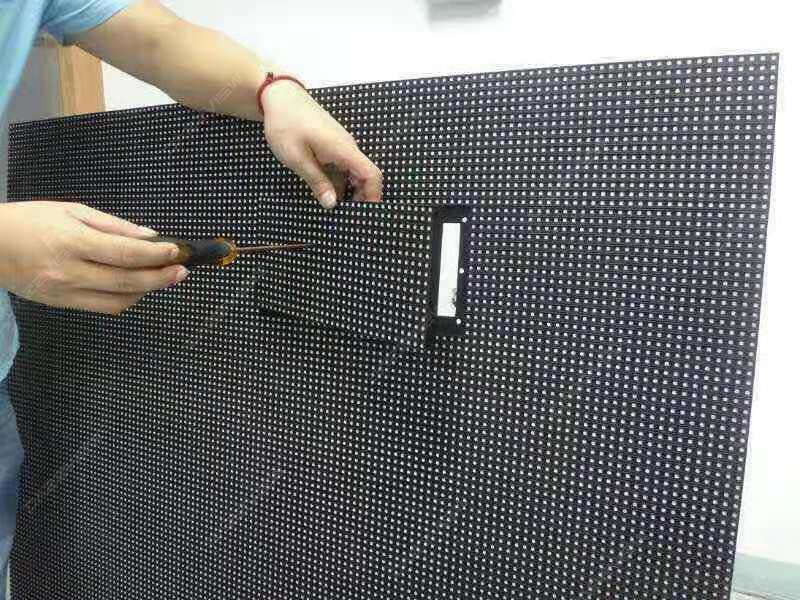

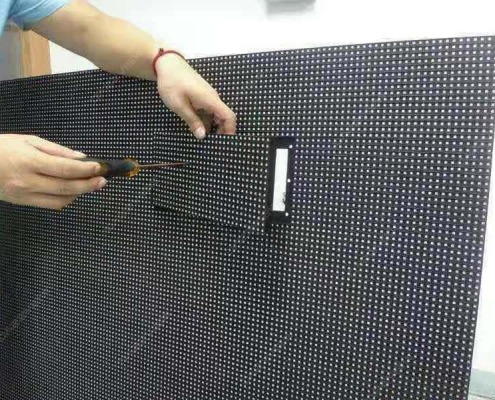

With the screw driver, the LED modules are easily took out from the front side, and the power supply, receiving card are also easy to be took out from front side for the maintenance.

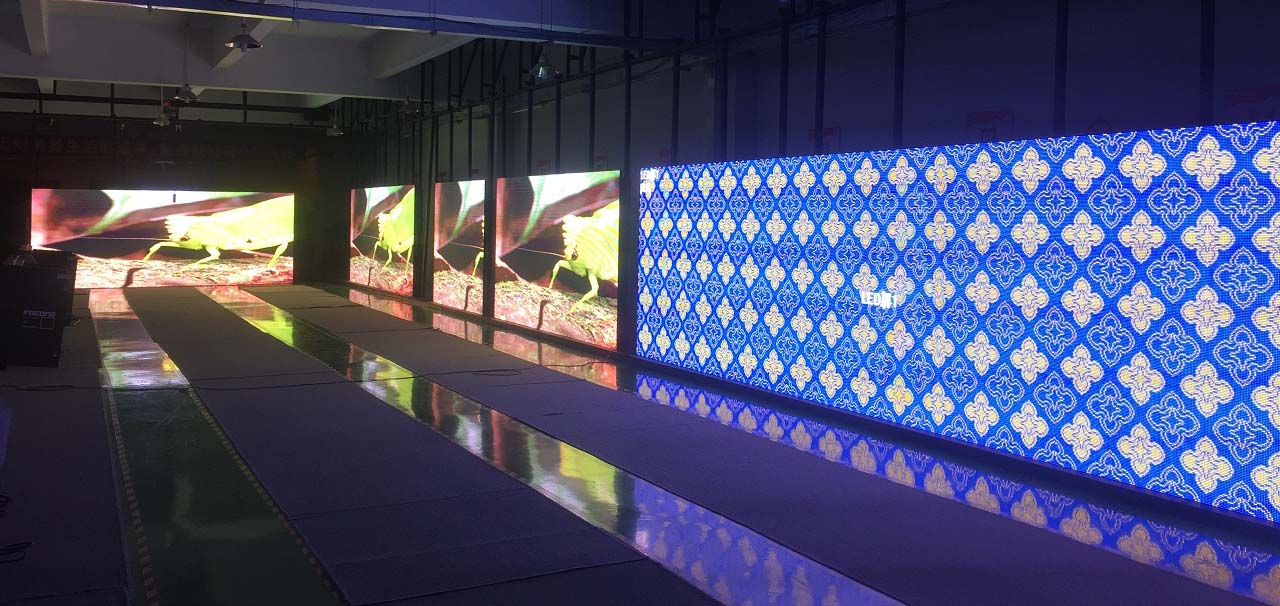

Full front maintenance with screws LED display will be in aging test after assembly for the high quality contorl.
After assembly, the LED display cabinet will be aging test more than 72hours to make sure everything works perfect and you receive a wonderful product.

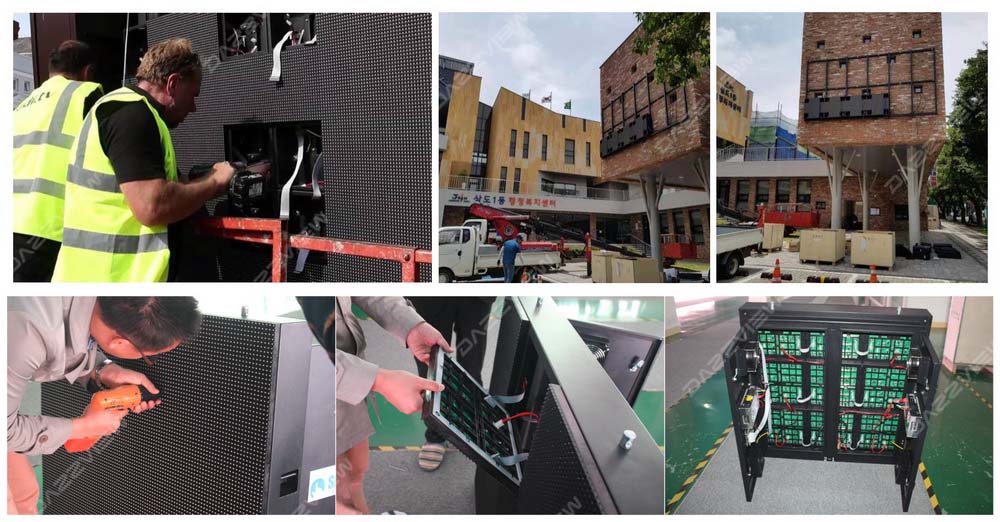

How to install GE series to the wall?
First, install the cabinets onto the structure which fixed on the wall, then assemble the LED modules on the cabinets.
GE series is a full front serivce solution LED display product suitable to be used in especially the wall mounted installation LED video wall project or any other project which no back maintenance space.
| Specification | ||||
| Model NO. | GE5 | GE6.6 | GE8 | GE10 |
| Pixel Pitch | 5mm | 6.6mm | 8mm | 10mm |
| LED Type | SMD2727 | SMD3535 | SMD3535 | SMD3535 |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Size of module(W*H) | 320mmx160mm | 320mmx160mm | 320mmx160mm | 320mmx160mm |
| Resolution of module(W*H) | 64×32 | 48×24 | 40×20 | 32×16 |
| Density | 40000dots/㎡ | 22500dots/㎡ | 15625dots/㎡ | 10000dots/㎡ |
| Cabinet material | Steel | Steel | Steel | Steel |
| Size of cabinet(W*H) | 960mmx960mm | 960mmx960mm | 960mmx960mm | 960mmx960mm |
| Weight of cabinet | 43KG | 43KG | 43KG | 43KG |
| Best viewing distance | >5m | >6.5m | >8m | >10m |
| Best viewing angle | 140° | 140° | 140° | 140° |
| Brightness | 5000cd/㎡ | 5500cd/㎡ | 5500cd/㎡ | 5500cd/㎡ |
| Maximum power consumption | 600W/㎡ | 600W/㎡ | 600W/㎡ | 600W/㎡ |
| Average power consumption | 200W/㎡ | 200W/㎡ | 200W/㎡ | 200W/㎡ |
| Driving method | 1/8 scanning | 1/6 scanning | 1/5 scanning | 1/2 scanning |
| Gray scale | 16 bits | 16 bits | 16 bits | 16 bits |
| Refresh frequency | 1920Hz | 1920Hz | 1920Hz | 1920Hz |
| IP grade | IP65 | IP65 | IP65 | IP65 |
| Colors | 16777216 | 16777216 | 16777216 | 16777216 |
| Color temperature | 6500-9500k | 6500-9500k | 6500-9500k | 6500-9500k |
| Driving device | Constant current | Constant current | Constant current | Constant current |
| Working voltage | AC220V/110V±10% | AC220V/110V±10% | AC220V/110V±10% | AC220V/110V±10% |
| Working temperature | —20℃~50℃±10% | —20℃~50℃±10% | —20℃~50℃±10% | —20℃~50℃±10% |
| MTBF | >10,000 hours | >10,000 hours | >10,000 hours | >10,000 hours |
| Frame frequency | 60Hz | 60Hz | 60Hz | 60Hz |
| Life Span | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours |
