Perimeter LED Display
Perimeter LED display is used for surrounding the stadium and football field for the advertising which will be broadcast on TV. And the perimeter LED screen is widely used for stadium, football field.
DAZZVIEW TECHNOLOGY
Perimeter LED Display

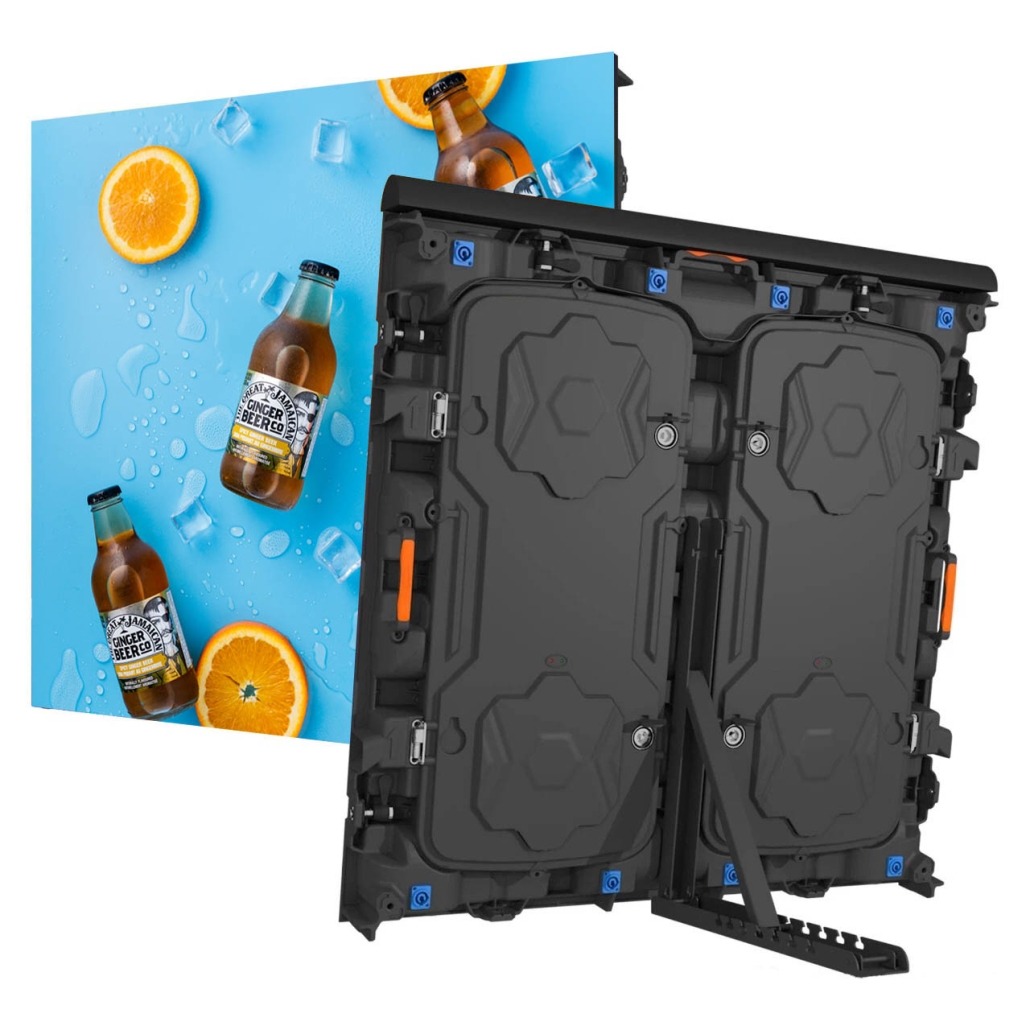

Product Name: Perimeter LED Display
Product Model: Dperimeter Series
Product Description:
Dimension: 960x960mm
Weight: 30kg/pc
Pixel Pitch Outdoor: P6.6, P8, P10
Key Features:
1. High-Resolution Image
2. Display Dynamic Content In Real Time
3. Light Weight Cabinet with Easy Installation And Maintenance
4. Multiple Control Options
5. Large View Angle
6. Waterproof IP65
7. High Refresh Rate:3840Hz
8. Soft Masks and Pillow for Protection
DAZZVIEW TECHNOLOGY
Bring Your Brand to The World!

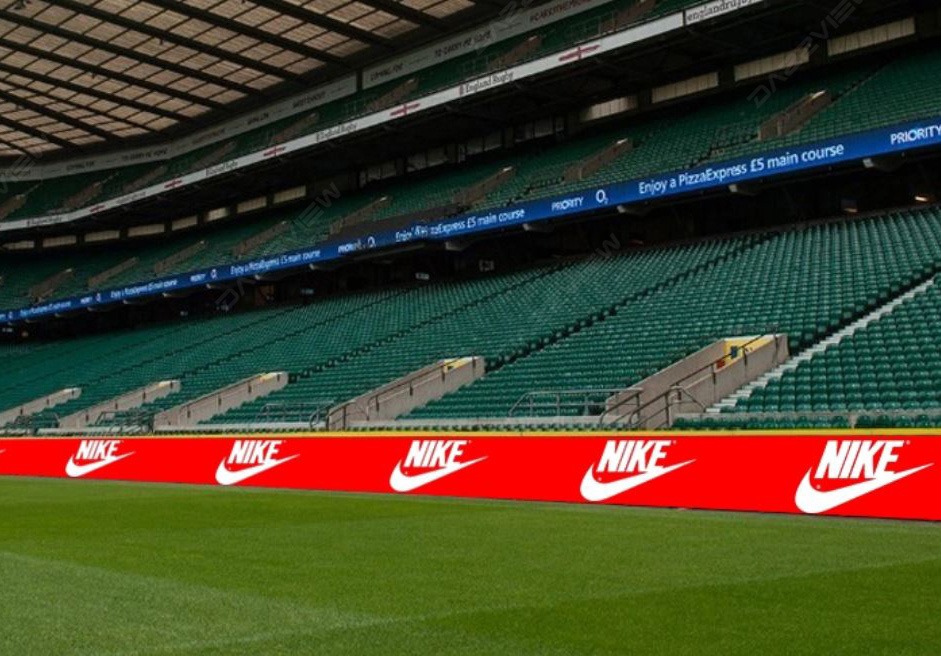

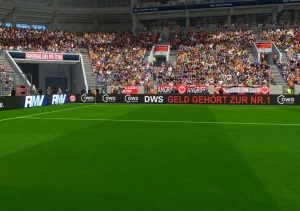

Perimeter LED display are very popular for the stadium sport event, like soccer area, football field, basketball stadium… There are hundreds of media focus on each football game. Your logo, slogan will be broadcasted and showed on the TV, so not only the audiences in the stadium can see your brand, also the audiences before television can see it. So it’s a huge business value to do the advertising on the perimeter LED display and the profit can cover what you pay on the perimeter advertising.
DAZZVIEW LED DISPLAY

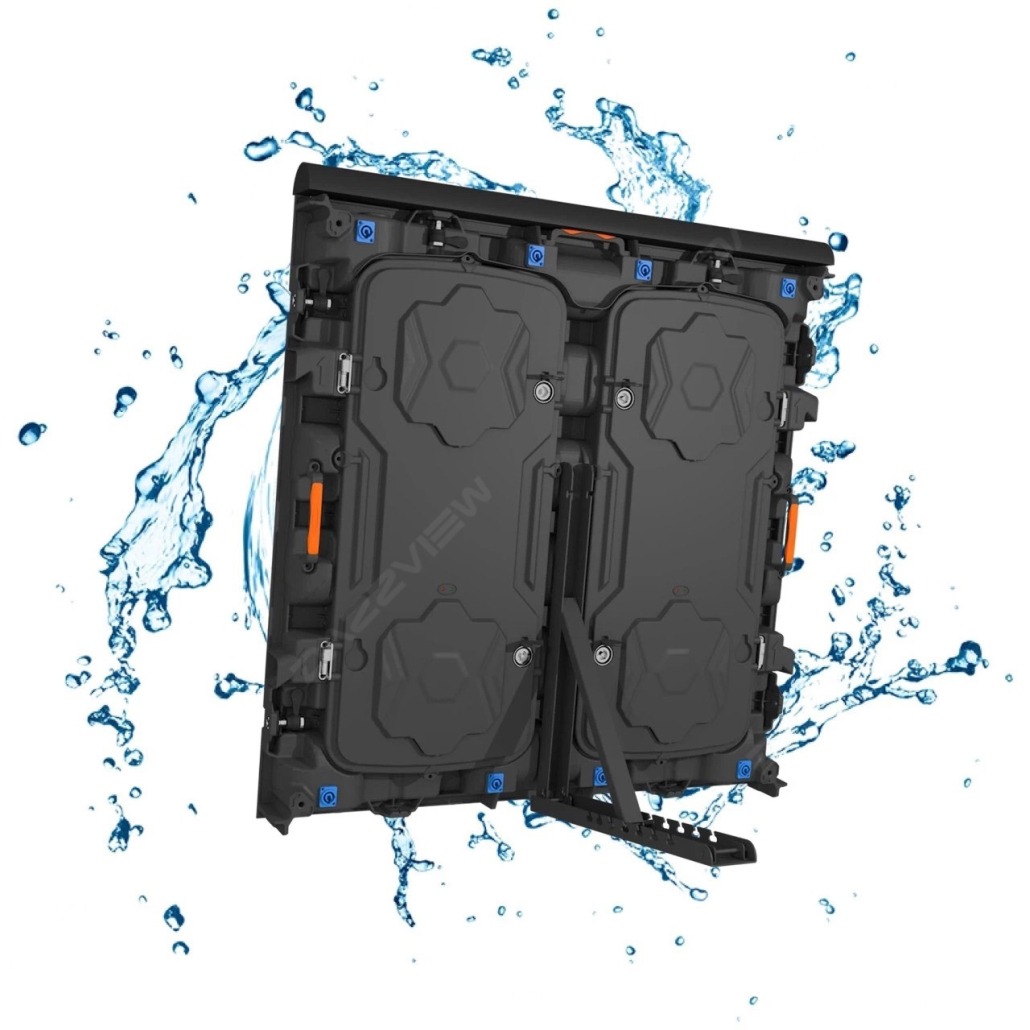

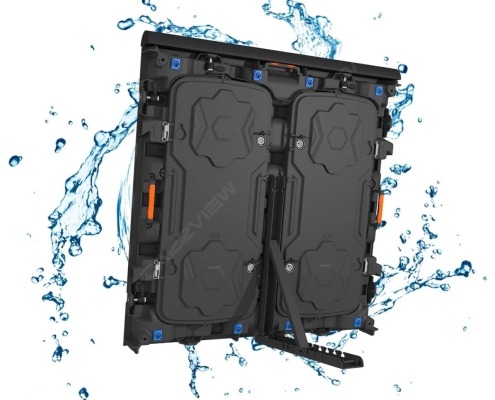

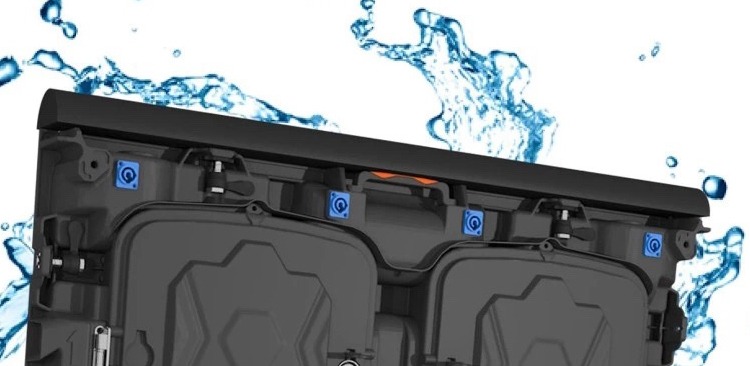

High Brightness, High Refresh Rate and High Waterproof Rate for Outdoor Perimeter LED display!

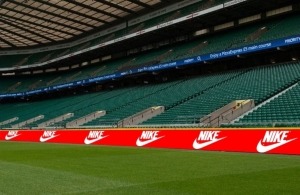

Most of the Stadiums are built outdoor with the hollow design in the middle on the stadium in order to get the enough fresh sunlight, so the football player is running under the sun and the rain on the football ground. However, the perimeter LED display also put on the playground, so there is high demand like waterproof rate and high brightness of perimeter LED display. Dazzview perimeter LED display can meet your needs.
DAZZVIEW LED DISPLAY
High Clarity and Good Performance for Perimeter Indoor LED Display!

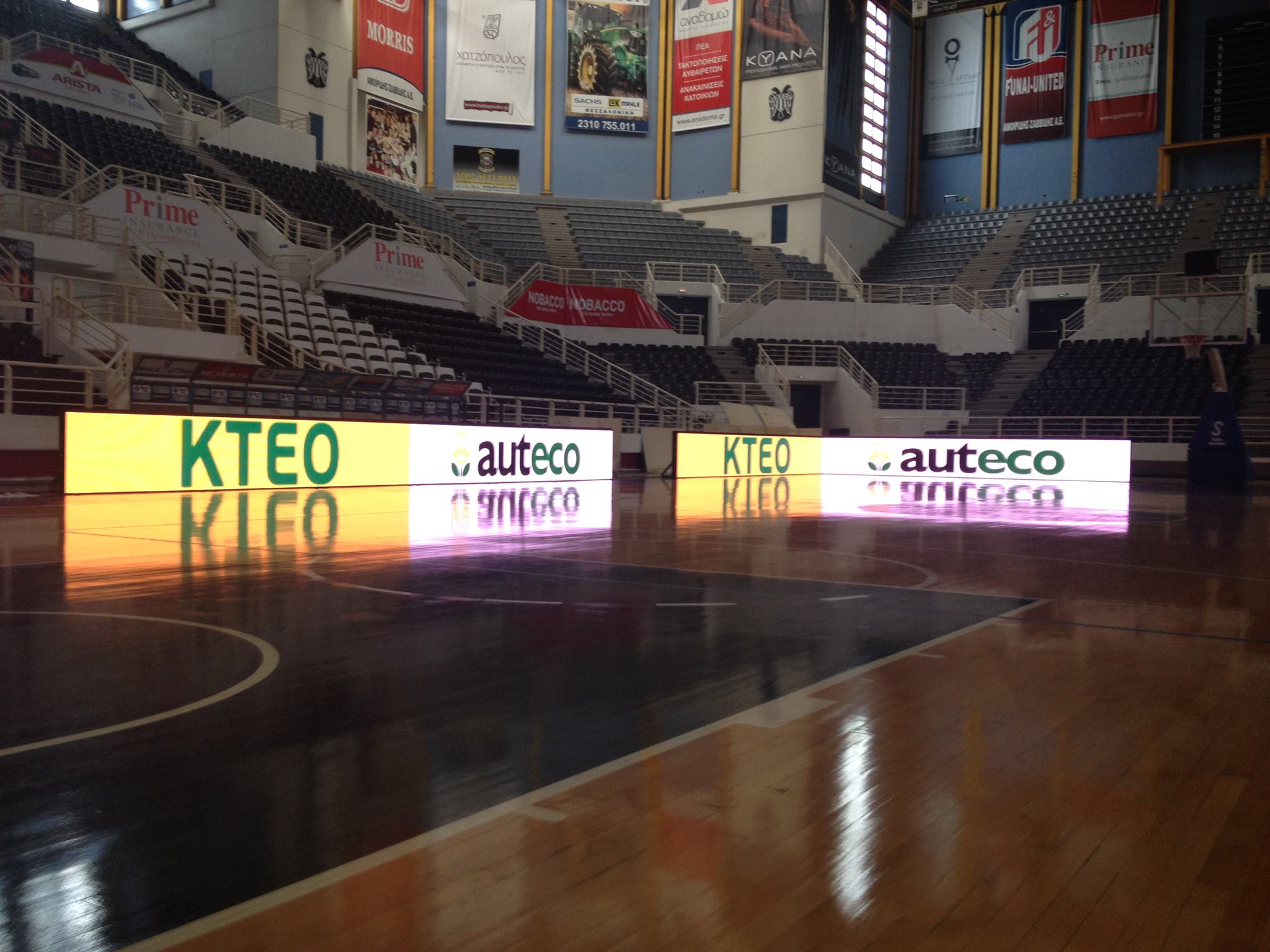

For the indoor stadium like basketball field, the audiences are much closer to the playground, so a smaller pixel pitch like 6.6mm will be more suitable for indoor used.
DAZZVIEW LED DISPLAY

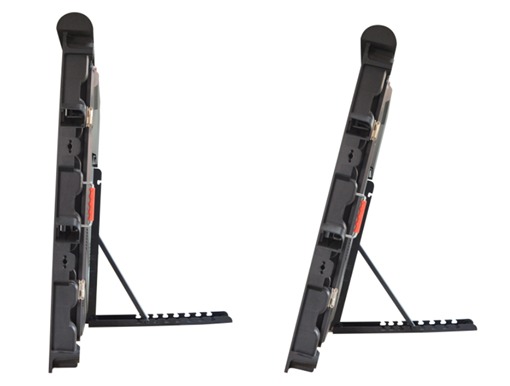

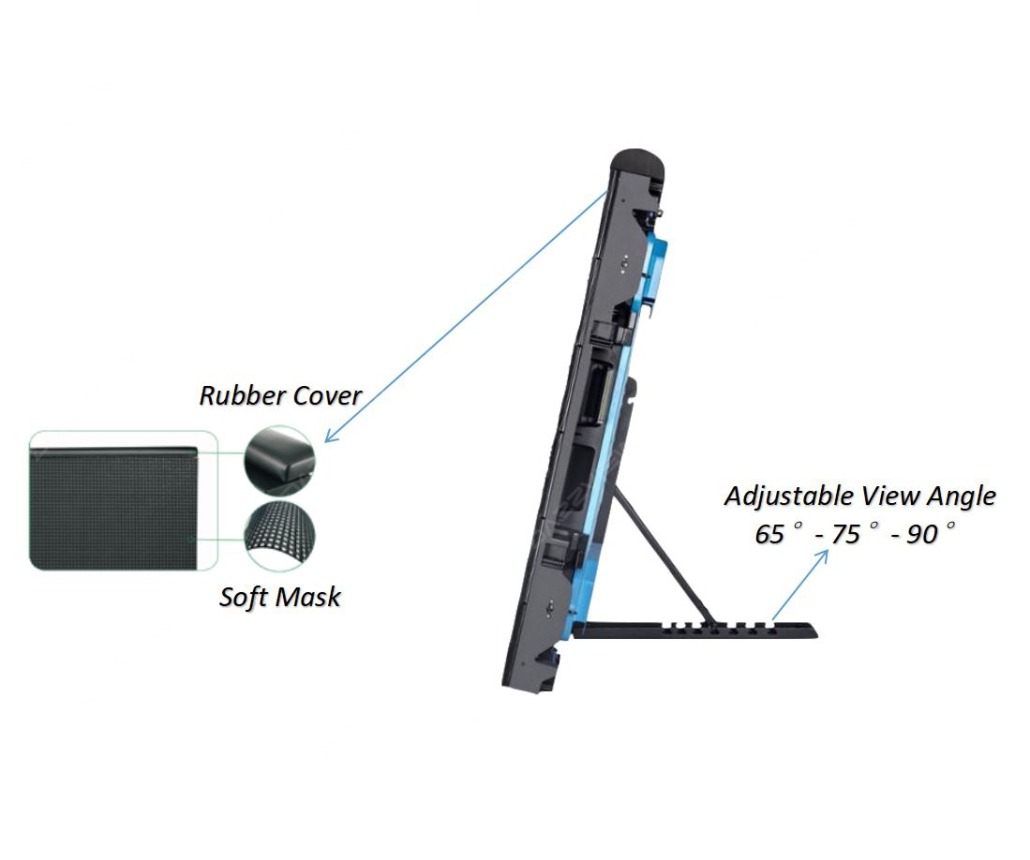

Adjustable Viewing Angle!

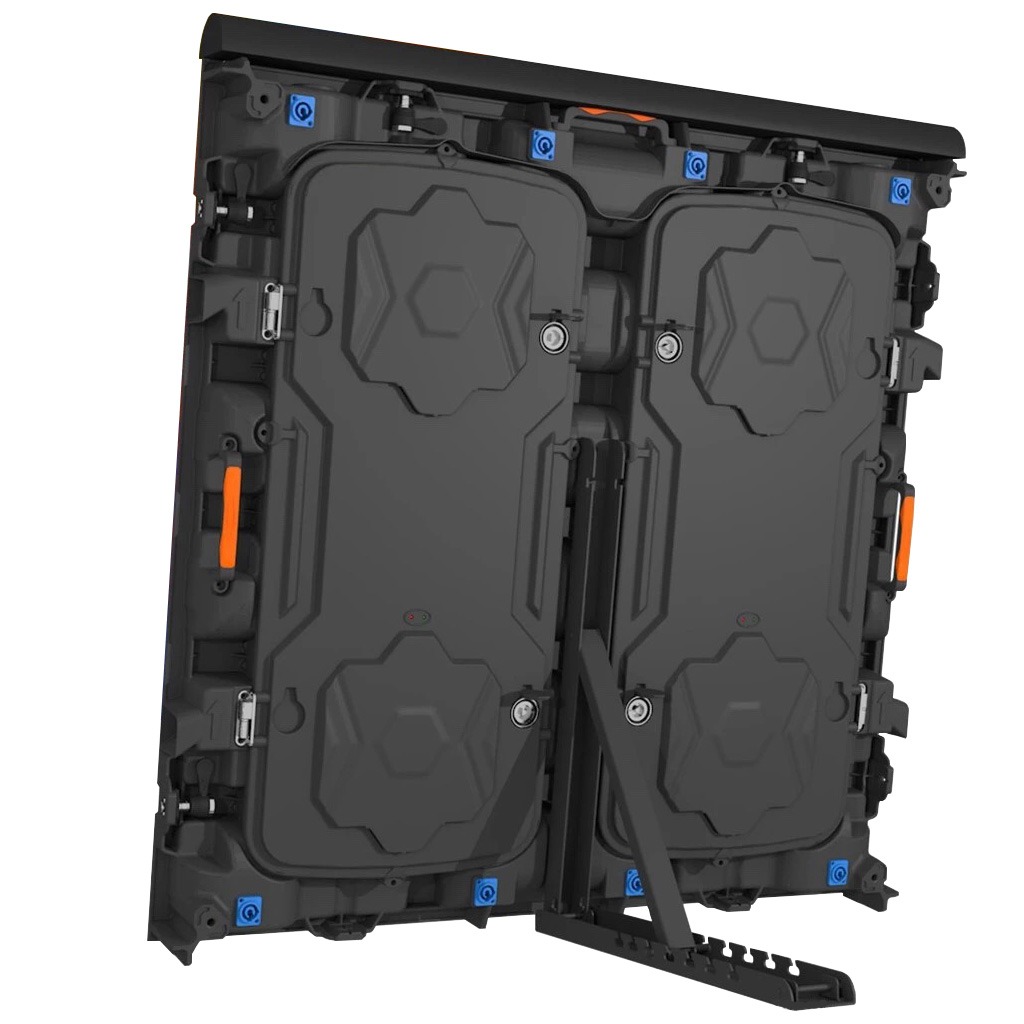

The viewing distance is smaller for indoor used, so a bigger viewing angle is needed, the viewing angle can be adjusted through adjust the footstand.
DAZZVIEW LED DISPLAY

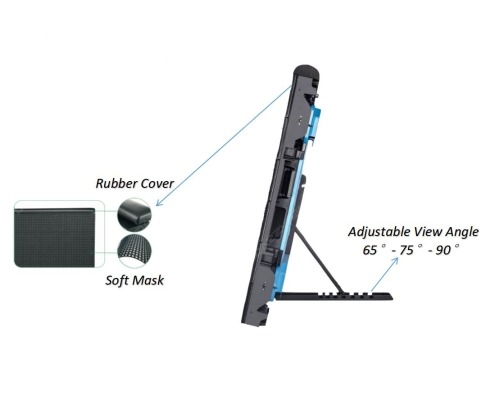

Player Protection Design!

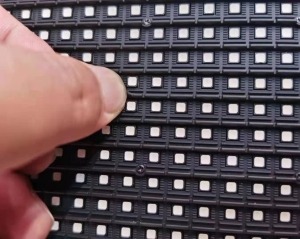

The soft mask design not only protect the LED lamp, but also protect the players once they run to the perimeter LED display and hit the screen. Because the value of the famous football player’s legs are more important than the LED screen.

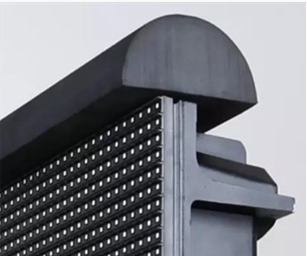

Also, the perimeter LED display are covered with pillows on top in order to protect the players legs and head.
DAZZVIEW LED DISPLAY
Excellent in Design and Style!

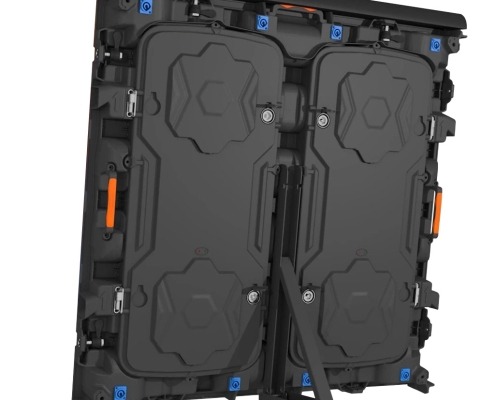

Light weight cabinet design with 30kg/sqm is easy to be carry in and out from the flight case, it’s suitable to be used for different stadium projects. Save the installation, transportation time and cost.
DAZZVIEW LED DISPLAY
Easy Assembly & Easy Moving!

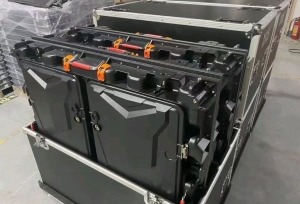

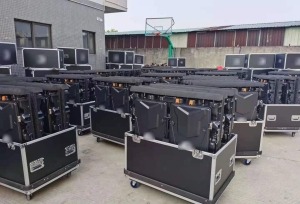

The perimeter LED display packed in flight case which is easy for installation, moving, transportation…
DAZZVIEW LED DISPLAY
Install Anywhere with Ease!
Perimeter LED display are widely used for different kinds of stadiums like basketball, football, soccer, horserace… and any other sport area which needs broadcast and ads.
DAZZVIEW TECHNOLOGY
Specs That Will Blow You Away!
| Specification | |||
| Model NO. | Dperimeter6.6 | Dperimeter8 | Dperimeter10 |
| Pixel Pitch | 6.6mm | 8mm | 10mm |
| LED Type | SMD3535 | SMD3535 | SMD3535 |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B |
| Size of module(W*H) | 320mmx160mm | 320mmx160mm | 320mmx160mm |
| Resolution of module(W*H) | 48×24 | 40×20 | 32×16 |
| Density | 22500dots/㎡ | 15625dots/㎡ | 10000dots/㎡ |
| Cabinet material | Magnesium Alloy | Magnesium Alloy | Magnesium Alloy |
| Size of cabinet(W*H) | 960mmx960mm | 960mmx960mm | 960mmx960mm |
| Weight of cabinet | 30KG | 30KG | 30KG |
| Best viewing distance | >6.5m | >8m | >10m |
| Best viewing angle | 140° | 140° | 140° |
| Brightness | 5500cd/㎡ | 5500cd/㎡ | 5500cd/㎡ |
| Maximum power consumption | 600W/㎡ | 600W/㎡ | 600W/㎡ |
| Average power consumption | 200W/㎡ | 200W/㎡ | 200W/㎡ |
| Driving method | 1/6 scanning | 1/5 scanning | 1/2 scanning |
| Gray scale | 16 bits | 16 bits | 16 bits |
| Refresh frequency | 3840Hz | 3840Hz | 3840Hz |
| IP grade | IP65 | IP65 | IP65 |
| Colors | 16777216 | 16777216 | 16777216 |
| Color temperature | 6500-9500k | 6500-9500k | 6500-9500k |
| Driving device | Constant current | Constant current | Constant current |
| Working voltage | AC220V/110V±10% | AC220V/110V±10% | AC220V/110V±10% |
| Working temperature | —20℃~50℃±10% | —20℃~50℃±10% | —20℃~50℃±10% |
| MTBF | >10,000 hours | >10,000 hours | >10,000 hours |
| Frame frequency | 60Hz | 60Hz | 60Hz |
| Life Span | 100,000 hours | 100,000 hours | 100,000 hours |
