Dazzview Rental Curved LED Display for Show
You can rent/hire an LED display for shows and events, typically using it for stage backgrounds, live shows, exhibitions, weddings…

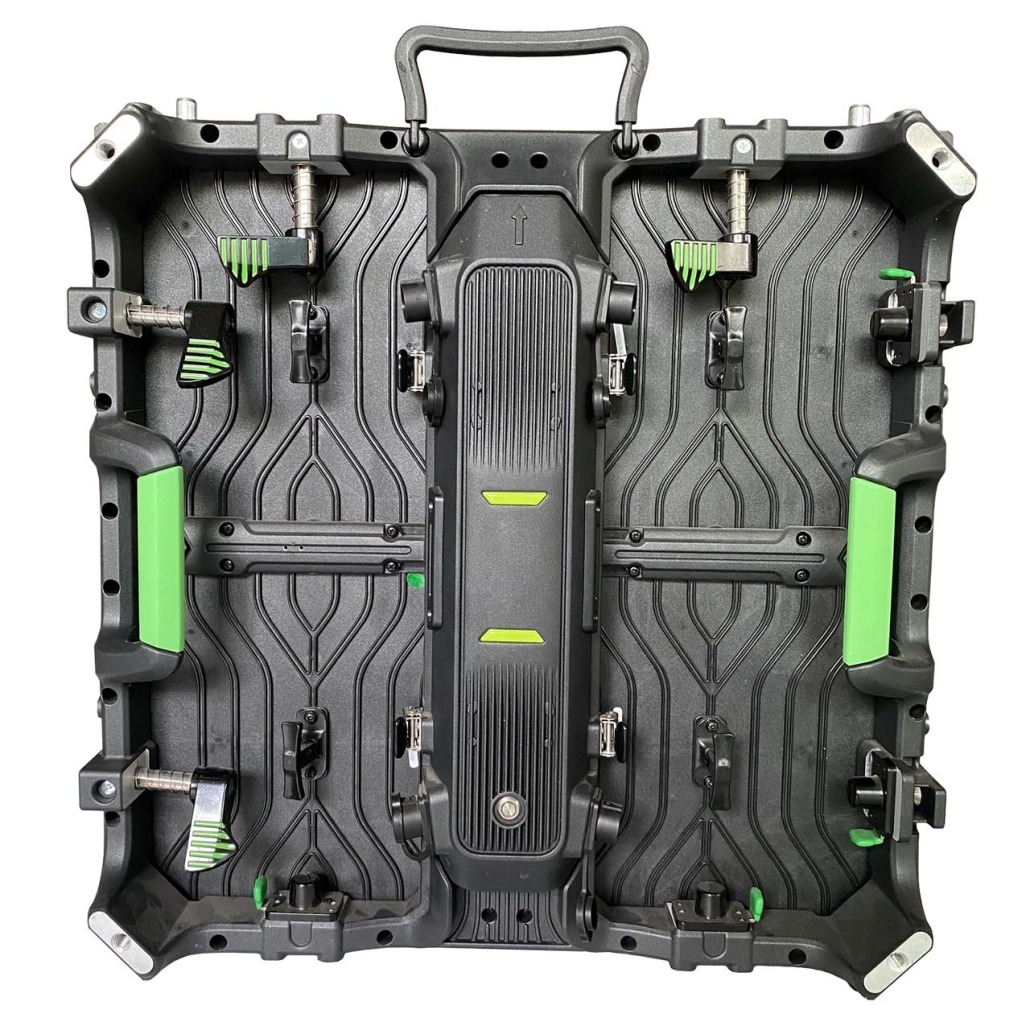

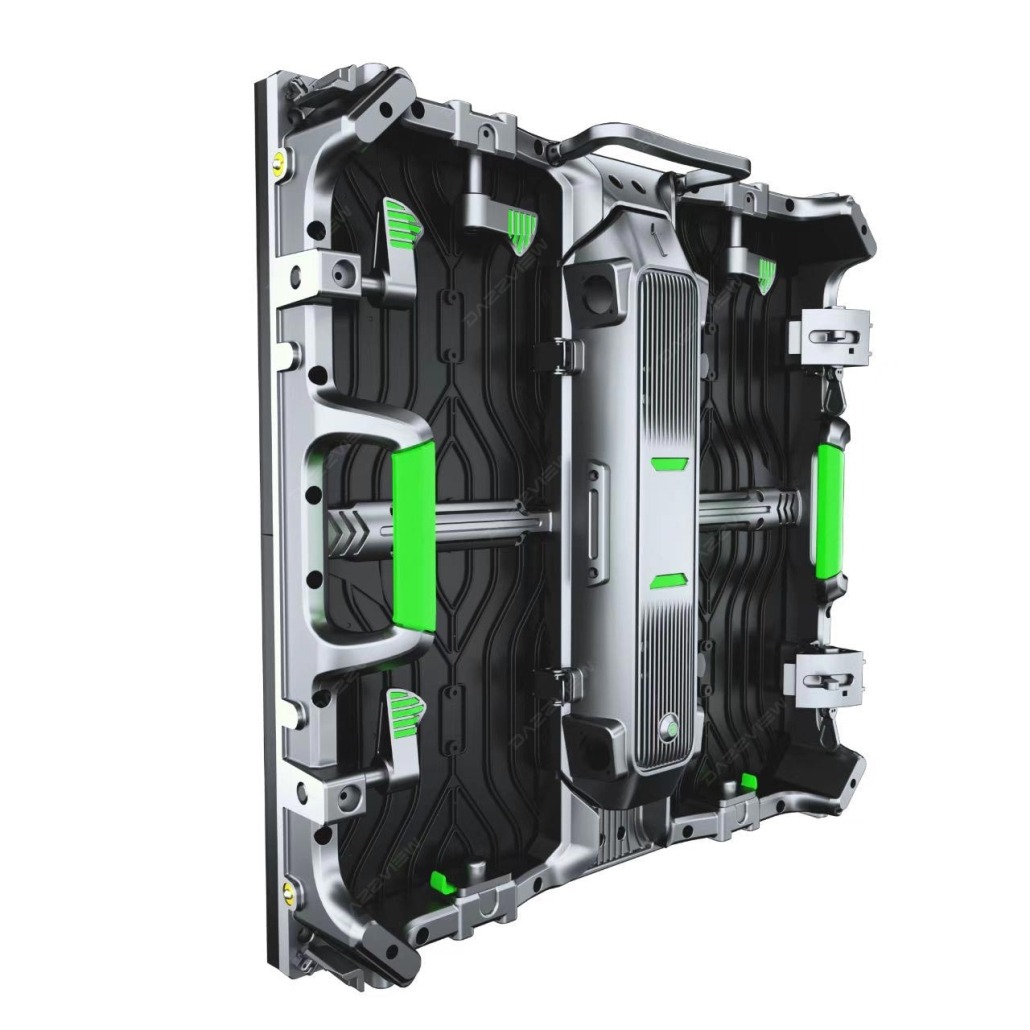

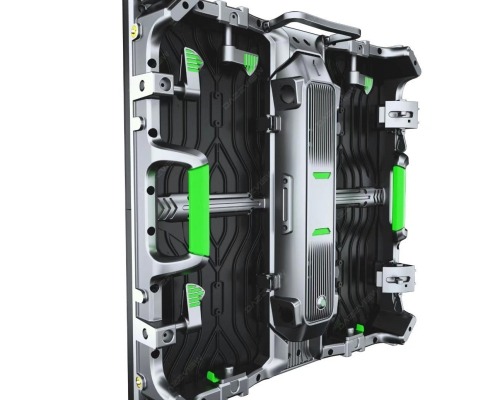

Rental Curved LED Display for Show

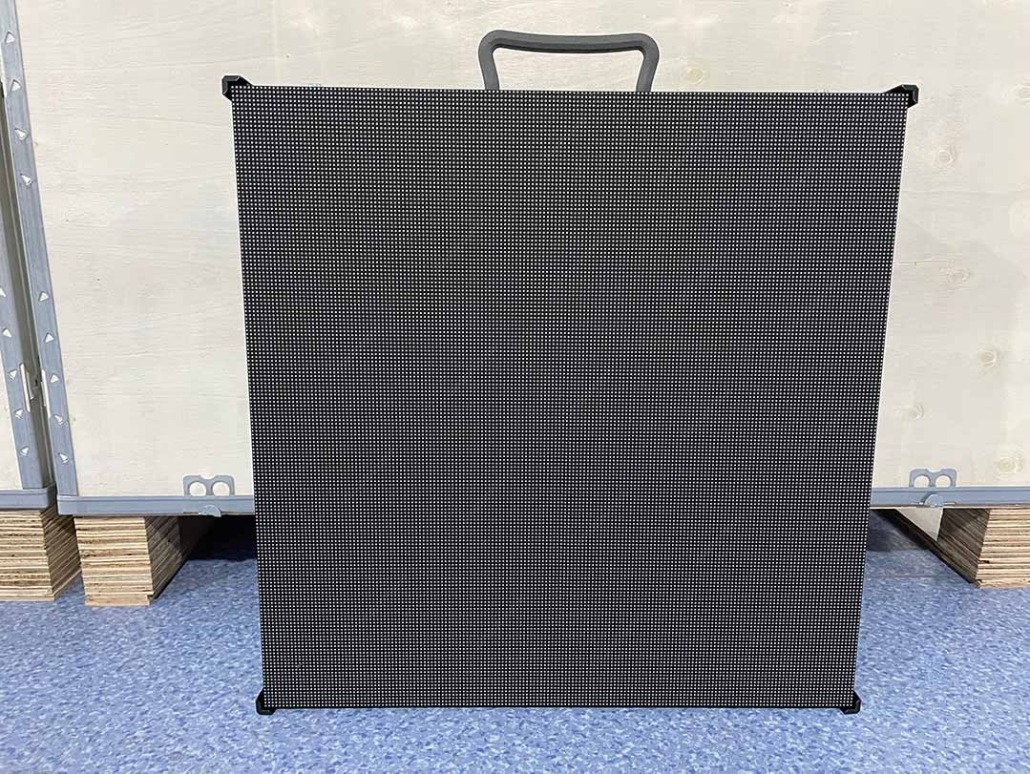

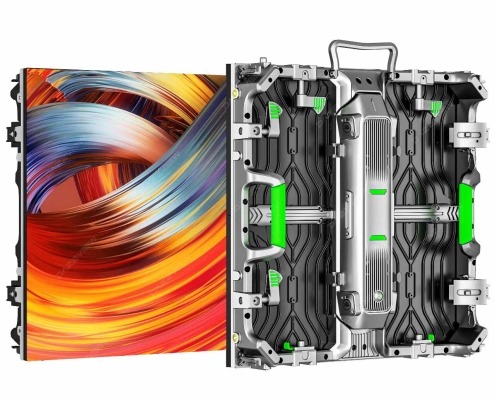

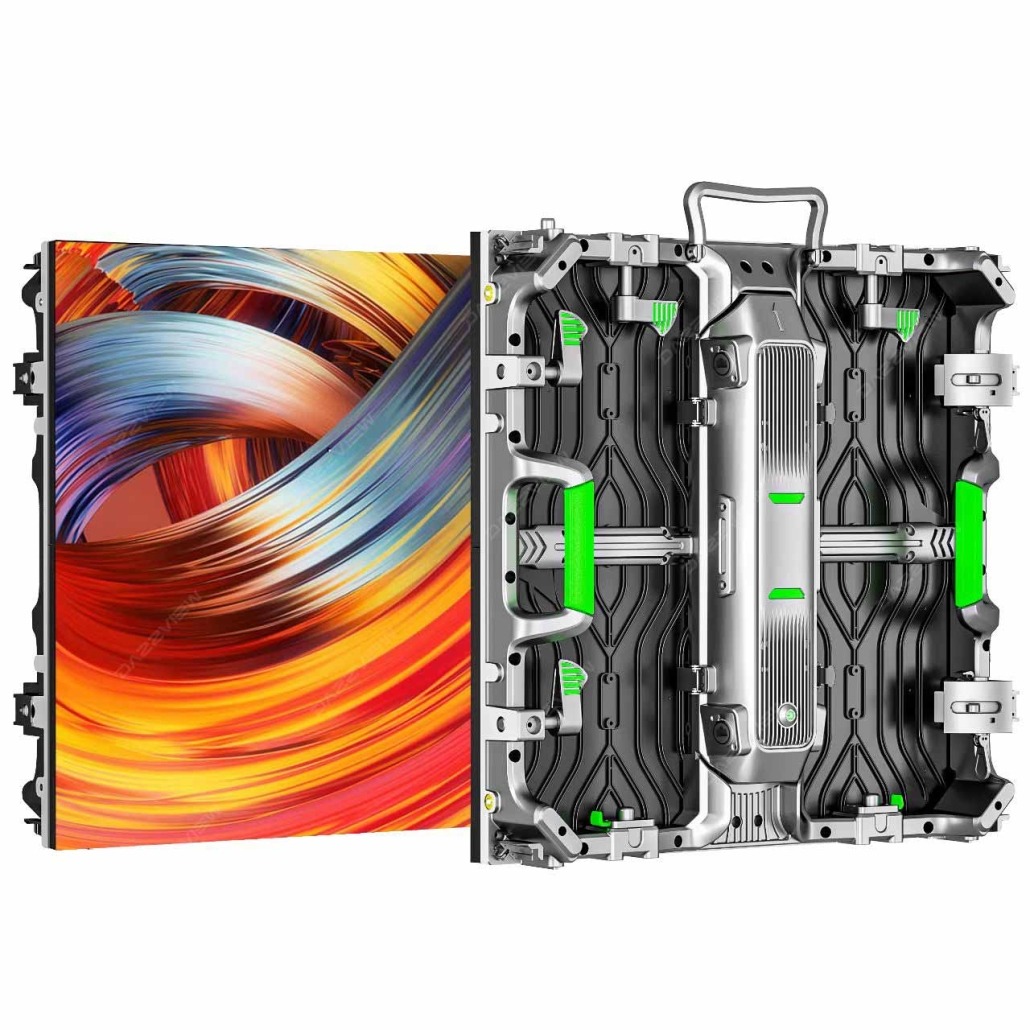

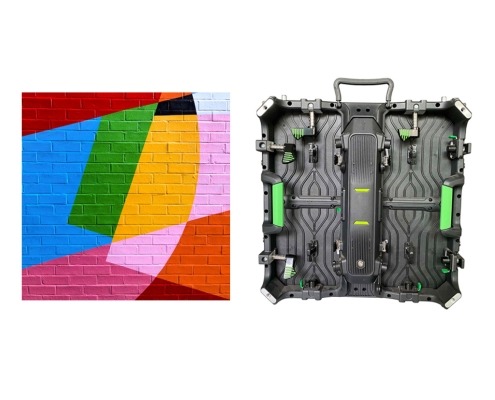

Product Name: Rental Curved LED Display for Show
Product Model: DH Series
Product Description:
Dimension: 500x500mm
Weight: 7.5kg/pc
Pixel Pitch Indoor: P2.6, P2.9, P3.9
Pixel Pitch Outdoor: P2.9, P3.9, P4.8
Key Features:
1. Fast Lock
2. For Fast Installation
3. Strengthened Structure
4. High Compatibility
5. Curved Version Cabinet
6. Safety Protection At The Corner
Wonderful Experience With Dazzview Rental LED Display Screen!

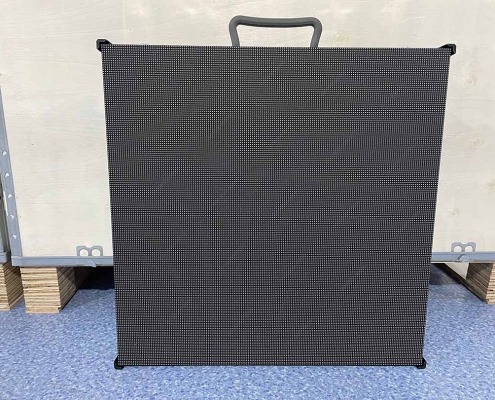

Rental LED Display is convenient for performances, events, promotions, etc. The cabinets are packed in flight cases, usually 8pcs 500x500mm cabinets in one flight case, or 5/6 500x1000mm cabinets in one flight case. With a lightweight design, the cabinet is easy to take out of or put into the flight case. The rental LED screen can stand on the floor with back structures or hang with hanging bars. It can meet all your needs for the stage background video wall. LED display screens usually work together with lighting and sound to bring you a fantastic visual experience.

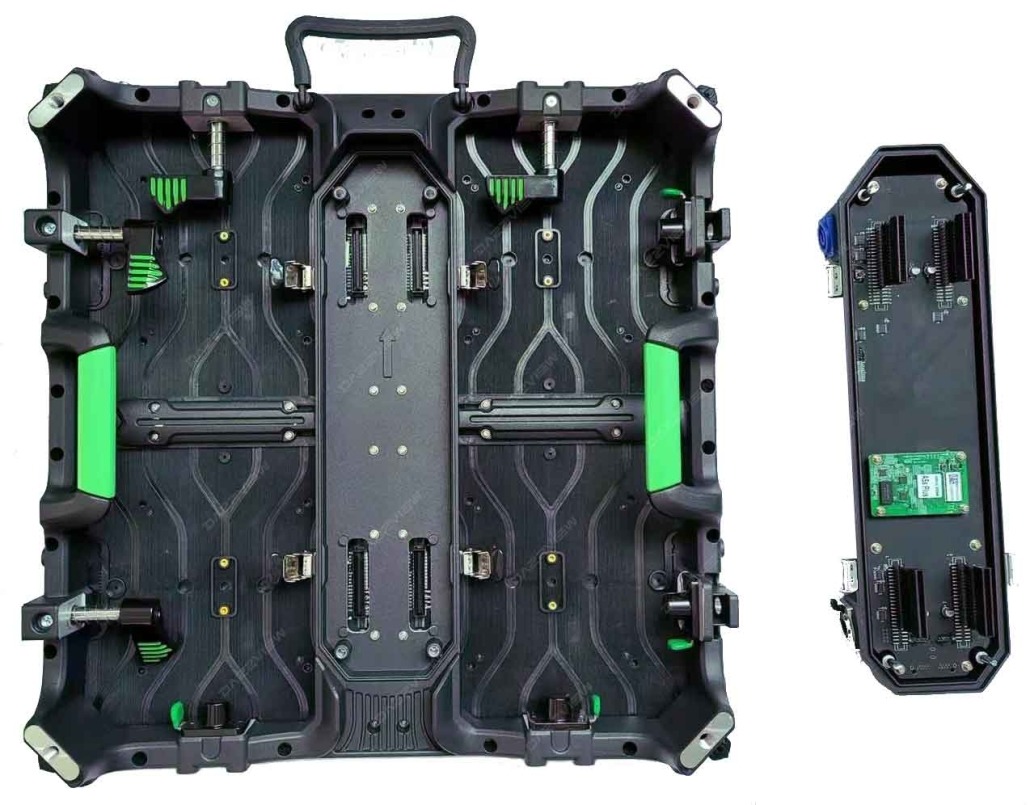

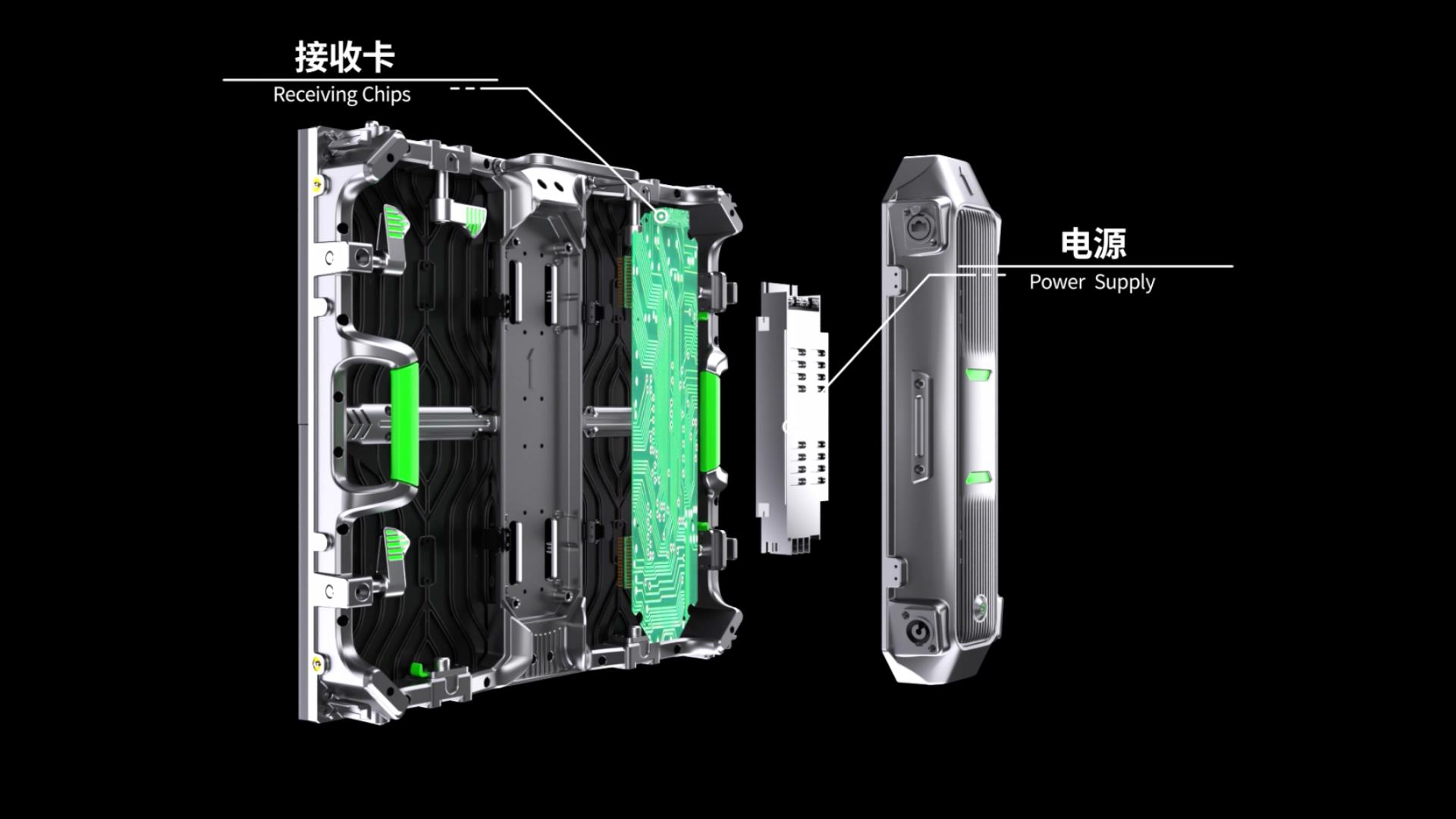

Modular Design!
Modular design can make the LED display product easy to be use. Easy to do the maintenance.
High Flatness and Safety Protection!

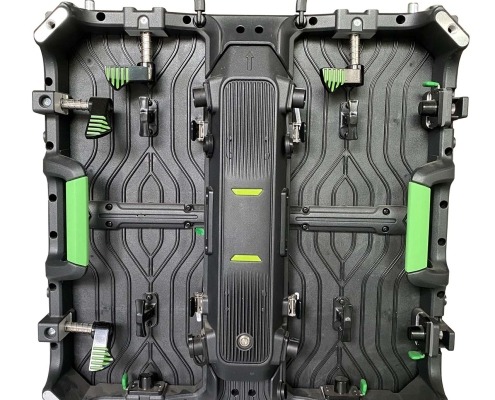

The back screws ensure flatness and stable LED module connection.

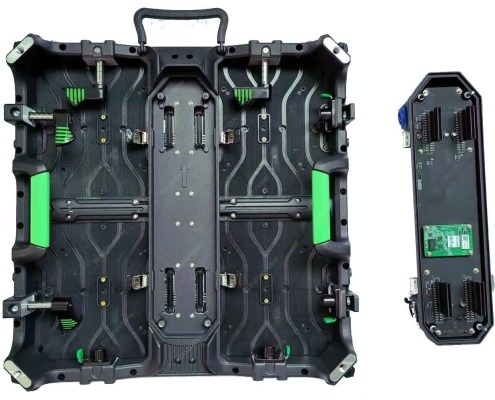

Easy Maintenance!
You can access and maintain the cabinet from both sides.
Stable Aviation Connector!
A stable working power cable and signal cable guarantee you succeed in every show and event.
Excellent Positioning System!
Fast lock, location pin, location slot, perfect for connection with up and down cabinet.
Fast Lock Easy to Use!
The fast lock in a simple design that is easy to use.
Curved Lock for Option!
You can adjust it from -15 degrees to +15 degrees.
Good Performance for Curved Lock!
No matter whether inner curved or outer curved, the curved locks perform well.
Good Visual Effect for the Curved Lock Solution!
For the rental application, 1/10 of the cases will require the curved function, and the curved solution allows for the creation of many interesting shapes on the creative stage.
Anti Collision Design!
The projection at the corner protects the LED lamp from damage from collision.
Easy Using Hanging Bar!
The Hanging bars make it easy to connect the cabinets on and hang the cabinets.
Easy Installation!
DH series can be installed with back structure, hanging…
Stable Back Structure Mounted!
Whether you mount a simple back structure or a full big video wall structure, they all provide support.
90 Degrees Corner For Option!
For some corner applications, 45 degrees cutting cabinet can achieve 90 degrees corner function. 3D visual effects are available.
Good Visual Effect Corner Application!
There will be always some 90-degree corner project, our DH series 45-degree cutting will satisfy it.
Aging Test!
The aging test guarantees the quality and visual effect of the rental LED display.

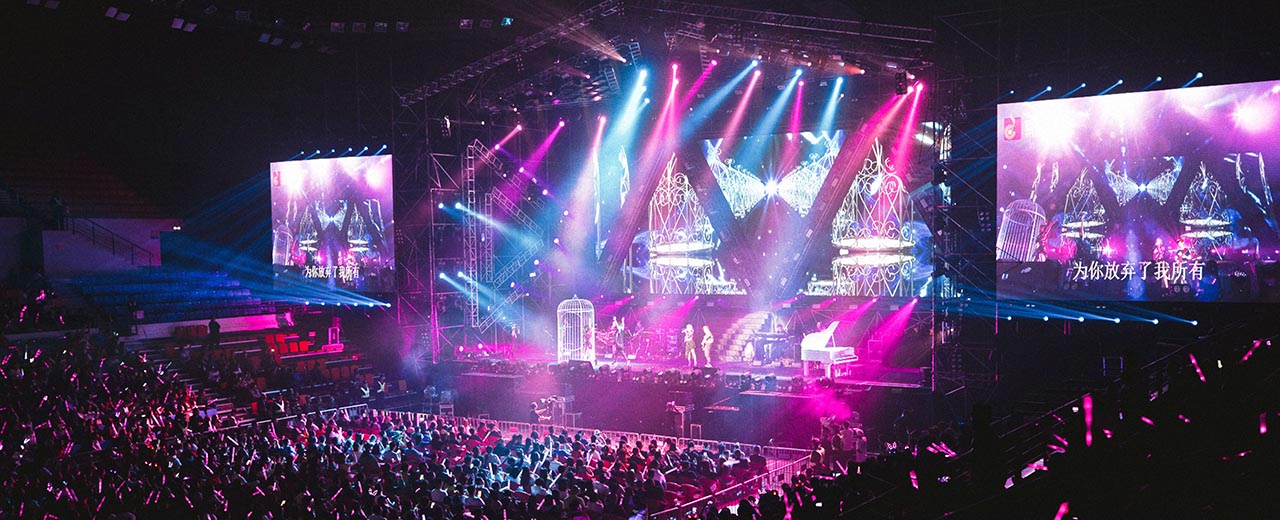

Install for Show, Event, Conert, Live House…
DH series is a popular rental LED display screen solution which suitable to be used for different shows, events, concerts, music live, carnivals, campaigns…wherever opening space with events is needed.
The LED display curved lock is a revolutionary innovation that makes the installation and maintenance of curved displays easier and faster. With the help of the curved lock, you only need to adjust the two cabinets to the same angle before connecting. This ensures a secure and seamless connection between the cabinets, resulting in a stunning curved display that is both strong and beautiful. LED display curved latches are ideal for eye-catching video walls and other innovative display layouts.
LED display screens are an excellent way to attract attention and leave a lasting impression on your audience. However, installing and maintaining them can be a tricky task, especially when it comes to curved displays. This is where the LED display screen curved lock and the 90-degree lock come in. The good news is that these two types of locks can work together seamlessly. It means that you can mix and match the curved lock cabinet and the 90-degree lock cabinet to create stunning displays with unique shapes and designs that suit your specific needs.
Specs That Will Blow You Away!
| Specification | |||||||||
| Model NO. | DH1.9 | DH2.6 | DH2.9 | DH3.9 | DH(O)1.9 | DH(O)2.6 | DH(O)2.9 | DHO3.9 | DHO4.8 |
| Pixel Pitch | 1.953mm | 2.6mm | 2.976mm | 3.91mm | 1.953mm | 2.6mm | 2.976mm | 3.9mm | 4.8mm |
| LED Type | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD1415 | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel configuration | 1R1G1B | ||||||||
| Size of module(W*H) | 250mmx250mm | ||||||||
| Resolution of module(W*H) | 128×128 | 96×96 | 84×84 | 64×64 | 128×128 | 96×96 | 84×84 | 64×64 | 52×52 |
| Density | 262144dots/㎡ | 147456dots/㎡ | 112,896dots/㎡ | 65536dots/㎡ | 262144dots/㎡ | 147456dots/㎡ | 112,896dots/㎡ | 65536dots/㎡ | 43264dots/㎡ |
| Cabinet material | Die-casting Alu | ||||||||
| Size of cabinet(W*H) | 500mmx500mm | ||||||||
| Weight of cabinet | 7.5KG | ||||||||
| Best viewing distance | >1.9m | >2.6m | >2.9m | >4m | >1.9m | >2.6m | >3m | >4m | >5m |
| Best viewing angle | 140° | ||||||||
| Brightness | 1100cd/㎡ | 1100cd/㎡ | 1100cd/㎡ | 1100cd/㎡ | 4500cd/㎡ | 4500-5000cd/㎡ | 4500-5000cd/㎡ | 5000cd/㎡ | 5000cd/㎡ |
| Maximum power consumption | 650W/㎡ | ||||||||
| Average power consumption | 200W/㎡ | ||||||||
| Driving method | 1/32 scanning | 1/32 scanning | 1/28 scanning | 1/16 scanning | 1/32 scanning | 1/24 scanning | 1/21 scanning | 1/16 scanning | 1/13 scanning |
| Gray scale | 16 bits | ||||||||
| Refresh frequency | 3840Hz | ||||||||
| IP grade | IP43 | IP43 | IP43 | IP43 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Colors | 16777216 | ||||||||
| Color temperature | 6500-9500k | ||||||||
| Driving device | Constant current | ||||||||
| Working voltage | AC220V/110V±10% | ||||||||
| Working temperature | —20℃~50℃±10% | ||||||||
| MTBF | >10,000 hours | ||||||||
| Frame frequency | 60Hz | ||||||||
| Life Span | 100,000 hours | ||||||||
