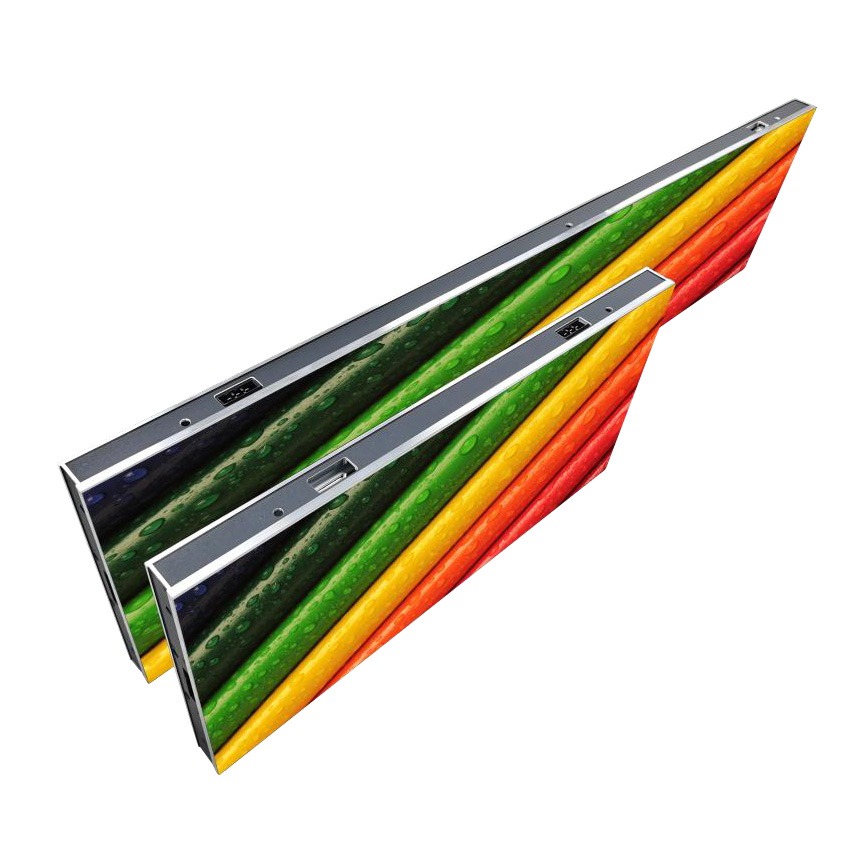

Indoor video wall with high definition full front maintenance fixed LED display, it is suitable for the high end customer in high quality level which cabinet is made in die-casting aluminum, Ding series is widely used for the mall, shopping center, meeting room, digital signage…
Product Name: Indoor Video Wall Fixed LED Display With Front Maintenance
Product Model: Ding series
Product Description:
Suitable to be used for the indoor high definition high flatness video wall solution.
Features:
1. Die-casting aluminum cabinet for high flatness.
2. Multiple size in options: 1000x250mm, 750x250mm, 500x250mm.
3. Light weight: 5.8kg/4.4kg/2.9kg.
4. Slim design: 33mm thickness.
5. Full front maintenance.
6. Multi-installation ways: hanging, wall mounted, stacking.

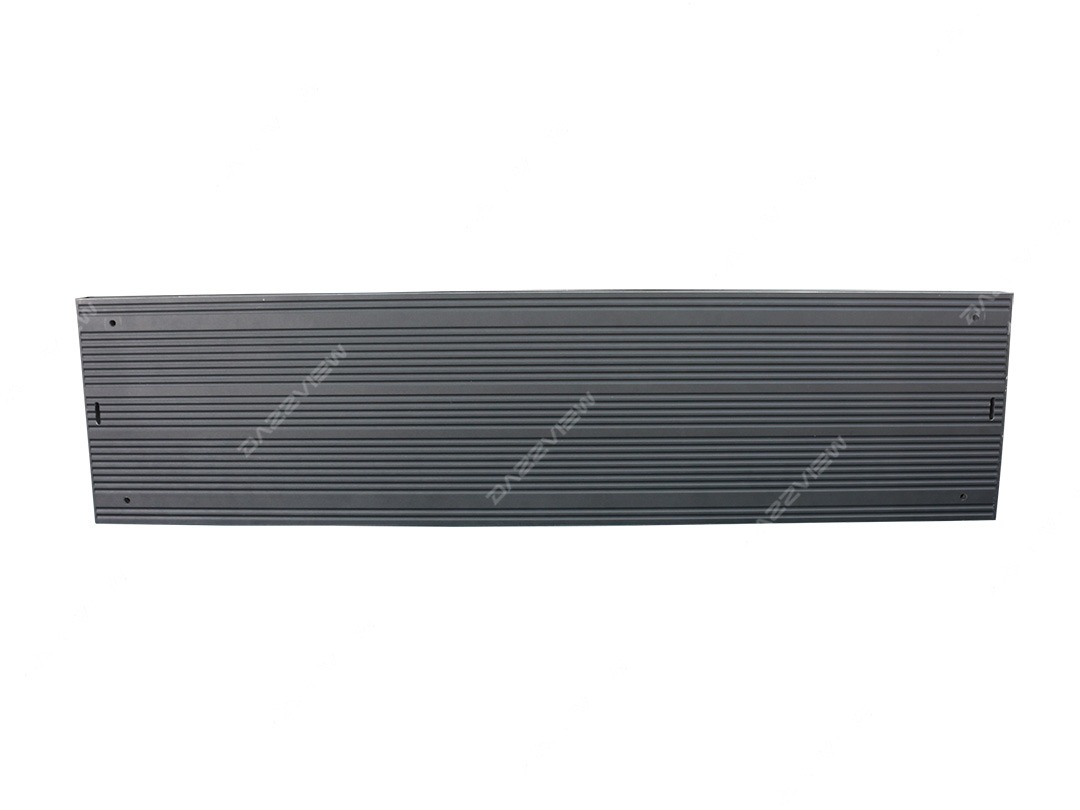

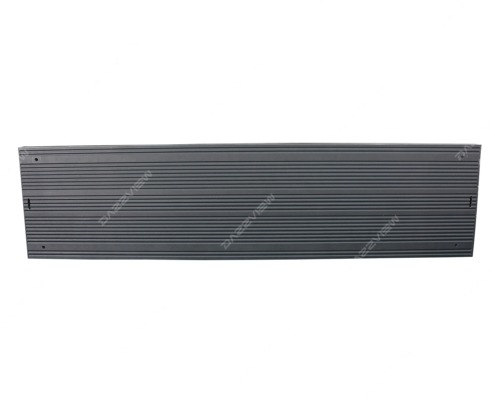

The cabinet is made in die-casting aluminum which is in high precision and guarantee the high flatness. And also good for the heat dissipation.

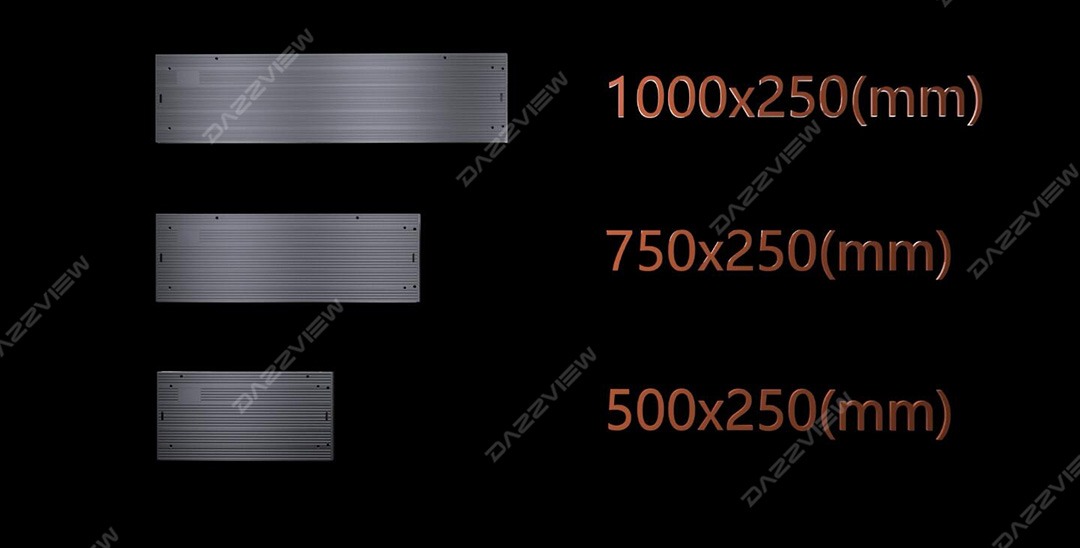

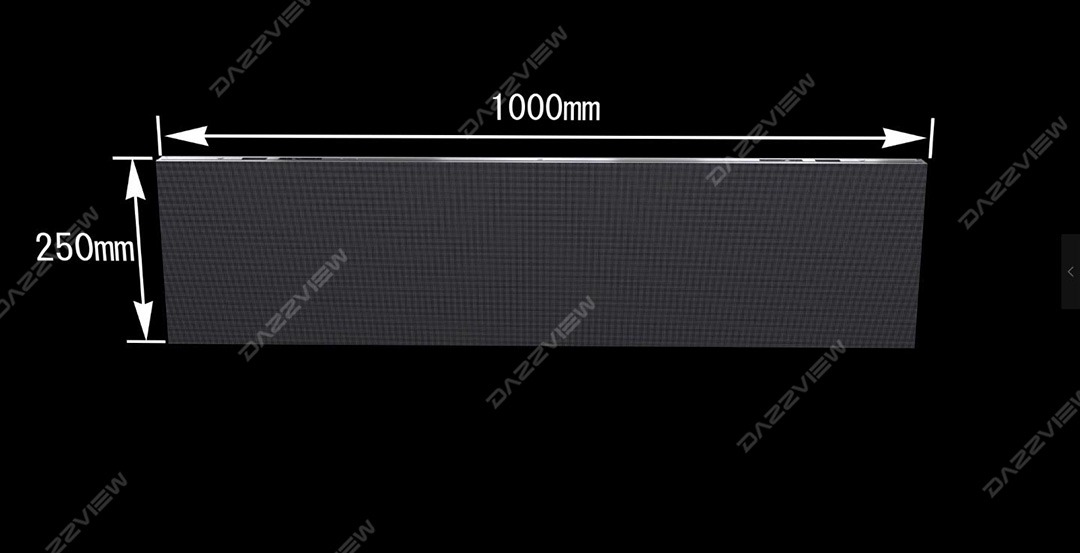

The cabinet has 3 different size for options: 1000x250mm, 750x250mm, 500x250mm, suitable for customer’s different demand. The cabinet is in slim design: 33mm, good performance for the wall mounted.

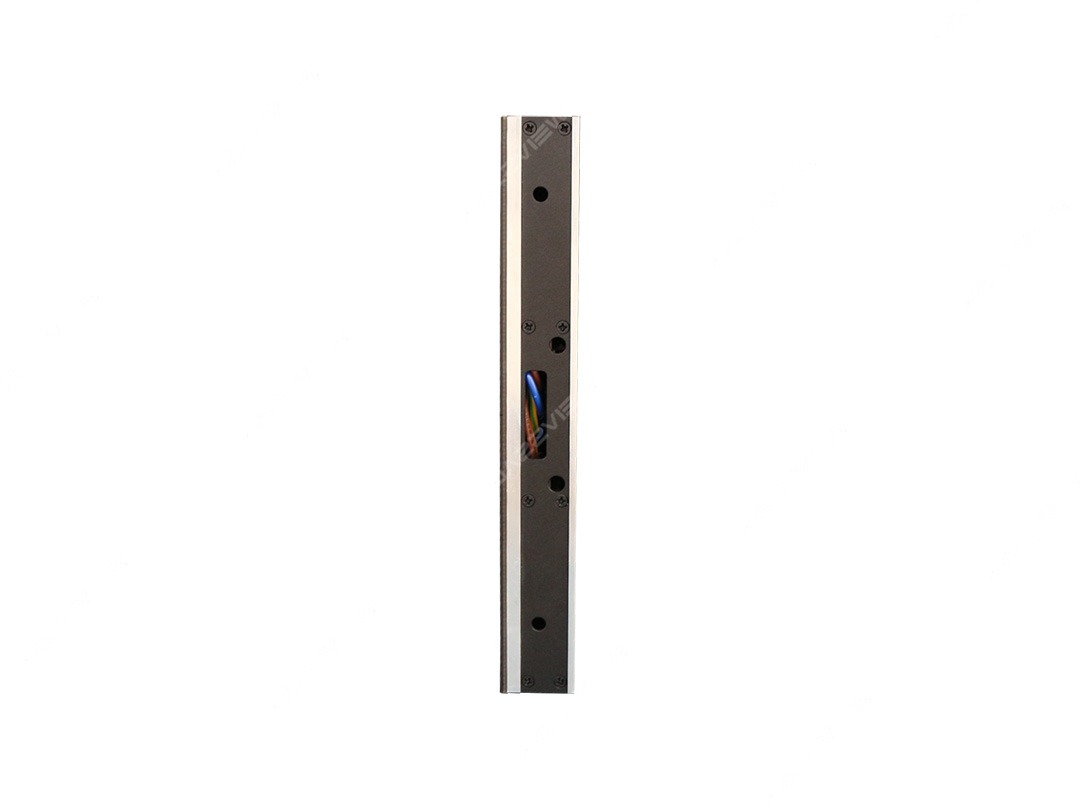

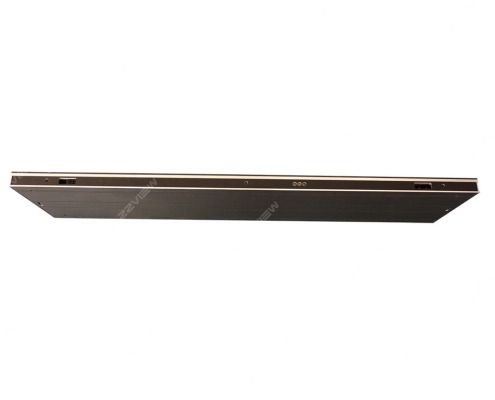

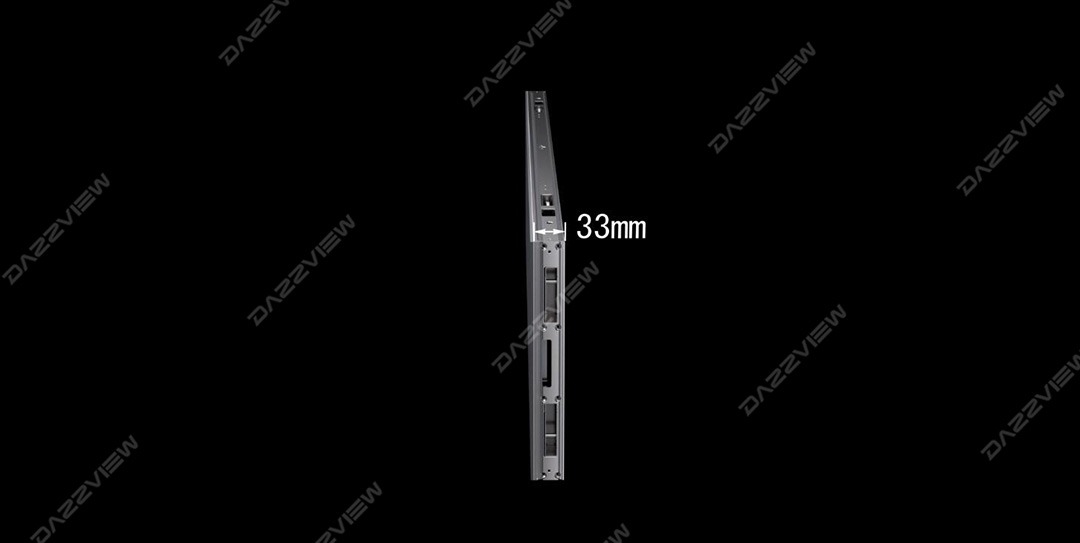

The cabinet is in 33mm thickness, so it save the space after installed, and it works perfect for the wall mounted and hanging installation.

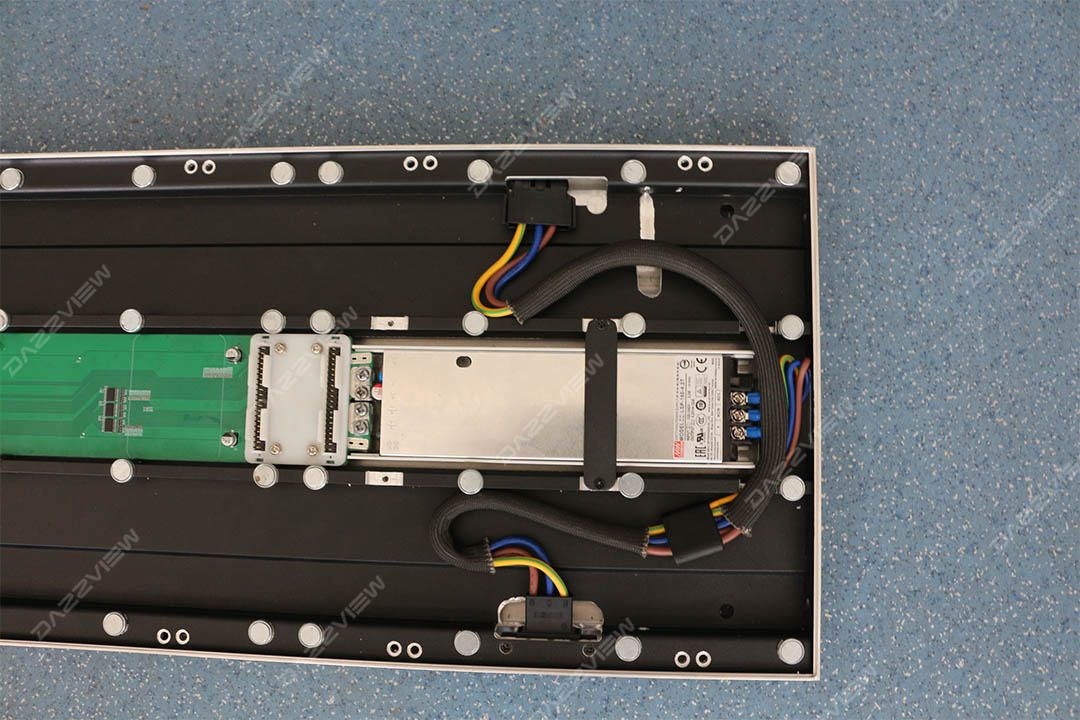

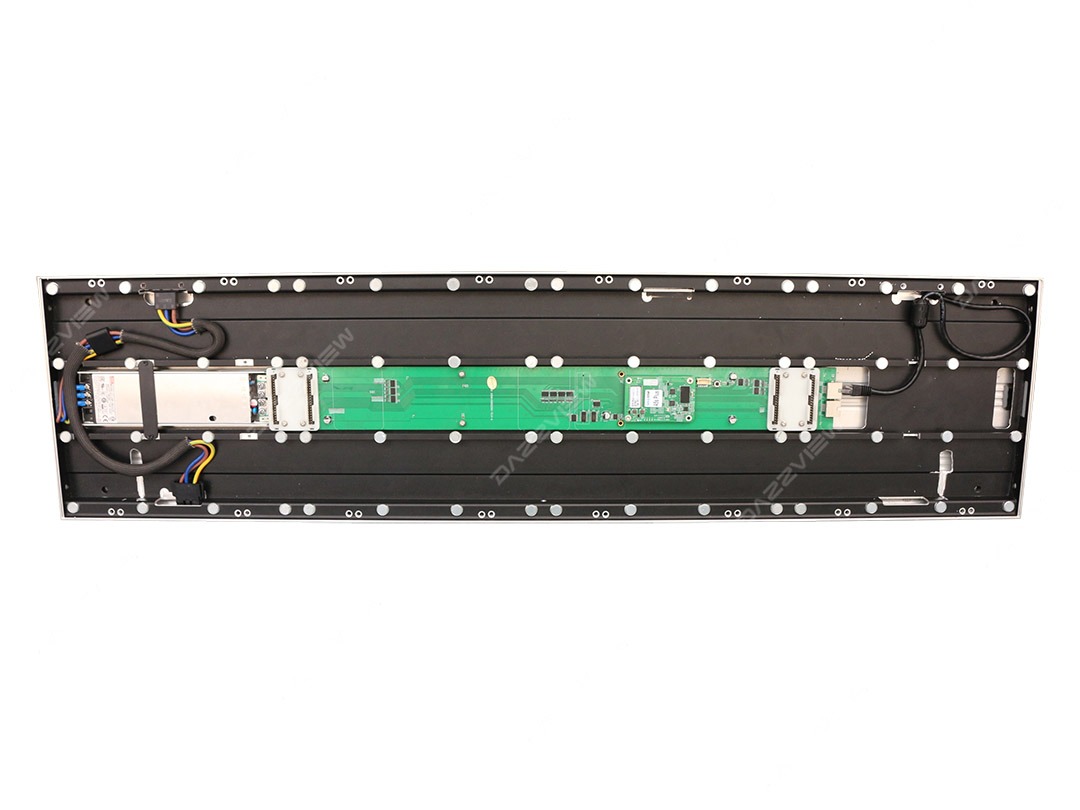

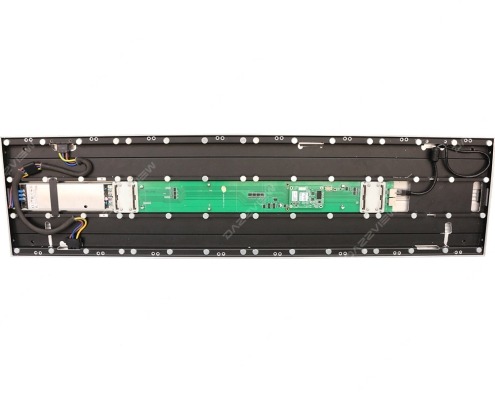

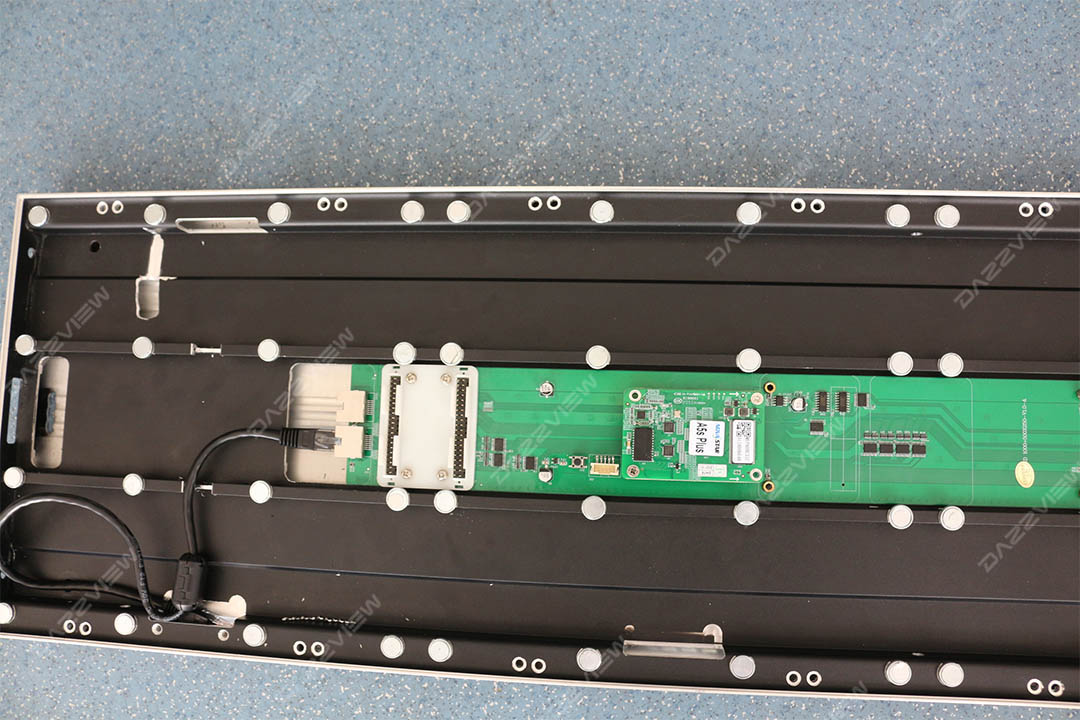

The LED module in magnetic design which the module, power supply, receiving card can be taken out from the front side.

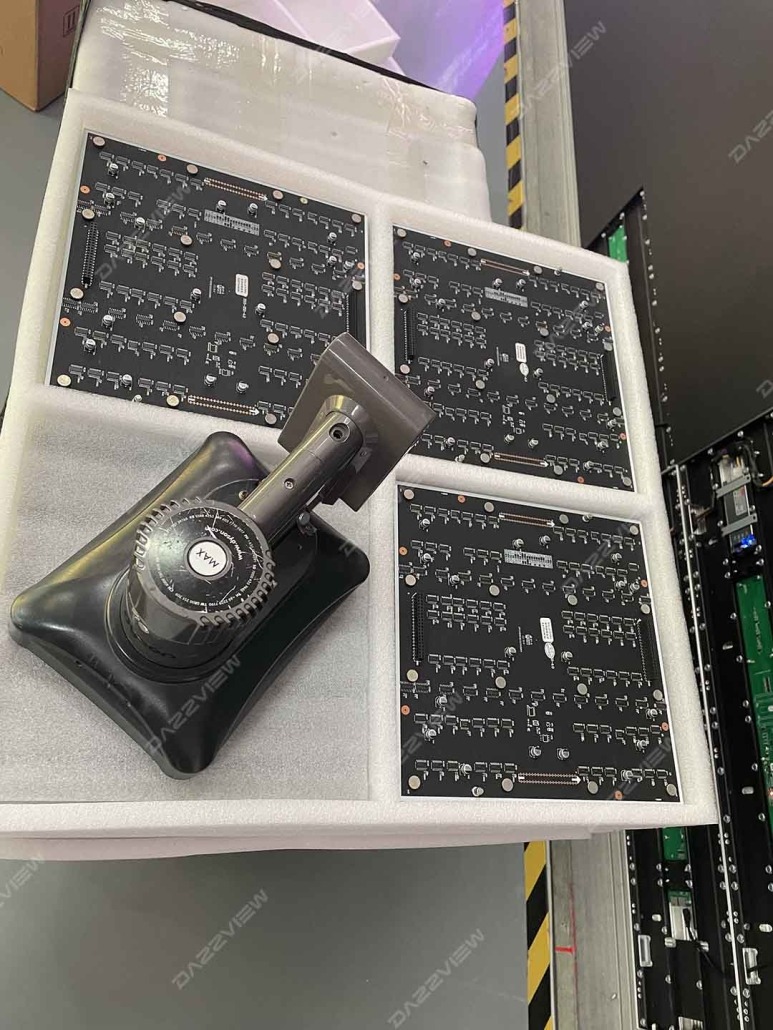

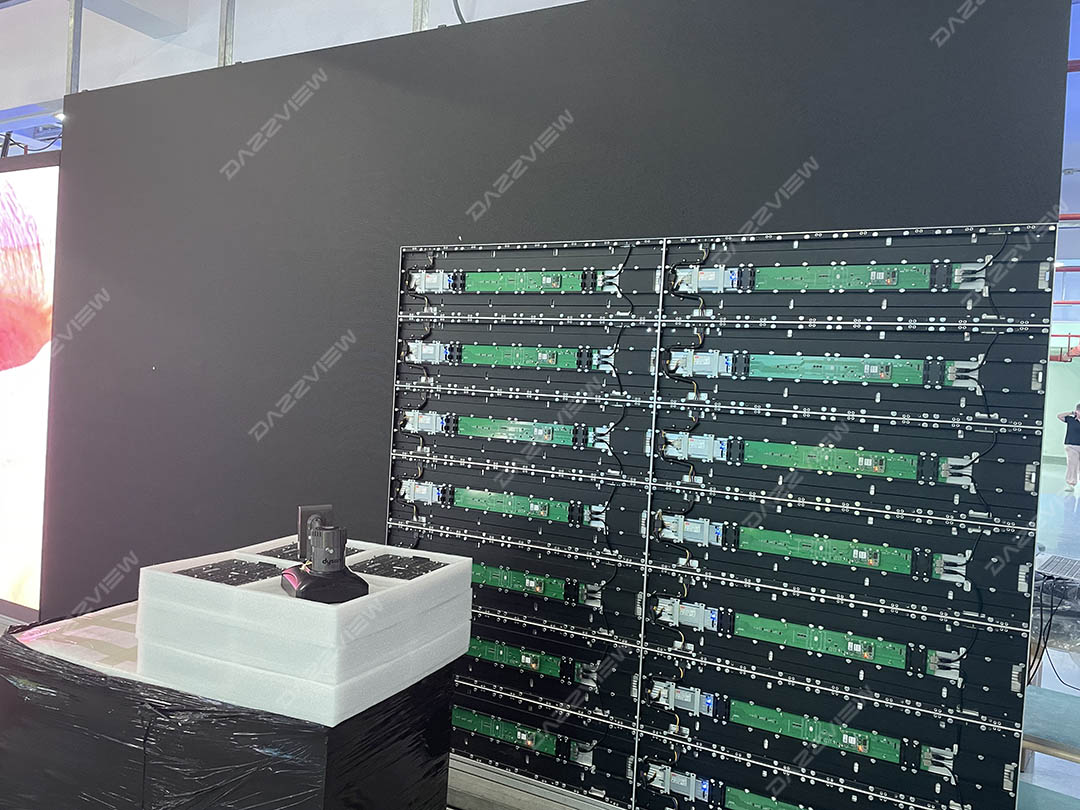

The module with magnets can be easily taken out from the front side with the front maintenance tool.

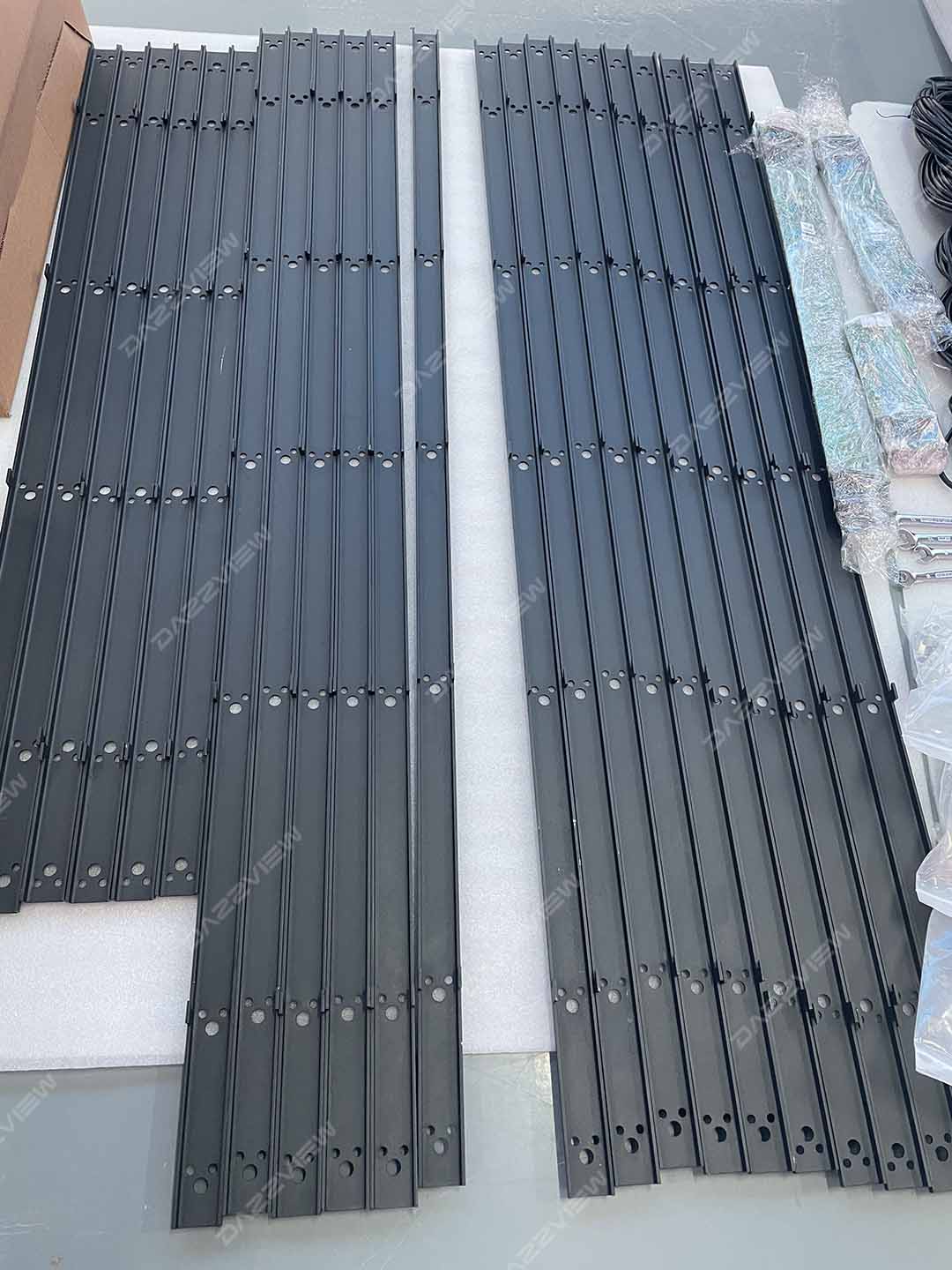

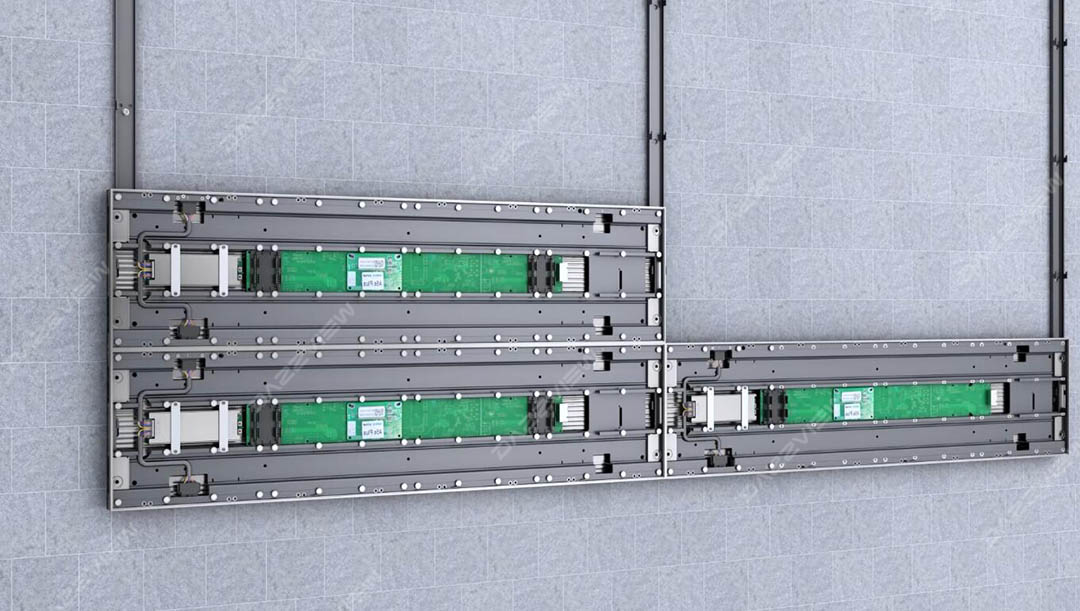

The brackets are easy to support the LED cabinet’s wall mounted. How to do the installation? First, fixed the bracket on the wall. Second, hang the LED cabinet on the bracket.

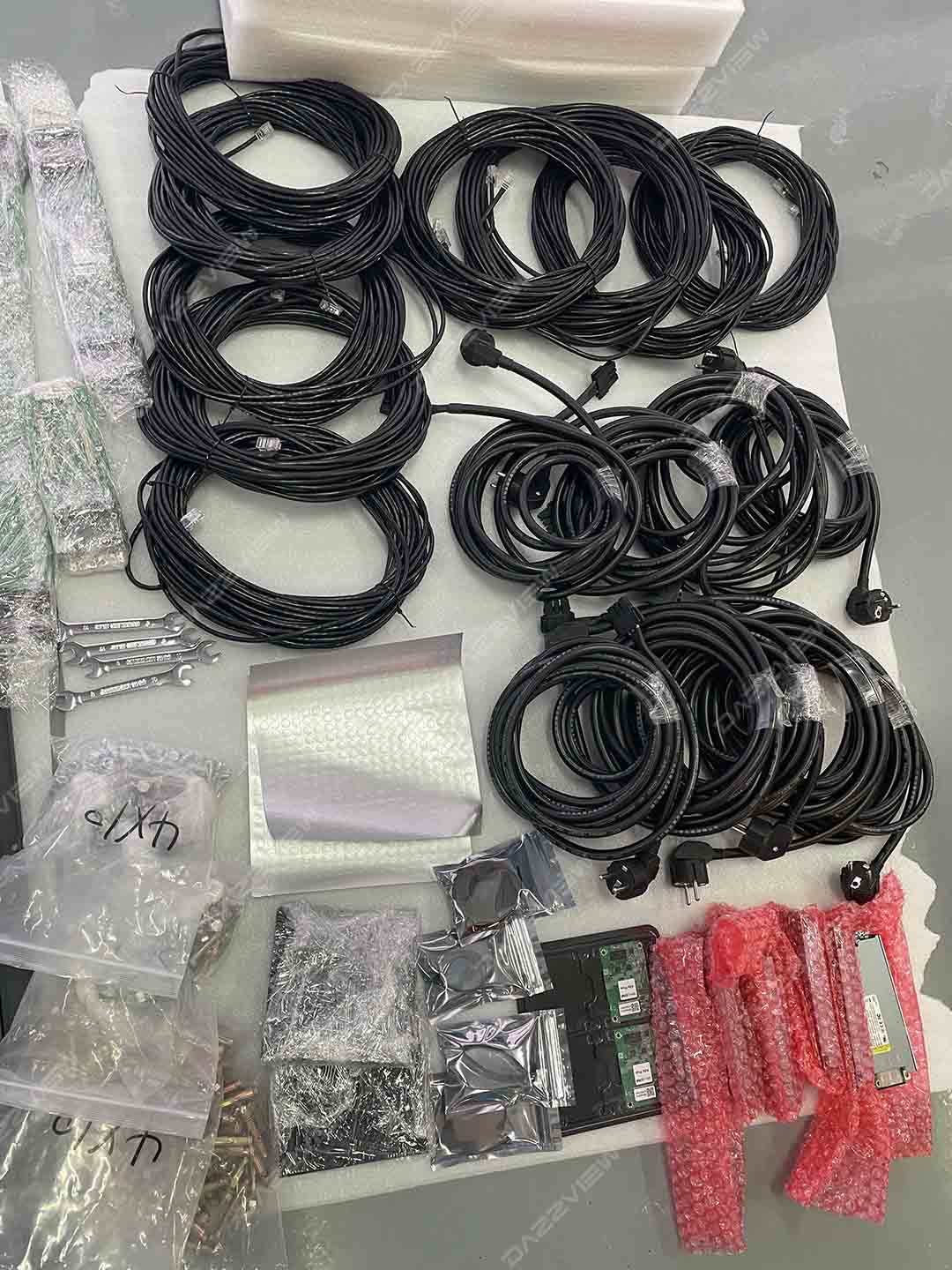

Also, the cables, screws are packed in one set.

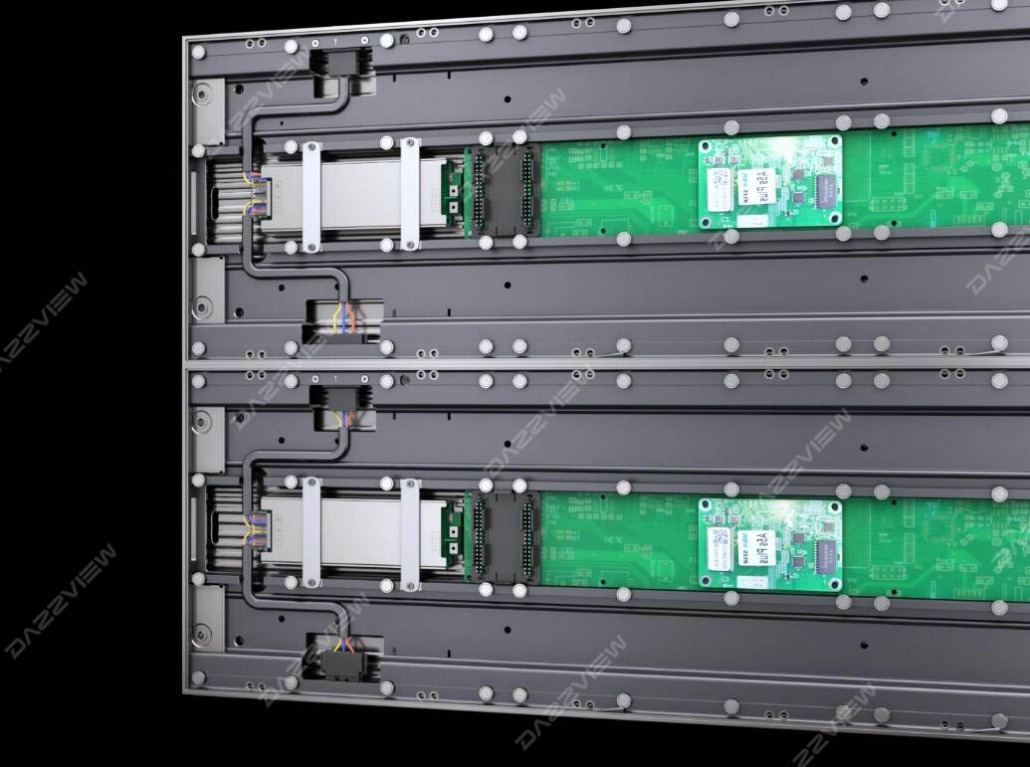

The cables between cabinets are easily to be connected.
The cabinets are easily for wall mounted with bracket support design. Fast installation, save the intallation time and cost.

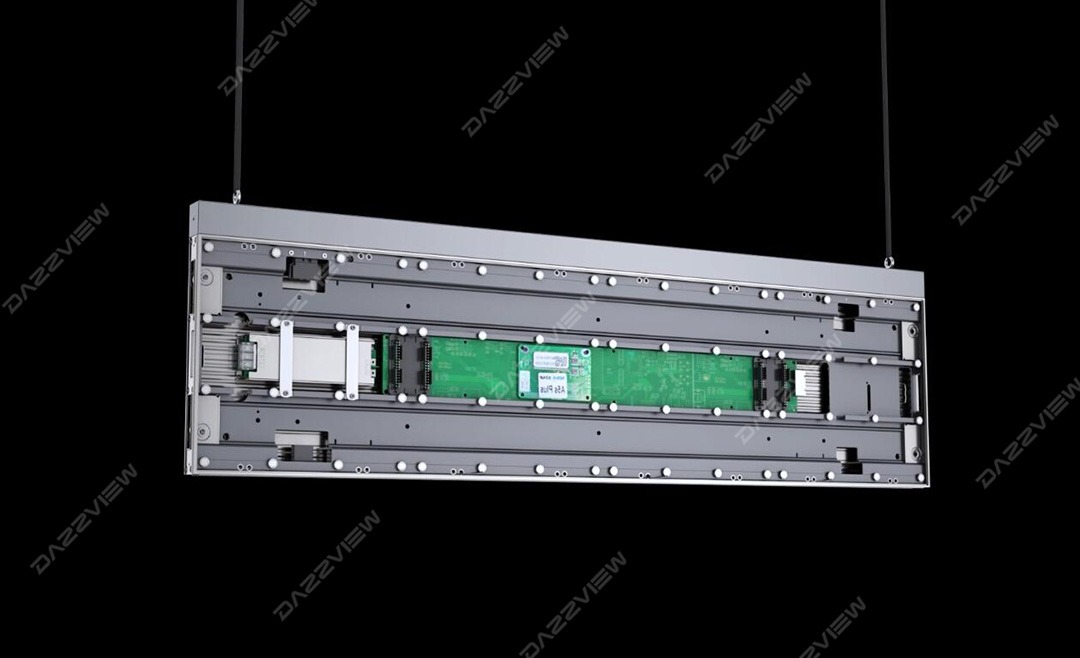

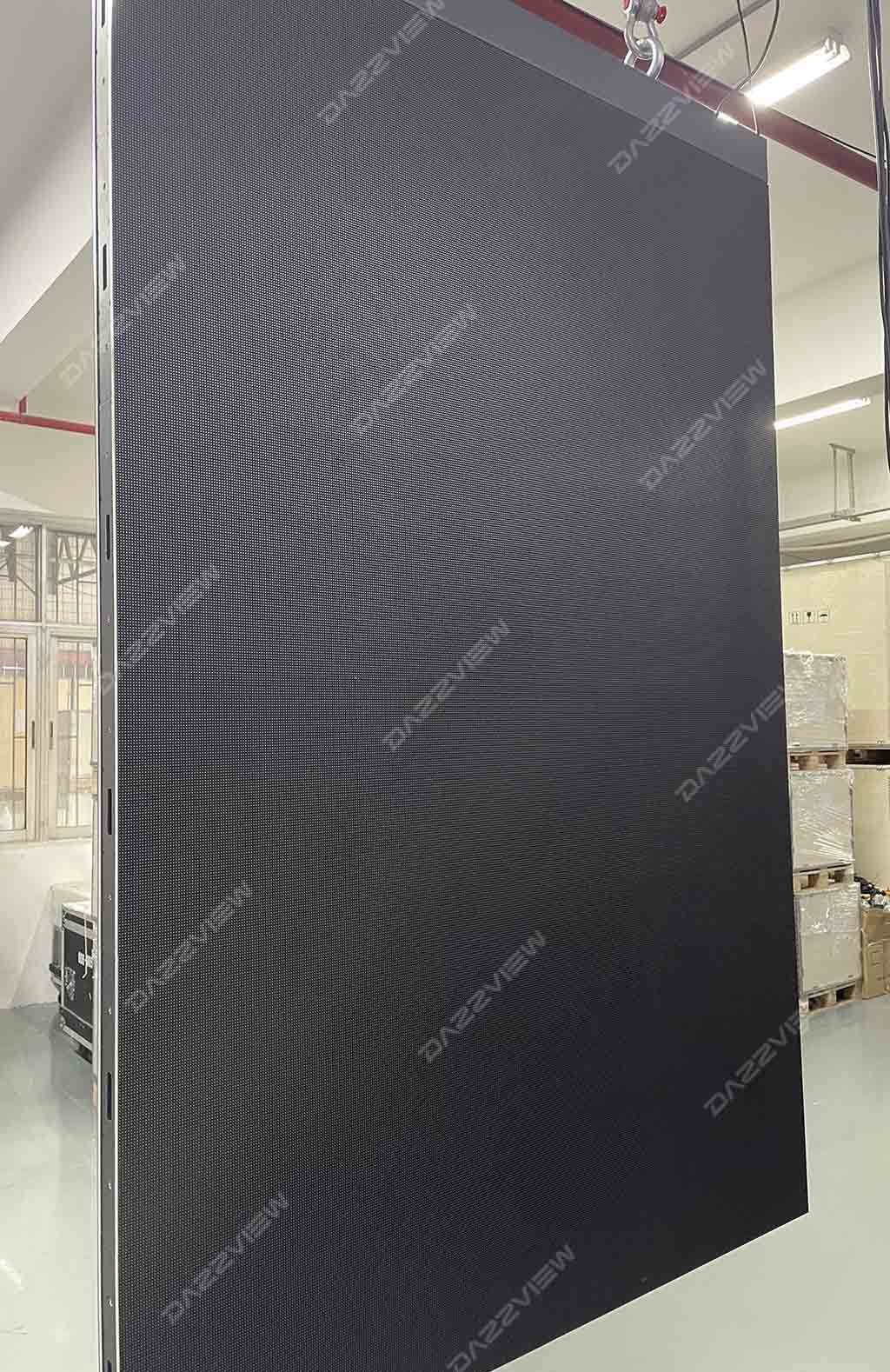

The cabinets can be easily hanged with the hanging bar. Also, double sides viewing are available.

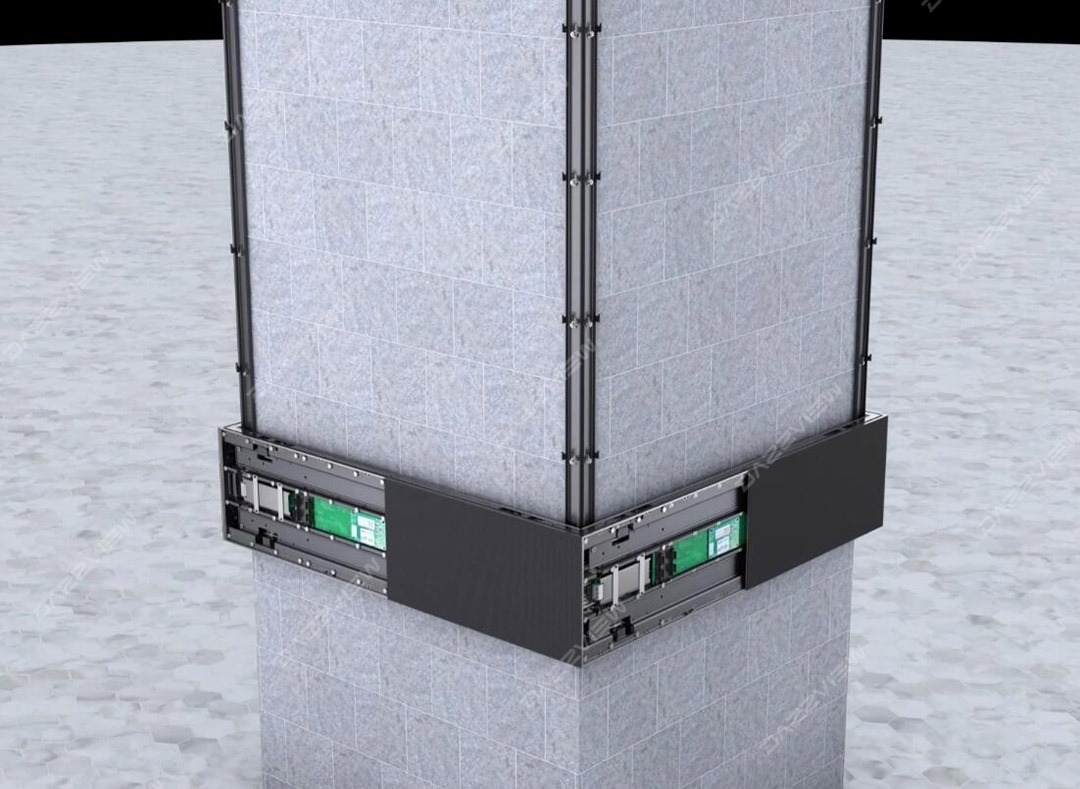

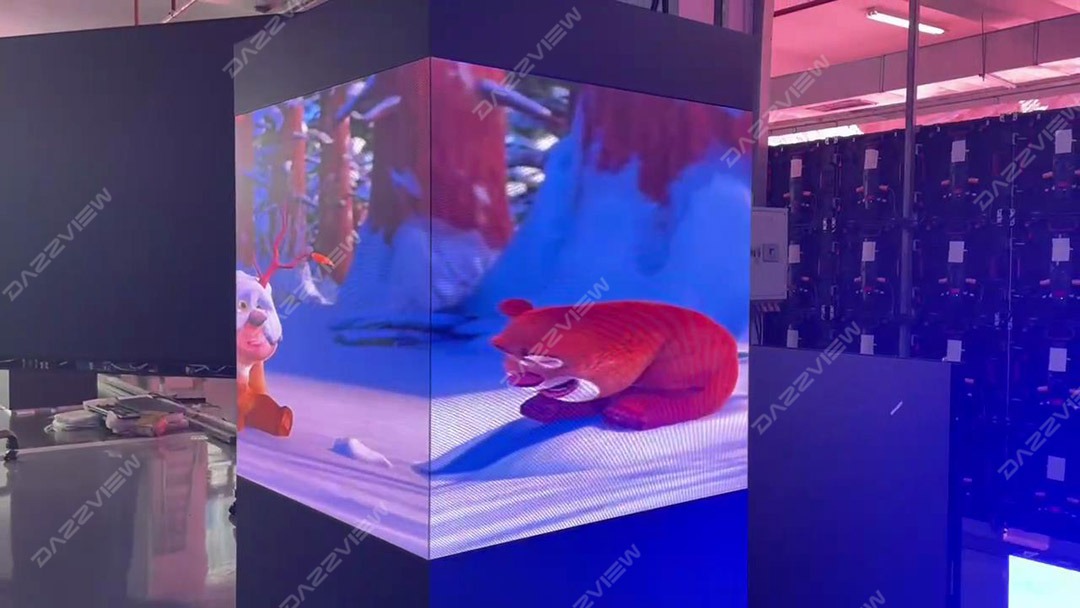

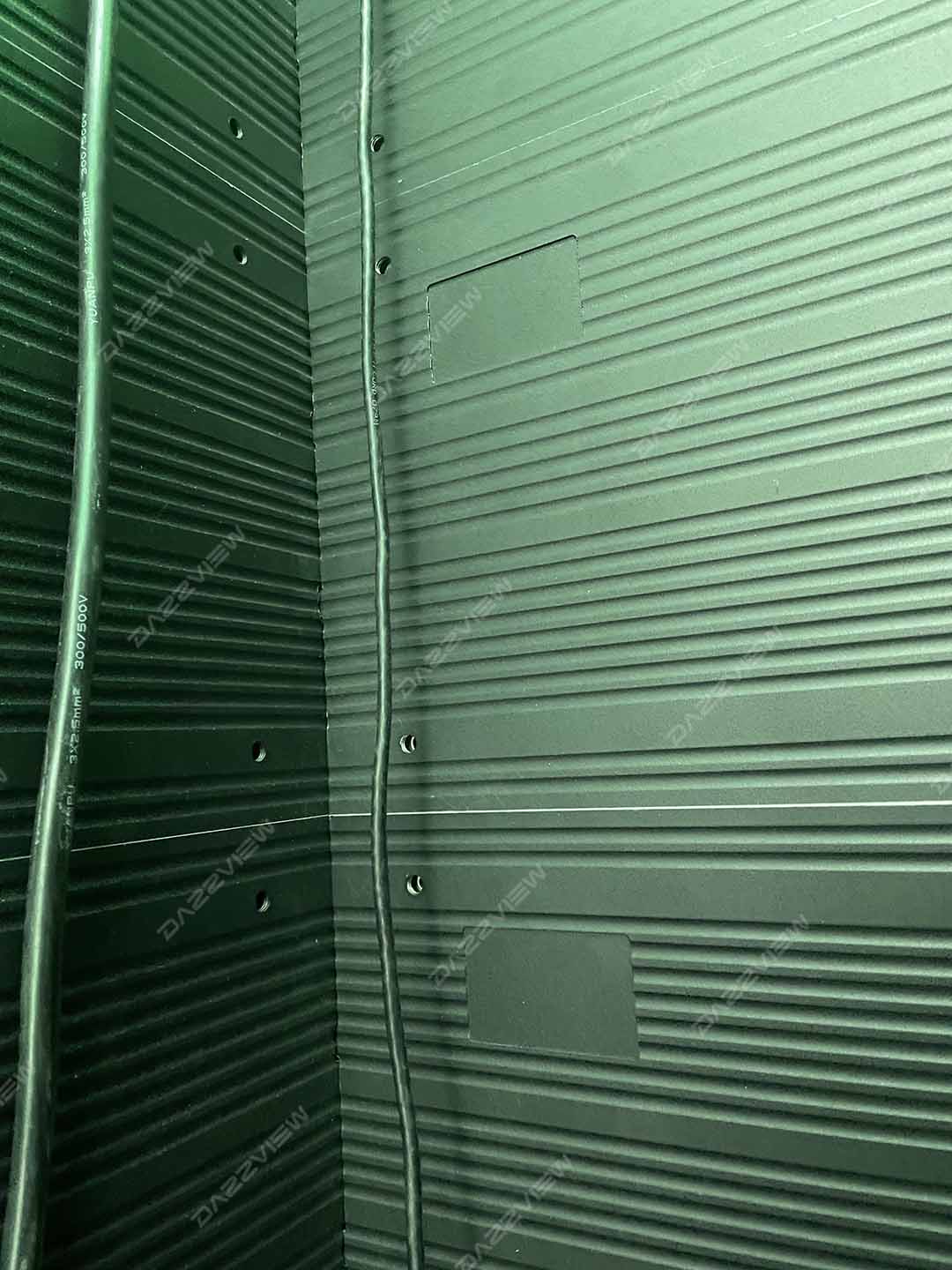

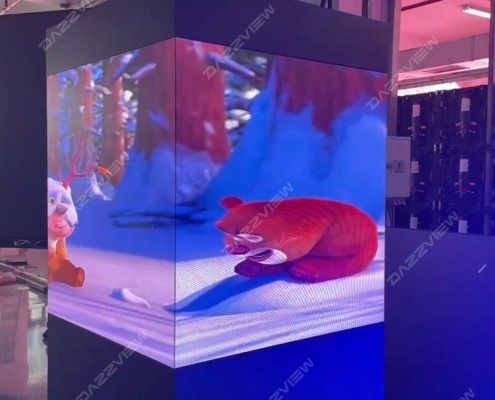

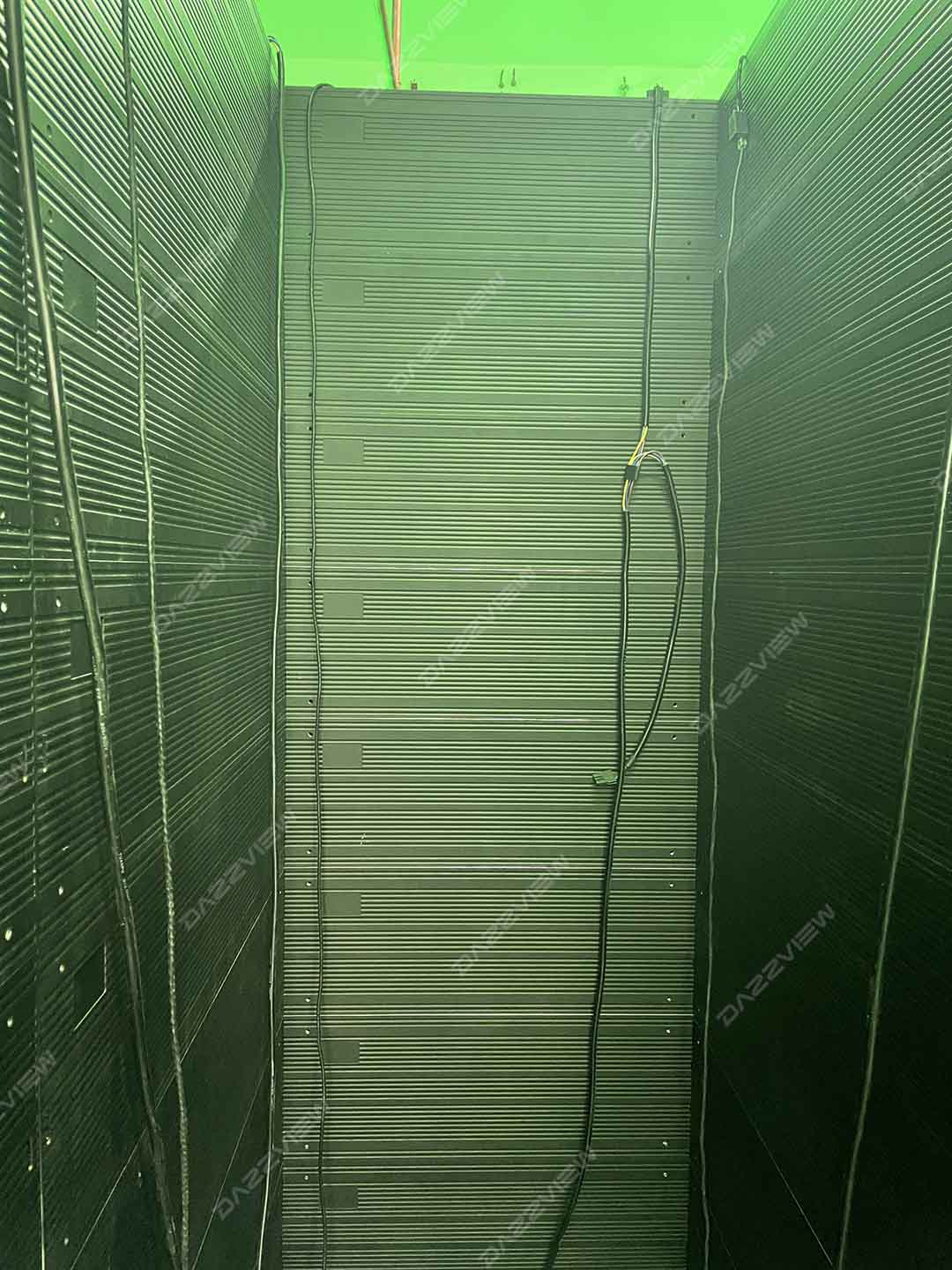

The cabinet can be mounted for the column with the corner design, the cabinet is made in 45 degrees cutting, so it’s easy to achieve 90 degrees corner function.

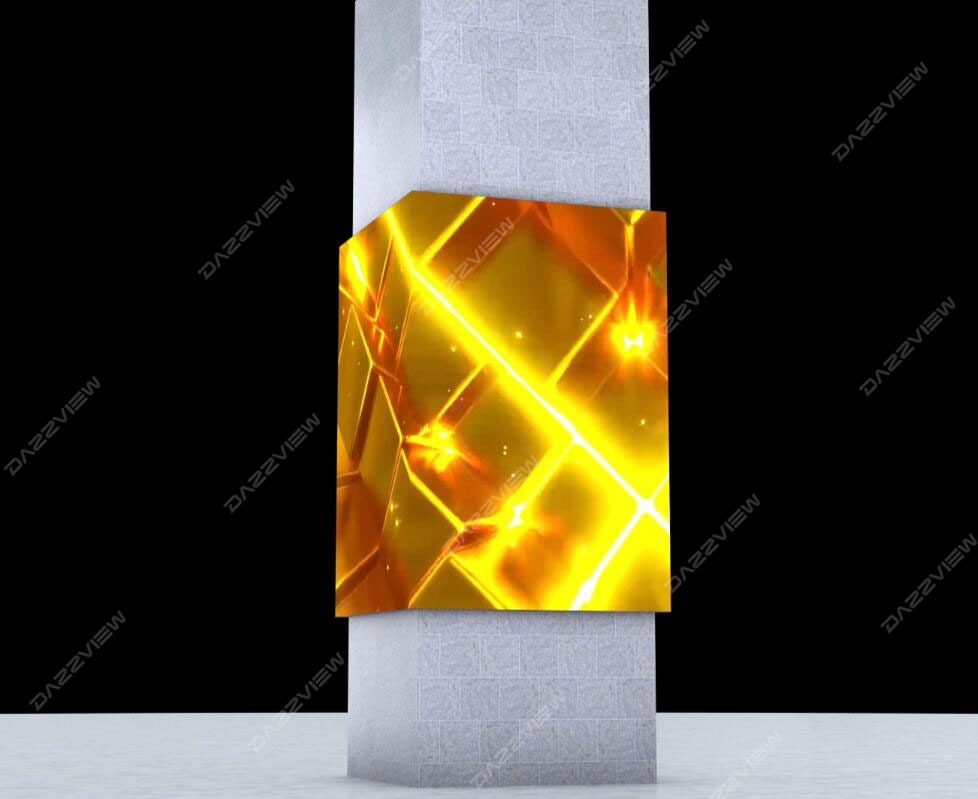

With the special 45 degrees cutting cabinet, the column LED display can be achieve, it’s widely used for digital signage in the mall, shopping center…

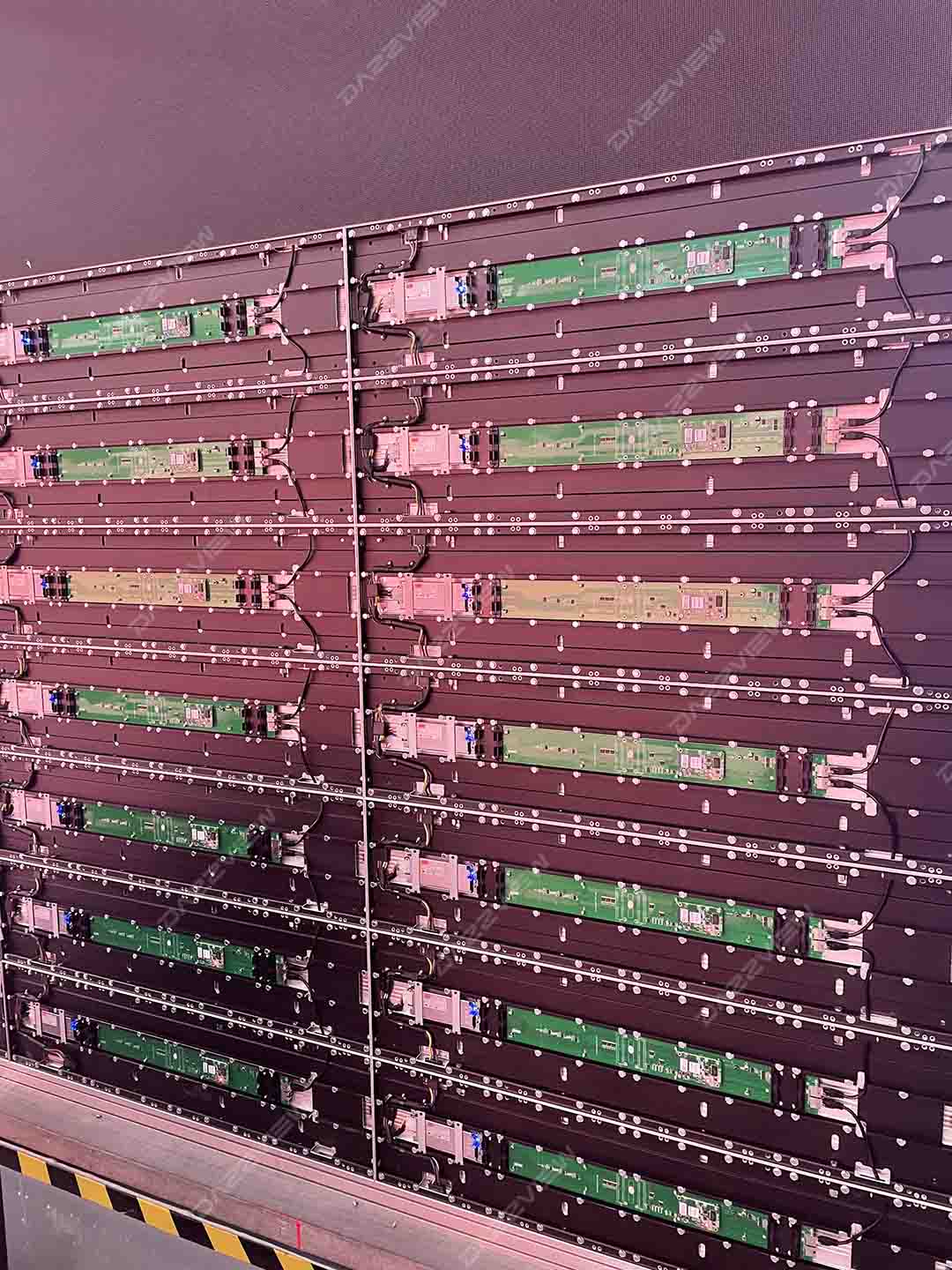

The wall mounted LED display screen Ding series is born for the high flatness video wall solution. The cabinet will be in aging test after assembly for the high quality control.
| Specification | ||||||||
| Model NO. | Ding1.9 | Ding2.5 | Ding2.9 | Ding3.9 | ||||
| Pixel Pitch | P1.953mm | 2.604mm | 2.976mm | 3.91mm | ||||
| LED Type | SMD1515 | SMD1515 | SMD1515 | SMD2020 | ||||
| Pixel configuration | 1R1G1B | |||||||
| Size of module(W*H) | 250mmx250mm | |||||||
| Resolution of module(W*H) | 128x128dot | 100x100dot | 84x84dot | 64x64dot | ||||
| Density | 262,144dots/㎡ | 160,000dots/㎡ | 112,896dots/㎡ | 65,536dots/㎡ | ||||
| Cabinet material | Die-Casing Aluminum | |||||||
| Size of cabinet(W*H)(mm) | 1000x250mm/750x250mm/500x250mm | |||||||
| Weight of cabinet | 5.8kg/4.4kg/2.9kg | |||||||
| Best viewing distance | >2m | >2.5m | >3m | >4m | ||||
| Best viewing angle | 140° | |||||||
| Brightness | 700-1000cd/㎡ | 800-1000cd/㎡ | 800-1000cd/㎡ | 1000cd/㎡ | ||||
| Maximum power consumption | 535W/㎡ | |||||||
| Average power consumption | 190W/㎡ | |||||||
| Driving method | 1/32 scanning | 1/25 scanning | 1/28 scanning | 1/16 scanning | ||||
| Gray scale | 16 bits | |||||||
| Refresh frequency | 3840Hz | |||||||
| IP grade | IP20/IP40 | |||||||
| Colors | 16777216 | |||||||
| Color temperature | 6500-9500k | |||||||
| Driving device | Constant current | |||||||
| Working voltage | AC220V/110V±10% | |||||||
| Working temperature | —20℃~50℃±10% | |||||||
| MTBF | >10,000 hours | |||||||
| Frame frequency | 60Hz | |||||||
| Life Span | 100,000 hours | |||||||
